Yeti SB165 MX Carbon Frame - DHX2 Factory - Spruce Gloss
Yeti SB165 MX Carbon Frame - DHX2 Factory - Spruce Gloss
Product ID: GM102425-56
Shop all Yeti | Shop all Full Suspension Frames
View full detailsDescription

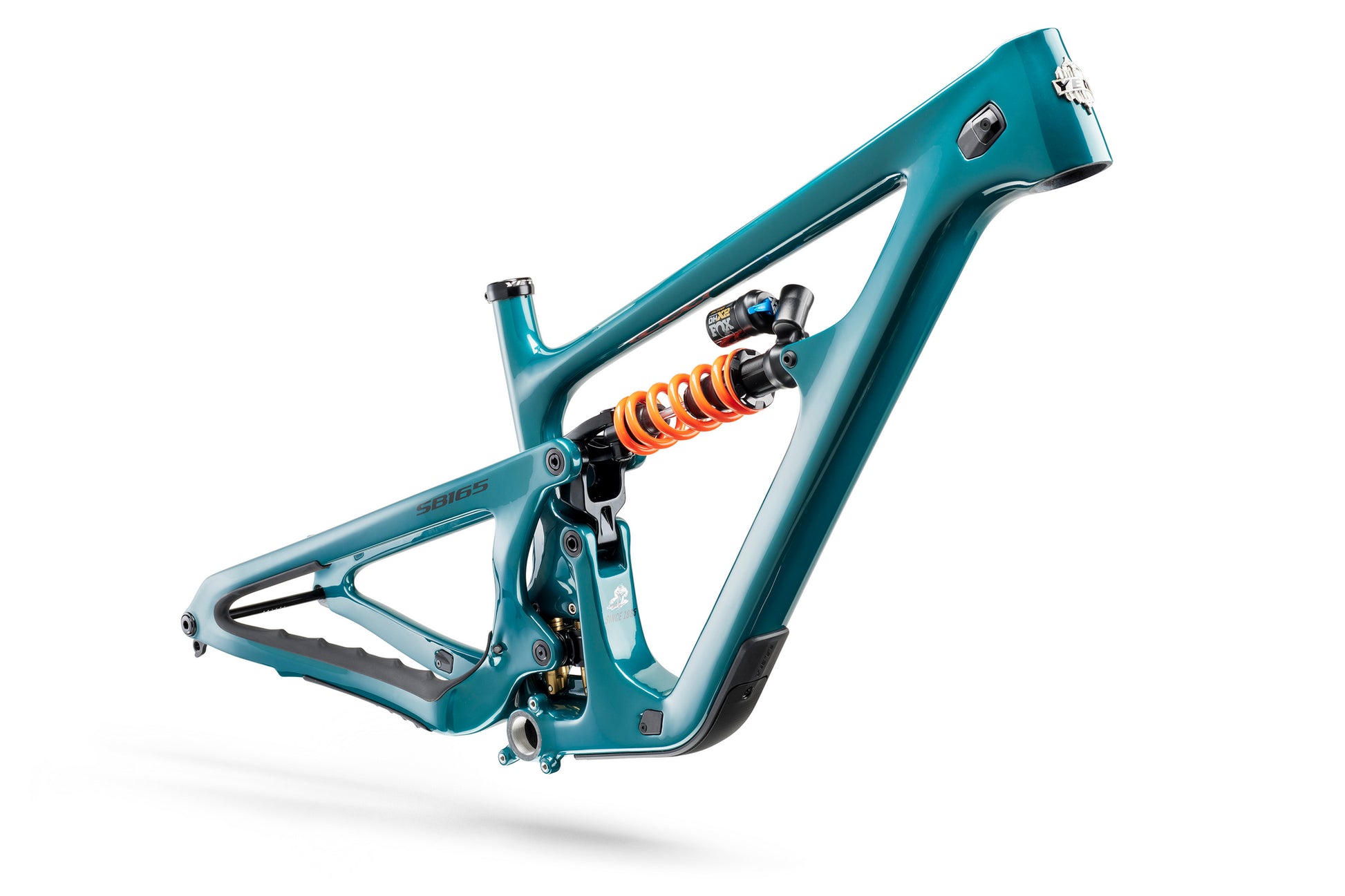

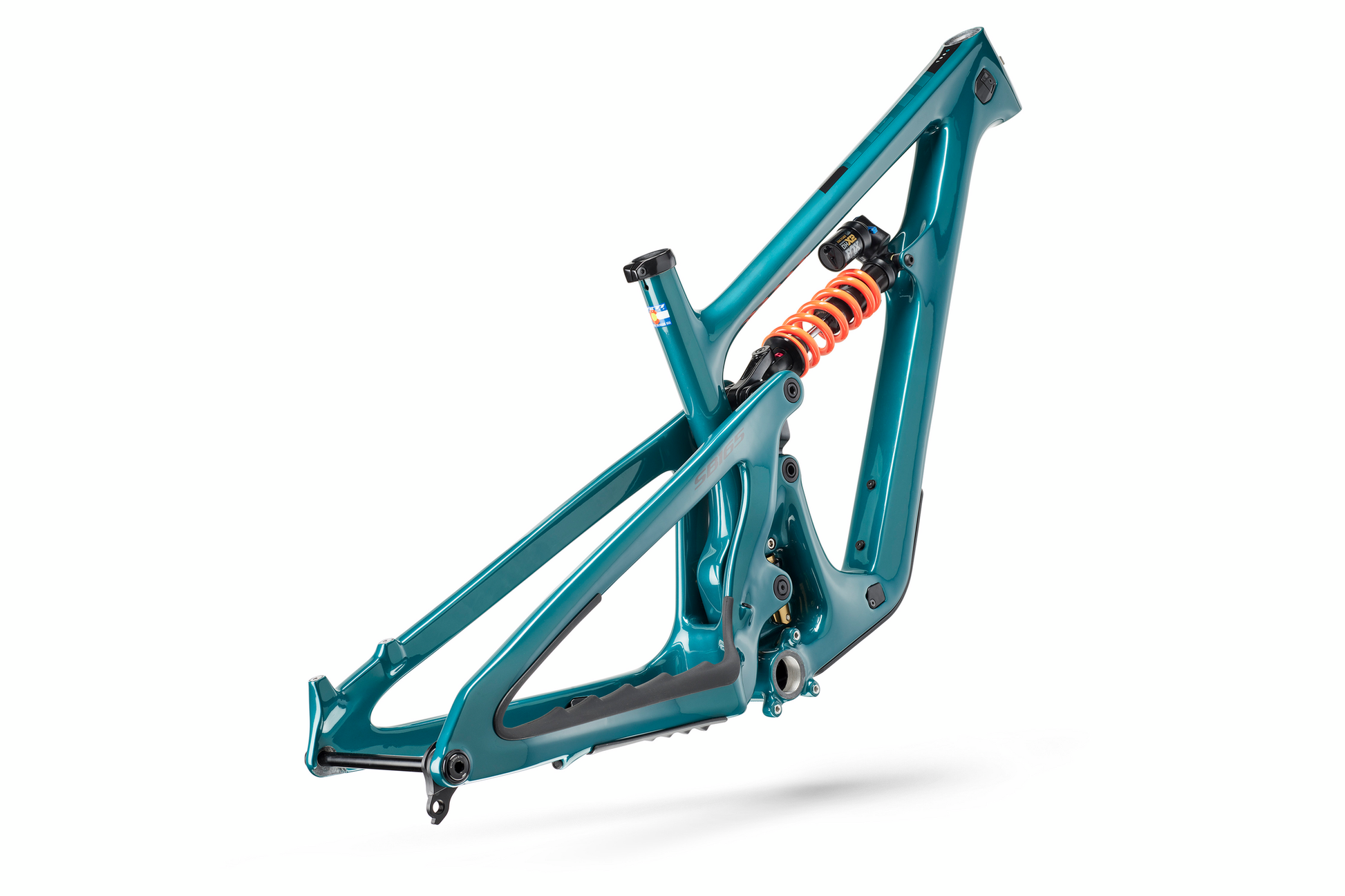

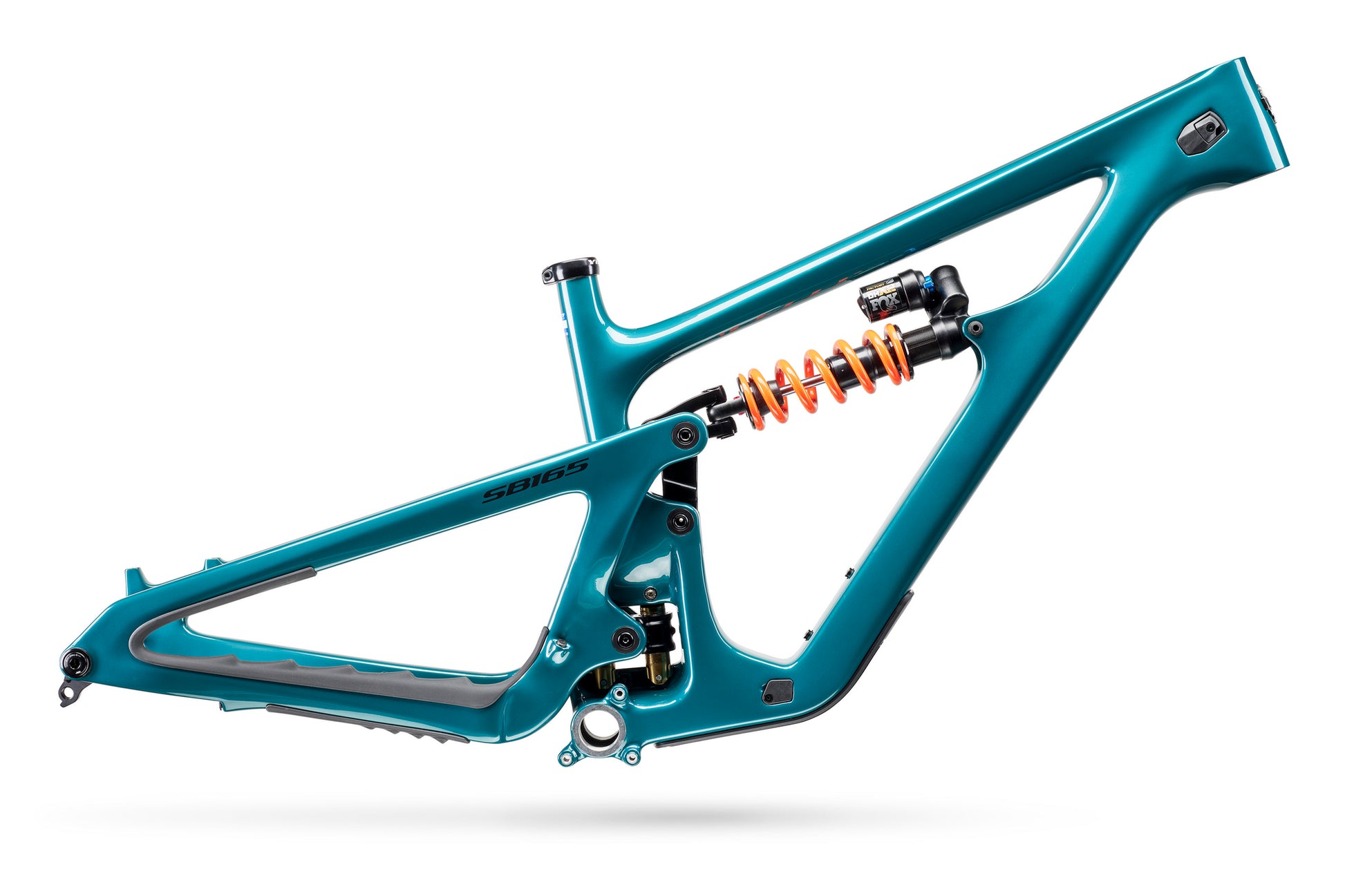

Yeti SB165 MX Carbon Frame - DHX2 Factory
Yeti SB165 Wherever.Whenever.However.Whatever
We said it already knows. And now it knows better, proven worthy time and again at rampage, reconfigured to fit the bill as zero-hesitation go-to for whatever your pleasure. Un-rack it for all the park laps, pedal it on character-building epics, push it up spooky steep darksides “nobody” knows about. Whatever the question, un-hard your decisions. You ask!. It gives!.
GET TO THE GRAVITY.
Sometimes the best zones are pedal access only. But trading long-travel capability to get there quickly? Uh, no thanks. The SB165 geo approach was about delivering a rig that rips and rails, but more importantly delivers when it’s big. And beyond big. How? Shorter chain stays put the forward bias a bit more on the back wheel to balance and exploit the benefits of mixed wheels. Steep seat tube and slack head tube? Check.
Un-hard your decisions.
Decide for the freedom of never being under-biked. Of pedaling to legendary trails that can’t be reached otherwise. Of never wondering if the bike can handle whatever you come across. As long as you can.
TURQ Series
TURQ Series bikes are made with the highest quality carbon fiber available and offer the perfect balance of stiffness and compliance. The result is a bike that feels smooth, solid and aggressive. Every bike is tested by the best racers in the world, including EWS World Champion Richie Rude, our in-house testing team and ambassadors around the world.
TURQ-225 Grams Lighter
- HIGHEST QUALITY CARBON FIBER AVAILABLE
- PERFECT BALANCE OF STIFFNESS & COMPLIANCE
- OPTIMIZED LAYUP REDUCES WEIGHT
- DURABILITY TESTED BY RICHIE “F-ING” RUDE
Key Details:
Switch infinity. Recalculated
Discover the next-generation of translating pivot suspension designs. Setting new expectations for kinematics, longevity, sensitivity, and strength.
Custom Coil Kinematics.
Progressive suspension kinematics tuned specifically for a coil shock give incredible small bump sensitivity and proper bottom out support. Team input and race intelligence leveraged for a shock tune that maximizes Switch Infinity and remains active, lively, and ready for the inevitable “oh shit” hits.
Hello New School
A refined main frame and swingarm silhouette that does more than just look sweet. It packages Switch Infinity and its linkage in a tighter, more efficient space, for added impact and ground clearance, along with increased holistic chassis stiffness.
Consistency No Matter the Size
To give each size of the SB165 the same torsional stiffness, each frame has its own carbon layup. This is extra important for the SB165, due to the kind of aggressive riding it will encounter. We simply can’t afford to let flex affect suspension components with binding, premature wear, or small bump sensitivity reduction. And it’s vital to give every rider the same frame feel, regardless of frame size.
Speed Metal.
Our new pivot designs use 100% standard sized cartridge bearings secured with precision machined floating collet axles. All bearings are pressed into the linkage assembly vs the swingarm or front triangle.
Leverage Rate. Progressivity 22%
Still the most progressive rate in our lineup, with a refined curve for mid-stroke composure when slashing turns, loading the bike for more versatility on more terrain.
Cable Management.
Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.
Compact Switch Case
We minimized the frame structure surrounding Switch Infinity to boost frame stiffness, reduce weight, increase ground clearance, and leave more room for hydration.
Threaded BB.
Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.
Universally Ready.
If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.
Patented Wishbone
Patented, two-piece shock wishbone optimizes leverage rate while moving the shock forward in the frame. This positioning allows for a greater range of shock compatibility, decreases stand-over height, reduces shock tab sizes, increases water bottle compatibility, and boosts downtube clearance. Also makes shock removal quick and easy.
Specifications:
Details
TURQ Carbon Frame, Fox Factory DHX2, Available only at your local dealer
Frame
TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Material
TURQ SERIES
Weight
8.67
Travel
165MM (6.5")
Rear Shock
FOX FACTORY DHX2 2 POS LEVER
