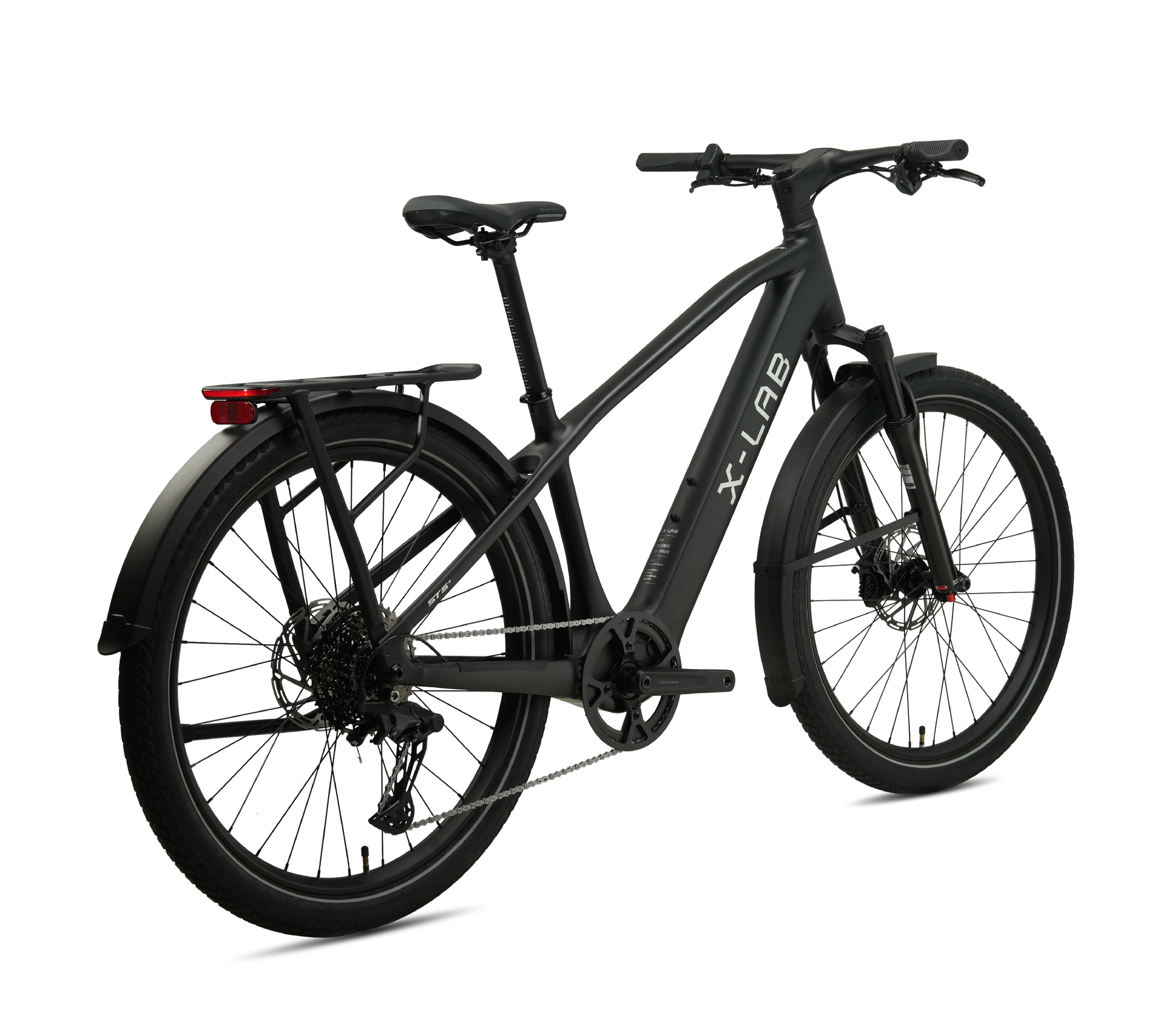

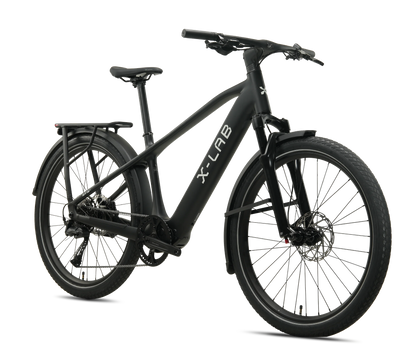

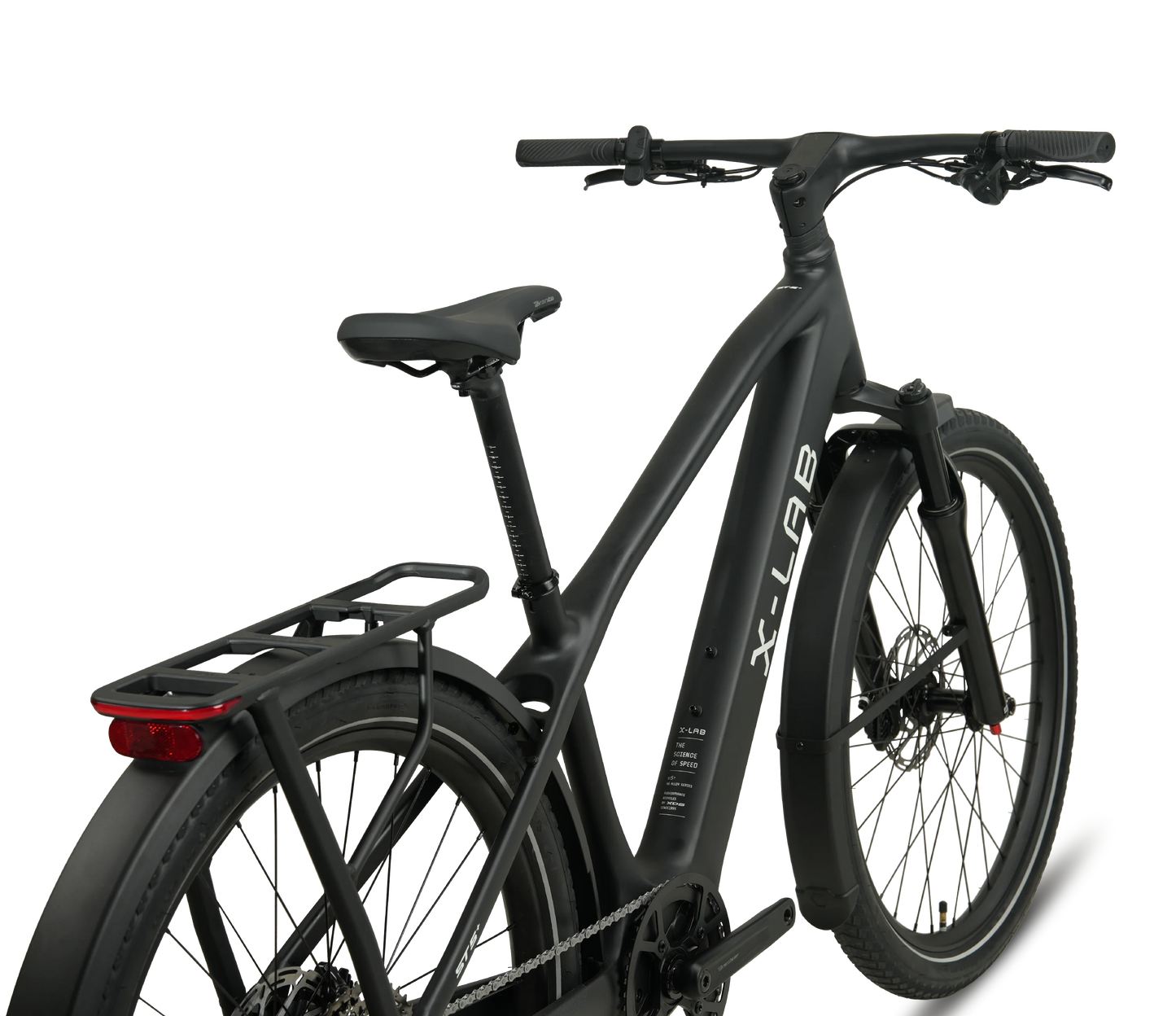

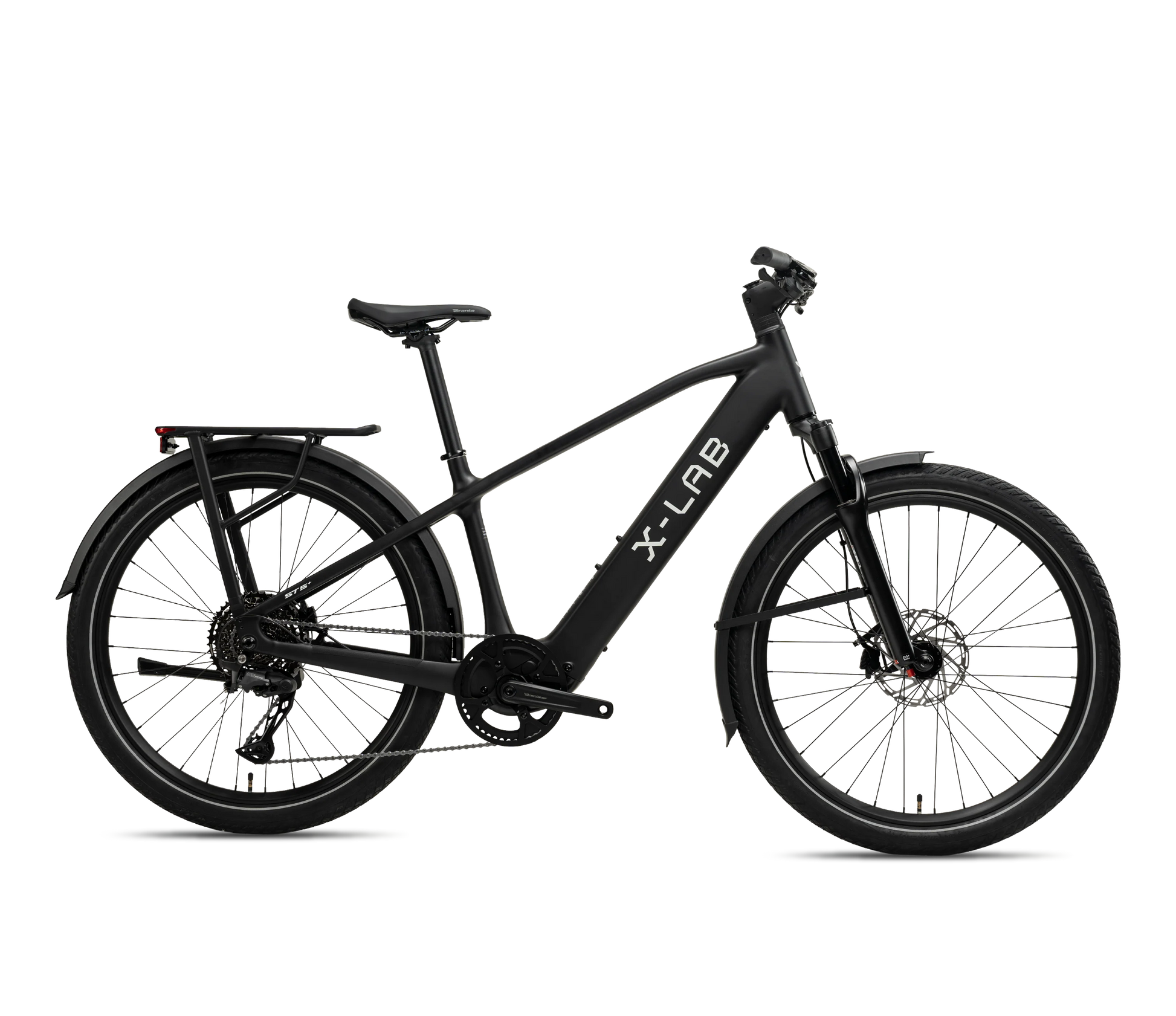

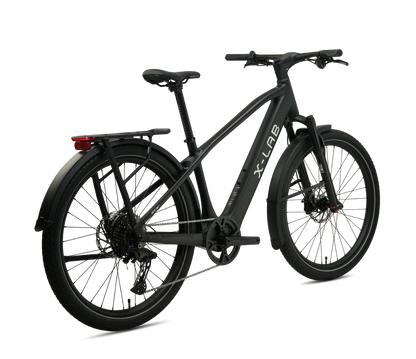

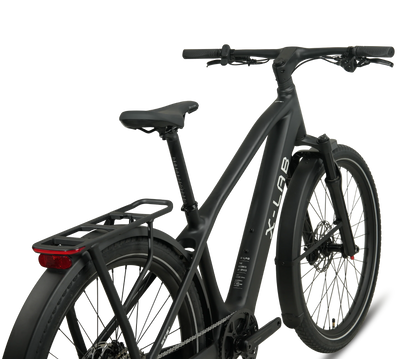

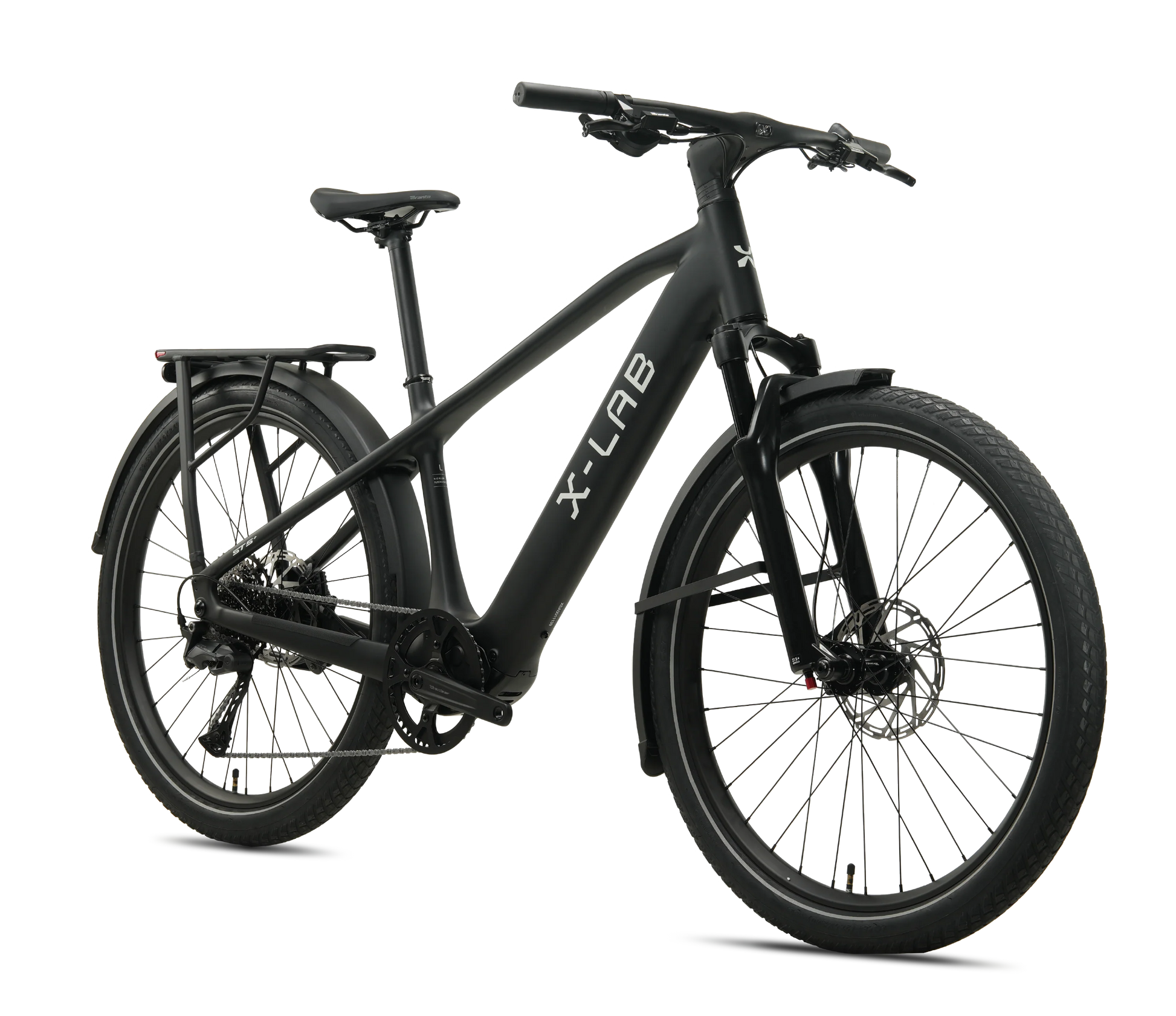

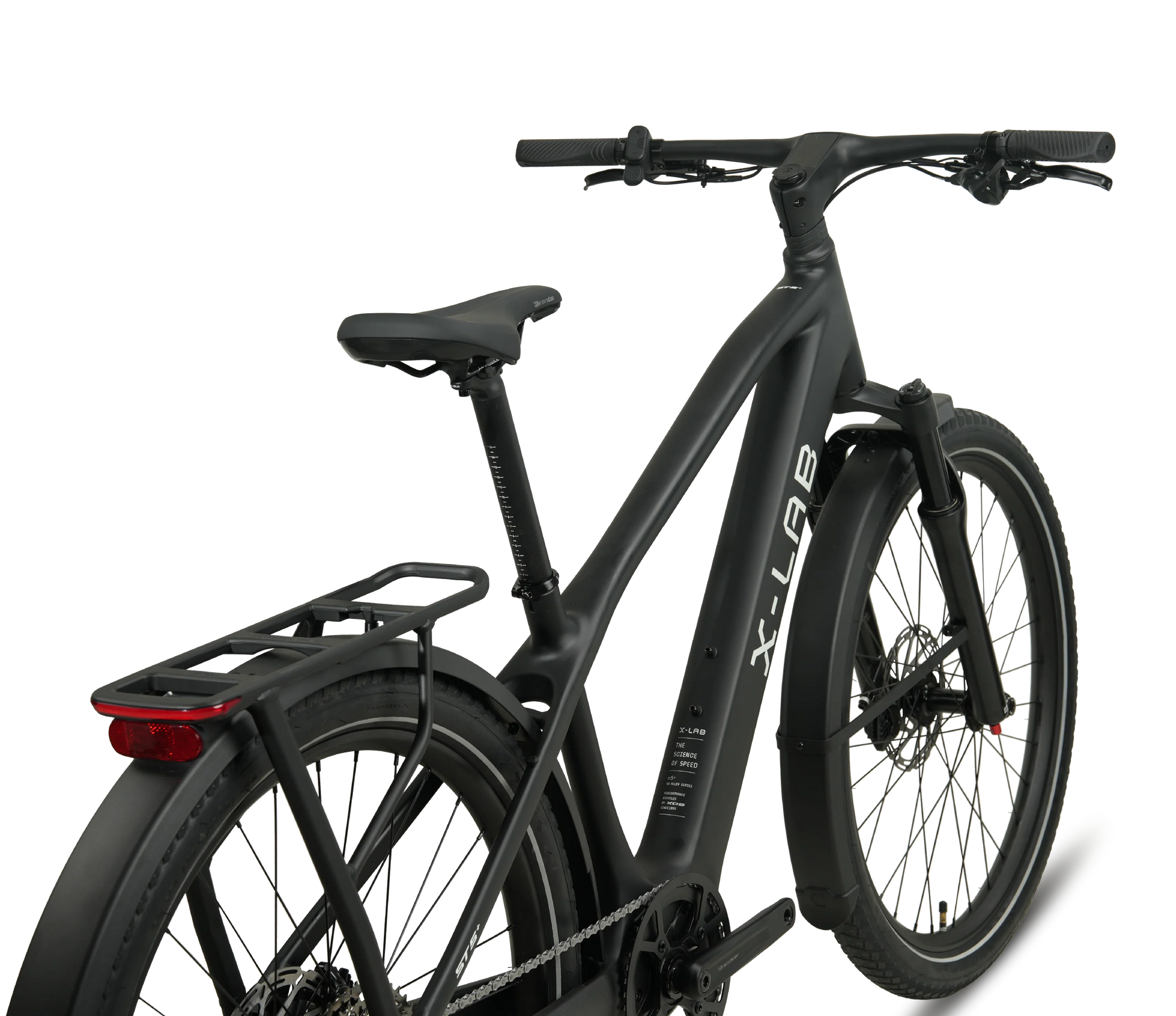

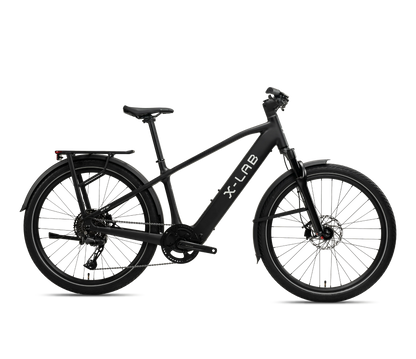

X-Lab ST5+ 27.5 - Nightfall Black
X-Lab ST5+ 27.5 - Nightfall Black
Product ID: GM050526-59
Shop all X-Lab | Shop all Commuter & Leisure Bikes
View full detailsDescription
X-Lab ST5+ 27.5
The ST5+ brings X-LAB engineering to modern urban mobility.
Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ delivers smooth acceleration, confident handling, and the comfort needed for everyday riding.
Designed for riders who want more from their city bike, the ST5+ makes commuting faster, cleaner, and far more enjoyable.
From daily travel to spontaneous detours, the ST5+ transforms the way you move through the city.
Key Features
- "This is the one for replacing car trips..." - BikeRumor
- Mid-Drive utility machine that's commuter ready
- 619Wh battery + up to 75+ mile range
- Torque for real hills and real loads

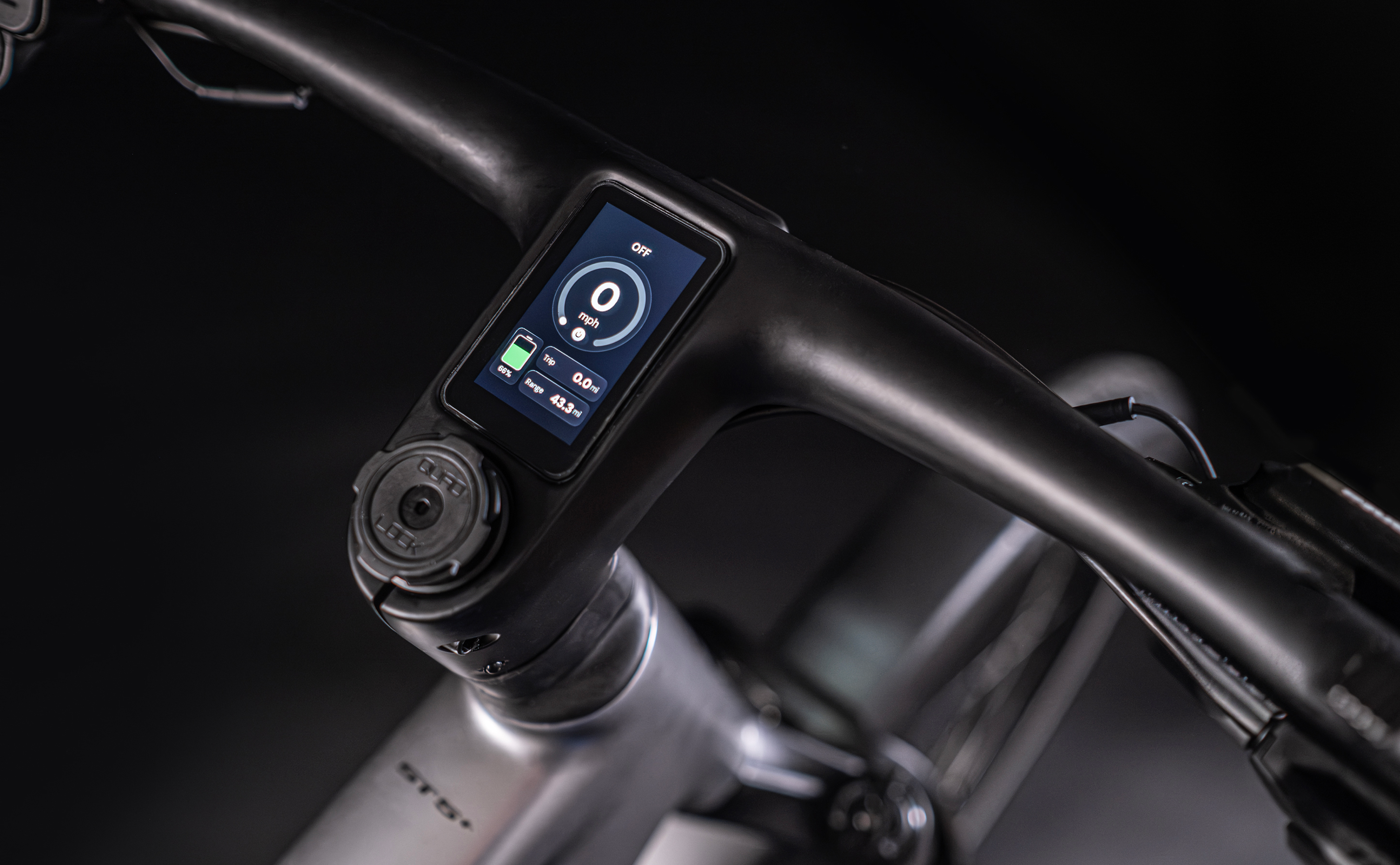

The Mission Command Center
A fully integrated cockpit with an accessible color dashboard puts speed, range, assist mode, and ride data right where you need it – simple to read, effortless to use, and built for everyday reliability and adjustments.
Built Tough, Ride Smooth

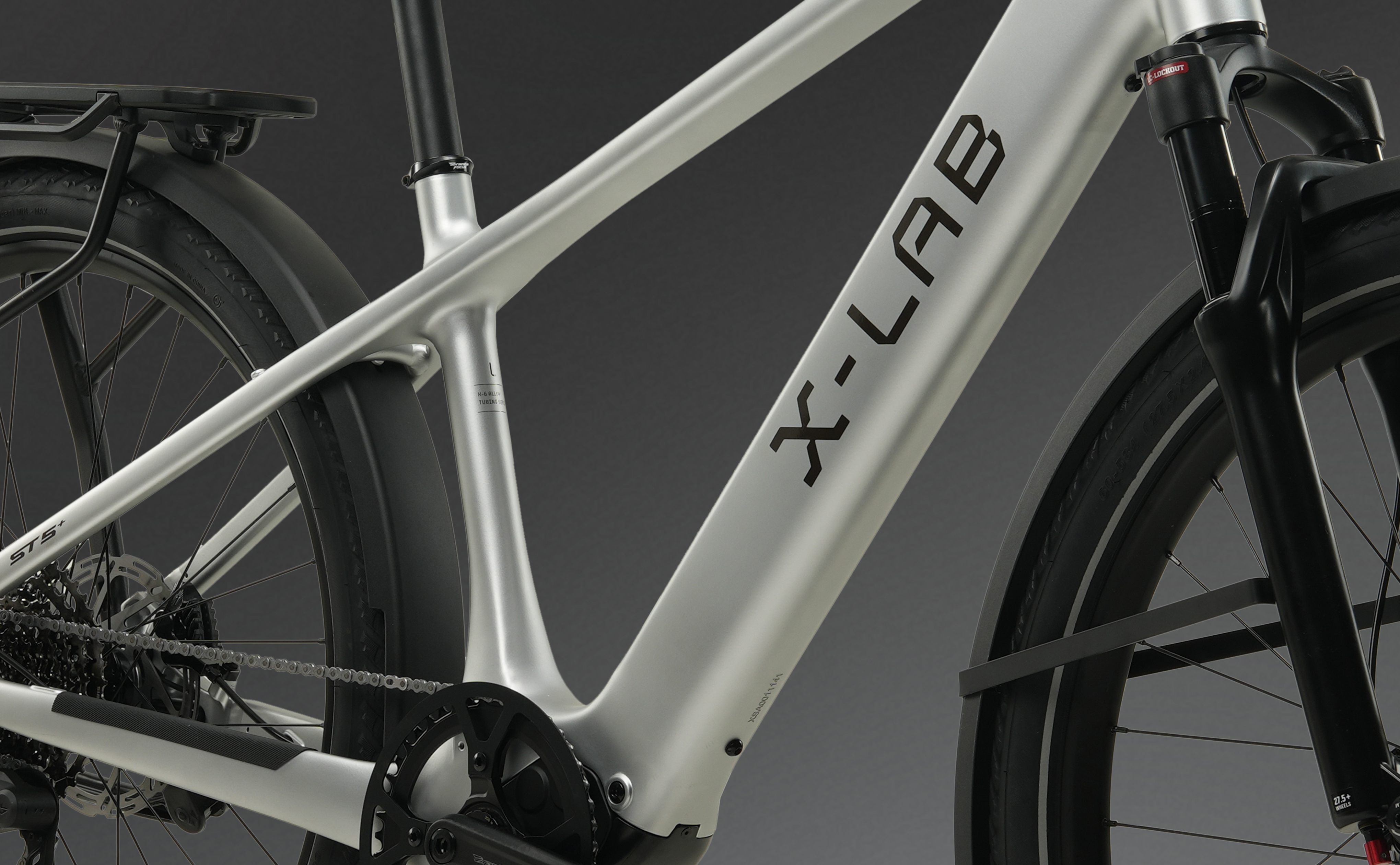

A durable alloy frame and a complete build around 54 lbs delivers stability and confidence that prepares the rider for commutes, errands, and long rides with real utility in mind.
Mid-Drive Power Engineered In-House
A mid-drive system tuned as a complete platform with torque where it counts, smarter control, and an integrated Branta ecosystem designed for a better ride feel and easier long-term performance.
All-Inclusive Security + Updates
ST5+ doesn’t stop at hardware: with Find My and the X-LAB Bikes app, you get security, ride customization, diagnostics, and over-the-air updates, so your bike stays current, protected, and ready for every day.
Specifications
| Feature | Details |
|---|---|
| Frame | XDS X6 Alloy Frame, UDH Compatible |
| Fork | XDS Suspension Fork, Coil Spring, 80mm Travel, 110x15mm Thru-axle |
| Handlebar / Stem | Branta Alloy Integrated, with Display & Front Light, 680mm Width, 90mm Length, 6° Rise, 15° Backsweep |
| Seatpost | XDS 31.6mm Alloy Seatpost, 350mm Length |
| Rear Derailleur | Shimano Cues RD-U4000, 9-Speed |
| Shifter | Shimano Cues 9-Speed |
| Brakes | Branta EC4D Hydraulic E-Bike Brake, Cutoff Switch, 3 Finger Lever, 4 Piston Caliper |
| Cassette | Shimano CS-LG300 11-46T, 9-Speed |
| Crankset | Branta Alloy Crankset, 46T, Narrow-wide Teeth |
| Motor | XDS Mid-drive X800, 250W Continuous, 470W Peak, 95Nm Torque, Dual-sided Torque Sensor |
| Battery | XDS Rechargeable Li-ion, 619Wh, LG Cells, 3A Charger (0-100% in 5 hrs) |
| Lights | Integrated Front & Rear Lights (+ Brake Lights) |
| Speed | Pedal-assist & Throttle, Class 2 20mph (Unlock to Class 3 via App) |
| Range | Up to 75 miles per charge |
| Testing & Compliance | UL2271 & UL2849 Certified, IP54 Bike, IPX7 Battery, IPX6 Electronics |
| Load Capacity | 330 lbs (150 kg) |
| Connectivity | Apple Find My, Bluetooth, OTA Updates |
| Rotors | Branta PN28, F & R: 180mm |
| Chain | KMC E-GLIDE-S |
| Wheelset | Branta Alloy E-Bike Wheelset |
| Tires | CST CTC-06, 27.5” x 2.4”, 30 TPI, Reflective Stripe, Max Clearance: 2.4" |
| Saddle | Branta C301 |
| Phone Holder | Quad Lock Mount |
| Rear Rack | MIK-HD Rack |
| Weight | 24.76 kg / 54.58 lbs (Size L) |
| Size Options | M / L |
