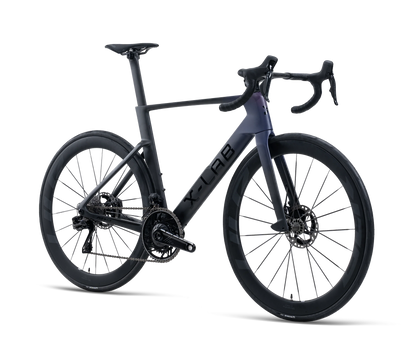

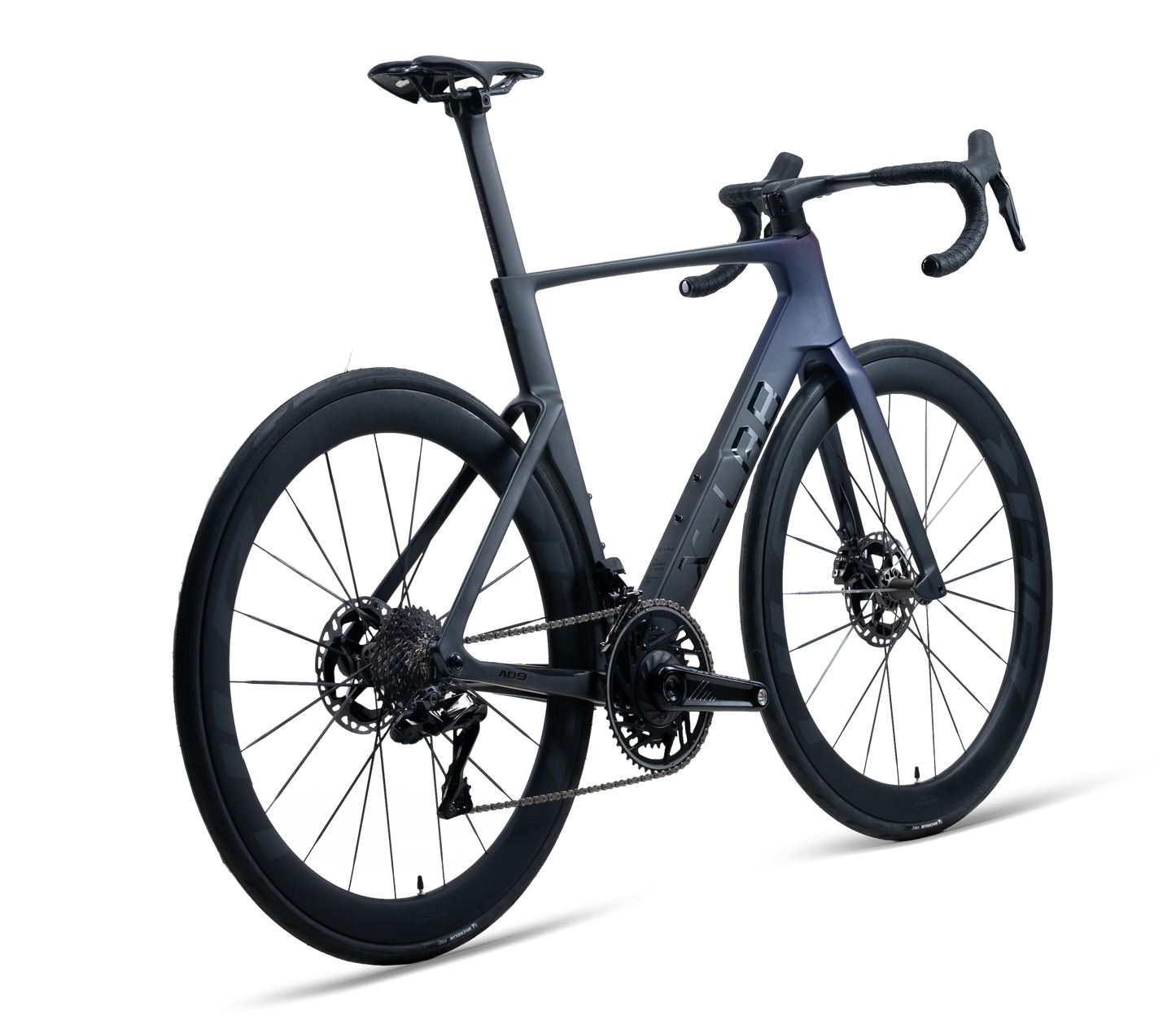

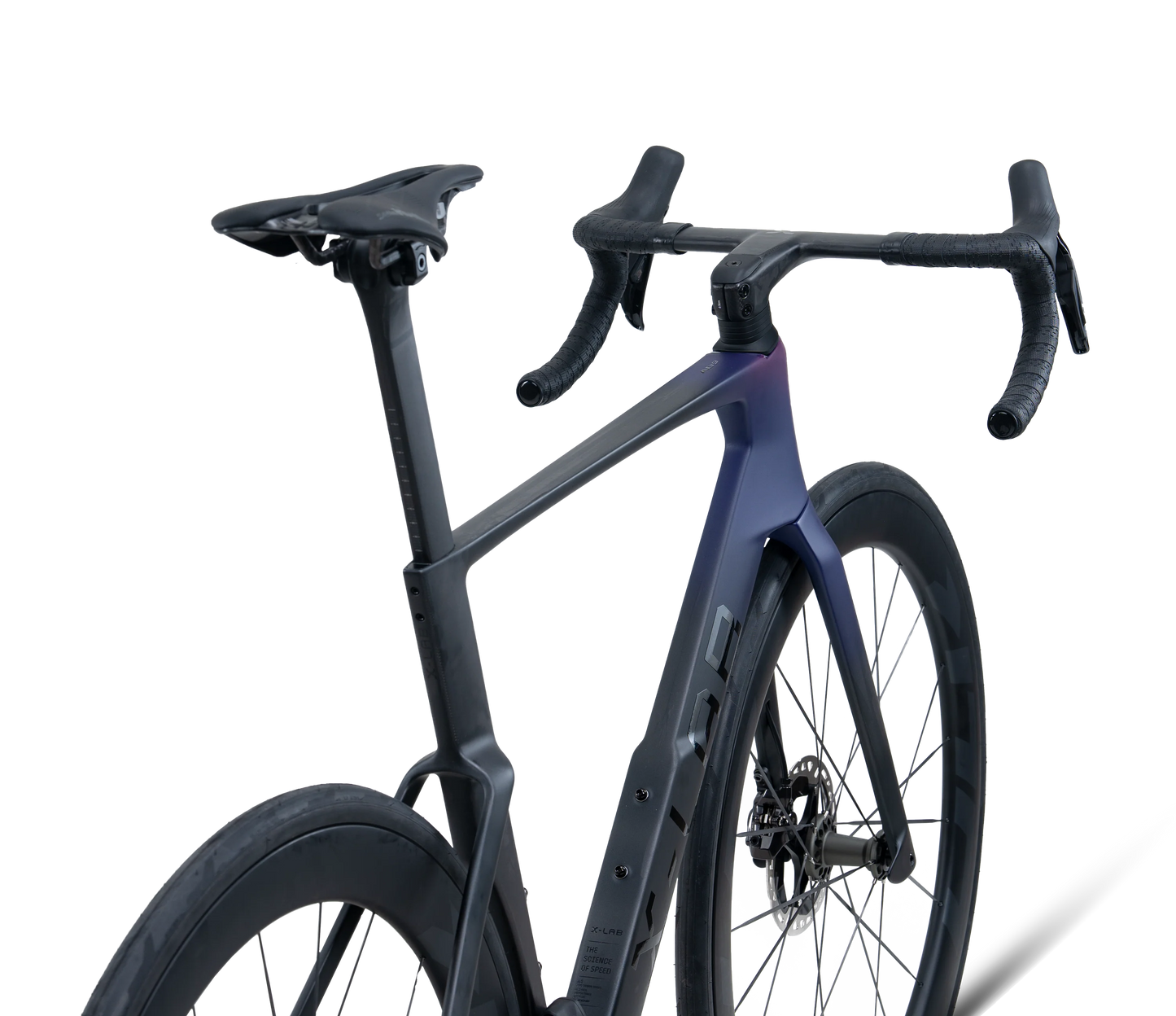

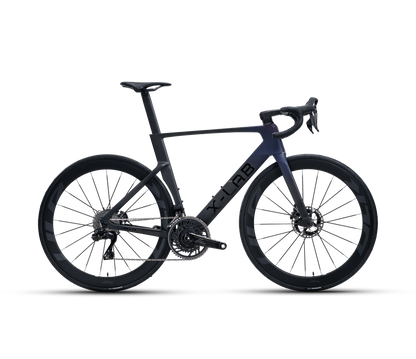

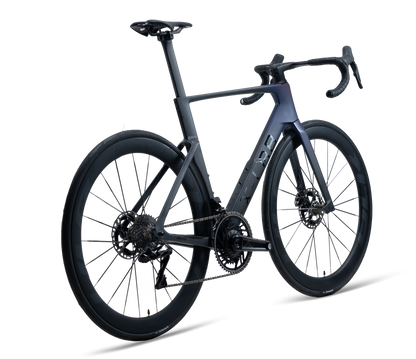

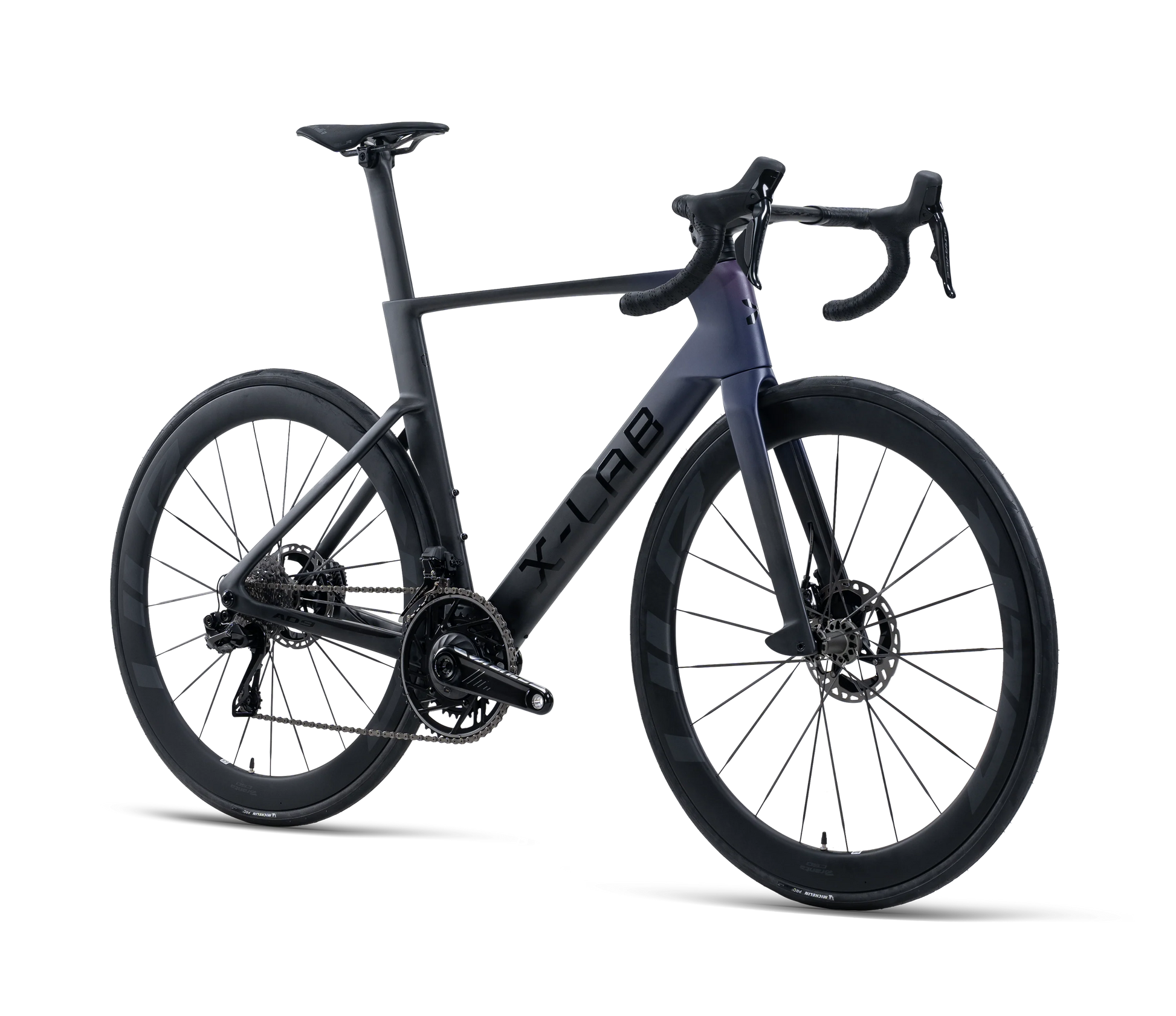

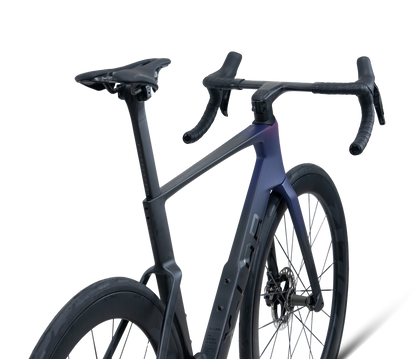

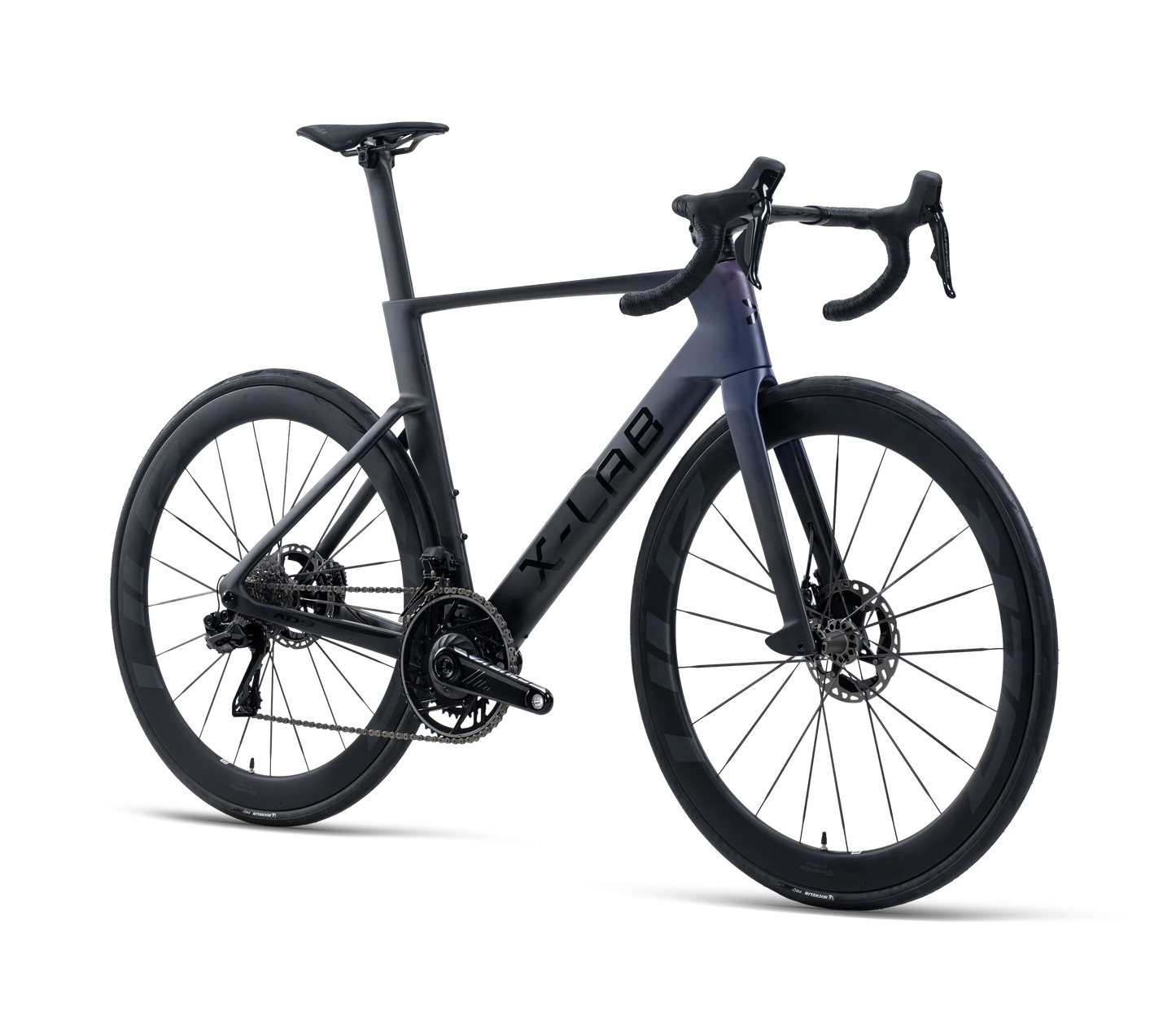

X-Lab AD9 700c - Hawkeye Purple-Black
X-Lab AD9 700c - Hawkeye Purple-Black
Product ID: GM050526-01
Shop all X-Lab | Shop all Road Bikes
View full detailsDescription
X-Lab AD9 700c
The AD9 represents the pinnacle of X-LAB engineering. Designed in the wind tunnel and proven at the highest level of professional cycling, it is the official race machine of the XDS Astana WorldTour Team.
Every tube profile, surface transition, and structural element has been refined to minimize drag and maximize speed.
When the road opens up and the pace rises, the AD9 delivers what matters most: pure aerodynamic advantage, tested to the fullest by CFD and by wind tunnel.
This is the fastest road bike in the X-LAB lineup
Key Features
Specifications
Bike Components - Compact
| Component | Description |
|---|---|
| FRAME | XDS Carbon Frame, Toray T-1100, UDH Compatible |
| FORK | XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle |
| HANDLEBAR / STEM | Branta Carbon Integrated |
| SEATPOST | XDS Carbon Seatpost, Aero Profile |
| REAR DERAILLEUR | Shimano Dura-Ace RD-R9250 Di2 |
| FRONT DERAILLEUR | Shimano Dura-Ace FD-R9250 Di2 |
| SHIFTERS | Shimano Dura-Ace ST-R9270 Di2 |
| BRAKES | Shimano Dura-Ace BR-R9270 |
| CASSETTE | Shimano Dura-Ace CS-R9200, 11-34T |
| CRANKSET | Branta Carbon Power Meter Crankset, 52-36T, 29mm Alloy Spindle, Apple Find My Anti-Theft Technology |
| BOTTOM BRACKET | T47 29mm |
| ROTORS | Shimano SM-MT900, F:160mm R:140mm |
| CHAIN | Shimano CN-M9100 |
| WHEELSET | Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings |
| TIRES | Michelin Pro 5 700x28C, Max Tire Clearance: 32C |
| SADDLE | Prologo Nago R4 PAS, Carbon Rails (Team Replica) & Selle Italia SLR Boost, Carbon Rails (Hawkeye) |
| WEIGHT | 6.82 kg / 15.03 lbs (Size L) |
| SIZE OPTIONS | XS / S / M / L / XL |
