Wolf Tooth Components

Wolf Tooth Components Performance ZS Upper Headset - Black

Wolf Tooth Components Performance ZS Upper Headset - Black

Regular price $44.95
Sale price $44.95
Color
Option

Product ID: GM011824-19

Earn rewards points on this item / Join Now

Only 1 Items Left



Shop all Wolf Tooth Components   |   Shop all MTB/Road Headsets

View full details

Description

Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061 aluminum. They are designed to be lightweight, strong, and durable. Performance Headsets with Enduro black oxide bearings have a one-year warranty. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. These ZS headsets are for frames with internal bearing cups that are pressed into the frame.

Compatibility

  • Any frame that uses ZS (Zero Stack) headsets with 44mm upper and 56mm lower head tube inner diameter.
  • Uppers and lowers sold separately.
  • Enduro black oxide steel sealed bearings included on both the upper and lower.
  • Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).

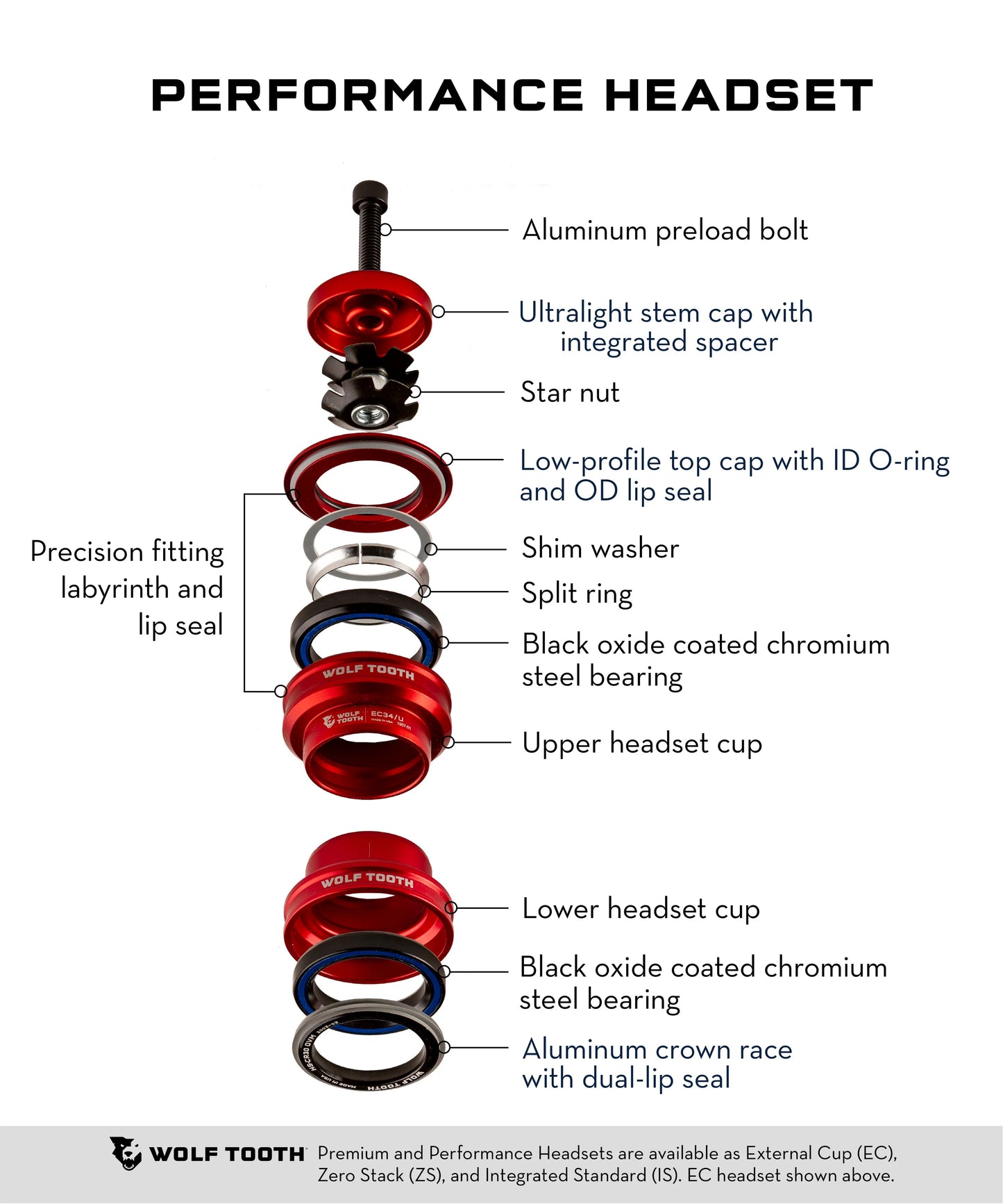

Upper assembly features:

  • Ultralight stem cap with integrated spacer plus an aluminum bolt and a star nut.
  • 6mm top cover = 6mm total stack.
  • O-ring seal prevents water intrusion around steerer tube.
  • Custom-molded upper lip seal provides additional protection for upper bearing.

Specifications:

  • Weight: 55-58g
  • Material: 6061 aluminum
  • Stem Cap Bolt Torque Spec: 2-3 Nm with light grease on threads only
