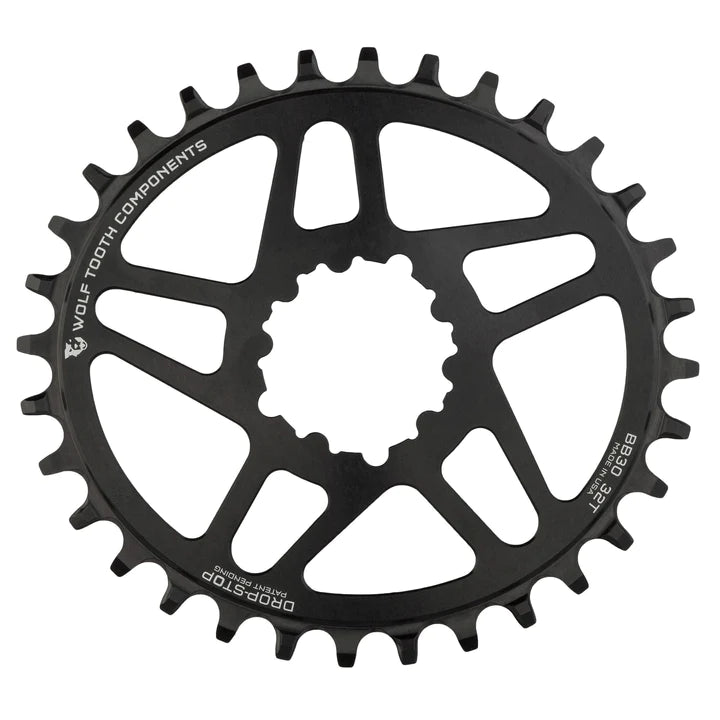

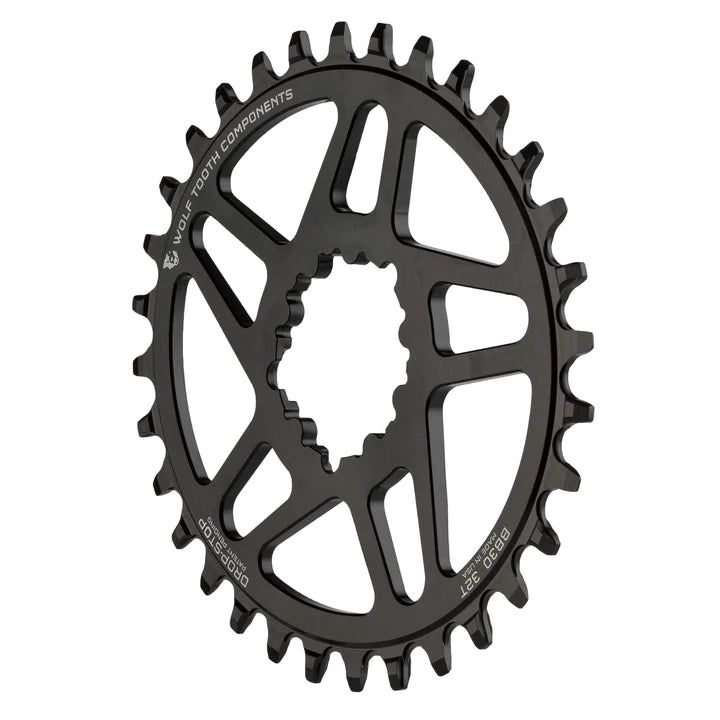

Wolf Tooth Components Oval SRAM MTB Chainring - Direct Mount - Black

Wolf Tooth Components Oval SRAM MTB Chainring - Direct Mount - Black

Regular price $76.95
Sale price $76.95

Color
Size
Option

Product ID: GM082223-12

Earn rewards points on this item / Join Now

Only 1 Items Left



Shop all Wolf Tooth Components   |   Shop all MTB Chainrings

View full details

Description

Wolf Tooth Components Oval SRAM MTB Chainring - Direct Mount - Black



More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.

Think of an oval chainring as two chainrings in one. A major benefit of oval is how the shape of the chainring alters your gearing in two important phases of your pedal stroke by harnessing your body’s natural biomechanics. Here’s how it works. The area of the chainring with the larger diameter engages with the chain at the optimal point on the downstroke, which is what’s known as the Power Zone. If you were to look at a clock, the Power Zone would be between 1-5 and 7-11. Conversely, the Recovery Zone – back to the clock face, between 11-1 and 5-7 – is the weakest part of the pedal stroke, when the oval maximizes your efficiency. A 34T oval chainring behaves like a 36T chainring when you want power, while behaving like a 32T chainring when you’re climbing.

We’ve also engineered our oval chainrings to provide smoother, more efficient pedal rotation. This equates to better traction because of steadier torque on the rear wheel. With a Wolf Tooth oval chainring, you can harness more of your strength in the Power Zone, while having easier pedaling in the Recovery Zone.

The direct mount chainrings for SRAM cranksets replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They are available in 3 different offsets: 6mm offset for 49mm chainline, 3mm offset for 52mm chainline, and 0mm offset for 55mm chainline and SRAM Transmission optimization. They are available in various tooth profiles to suit your drivetrain, including Drop-Stop B, which is optimized for SRAM T-Type Transmission and compatible with many other chains.

Compatibility

  • These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle.  You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that these chainrings are NOT compatible with SRAM 8-bolt direct mount cranksets.
  • Also compatible with Cane Creek eeWing cranksets.
  • There are 3 offsets:
    • Boost: 0mm offset for 55mm chainline required for SRAM Transmission
    • Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
    • BB30: 0mm offset for BB30 short spindle cranks for 49mm chainline
    • Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
    • Fat Bikes: If you are planning to use this on an X9 or XX1 fat bike crankset with a 190/197 rear hub spacing use the 0 offset ring. If your fat bike has a 170/177 rear hub spacing, use the Standard 6mm offset
    • Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.
