TIME presents the latest generation of its proven ATAC XC pedals.

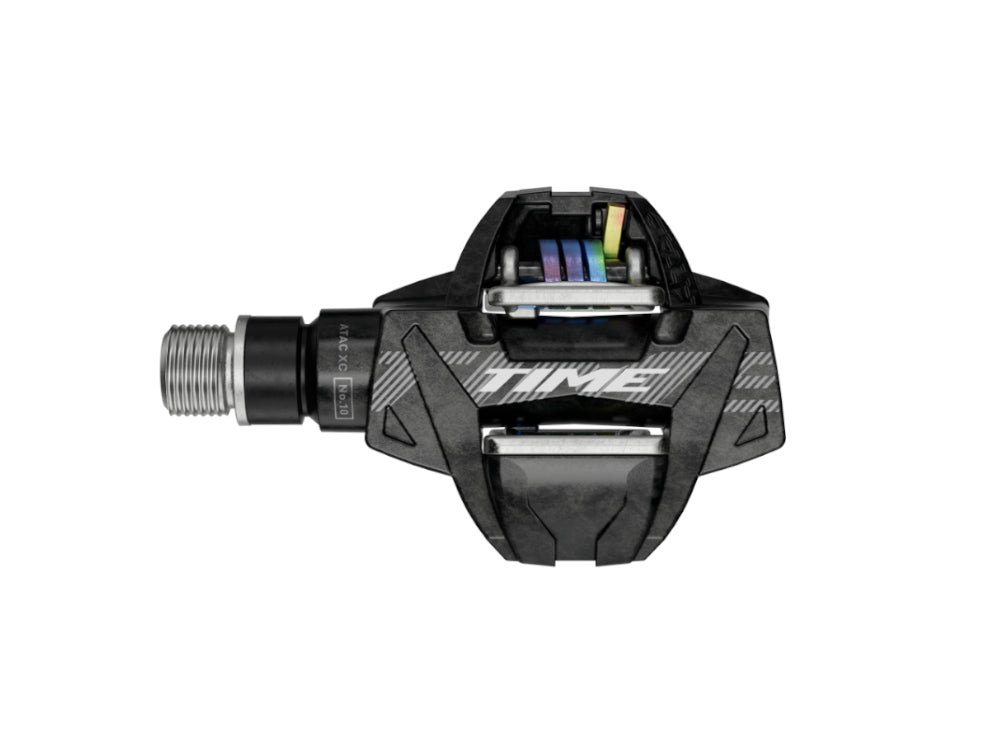

The XC 10 takes over the carbon injection molding of the XC 12 pedal in combination with a hollow steel axle. The ATAC system works simply and reliably. Clipping in and out is easy even in the most adverse weather conditions. Thanks to the Self Cleanig concept, the pedal doesn't get muddy or muddy. During the pedaling movement, the mechanism is permanently freed from mud via the contact between the cleat and pedal, so that it functions perfectly even in the worst conditions.
The enclosed pedal plates allow a release angle of 13° or 17°, depending on how they are attached to the shoes. Cleats with 10° release can be purchased as an option.

Technical data:

• Area of application: Mountain bike / Cyclocross / Gravel
• Pedal axle material: Oversized hollow steel
• Pedal body material: injection-molded carbon composite
• Contact surface material: injection-molded carbon composite
• Contact surface size: n/a
• Bearing: steel
• Freedom of movement: along pedal axis +/- 2.5 mm | heel rotation +/- 5°
• Release hardness: adjustable in 3 stages
• Release angle: 13° / 17°, adjustable via cleats (included); 10° cleats (optional)
• Q-factor: axle length 54 mm
• Compatibility: Time ATAC MTB, for shoes with Shimano SPD standard
• Weight self-weighed: 281g (pair, without cleats), 325g (pair incl. cleats)
