SRAM XX Eagle AXS 12 Spd Powermeter MTB Groupset

SRAM's Eagle Transmission drivetrains take a holistic approach to shifting. All T-Type marked components are synchronized to offer a superior riding experience.

Thanks to a perfect balance of durability and light weight, the XX Eagle Transmission groupset is well equipped to tackle long Enduro days.

Composition of the SRAM XX Eagle AXS Transmission groupset:

• FC-XX-P-D1 | XX Eagle powermeter crankset (carbon, T-Type, Wide, DUB™, Direct Mount, 32 teeth)
• RD-XX-E-B1 | XX Eagle rear derailleur (T-Type, Full Mount, 12-speed)
• CS-XS-1297-A1 | XX Eagle cassette (T-Type, XD, 10-52 teeth)
• CN-TTYP-XX-A1 | XX Eagle chain (T-Type, Flattop®, 126 links, incl. PowerLock™ chain connector)
• EC-AXS-POD-B1 | Pod Ultimate controller (AXS, mountable on both sides)
• EP-EAC-BAT-A1 | battery

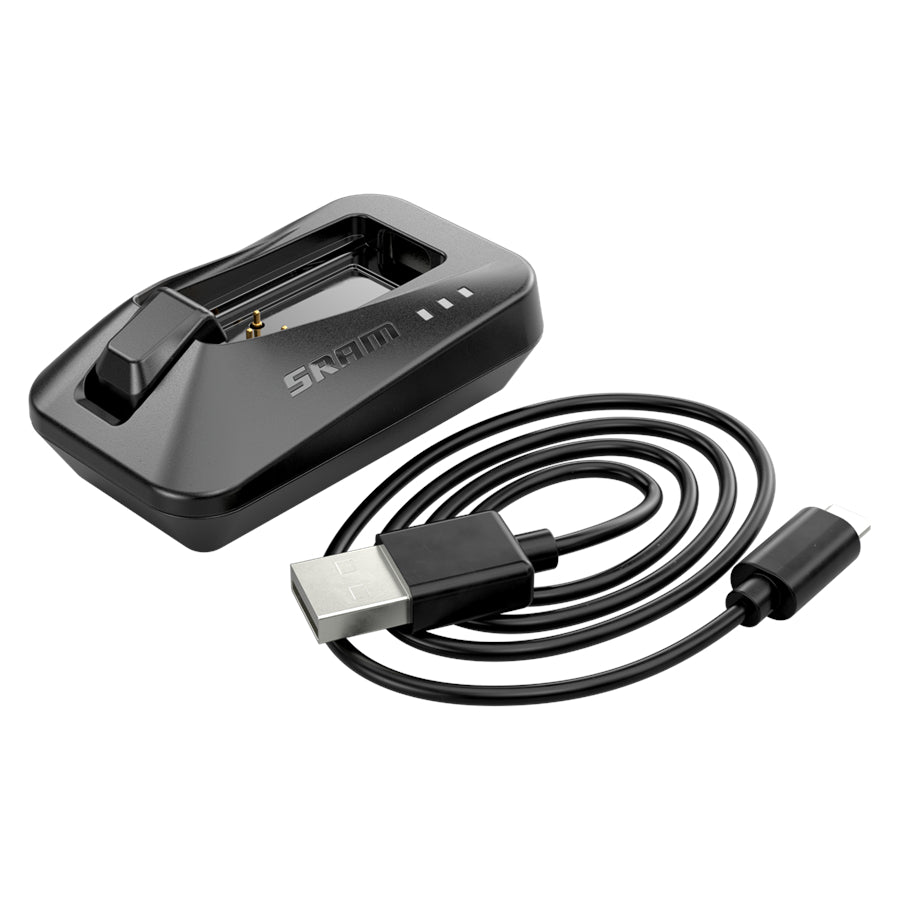

• EP-EAC-BC-A1 | charger (incl. USB cord)

Note: The T-Type components are only compatible with SRAM Eagle Transmission drivetrain systems. The rear derailleur is designed for mounting on frames that have the UDH specification (Universal Derailleur Hanger) with an interface without derailleur hanger. Adapters and bottom bracket cups are not included; these can be ordered separately.

FACT SHEET OF SRAM XX EAGLE TRANSMISSION GROUPSET - AXS | T-TYPE | D1 - WITH POWERMETER CRANKSET

• Product Name: SRAM XX Eagle Transmission Groupset - AXS | T-Type | D1 - with Powermeter Crankset
• Manufacturer: SRAM
• Item Code: SRA636754
• activity: Cycling
• material: Aluminium, Carbon
• usage bikesport: MTB, Enduro
• crank arm length: 165, 170, 175
• groupset: SRAM AXS (electronic)
• gear ratio: 10-12-14-16-18-21-24-28-32-38-44-52
• number of chainrings: 1
• shifting system: 12-speed
• shifting actuation: Electronic
• number of teeth: 32
• chain line: 55mm
• rear derailleur max. teeth: 52
• Model year: 2023
• Collection: Full year
• Color: Black, Silver
• manufacturer item code: GS-XX-E-D1 | 00.7918.167.005 (165 mm) / 00.7918.167.004 (170 mm) / 00.7918.167.003 (175 mm)
