SRAM XX Eagle AXS 104BCD 12 Spd E-MTB Groupset

Eagle Transmission is a system for your mountain bike drive train that sets new standards in function and reliability.
All components are built around the constant point of every bike - the center of the wheel. All unnecessary parts have been eliminated in order to carry out the elementary functions to perfection.
The T-Type system is precisely matched to ensure perfect function and is not compatible with existing, older Eagle drives.

The XX Eagle AXS Transmission E-Bike groupset is SRAM's answer to the demand for a robust and reliable drive for your electrified enduro adventures. The XX Eagle AXS Transmission System takes a holistic approach to shifting your e-bike. A concept developed as a whole system, which is perfectly synchronized and offers you an excellent feeling when driving. It doesn't matter whether you're relaxing on the after-work lap or fighting for the last second on the racetracks of the world.

Rear derailleur
The XX Eagle AXS Transmission rear derailleur is robust thanks to the direct mount interface without derailleur hanger and has well-known technologies such as the overload clutch and the well-known AXS coupling process.

Cassette
SRAM's XX Transmission cassette is one of the main reasons why Eagle Transmission offers the best shifting characteristics under load. Thanks to the X-SYNC design, the cassette shifts better the harder you pedal. In addition to the X-SYNC technology and the newly designed gear steps in the upper area, it is the most advanced Eagle cassette from SRAM to date.

Chainring 104mm BCD
The engineers at SRAM have designed a chainring that counteracts the high forces and wear that occur. The T-Type design of the teeth keeps your chain in place in every situation. The focus during development was on optimal durability, but also the smoothest possible running of your chain was realized. The chainring is compatible with both T-Type drives and older generation Eagle drives.

Chain
With the optimized XX Eagle Transmission Flattop chain, the word shifting performance takes on a new meaning. It was specially developed to optimize Eagle Transmission drives and has a unique, flat top. This shape not only maximizes shifting performance and stability, but also gives your bike a modern and contemporary look.

Controllers

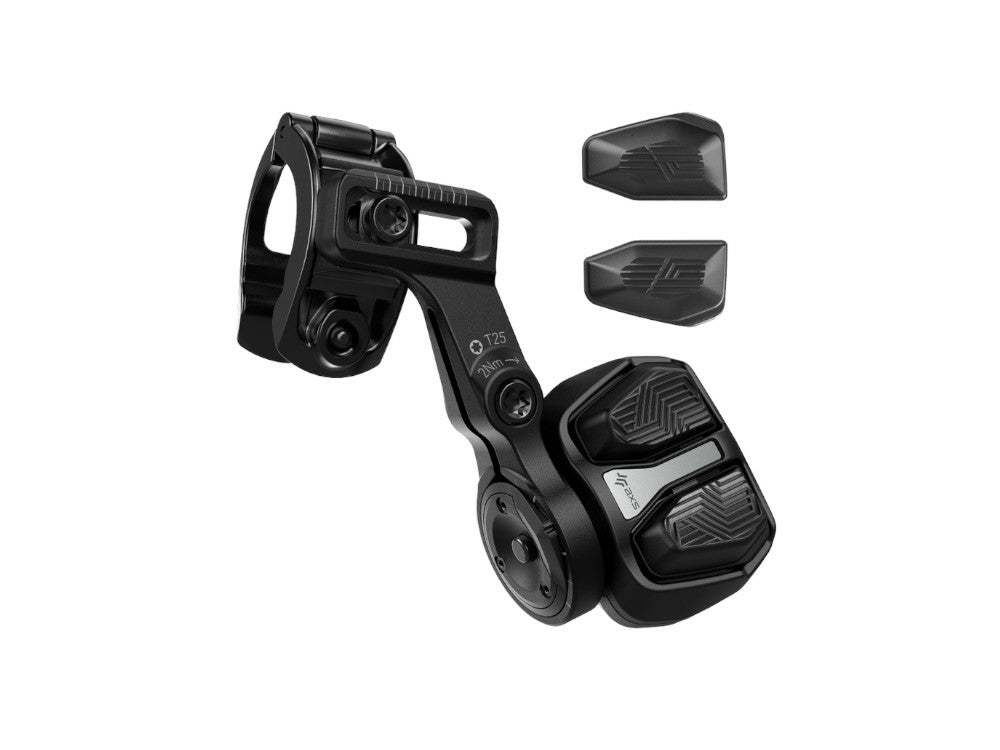

The AXS Pod Ultimate features a two-button "click and fire" design, turning every command from the rider into a much more personalized experience for all your AXS components.

NOTE: To mount the rear derailleur, a frame with a UDH interface is absolutely necessary! The rear derailleur is NOT compatible with existing Eagle drives!

Technical specifications:

• Material cassette: aluminum, steel
• Material Pod Controller: aluminum, plastic
• Material rear derailleur: aluminum
• Chainring material: steel
• Gear steps: 12
• Crank Length: -
• Chainring: 36 teeth
• chain line : -
• Q factor: -
• Position controller: right
• Gradation: 10,12,14,16,18,21,24,28,32,38,44,52
• Gear ratio: 520%
• Compatibility freewheel: SRAM XD
• Compatibility rear derailleur: SRAM Eagle Transmission 10-52 teeth
• Cassette and chain color: black, silver
• Color rear derailleur and controller: black
