SRAM GX Eagle T-Type AXS 12 Spd E-MTB Groupset



A tireless powerhouse for those who ride hard and never hold back. No compromise on durability, reliability and wireless functionality. Combining the latest technologies from the Eagle ranges with the best possible price, the GX Transmission group is more than ready to take on any challenge.

SRAM GX Eagle Transmission groupset

The GX Eagle, which has already made a name for itself as a daily companion, now also joins SRAM's innovative Transmission range. The uncompromisingly price-conscious approach remains, but has been modernized for a new generation of mountain bikes. The rear derailleur not only shifts just as crisply and precisely as the Transmission models of the XX, XX SL and X0 groupsets, it also features removable Skid Plates for better protection and greater ease of maintenance.

On the GX Eagle Transmission cassette, shifting under load is made possible by the combination of Full X-SYNC™ tooth design and a mapping that ensures smooth gear changes even under the hardest power transfer. The T-Type chain was developed specifically to optimize the Eagle Transmission series and features a unique Flattop™ design to easily withstand the increased torque of modern E-Bikes.

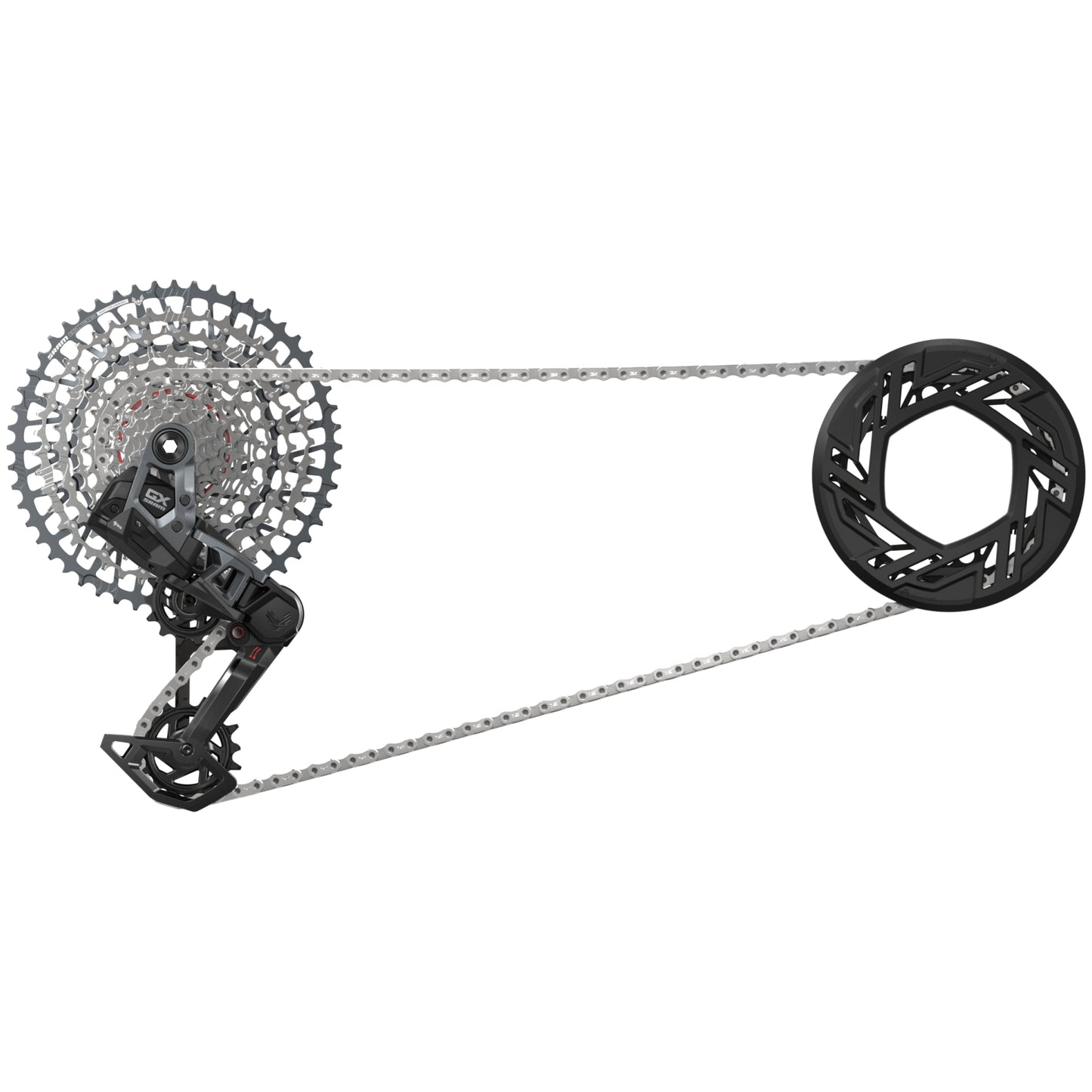

Composition of the GX Eagle T-Type groupset for E-MTB's:

SRAM's Eagle Transmission drivetrains take a holistic approach to shifting. All T-Type marked components are synchronized to offer a superior riding experience.

  • CR-TTYP-104-A1 | Eagle chainring (E-MTB, T-Type, 104 mm BCD, 34 teeth, incl. mounting bolts and Clip-On Guard chain protection ring)
  • RD-GX-E-B1 | GX Eagle rear derailleur (T-Type, Full Mount, 12-speed)

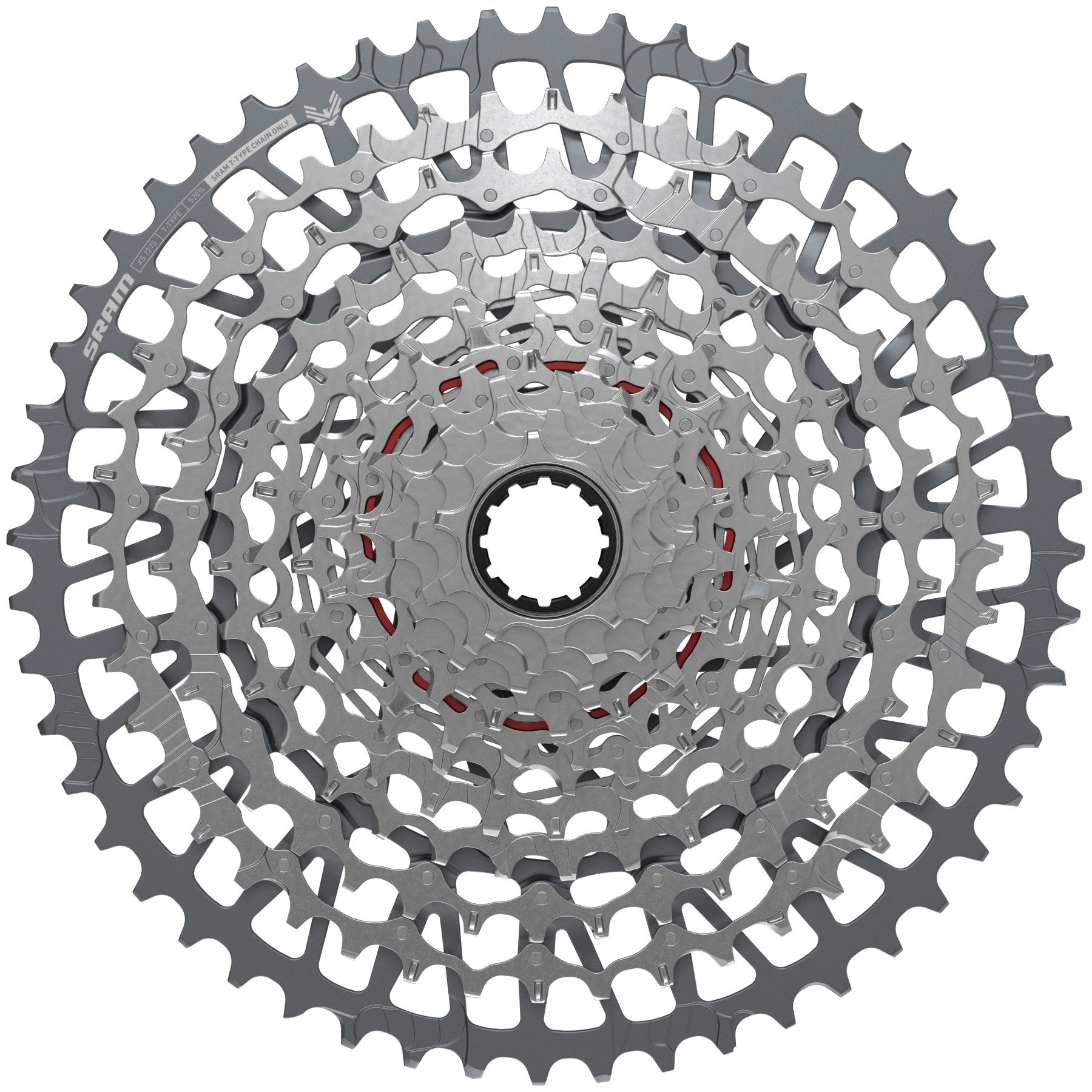

  • CS-XS-1275-A1 | GX Eagle cassette (T-Type, XD, 10-52 teeth)

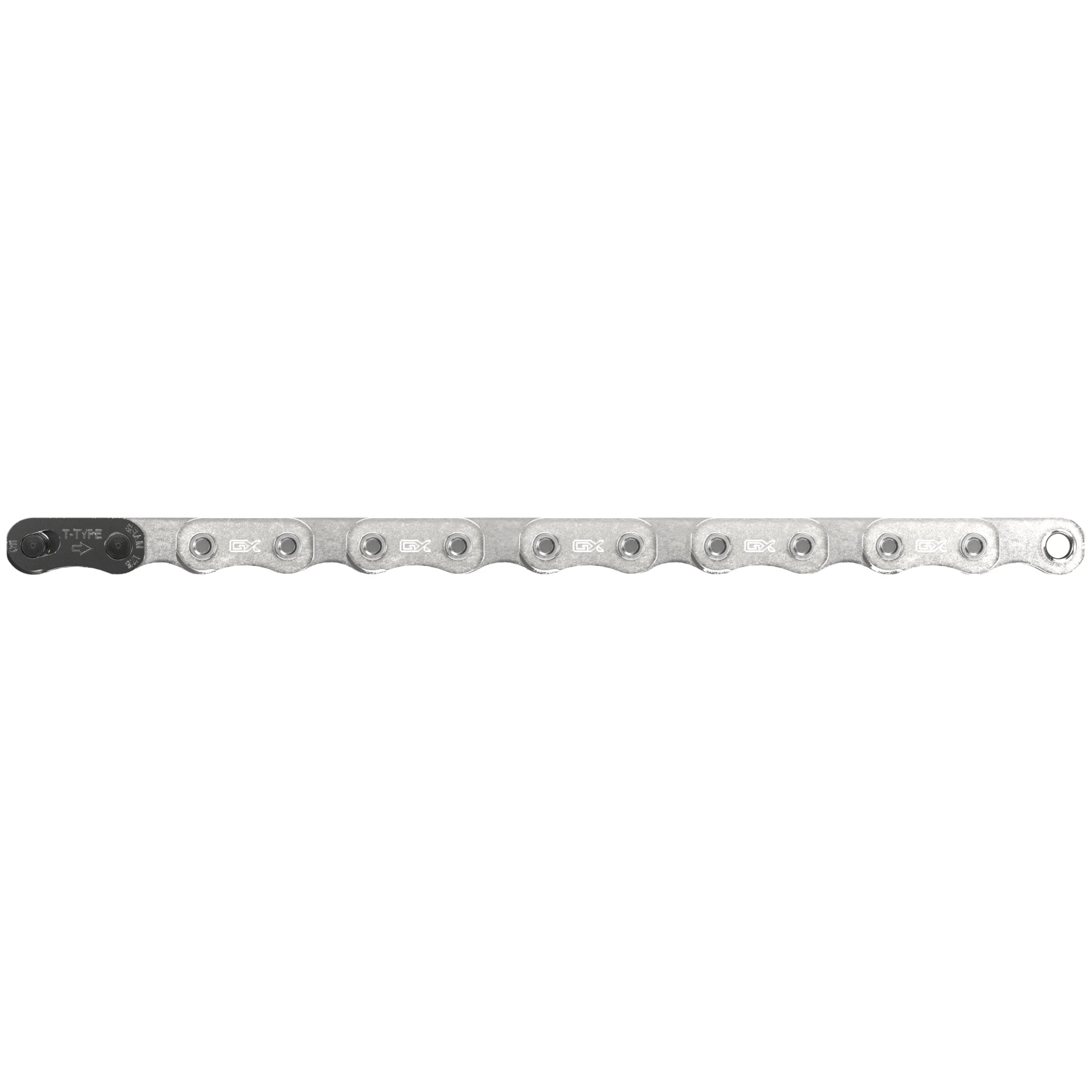

  • CN-TTYP-GX-A1 | GX Eagle chain (T-Type, Flattop®, 126 links, incl. PowerLock™ chain connector)

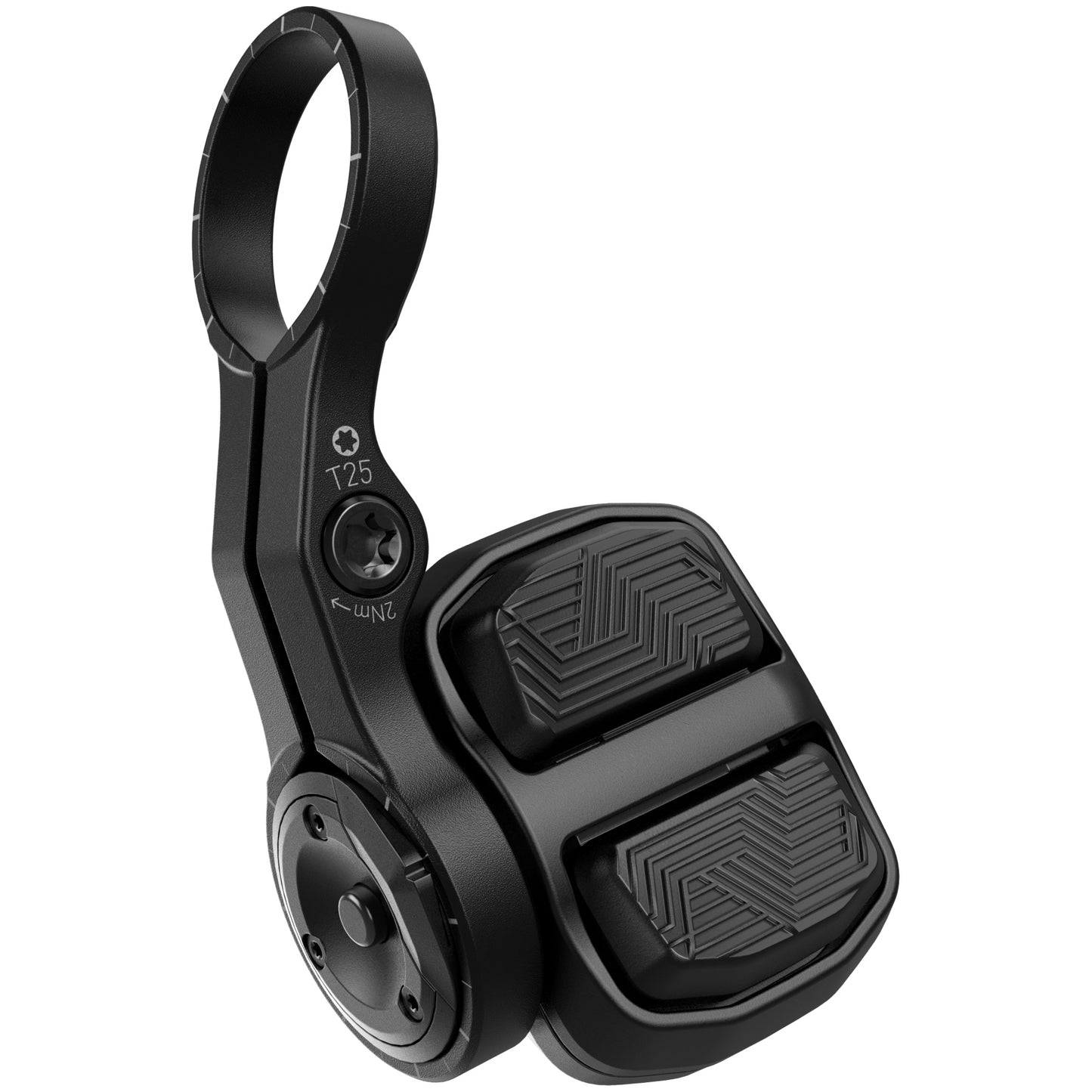

  • EC-AXS-POD-B1 | Pod controller (AXS, mountable on both sides)

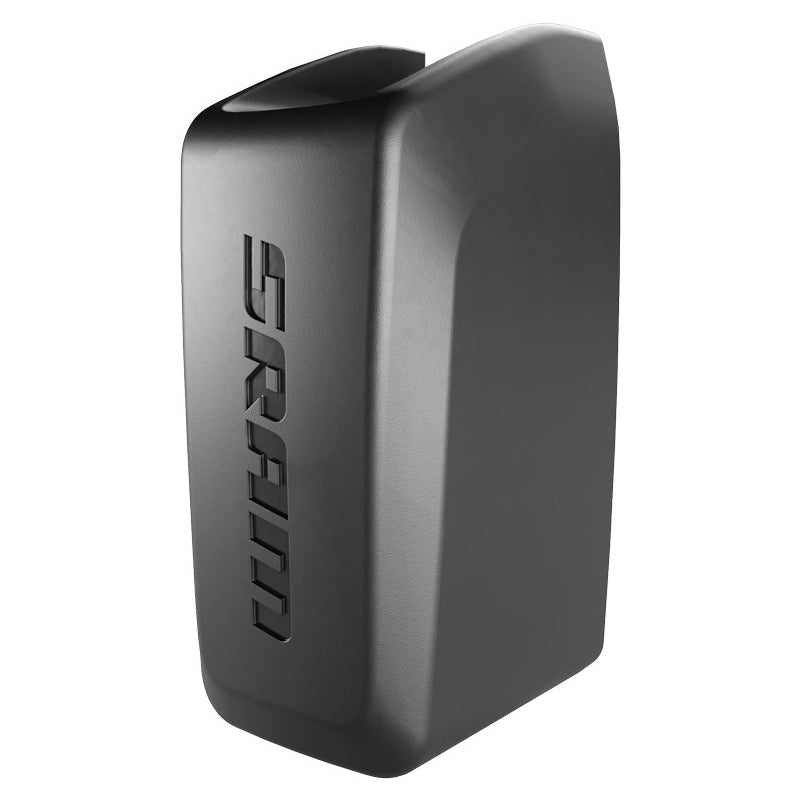

  • EP-EAC-BAT-A1 | battery
  • EP-EAC-BC-A1 | charger (incl. USB cord)

Note: The T-Type components are only compatible with SRAM Eagle Transmission drivetrain systems. The rear derailleur is designed for mounting on frames that have the UDH specification (Universal Derailleur Hanger) with an interface without derailleur hanger. Crank arms are not included; these can be ordered separately.

 SPECIFICATIONS:

  • Product Name: SRAM GX Eagle Transmission Groupset - E-MTB | AXS | T-Type | D1
  • Manufacturer: SRAM
  • Item Code: SRA652938
  • activity: Cycling
  • material: Aluminium
  • usage bikesport: E-Bike, MTB
  • groupset: SRAM AXS (electronic)
  • gear ratio: 10-12-14-16-18-21-24-28-32-38-44-52
  • number of chainrings: 1
  • shifting system: 12-speed
  • shifting actuation: Electronic
  • number of teeth: 34
  • rear derailleur max. teeth: 52
  • rear derailleur capacity: 42
  • Model year: 2023
  • Collection: Full year
  • Color: Black, Grey
  • manufacturer item code: GS-GX-EPA-D1 | 00.7918.282.002
