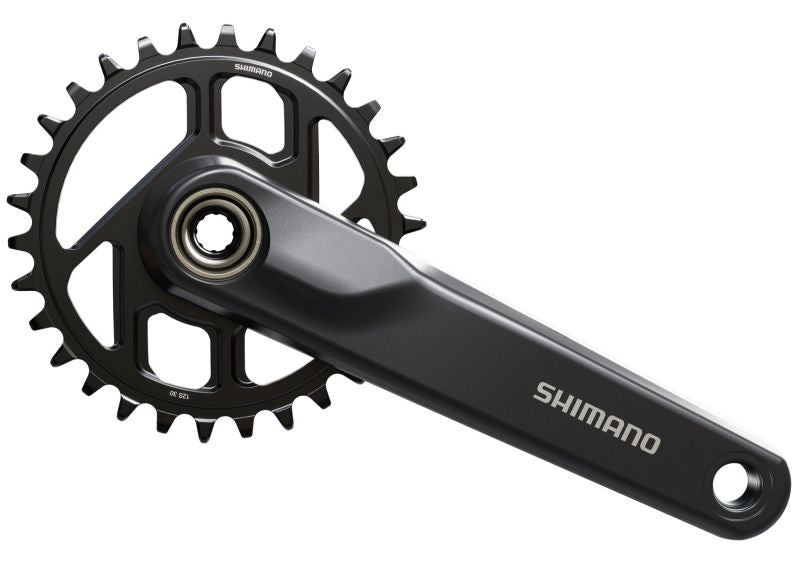

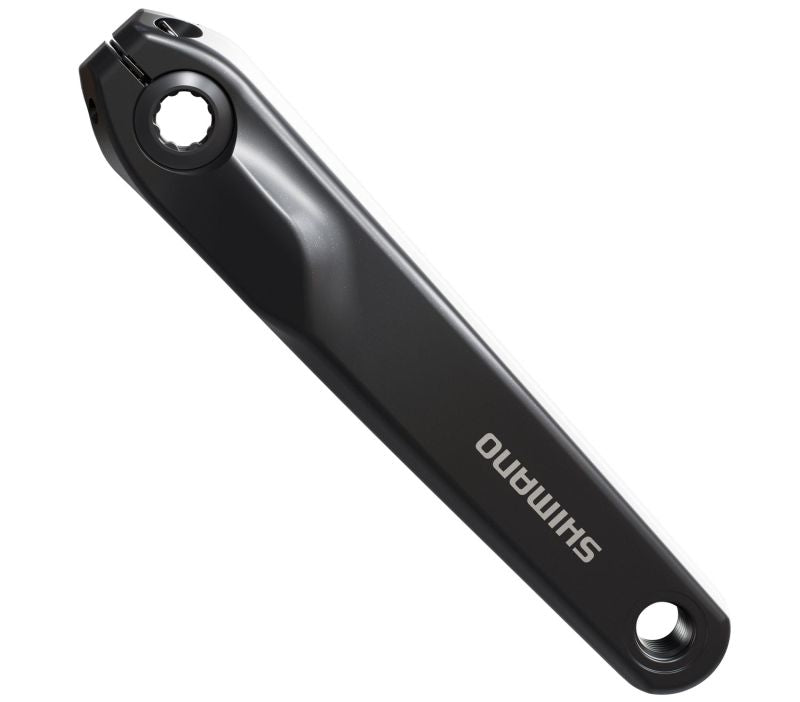

Shimano MT620 12 Spd Crankset

The two-piece MT620 Trail/Enduro crankset is built around rigidity, durability and quality, delivering a responsive crankset that keeps you rolling consistently, optimized for the balance of strength and weight following the XTR/XT design. The alloy crankset features a steel chainring for added strength, while the DYNAMIC CHAIN ENGAGEMENT+ technology eliminates worry around dropped chains.

Features - Shimano FC-MT620-1 12-speed crankset 30 teeth

• DYNAMIC CHAIN ENGAGEMENT+: Optimised narrow-wide tooth profile on the chainring for better chain retention and smoother shifting
• Two-piece construction: A stiff and durable aluminium crankset with a 24 mm steel axle
• Standard direct mount: Durable steel chainring
• Alternative finish: Same technology and weight as the DEORE M6200 crankset, but in solid black
• Standard Q-factor: 176mm
• Chainline: 55mm

Product features

• Application: MTB
• Model: FC-MT620-1
• Toothcount: 30t or 32t
• Q-factor: 176 mm
• Cage width: 68 / 73 mm
• Rear gears: 12-speed
• Mounting: 2-piece
• Compatible chain: 12-speed HG
• Mounting width: 148 mm
• Chainline: 55 mm

Crank arm length available in

• 165mm
• 170 mm

Material

• Cranks: Aluminium, anodised
• Crank axle: Steel, plated

Contents

• 1 x Shimano FC-MT620-1 12-speed crankset, =1 x Chainring
