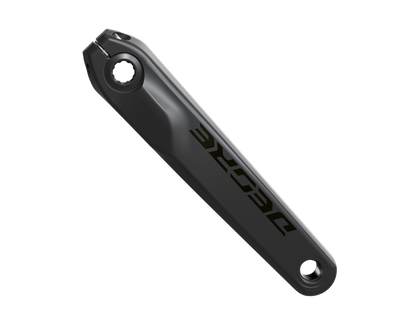

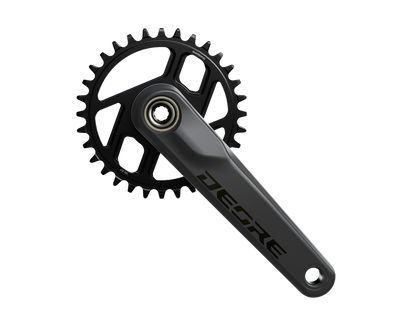

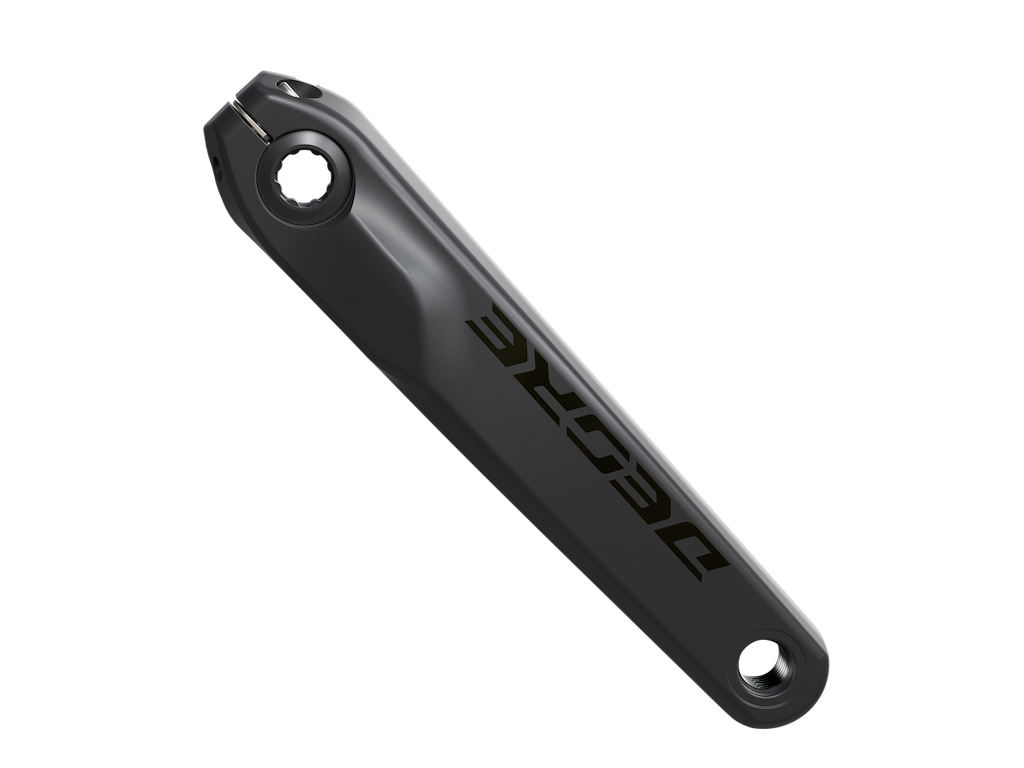

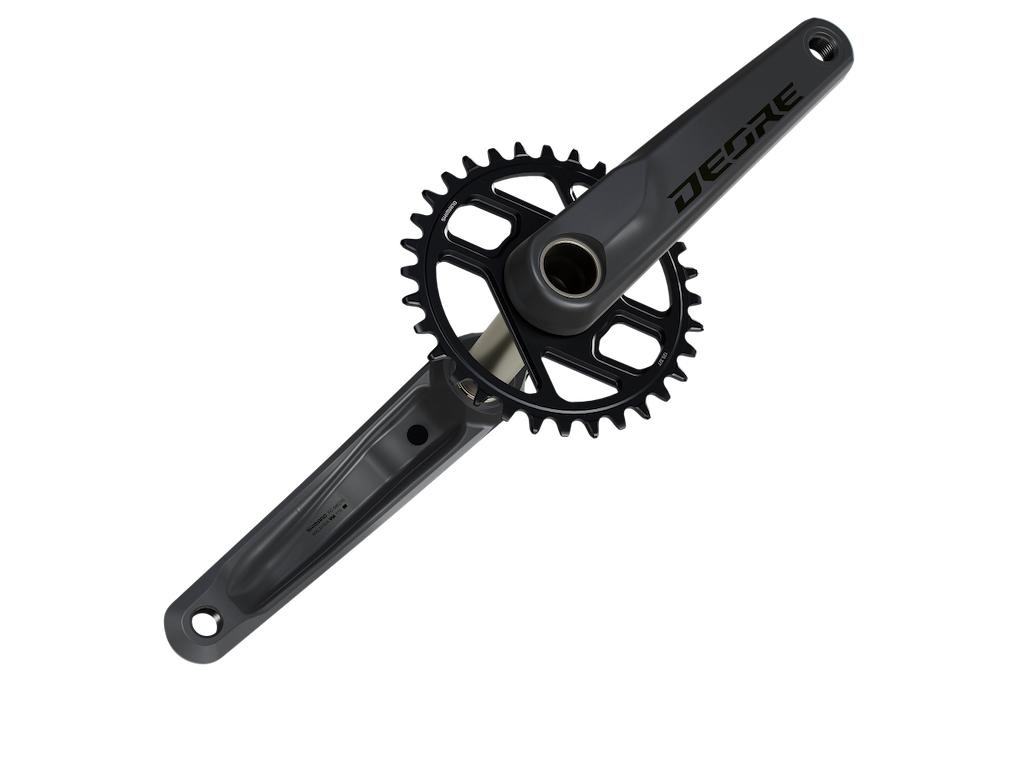

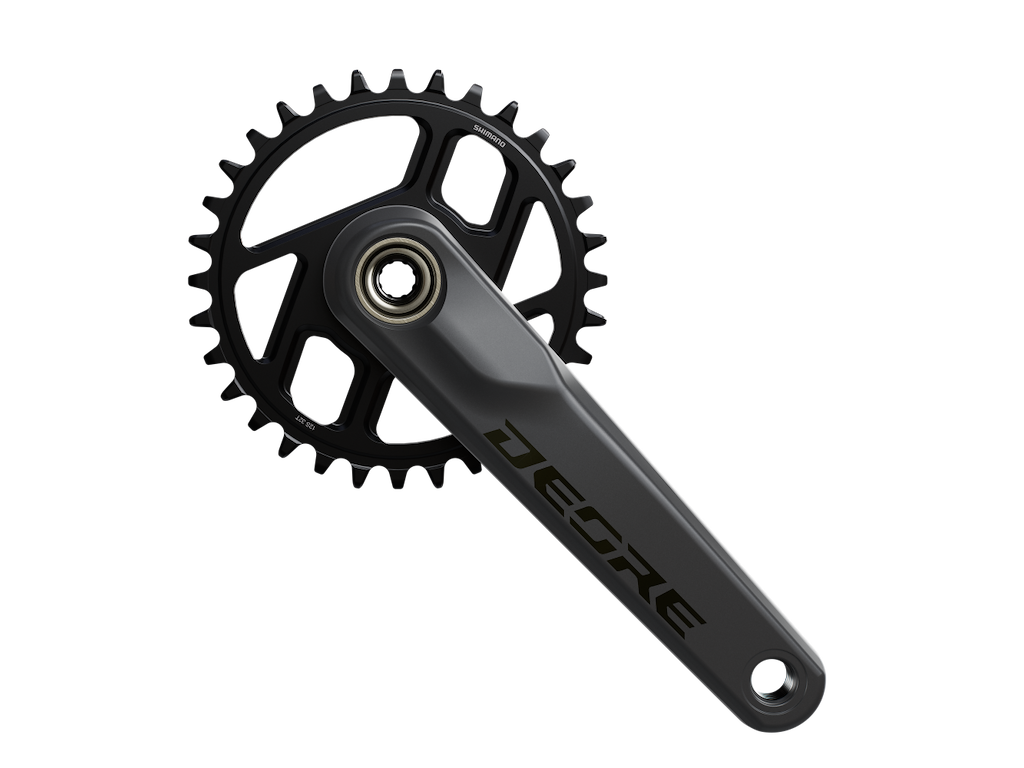

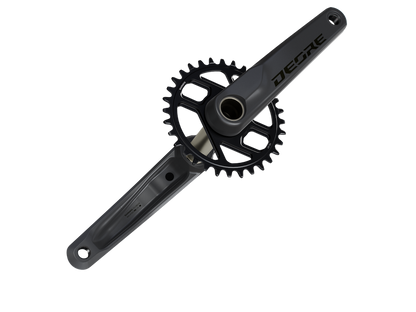

Shimano Deore M6200 12 Spd Crankset

The two-piece M6200 Trail/Enduro crankset is built around rigidity, durability and quality, delivering a responsive crankset that keeps you rolling consistently, optimized for the balance of strength and weight following the XTR/XT design. The alloy crankset features a steel chainring for added strength, while the DYNAMIC CHAIN ENGAGEMENT+ technology eliminates worry around dropped chains.

• Compatibility: Fits 12-speed systems.
• Setup: Single crankset with 1 chainring.
• Chainring: Available in 30/32 teeth.
• Crank arm length: 165/170/175 mm.
• Use: Intended for MTB
• Bottom Bracket: Not Included
• Model No FC-M6200
• Series DEORE
• Rear speeds 12
• Compatible chain HG 12-speed
• Chain line (mm) 55
• O.L.D. Thru (mm)148
• P.C.D. (mm) Direct
• Spider/gear arms TBD
• Chainring combination 30T, 32T
• Q-factor (mm) 176
• Crank arm length (mm) 165 ✔170✔175✔
• Optional chain guard Without chain/bash guard✔
• 2-PIECE CRANKSET✔
• Compatible bottom bracket type
• Outboard✔
• Recommended bottom bracket Threaded (normal)BB-MT501
• Press-Fit BB-MT500-PA
• Threaded bottom bracket shell width (mm)68✔73✔
• Crank fixing screw included✔
