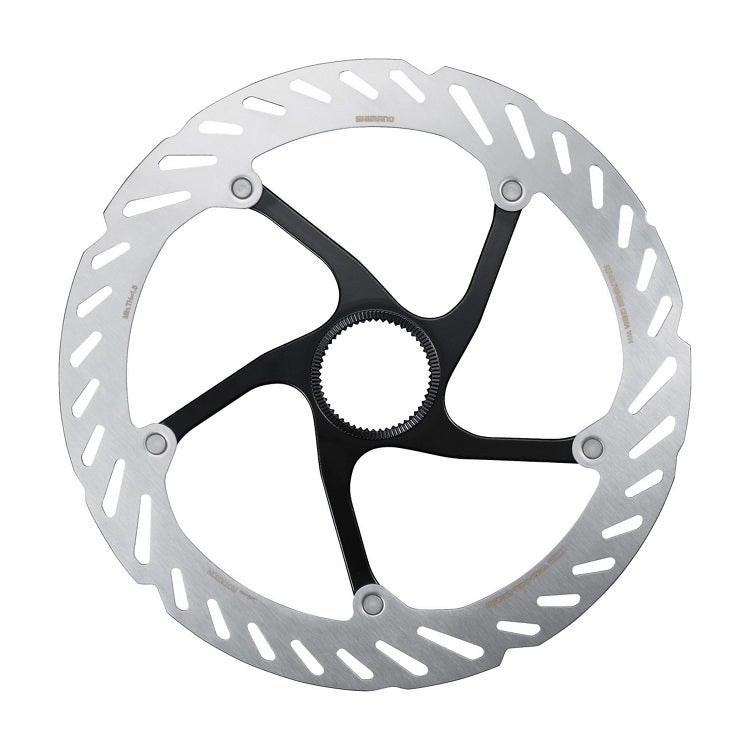

Shimano CL700 Disc Brake Rotor

Shimano’s RT-CL700 Ice Tech Rotor delivers consistent braking performance through advanced heat control, long pad life, and a reliable Centre Lock fit. Its layered steel and alloy construction disperses heat efficiently, while the refined rotor surface improves pad contact and cooling.

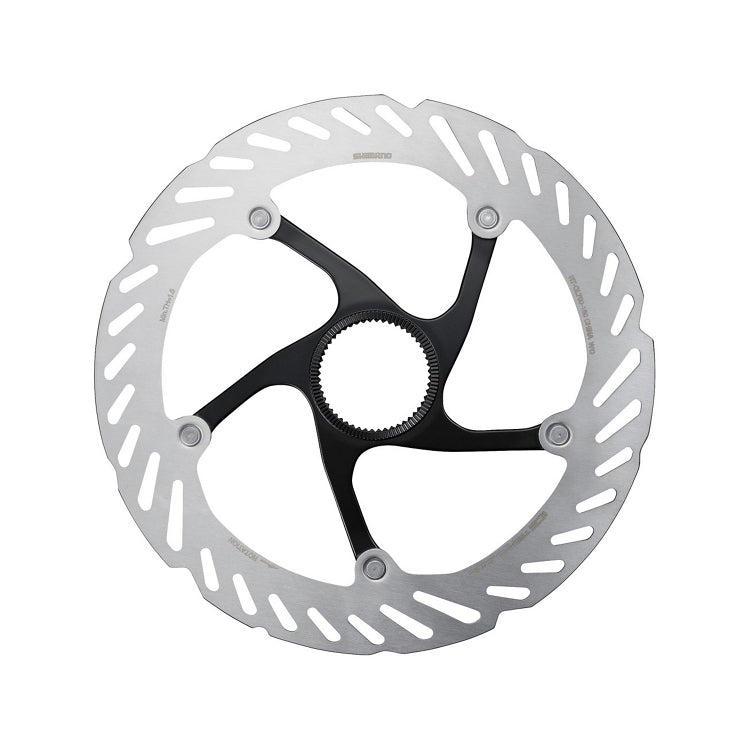

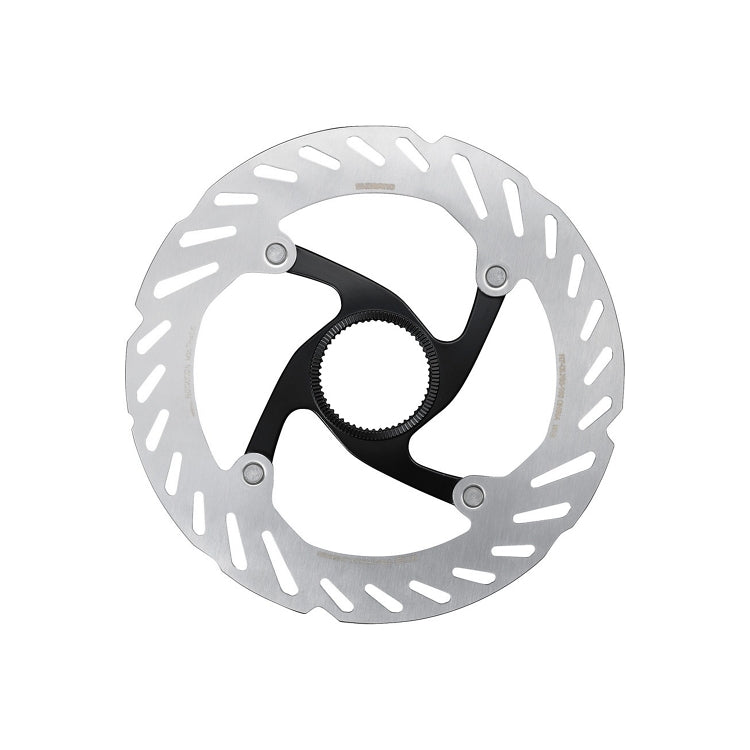

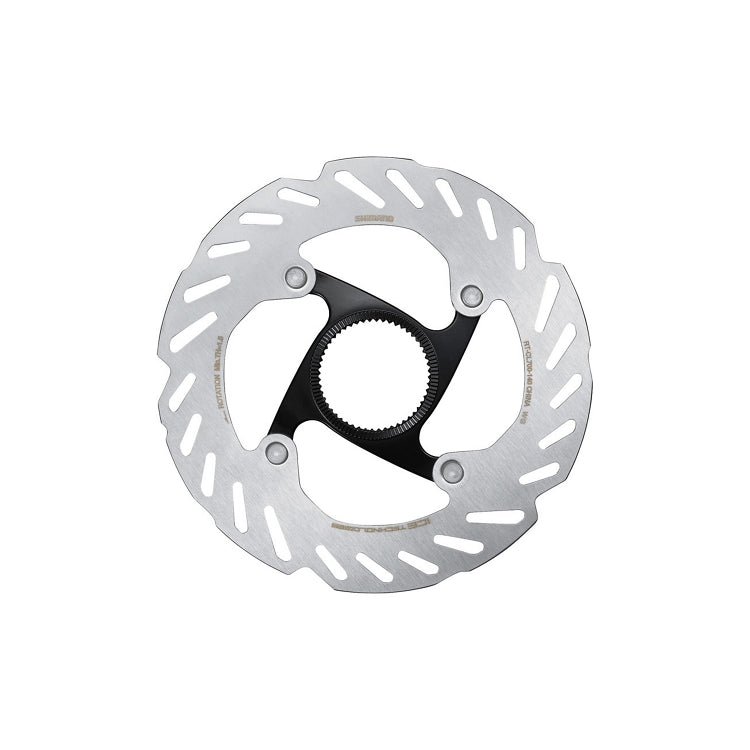

Available in 140/160/180/203mm - choose the right size for your ride!

Key Features and Benefits:

• Clad steel–aluminium–steel rotor construction: The rotor’s layered build pulls heat away from the braking surface into the aluminium core. This helps lower surface temperatures by around 50°C, reducing thermal stress and supporting consistent braking under load.
• Ice Tech heat management system: When used with Ice Tech pads, rotor temperatures drop from about 400°C to 300°C. This results in less fade, better brake control, and improved performance on long descents or under repeated braking.
• Refined rotor surface: The contact surface clears debris and improves airflow around the pads. This helps maintain braking efficiency, lowers pad wear, and ensures quieter operation in wet and dry conditions.
• Shimano Centre Lock mounting with included lockring: The system uses a spline mount and lockring to secure the rotor. This setup offers strong rigidity and a fast, secure installation process for both internal and external lockring options.

The RT-CL700 is designed to maintain braking stability in high-heat situations where fade can limit control. Its construction and pad interface work together to prolong pad life, reduce noise, and ensure reliable performance under pressure. This makes it a practical choice for riders who demand lasting braking consistency across variable terrain and conditions.

Upgrade your braking system with a rotor built for controlled heat dissipation, quiet performance, and long-term pad efficiency—all with simple and secure setup.

3D Aluminum carrier

Optimized 3D-shaped aluminum carrier is designed purposefully in every single dimension and achieves lightweight and superb heat distortion resistance.
This prevents the entire rotor from deforming due to heat and reduces rubbing noise while riding.

ICE TECHNOLOGIES

The fade, which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. SHIMANO has adopted ICE TECHNOLOGIES disc brake rotor and ICE TECHNOLOGIES pad to realize the cooling technology for consistent performance. The clad disc brake rotor blade, which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance. Also, the radiation fin has been adopted for the pad. Moreover, the clad disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

CENTER LOCK

The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
