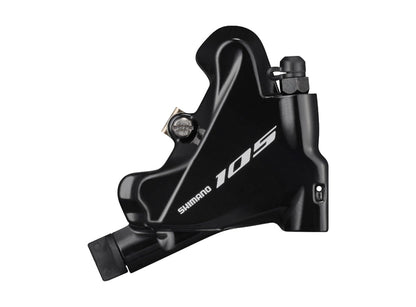

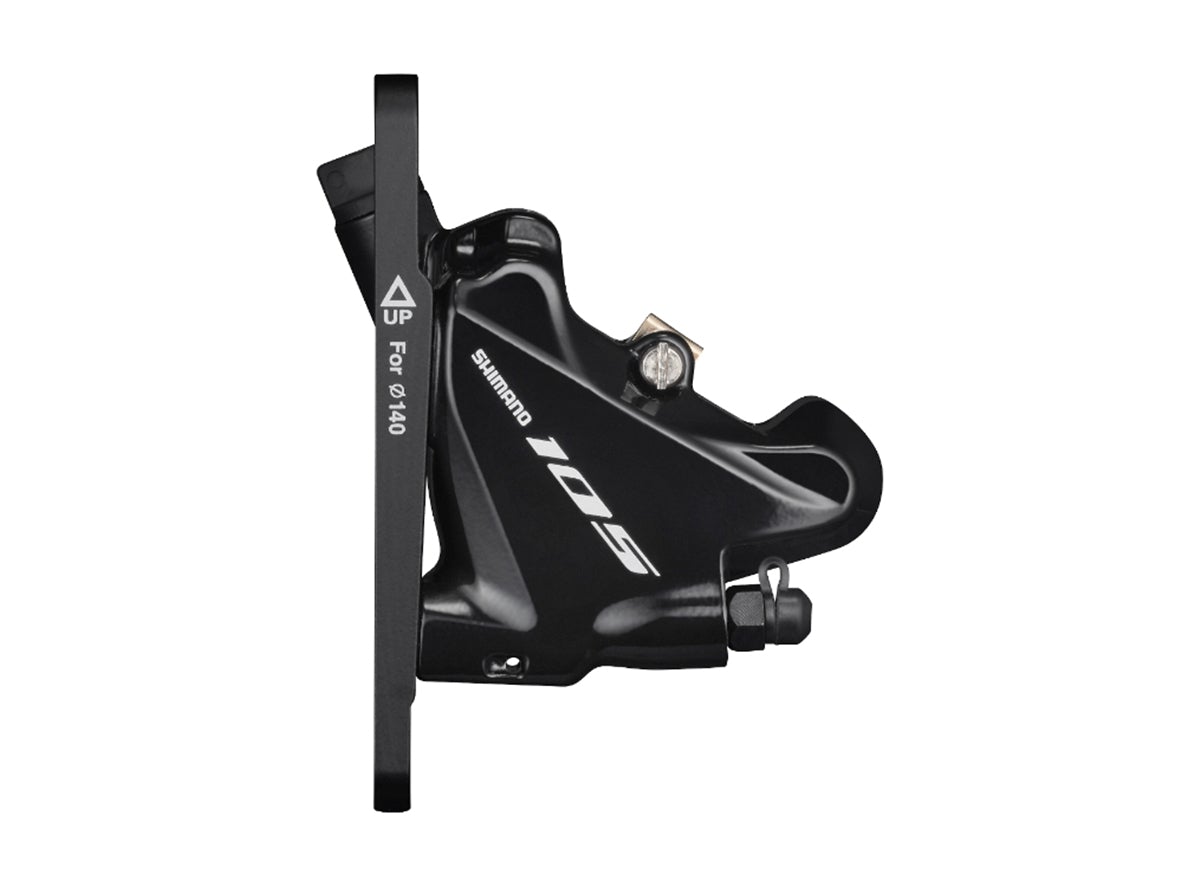

Shimano 105 R7070 Disc Brake Caliper

Utilizing the proprietary lightweight and sleek Flat Mount design, the hydraulic Shimano BR-R7070 disc brake caliper features premium stopping power and aerodynamics for road applications. In combination with the SM-RT70 rotor (sold separately) which offers the Ice Technolgies construction an excellent heat management for confident performance on the longest descents is guaranteed.

• Hydraulic Disc Brake Caliper
• Excellent heat dissipation
• Convenient tool access
• Simple wheel replacement
• Easy and clean bleeding system
• Greater rider control in all conditions
• Simple set up and maintenance

MODEL NO	BR-R7070-R
SERIES	SHIMANO 105 R7000 Series
Color	Silky black, Spark silver, -
ICE TECHNOLOGY pad compatible caliper	X
Brake hose color (kit)	Black, -
Brake hose (kit)	SM-BH90-JK-SSR SM-BH90-J-SSR
Brake Type	Hydraulic disc brake
Caliper fixing bolt_Anti loosen method	BOLT FIX PIN
Caliper fixing bolt_Tool size	4 mm
Fixing bolt spec for rear mount_10mm mount	X
Fixing bolt spec for rear mount_15mm mount	X
Fixing bolt spec for rear mount_20mm mount	X
Fixing bolt spec for rear mount_25mm mount	X
Fixing bolt spec for rear mount_30mm mount	X
Fixing bolt spec for rear mount_35mm mount	X
Hose joint	Straight
Mount type(available for IS mount with mount adapter)	Flat mount
Oil	SHIMANO Mineral
One way bleeding	X
Pad_Option	K04S-M, L04C-M
Pad_Standard	K02S-R, L02A-R
Pad mount	Pad axle
Piston	2
Recommended brake lever	ST-R7020 ST-R7025
Recommended brake rotor	SM-RT70

MODEL NO	BR-R7070-F
SERIES	SHIMANO 105 R7000 Series
Color	Silky black, Spark silver, -
ICE TECHNOLOGY pad compatible caliper	X
Brake hose color (kit)	Black, -
Brake hose (kit)	SM-BH90-JK-SSR SM-BH90-J-SSR
Brake Type	Hydraulic disc brake
Caliper fixing bolt_Anti loosen method	SNAP RING BOLT FIX PIN
Caliper fixing bolt_Tool size	4 mm
Hose joint	Straight
Mount type(available for IS mount with mount adapter)	Flat mount
Oil	SHIMANO Mineral
One way bleeding	X
Pad_Option	K04S-M, L04C-M
Pad_Standard	K02S-R, L02A-R
Pad mount	Pad axle
Piston	2
Recommended brake lever	ST-R7020 ST-R7025
Recommended brake rotor	SM-RT70
