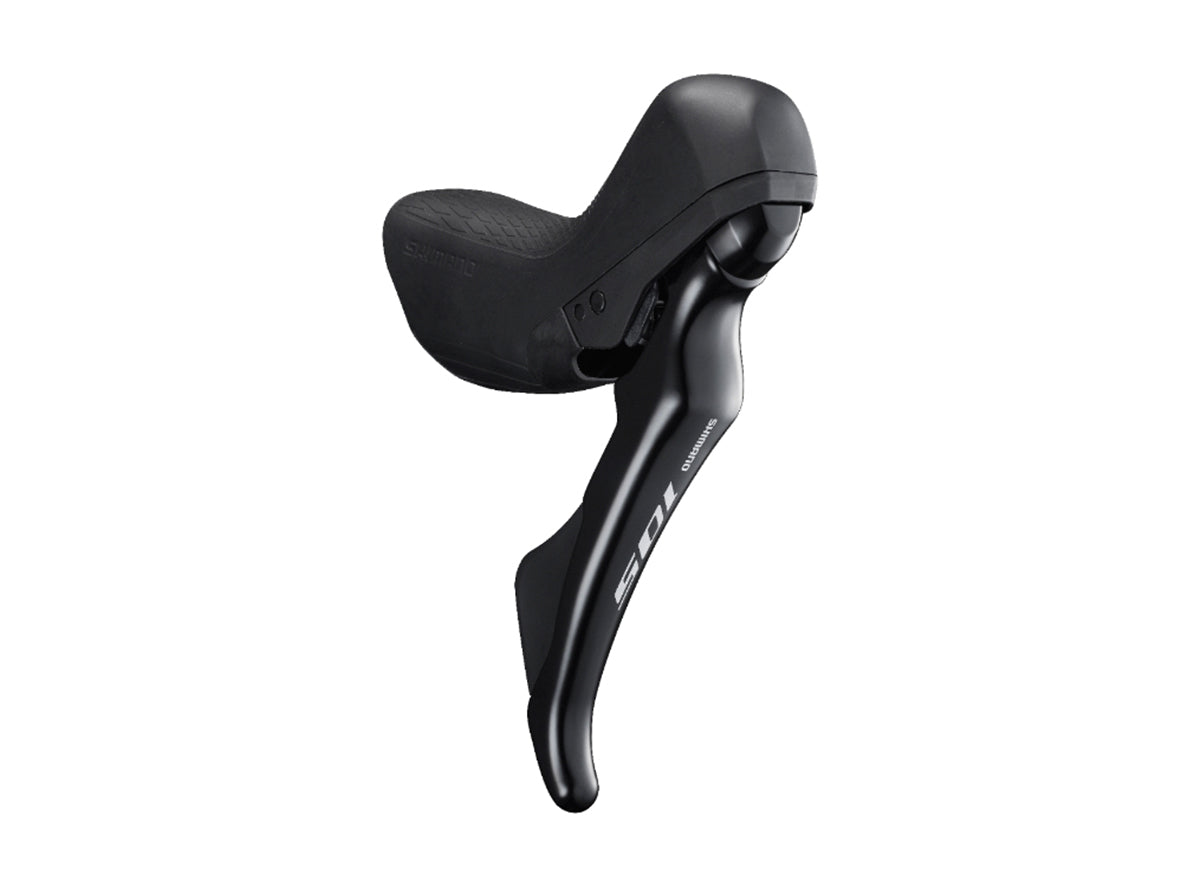

Shimano 105 R7020 11 Speed Double STI Shifter

The Shimano 105 ST-R7020 / BR-R7070 disc brake combination impresses with revised STI levers which strongly remind you of the high-performance groupsets Dura-Ace and Ultegra as regards ergonomics.

Thanks to a fundamental revision of the shifting mechanism, the Dual-Control brake/shift levers allow for even faster and smoother shifting and offer a significantly shorter lever throw. Compared to the predecessor model ST-5800, the lever throw is reduced by 24% when shifting up and by 8.6% when shifting down. In combination with BR-R7070 FlatMount brake calipers, Shimano offers you a braking system with a strong performance and comfortable modulation. Thus, you will also feel comfortable and safe on your road bike or cyclocross bike in adverse conditions.

Thanks to intuitive handling and a large lever reach adjustment range, the Shimano 105 ST-R7020 brake/shift lever combination offers high-end features and functions while being capable of way more than just competition and training.

• Hydraulic Disc Brake DUAL CONTROL LEVER (11-speed)
• Great ergonomics cascaded from ULTEGRA
• Greater reach adjust range
• Redesigned internal shifting unit
• Greater rider control in all conditions
• Quick and intuitive rear shifting operation
• Same light shifting operation as top tier systems
• Lighter front shifting when paired with FD-R7000 (compared with previous generation)

MODEL NO	ST-R7020-R
SERIES	SHIMANO 105 R7000 Series
Color	Silky Black, -
Average weight	590 g/pair
Brake lever specifications_Brake fluid_SHIMANO Mineral Oil	SHIMANO Mineral
Brake lever specifications_Brake hose color (kit)	Black
Brake lever specifications_Recommended brake caliper	BR-R7070
Brake lever specifications_Brake hose (Kit)	SM-BH90-JK-SSR SM-BH90-J-SSR
Brake lever specifications_Funnel bleeding	X
Brake lever specifications_Hose joint	Straight
Brake lever specifications_Reach adjust_Tool	X
Clamp band	Steel
Clamp band_Inner diameter	23.8-24.2
Shifter type	DUAL CONTROL LEVER
Shift lever_Release	Resin & Steel
Shift lever specifications_Max. multiple shifts(Main lever/ rear)	2
Shift lever specifications_Compatible RD Type	Road 11-speed RD
Shift lever specifications_Rear speeds	11
Shift lever specifications_SL outer casing_Lever side	OT-SP41
Shift lever specifications_SL outer casing_Rear derailleur side	OT-RS900
Shift lever specifications_SL cable_Included	X
Shift lever specifications_SL cable_OPTISLICK cable	X
Shift lever specifications_SL cable_Pre assembled	X
