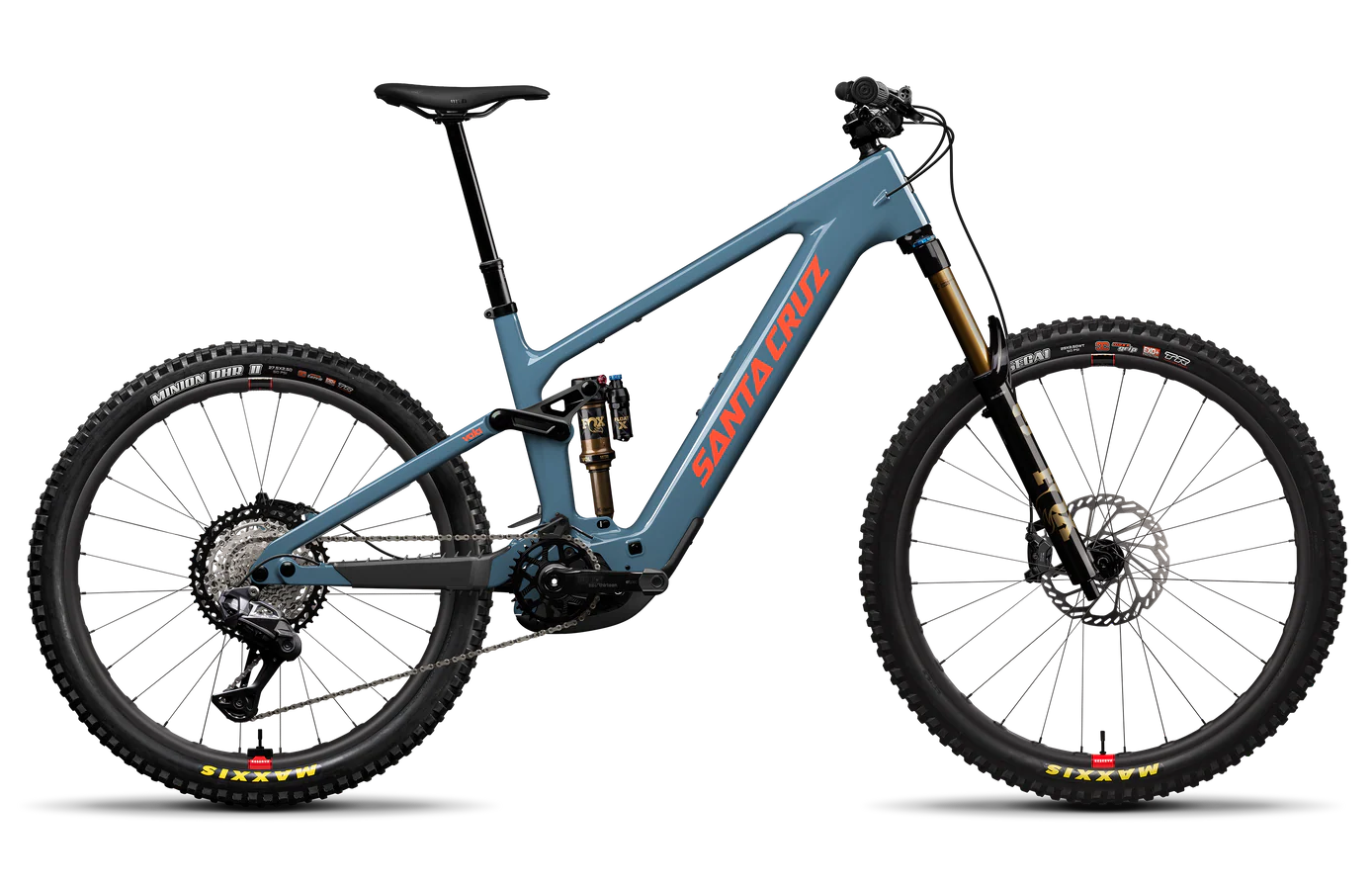

Santa Cruz Vala CC MX - XT Di2 Lite Reserve - Gloss Slate Blue - 2027
Santa Cruz Vala CC MX - XT Di2 Lite Reserve - Gloss Slate Blue - 2027
Product ID: GM040326-27
Only 2 Items Left
Shop all Santa Cruz | Shop all Electric Mountain Bikes
View full detailsDescription
Santa Cruz Vala CC MX - XT Di2 Lite Reserve
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
Key Details:
- Carbon C Frame
- FOX 36 Float Factory Fork
- FOX Float X Factory Shock
- Shimano Deore XT Di2 M8260 Drivetrain
- Reserve 30|HD Carbon Wheels
- Bosch Performance CX BDU38 Drive Unit
Specifications:
| Frame | |
|---|---|
|
Material |
Carbon C |
|
Frame |
Carbon C MX 150mm Travel 4-Bar |
|
Travel |
150 |
|
Weight |
46.00 lbs / 20.87 kg |
|
Wheel Size |
MX |
| Suspension | |
|
Fork |
FOX 36 Float Factory, Grip X2, 160mm |
|
Shock |
FOX Float X Factory, 205x60 |
| Drivetrain | |
|
Bottom Bracket |
n/a |
|
Cassette |
Shimamo XT M8200, 10-51t |
|
Chain |
Shimano XT M8100, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
e13 Helix Race Alloy e*spec All Sizes: 160mm |
|
Rear Derailleur |
Shimano Deore XT Di2 M8260, SGS, 12spd |
|
Right Shifter |
Shimano Deore XT M8250 Shift Switch |
| Brakes | |
|
Brakes |
Shimano XT M8220 |
|
Front Rotor |
Shimano RT750, 6-Bolt, 200mm |
|
Rear Rotor |
Shimano RT750, 6-Bolt, 200mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
|
Handlebars |
OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise M-XXL: 800mm, 35mm Rise |
|
Headset |
Cane Creek 50 IS Integrated Headset |
|
Saddle |
WTB Silverado Medium Fusion, CroMo SL |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 120mm, M: 180mm, L: 210mm, XL-XXL: 240mm |
|
Stem |
Santa Cruz CNC All Sizes: 40mm |
| Wheels | |
|
Front Rim |
Reserve 30|HD Carbon |
|
Front Hub |
DT Swiss 350, 15x110, 6-Bolt, 28h |
|
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
|
Rear Rim |
Reserve 30|HD Carbon |
|
Rear Hub |
DT Swiss 350 DEG DF, 12x148, MiscroSpline, 6-Bolt, 28h |
|
Rear Tire |
Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, EXO+ |
|
Valves |
Reserve Fillmore Valves |
| Ebike | |
|
Battery |
Bosch PowerTube Battery 600Wh |
|
Drive Unit |
Bosch Performance CX BDU38 |
|
Battery Charger |
n/a |
| Specs | |
|
Bottom Bracket Shell |
EMTB |
|
Rear Brake Mount |
200mm PM |
|
Shock Length |
205mm |
|
Fork Axle to Crown |
571mm |
|
Fork Offset |
44mm |
|
Front Derailleur Mount |
No Compatibility |
|
Headset |
Integrated (IS41/52) |
|
Max Chainring Size |
36t |
|
Max Rotor Size |
220mm |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" |
|
Rear Spacing |
148mm |
|
Rear Travel |
151mm |
|
Recommended Sag |
30% |
|
Seat Clamp Diameter |
36.4mm |
|
Seat Post Diameter |
31.6mm |
|
Shock Stroke |
60mm |
|
Suspension System |
Four-bar |
|
UDH Compatible |
Yes |
|
Water Bottle Mounts |
1 |
Sizing & Geometry:
