There's nothing like riding a downhill bike

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there’s no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

• Available in: CC Carbon
• Wheelsize: MX & 29 (frame size dependent)
• Front Travel: 203mm
• Rear Travel: 208mm
• Designed for: DH racing and bike park laps

Carbon
Full CC Carbon frame with in-molded cable routing tunnels

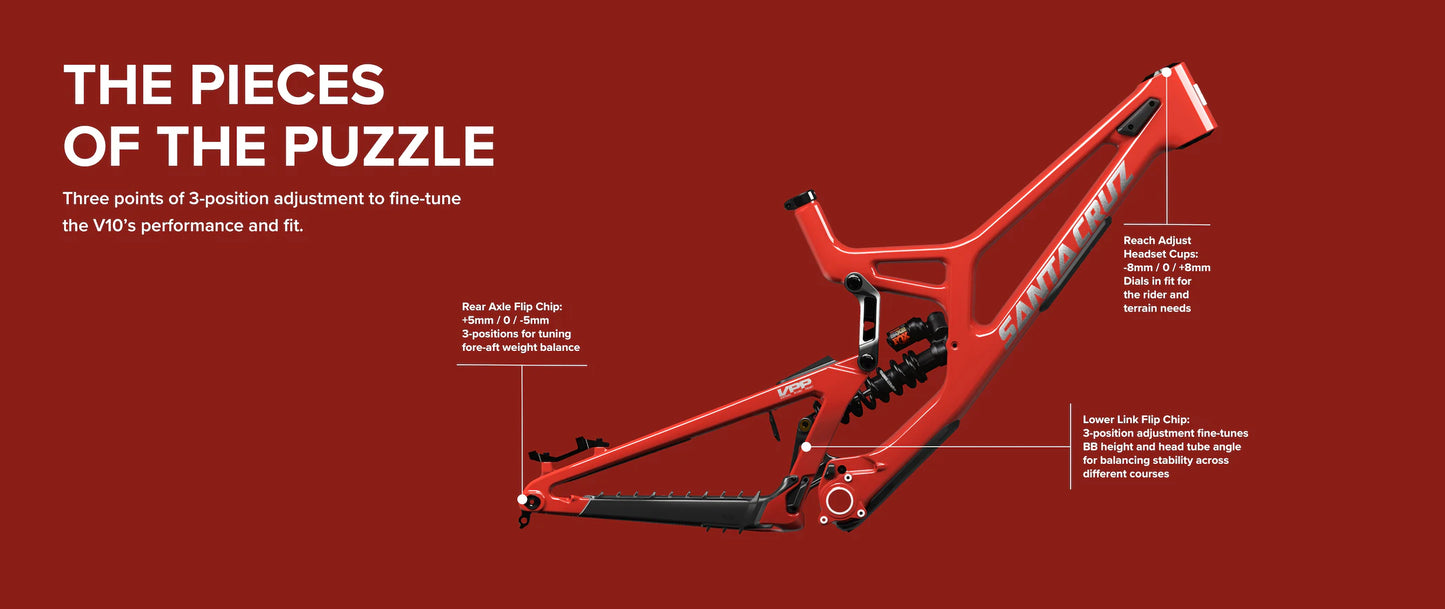

Reach adjust headset cups
Dials in fit for the rider and terrain needs (-8mm / 0 / +8mm)

VPP™
208mm of VPP™ travel exquisitely refined with ease of tuning and serviceability in mind

Sliding Brake Mount
A single brake mount for rear axle adjustment

V10 Frame Specifications

• Material: Carbon CC
• Suspension System: VPP
• Rear Travel: 208mm
• Front Derailleur: No compatibility
• Headset/Headtube: IS41 upper/ IS41 lower (Reach Adjust)
• Seat Post: 31.6mm
• Seat Clamp: 36.4mm
• Eye to Eye length: 250mm
• Stroke: 75mm
• Fork Compatibility: 200-203mm
• BB Shell: 83mm Threaded
• Max Tire Size: 2.5"
• Max Chainring Size: 36t
• Shock Mounting Bushing Front: 30x8
• Shock Mounting Bushing Rear: 30x8
• Rear Hub: 157x12
• Rear Brake: 200mm or 220mm Post
