The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

FEATURES

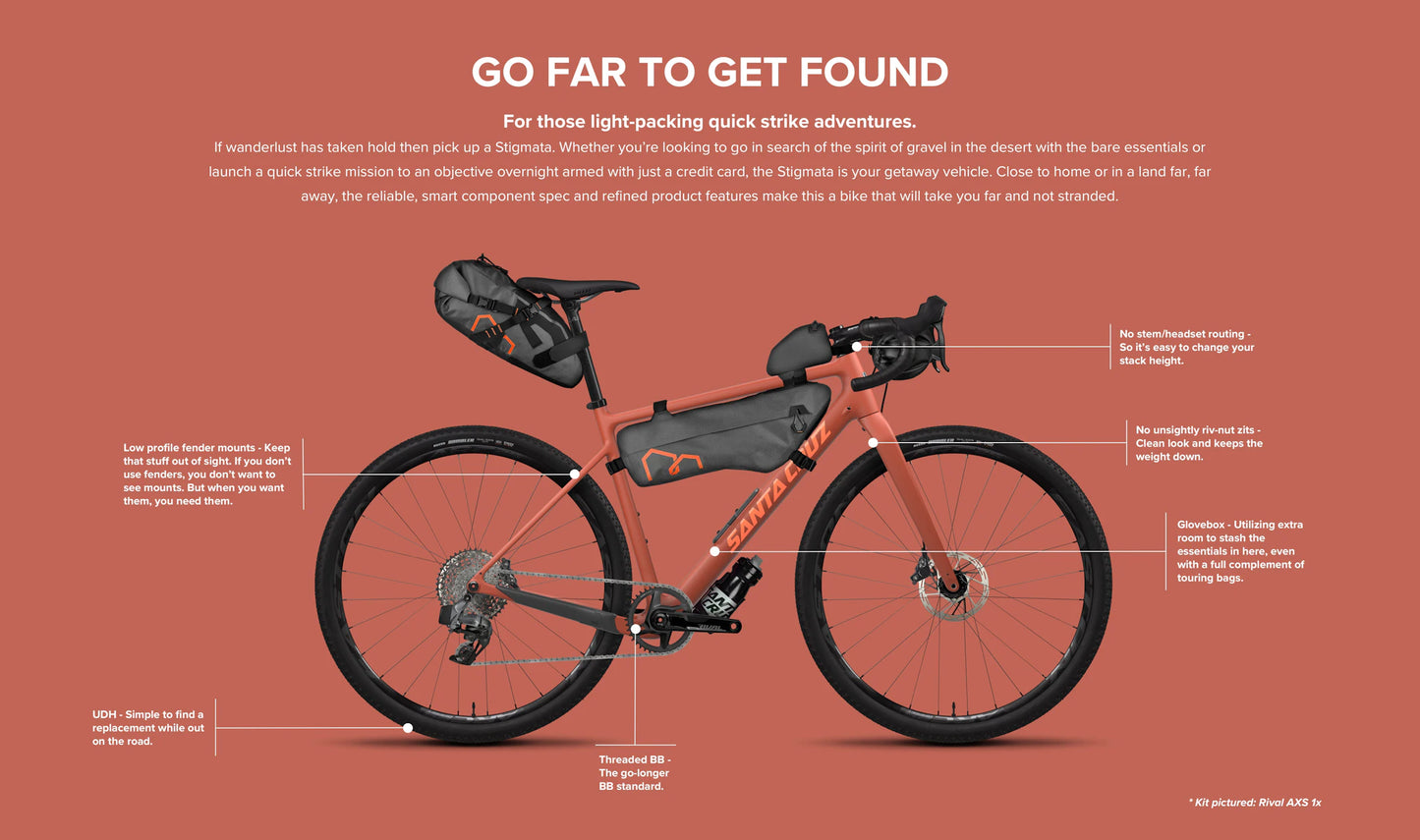

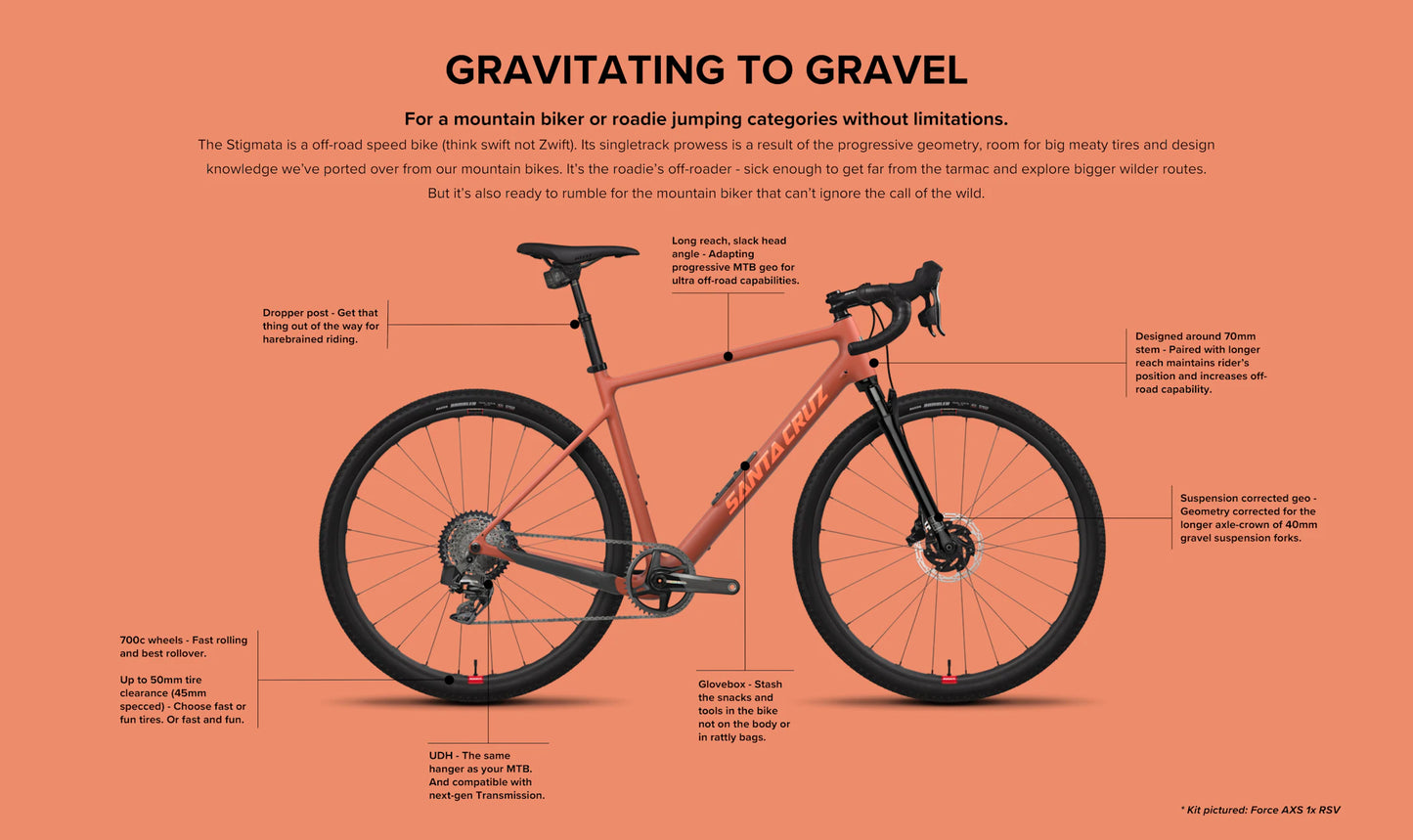

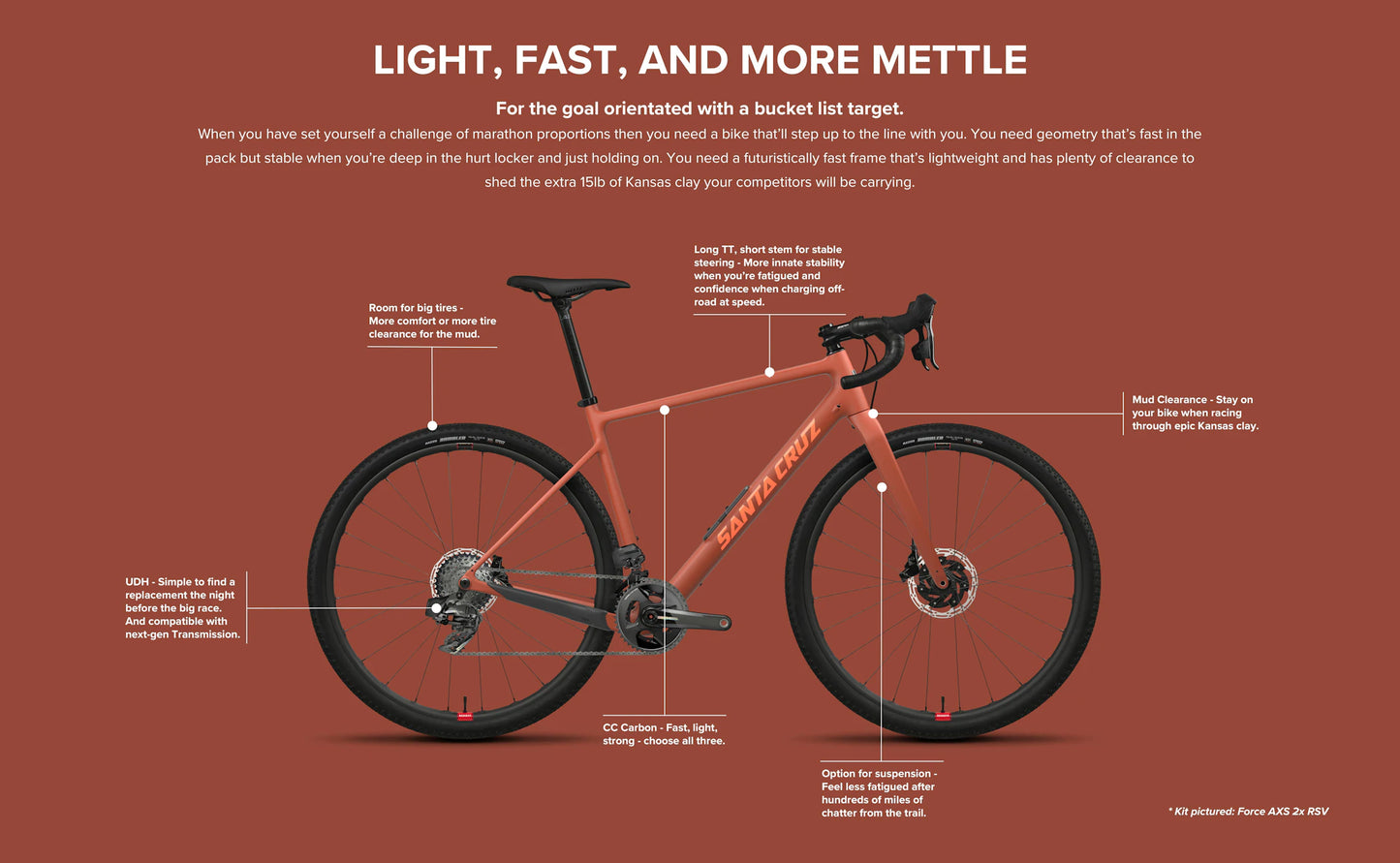

• Dropper post compatible. Get that thing out of the way for hair-brained riding!

• Long reach – designed around 70mm stems – with a slack head tube angle. Adapting progressive MTB geo for ultra off-road capabilities.

• Great rollover on fast rolling 700c wheels with up to 50mm tire clearance. Choose fast or fun tires. Or fast and fun tires.

• The Glovebox allows for extra room to stash the essentials, even with a full complement of frame bags.

• Low profile fender mounts. If you don’t use fenders, you don’t want to see mounts. But when you want them, you got them.

• Third bottle mount on the downtube is the only extra mounting point. No unsightly riv-nut zits keeps frame clean and lightweight.

• No stem/headset cable routing and a standard IS tapered headset, so it’s easy to adjust fit or perform maintenance out in the field.

SPECIFICATIONS

• Pedals: Sold Separately

• Fork: RockShox Rudy Base XPLR, 40mm

• Hubs: DT Swiss 370, 12x100, Centerlock, 28h Rear: DT Swiss 370, 12x142, XDr, Centerlock, 28h

• Rims: Easton ARC Offset 25 700c Rear: Easton ARC Offset 25 700c

• Stem: Zipp Service Course Stem, 70mm

• Chain: SRAM GX Eagle T-Type, Flattop, 12spd

• Frame: Carbon CC Gravel

• Tires: Maxxis Rambler, 700x45c, DC, EXO Rear: Maxxis Rambler, 700x45c, DC, EXO

• Brakes: SRAM Rival eTap AXS

• Rotors: Avid Centerline, Centerlock, 160mm Rear: Avid Centerline, Centerlock, 160mm

• Saddle: WTB Silverado Medium, CroMo

• Headset: Cane Creek 40 IS Integrated Headset

• Crankset: SRAM Rival 1 DUB Wide, 42t

• Seatpost: Easton EC70, 27.2, Zero Offset, 350mm

• Shifters: SRAM Rival eTap AXS

• Handlebars: Zipp Service Course 70 XPLR AL Bar

• Tape/Grips: Velo Bar Tape

• Bottom Bracket: SRAM DUB 68mm Road Wide BB

• Rear Derailleur: SRAM GX Eagle AXS T-Type, 12spd

• Cassette/Freewheel: SRAM GX Eagle T-Type, 10-52t
