Santa Cruz Nomad Carbon MX - R Kit - Matt Liquid Blue - 2024
Santa Cruz Nomad Carbon MX - R Kit - Matt Liquid Blue - 2024
Product ID: GM073124-104
Only 1 Items Left
Shop all Santa Cruz | Shop all Full Suspension
View full detailsDescription
STOMPING GAPS AND STAMPING PASSPORTS
Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

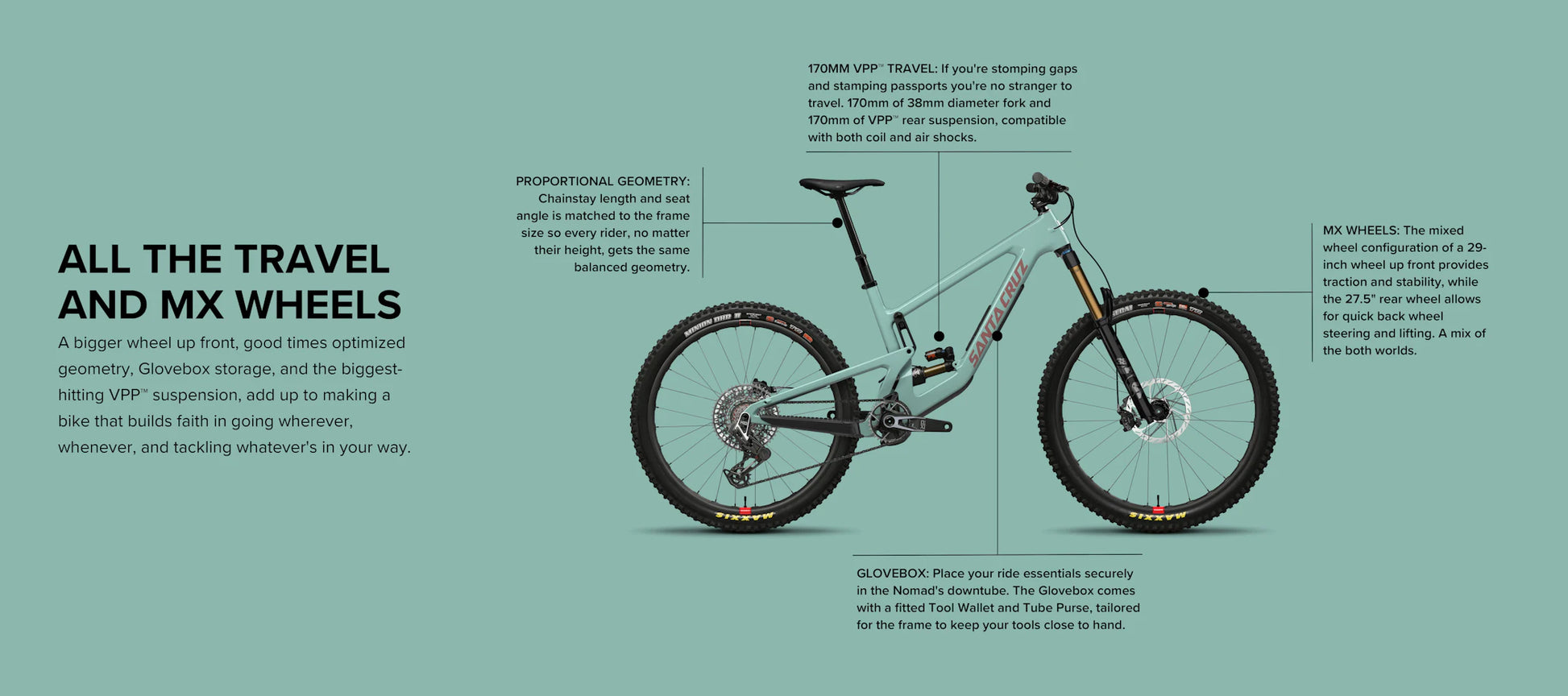

All the travel anyone needs in a single-crown bike intended for the steepest and deepest of trails.
VPP™ suspension can be optimized to strike a balance between pedaling efficiency and all-out bump-chomping prowess. The Nomad is exceptional at absorbing the biggest hits so its rider can charge harder, with more confidence, in the very worst terrain. But because it's still pedal efficient, getting up to the best, highest trails isn't a chore like some other bikes.
Sensitivity and constant traction
On the Nomad, lowering the anti-squat reduced pedal kickback on big square-edge hits at speed, all while improving the overall sensitivity of the suspension to maintain traction at all speeds. Up and downhill.
Flat-out bump control and tracking
By reducing the starting leverage of the latest Nomad, we were able to improve body-weight influenced geometry stability throughout the travel. While reducing progression allowed the suspension to have consistently better tracking qualities throughout the stroke.
Built to last
Short, stout counter-rotating links connect the front and rear triangles to create an extremely robust chassis that reduces lateral flex. Simple expanding collet axles hold things together, pivots run on large diameter axles and bearings (which we offer free lifetime replacement for) and the lower link includes a grease-port for quick, easy maintenance.
Frame stiffness tuned by size
Bigger riders means bigger stresses on bigger frames. So we tailor stiffness for every size to make sure everyone gets the same ride quality.
Details matter
The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.
SPECIFICATIONS
- Frame: Carbon C MX 170mm Travel VPP™
- Fork: RockShox Zeb Base, 170mm
- Rear Shock: RockShox Super Deluxe Select, 230x65
- Rims/Wheels: RaceFace AR Offset 30, 29"/27.5"
- Hubs: SRAM MTH 716, Torque Cap, 6-Bolt, HG
- Tires: (F) Maxxis Assegai 29"x2.5", 3C, MaxxGrip,
EXO+ (R) Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
- Crankset: SRAM Descendant Eagle 148 DUB
- Chainrings: 32t
- Chain Guide: E.13 TRS Race SL, ISCG05
- Bottom Bracket: SRAM DUB 68/73mm Threaded BB
- Chain: SRAM NX Eagle, 12spd
- Rear Derailleur: SRAM NX Eagle, 12spd
- Cassette/Rear Cogs: SRAM PG1230, 12spd, 11-50t
- Shifters: SRAM NX Eagle, 12spd
- Handlebars: e13 TRS Base
- Grips: Santa Cruz Bicycles House Grips
- Stem: e.13 Base
- Brakes: SRAM G2 RE w/ Avid Centerline, 200mm Rotors
- Pedals: Sold Separately
- Saddle: WTB Silverado, CroMo
- Seat Post: SDG Tellis Dropper, 31.6
