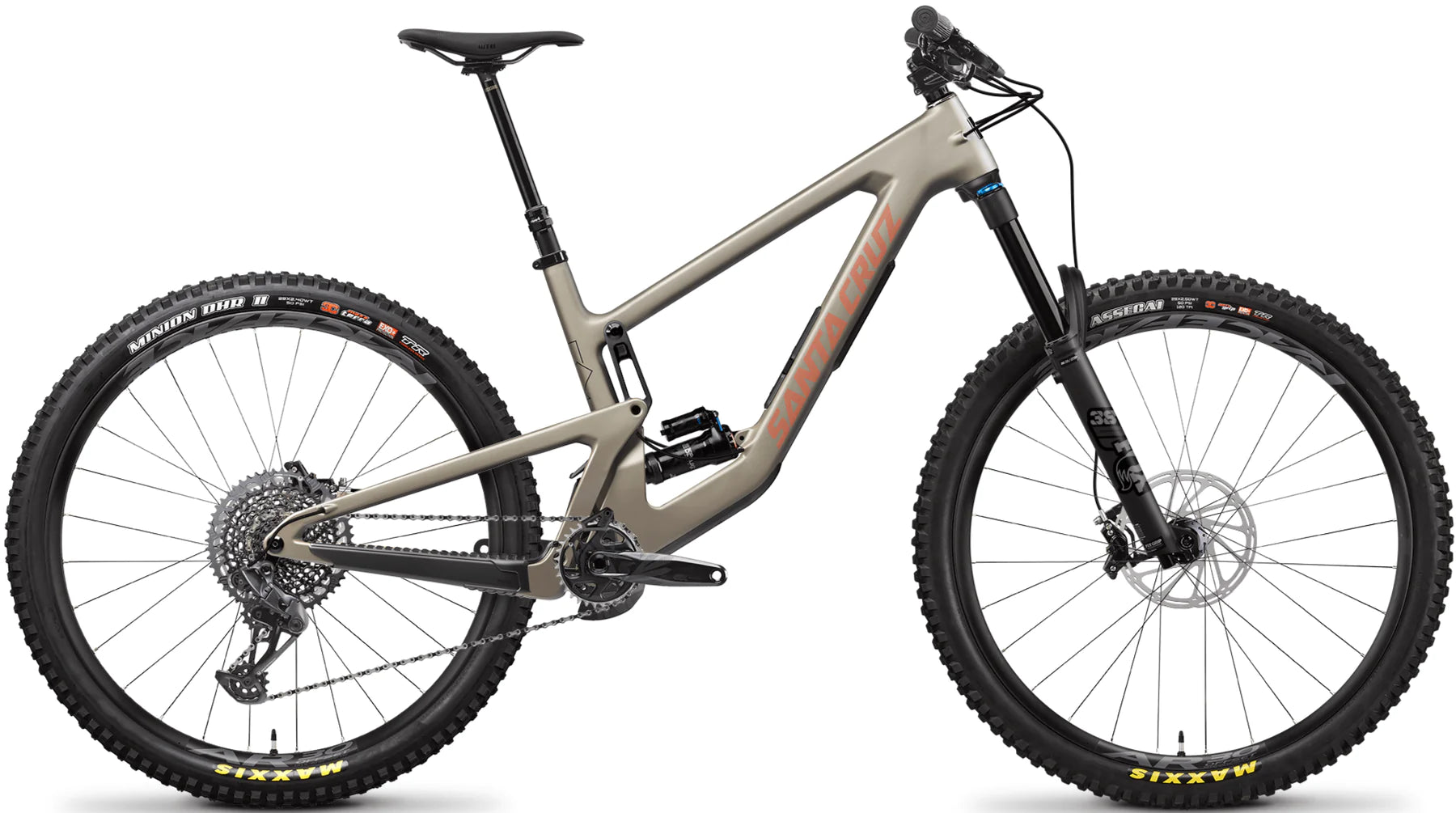

Santa Cruz Megatower Carbon 29 - S Kit - Matt Nickel - 2023

Seriously. The Megatower’s big wheels, long-travel and tough carbon fiber chassis delivers the high-speed security traits of a downhill bike. Yet the relatively steep seat angle and size-specific geo maintain the Mega’s mega pedaling ability, elevating its reputation as the perfect choice for big gravity rides and DH park laps.

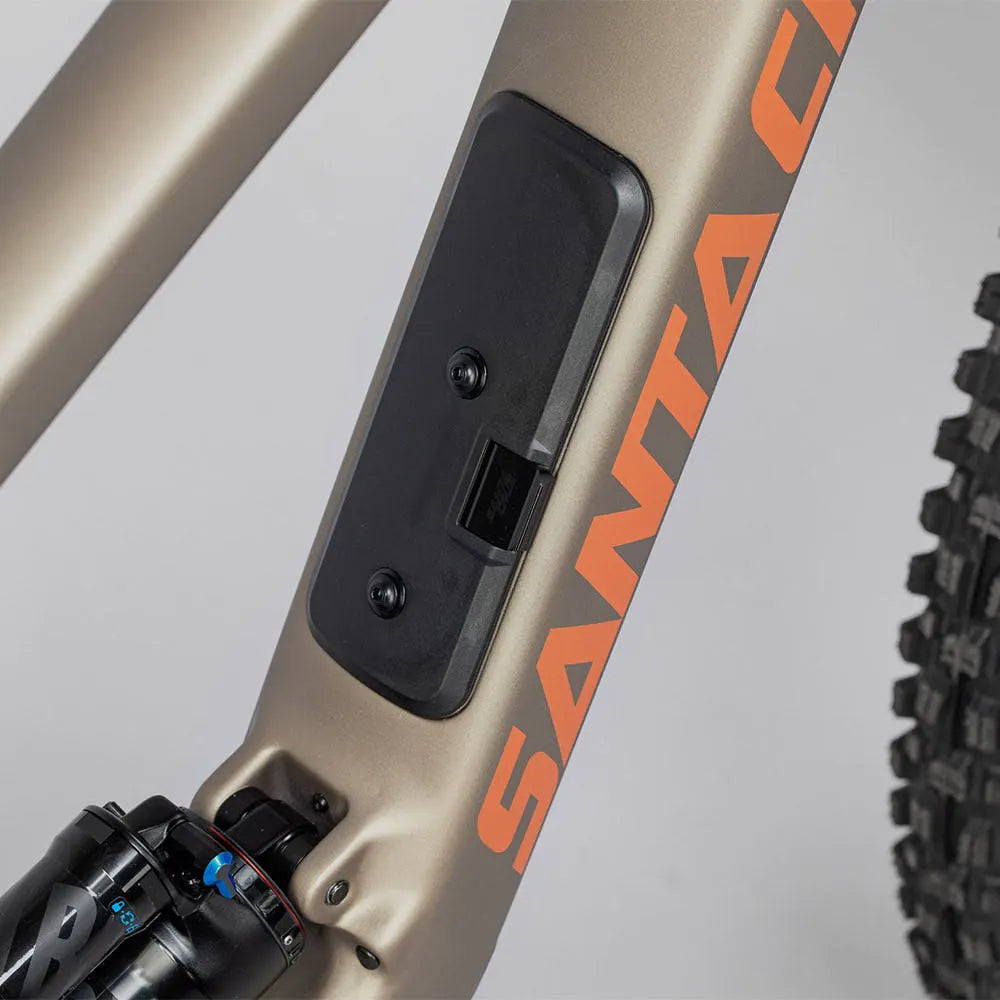

Glovebox
Place everything you need for a ride beneath the reassuringly high-quality latch and panel in the downtube, including your driving gloves. The Glovebox also comes with a Tool Wallet and Tube Purse, two refined pouches for keeping your essentials close to hand.

Full carbon C and CC frame options
CC frames use the very best materials and production processes available. Our C Carbon frames have the same features but the trade off for a little less $ is a little more weight. Both versions are made in our own factory, are just as strong and stiff as one another, and have a lifetime warranty.

Steeper seat angle
The steep seat angle puts the rider in the right place for scaling the steepest pitches to get to the wildest descents. It gets progressively steeper on the biggest sizes so everyone sits in the right spot.

165mm VPP travel
A relatively low leverage ratio offers a more damped, controlled feel across longer travel ranges and easier setup.

Coil and water compatibility
The option to run large body shocks (like a coil), a lower-link flip chip and still able to fit a water bottle inside the front triangle.

Longer travel?
165mm travel as standard but if you choose to swap to a longer stroke (65mm) rear shock you can bump it up to 170mm.

Details matter

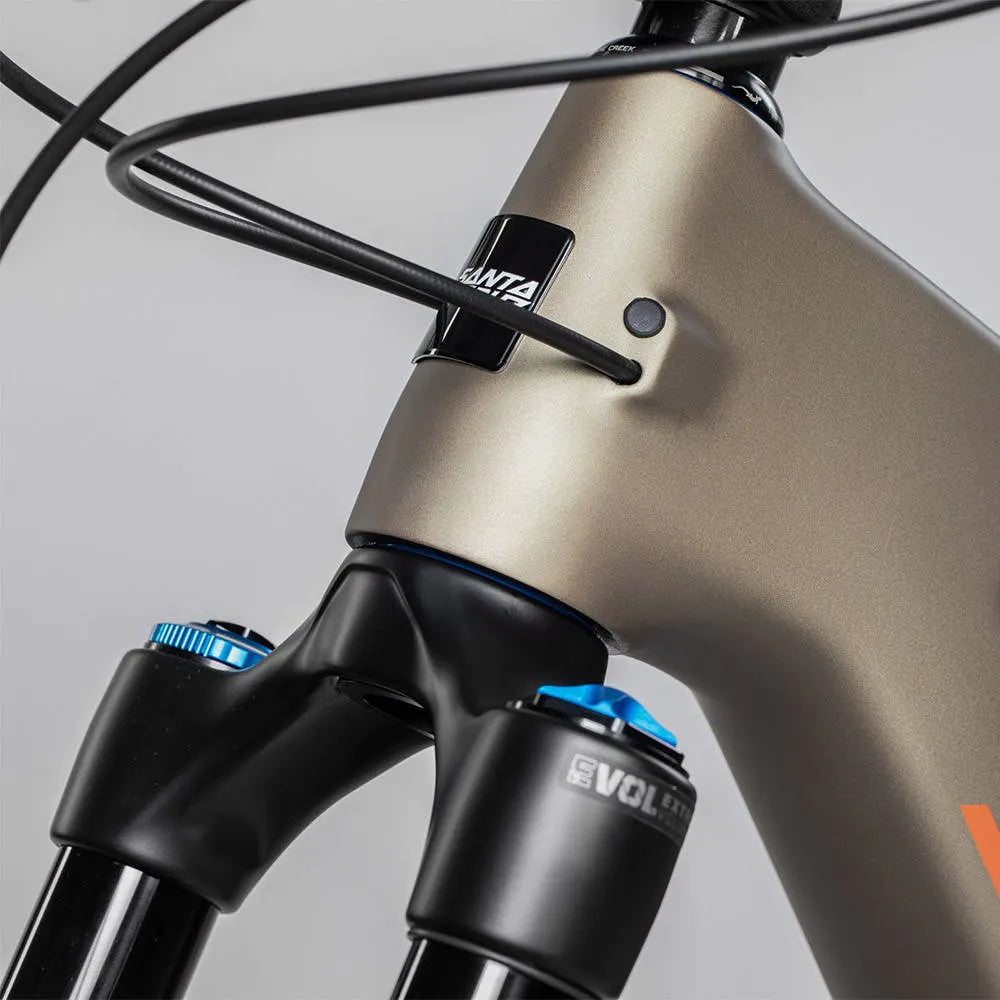

The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

Proportional geo
The Megatower's chainstay length is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.

SPECIFICATIONS

• Frame Carbon C 29" 165mm Travel VPP™
• Rear Shock RockShox Super Deluxe Select+ 230x62.5
• Fork FOX 38 Float Performance, 170mm
• Rear Derailleur SRAM GX Eagle, 12spd
• Shifter SRAM GX Eagle, 12spd
• Cassette SRAM XG1275 Eagle, 12spd, 10-50t
• Chain SRAM GX Eagle, 12spd
• Chainguide OneUp Bash Guide
• Bottom Bracket SRAM DUB 68/73mm Threaded BB
• Headset Cane Creek 40 IS Integrated Headset
• Rear Tire Maxxis Minion DHR II 29"x2.4" EXO+, 3C MaxxTerra
• Front Tire Maxxis Assegai 29"x2.5" EXO+, 3C MaxxGrip
• Sealant Stan's Sealant
• Front Hub DT Swiss 370, 15x110, 6 bolt, 28h or E13 SL, 15x110, 6 bolt, 28h
• Front Rim RaceFace AR Offset 30 29" Rims
• Spokes Sapim Race
• Rear Hub DT Swiss 370, 12x148, XD, 28h or E13 SL, 12x148, XD, 28h
• Rims RaceFace AR Offset 30 29" Rims
• Rotors Avid Centerline 200mm
• Front Brake SRAM Code R
• Crankset SRAM GX Eagle 148 DUB 30t

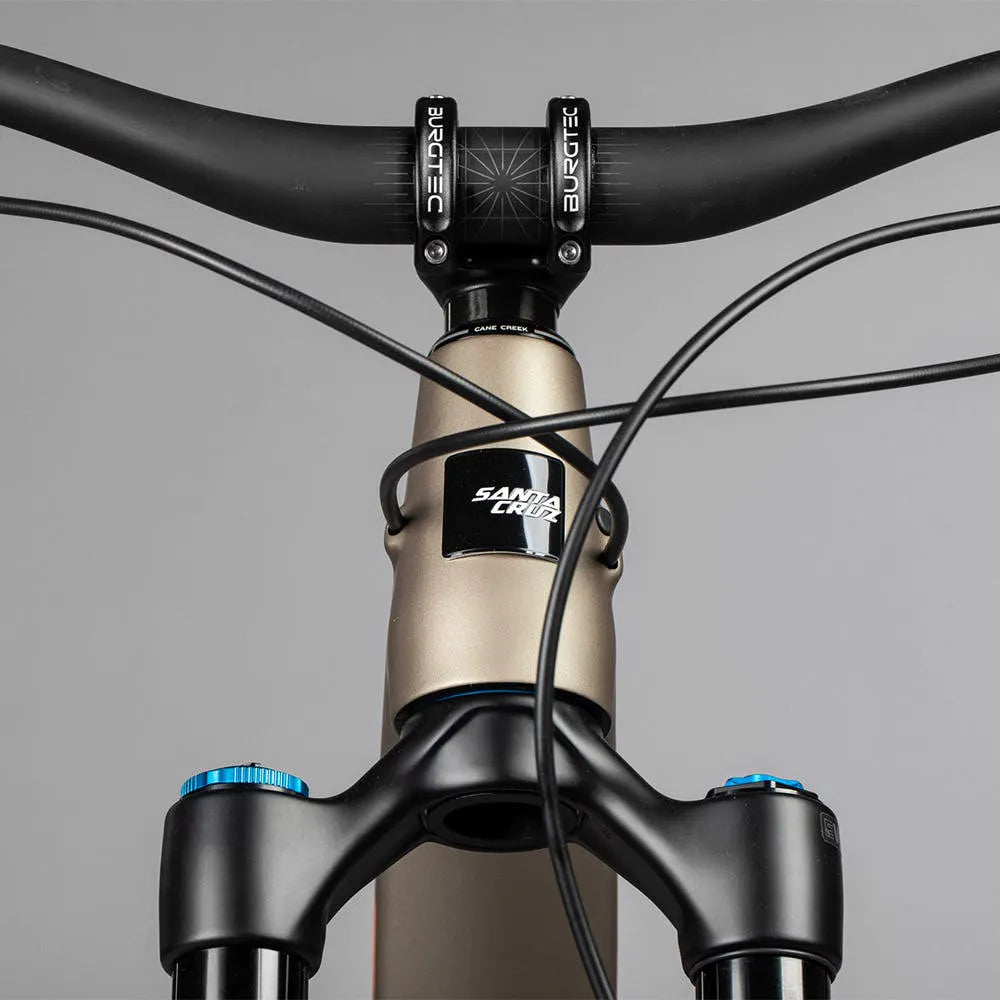

• Handlebar Burgtec Alloy Bar, 800mm
• Stem Burgtec Enduro MK3 42mm
• Saddle WTB Silverado Pro Saddle or WTB Volt
• Seatpost RockShox Reverb Stealth, 31.6 or Race Face Aeffect
• Grips/Bar Tape Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar
