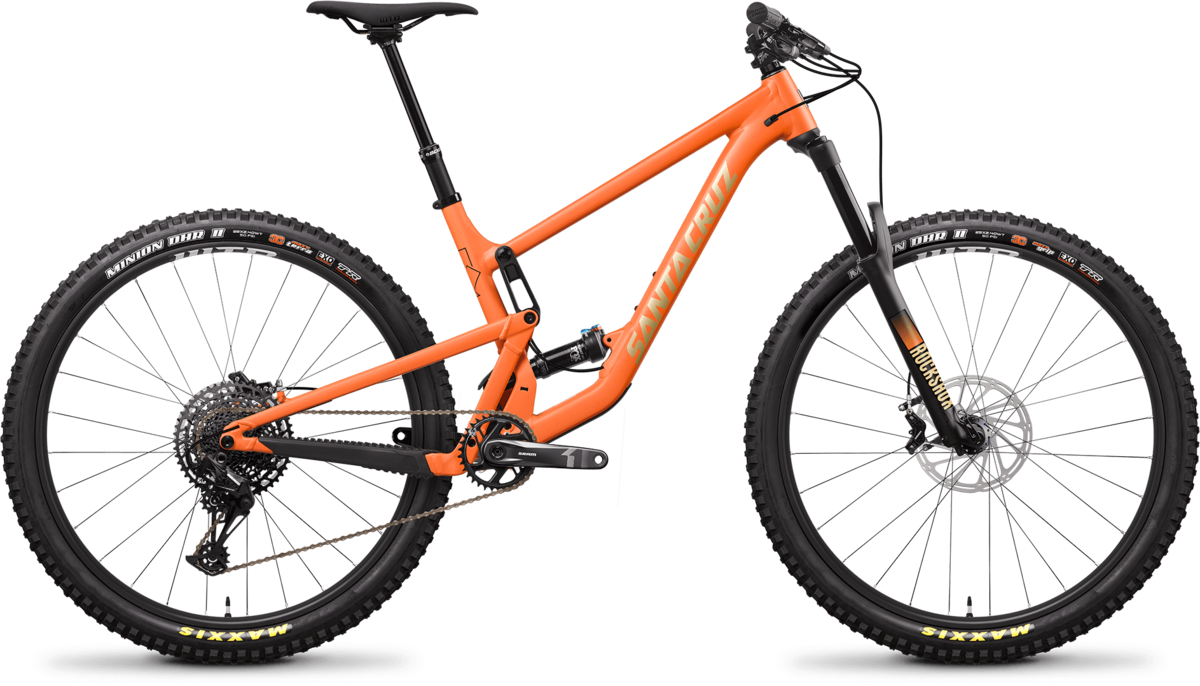

Santa Cruz Hightower AL 29 - D-Kit - Matt Melon - 2022

Santa Cruz Hightower AL 29 - D-Kit - Matt Melon - 2022

Regular price $2,849.00
Sale price $2,849.00
Santa Cruz Logo

Timer code snippet
Color
Size

Product ID: GM030323-07

Earn rewards points on this item / Join Now
Out of stock


Shop all Santa Cruz   |   Shop all Full Suspension

View full details

Description

Santa Cruz Hightower AL 29 - D-Kit - Matt Melon - 2022



Our greatest hits are compiled into one bike. Just hit play.

If ever a bike resembled your most cherished mix tape compilation, the Hightower is it. Featuring our lower-link mounted shock design, updated, adjustable geometry, this "Engineering Best Of..." assembles some of our biggest design pleasers into one belter of a road-trip companion.

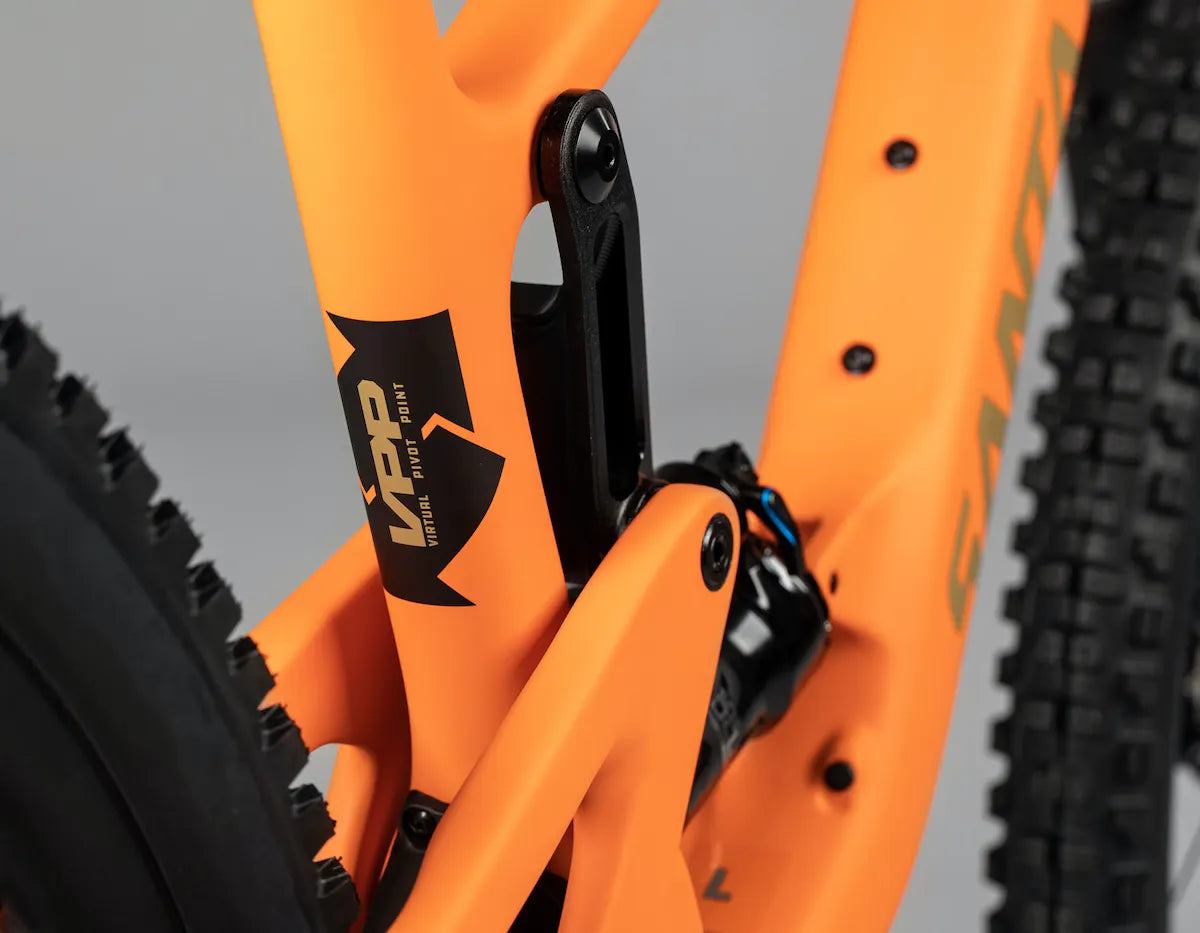

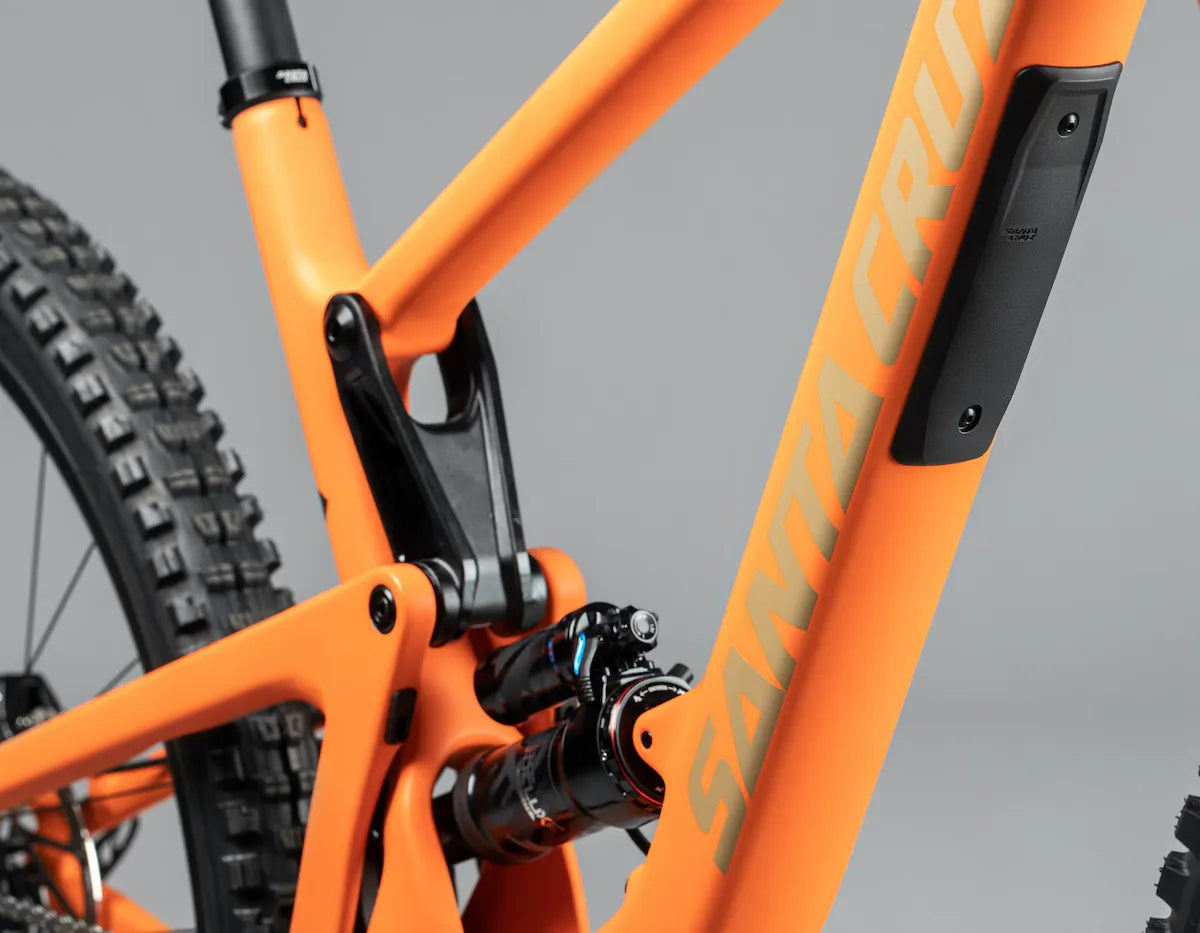

The Hightower has been a does-it-all-well trail bike since its inception. More maneuverable than its longer-travel sibling, the Megatower, and more at home in the steep-and-chunky than its snappy cousin Tallboy, Hightower excels when the route covers 'all points in between,' and descents come courtesy of some big-ass climbs. The VPP suspension's lower-link-mounted shock creates a nearly linear leverage curve, meaning it mops up bumps of all sizes and maintains the kind of progressivity normally reserved for our V10 DH bike!

145mm of rear travel complemented by a 150mm front end gives Hightower just a bit more front and rear travel over the first generation model. Combined with a slacker 65-degree head tube angle, the Hightower still sits squarely in the Goldilocks zone, but with a touch more "Oh sh*t, get me out of here" capability when the porridge gets too hot!

Balancing stiffness and weight savings in all the right places is a hallmark of all Santa Cruz carbon frames, and the Hightower flies the flag yet higher. The advanced composite chassis tracks well across all trail surfaces, holds a line, and is reactive to rider directions while isolating pedal-influenced inputs.

The Hightower also has a bonus disc to heighten the experience: the flip chip. In the High setting, the BB height is a little higher for those tricky tech trails and/or when Plus sized tires are required. In the Low position, the shock rate is more progressive to provide additional bottom-out resistance. Whatever mood you're in, the tone of the Hightower can be adapted to meet your individual taste.

And, speaking of taste, there's room for a water bottle inside the main frame and a threaded BB for convenience. There's refined cable routing for better shifting performance, simpler installation, and no cable rub. On top of that, there's a tailgate shuttle guard, downtube protector, shock fender, and noise-canceling chainstay protector to keep things quiet.

The lifetime frame warranty and lifetime pivot bearing replacement policy assure you that the Hightower will keep delivering the hits for years to come.

Specifications

  • Frame: D Kit
  • Fork: RockShox 35 Gold RL, 150mm, 29"
  • Rear Shock: FOX Float Performance DPS
  • Rims: WTB ST i30 TCS 2.0 29"
  • Hubs Front: SRAM MTH 716, 15x110, Torque Cap, 32h
  • Rear: SRAM MTH 746, 12x148, 32h
  • Spokes: Sapim Race
  • Axles Front: 110 x 15mm
  • Rear: 148 x 12mm
  • Tires Front: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR
  • Rear: Maxxis Minion DHR 29"x2.4", 3C, EXO, MaxxTerra
  • Bottom Bracket: SRAM DUB 68/73mm
  • Crankset: SRAM X1 Eagle DUB
  • Chainrings: 30t
  • Shifters: SRAM NX Eagle, 12spd
  • Rear Derailleur: SRAM SX Eagle, 12spd
  • Cassette/Freewheel: SRAM PG1210, 12spd, 11-50t
  • Chain: SRAM SX Eagle, 12spd
  • Brakes: SRAM Guide T
  • Rotors: Avid Centerline 180mm
  • Handlebars: RaceFace Aeffect R
  • Tape/Grips: Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
  • Stem: RaceFace Ride
  • Headset: Cane Creek 10 IS Integrated Headset
  • Seatpost: SDG Tellis
  • Saddle: WTB Silverado Comp Saddle or WTB
  • Pedals: Sold separately
High Setting

Bike Sizes:
S M L XL XXL
A. Reach 428mm 453mm 473mm 493mm 518mm
B. Stack 601mm 610mm 619mm 637mm 660mm
C. Standover 704mm 718mm 717mm 718mm 709mm
D. Effective Top Tube 566mm 594mm 618mm 645mm 679mm
E. Head Tube Angle 65.5° 65.5° 65.5° 65.5° 65.5°
F. Head Tube Length 90mm 100mm 110mm 130mm 155mm
G. Seat Tube Angle 77.1° 77.0° 76.8° 76.6° 76.3°
H. Seat Tube Length 380mm 405mm 430mm 460mm 500mm
I. Bottom Bracket Height 344mm 344mm 344mm 344mm 344mm
J. Bottom Bracket Drop 29mm 29mm 29mm 29mm 29mm
M. Wheelbase 1178mm 1207mm 1231mm 1260mm 1301mm
N. Front to Center 745mm 774mm 798mm 827mm 862mm
O. Chainstay Length 433mm 433mm 433mm 433mm 439mm

Low Setting
Bike Sizes:
S M L XL XXL
A. Reach 425mm 450mm 470mm 490mm 515mm
B. Stack 603mm 612mm 621mm 639mm 662mm
C. Standover 699mm 713mm 713mm 713mm 704mm
D. Effective Top Tube 567mm 596mm 619mm 646mm 680mm
E. Head Tube Angle 65.2° 65.2° 65.2° 65.2° 65.2°
F. Head Tube Length 90mm 100mm 110mm 130mm 155mm
G. Seat Tube Angle 76.7° 76.6° 76.5° 76.3° 76.0°
H. Seat Tube Length 380mm 405mm 430mm 460mm 500mm
I. Bottom Bracket Height 340mm 340mm 340mm 340mm 340mm
J. Bottom Bracket Drop 33mm 33mm 33mm 33mm 33mm
M. Wheelbase 1179mm 1208mm 1232mm 1261mm 1296mm
N. Front to Center 745mm 774mm 798mm 827mm 862mm
O. Chainstay Length 434mm 434mm 434mm 434mm 440mm
