Santa Cruz Heckler Carbon 29 E-Bike - S Kit - Maritime Gray - 2022

Shop all Santa Cruz   |   Shop all Electric Bikes


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

Santa Cruz Heckler Carbon 29 E-Bike - S Kit - Maritime Gray - 2022



Danny won't stop talking about his new Heckler

Danny MacAskill just doesn't stop talking about ebikes. He's infatuated with them. In fact, the only time he's not chewing someone's ear off about how good they are is when he's riding them. And when he's riding an e-bike, he rides and rides and rides. Which is partly why we've made the newest Heckler able to go further, higher, faster, and be funner.

Available with mixed MX wheels or as a dual 29er bike, Heckler features a ride-tuned geometry that makes things fun whether going uphill, downhill...or even just flat and fast. Anchoring it all is 150mm of Santa Cruz's legendary Virtual Pivot Point (VPP) suspension that's been paired with a 160mm-travel fork, and tuned precisely for e-bike riding. With slightly less anti-squat to give it glue-like traction on the climbs and poppy maneuverability on the way back down, Heckler smashes the sweet spot for taming big trails on big days.

About those big days...the latest generation of the Heckler comes with a long-running 720 watt-hour interchangeable battery that can be swapped in seconds with just a 4mm allen key. This lets riders expand their own trail map, giving access to previously unreachable trails, unlocking lesser-used trails, and cramming more riding into less time. And when you're riding that much, durability is critical, which is why Santa Cruz sweats the carbon layup and frame design, then backs it up with a lifetime warranty on the frame, bearings, and Reserve carbon wheels

- 150mm VPP travel
- Mixed & 29-inch wheels
- 720wh battery

keyboard_arrow_right Specifications

  • Frame Carbon C 29 150mm Travel VPP
  • Fork FOX 36 Float Performance, 160mm
  • Rear Shock Rockshox Super Deluxe Select+
  • Rims RaceFace ARC HD 30 29" Rims
  • Hubs Front: DT Swiss 370, 15x110, 6 bolt, 32h or E.13 SL, 15x110, 6 bolt, 32h
  • Rear: DT Swiss 370, 12x148, XD, 32h or E.13 SL E-Spec, 12x148, XD, 6 bolt, 32h
  • Spokes Sapim Race
  • Tires Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR
  • Rear: Maxxis Minion DHR II 29"x2.4", 3C Maxx- Terra, EXO+, TR
  • Crankset Shimano EM600 Crank Arms 165mm
  • Shifters SRAM GX Eagle Single Click, 12spd
  • Front Derailleur E.13 E-Spec+ AL
  • Rear Derailleur SRAM GX Eagle, 12spd
  • Cassette/Freewheel SRAM XG1275 Eagle, 12spd, 10-50t
  • Chain SRAM GX Eagle, 12spd
  • Brakes SRAM Code R
  • Rotors Avid Centerline 200mm
  • Handlebars Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
  • Tape/Grips Santa Cruz House Grips
  • Stem Burgtec Enduro MK3
  • Headset Cane Creek 40 IS Integrated Headset
  • Seatpost SDG Tellis Dropper, 31.6
  • Saddle WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
  • Pedals Sold separately

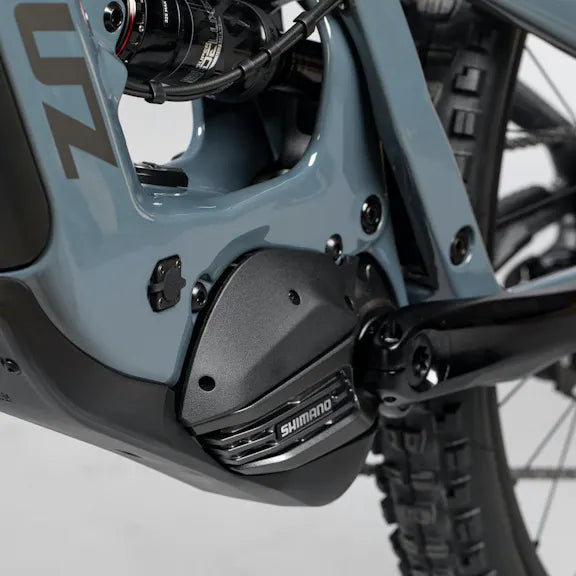

  • Motor Shimano Drive Unit DU-EP800
  • Battery 720Wh Integrated, Removable Battery
  • Charger Smart-Plus 4A Charger

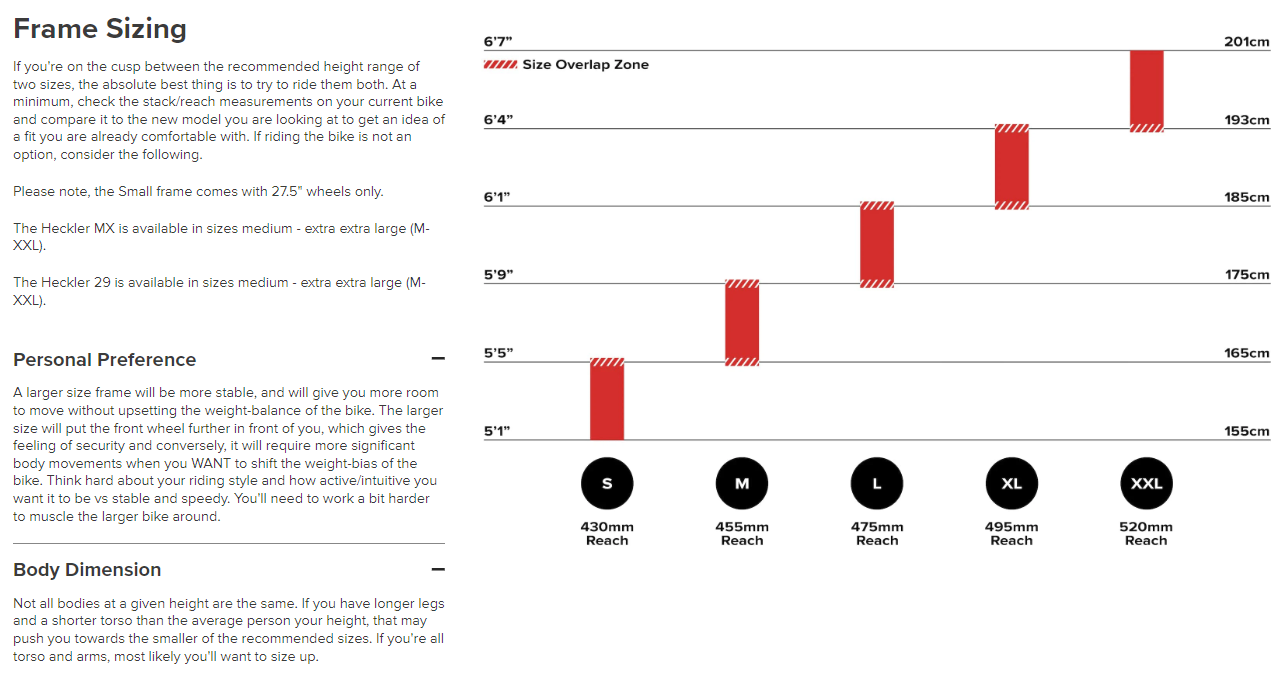

Geometry Chart:
Wheel Size 29 29 29 29
Size Medium (Low/Hi) Large (Low/Hi) X-Large (Low/Hi) XX-Large (Low/Hi)
Reach 452 / 455mm 472 / 475mm 492 / 495mm 517 / 520mm
Stack 618 / 616mm 632 / 629mm 650 / 648mm 668 / 666mm
Head Tube Angle 64.5 / 64.8° 64.5 / 64.8° 64.5 / 64.8° 64.5 / 64.8°
Seat Tube Length 405 / 405mm 430 / 430mm 460 / 460mm 500 / 500mm
Front Center 781 / 781mm 807 / 807mm 836 / 836mm 869 / 869mm
BB Height 342 / 346mm 342 / 346mm 342 / 346mm 342 / 346mm
BB Drop 30 / 26mm 31 / 26mm 32 / 26mm 33 / 26mm
Wheelbase 1242 / 1241mm 1268 / 1267mm 1297 / 1296mm 1330 / 1329mm
Chainstay Length 461 / 460mm 461 / 460mm 461 / 460mm 461 / 460mm
Head Tube Length 100 / 100mm 115 / 115mm 135 / 135mm 155 / 155mm
Top Tube Length 600 / 599mm 625 / 624mm 646 / 645mm 675 / 674mm
Seat Tube Angle 76.6 / 76.8° 76.4 / 76.7° 76.7 / 77° 76.8 / 77°
Standover 741 / 745mm 740 / 743mm 737 / 741mm 738 / 741mm
