Santa Cruz Bronson 2 CC XX1/ENVE Kit - Black - Medium - Demo 1

When we introduced Bronson, it took the market by storm, redefining what people expected from a 150mm trail bike. Equally at home in the Trans-Provence as it was on The Ridge, updating and improving it was going to be no small feat.

The most visible upgrade is the completely new VPP® link arrangement. The lower link tucks neatly above the bottom bracket, fully-recessed and protected from impacts. Meanwhile the box-section upper link now mounts cleanly to the top-tube and enhances lateral stiffness as a result. Shock rate’s been refined in the process too, delivering greater small bump sensitivity and a more progressive mid-stroke.

Geometry has also evolved subtly to meet demand from riders for a bike of this ilk. The seat tube angle’s been steepened, placing the rider right above the cranks and perfectly in position to lay down the power. Meanwhile a one-degree slacker 66 degree head tube angle combines with a 20-25mm longer top tube and shorter chainstay length to create an evermore rally-ready geometry than its predecessor.

This CC-level carbon frame is every bit as stiff and strong as our C-level frame, but weighs about 280 grams less, due to the use of some lighter, stronger, and more expensive carbon fiber. Using this material in key places allowed us to use less material overall, which is what shaves off more than half a pound from the frame.

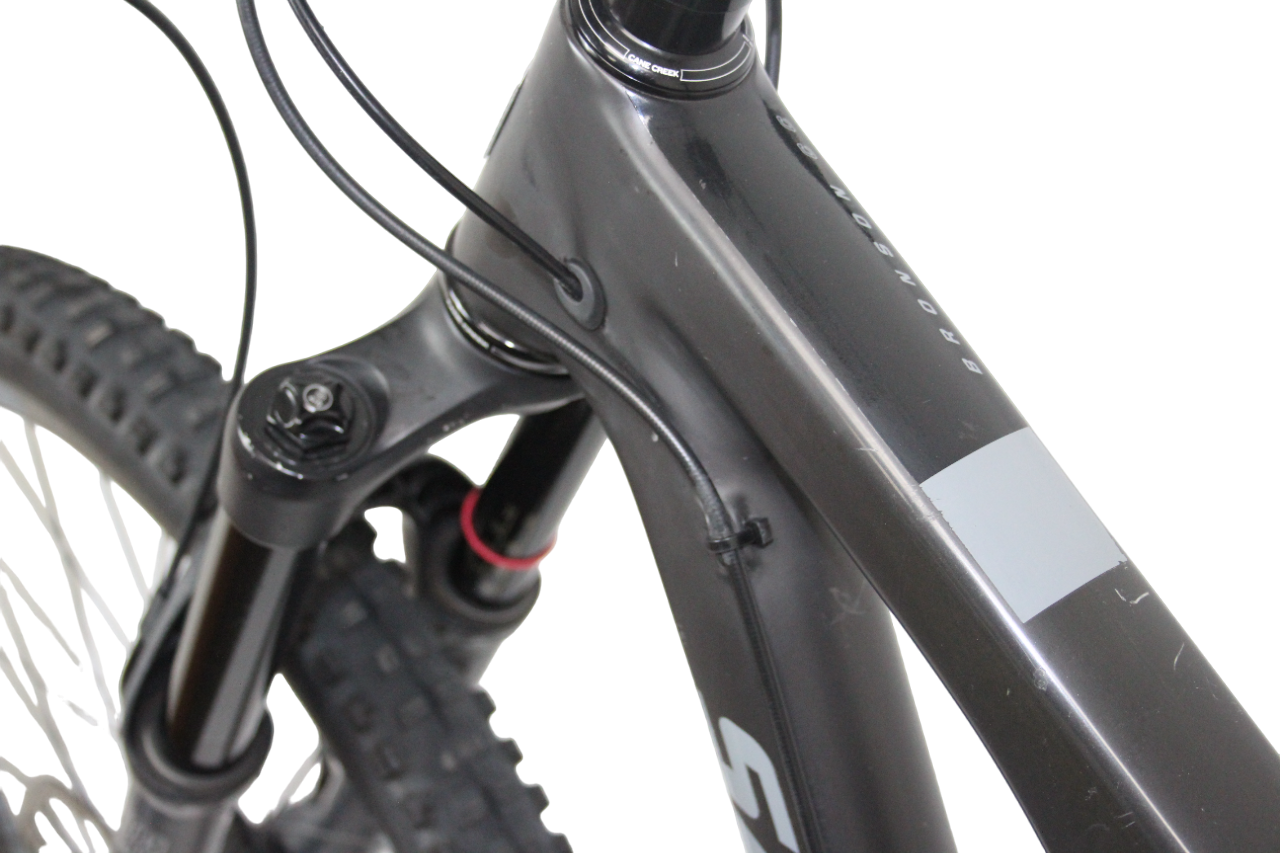

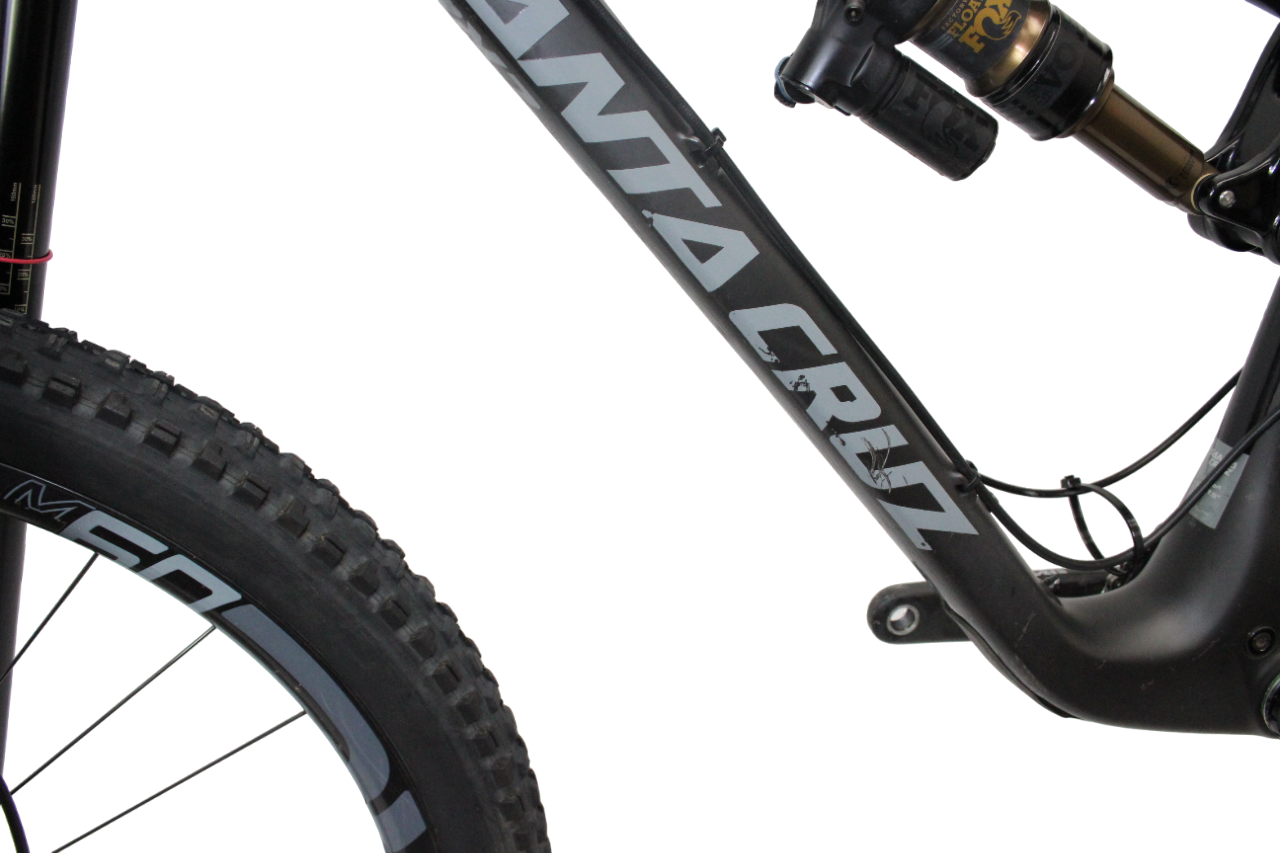

• Frame: Moderate condition, minor gauges and scratches on chainstay and seatstay, minor scratches along the top tube, minor scratches and shuttle rash on the downtube

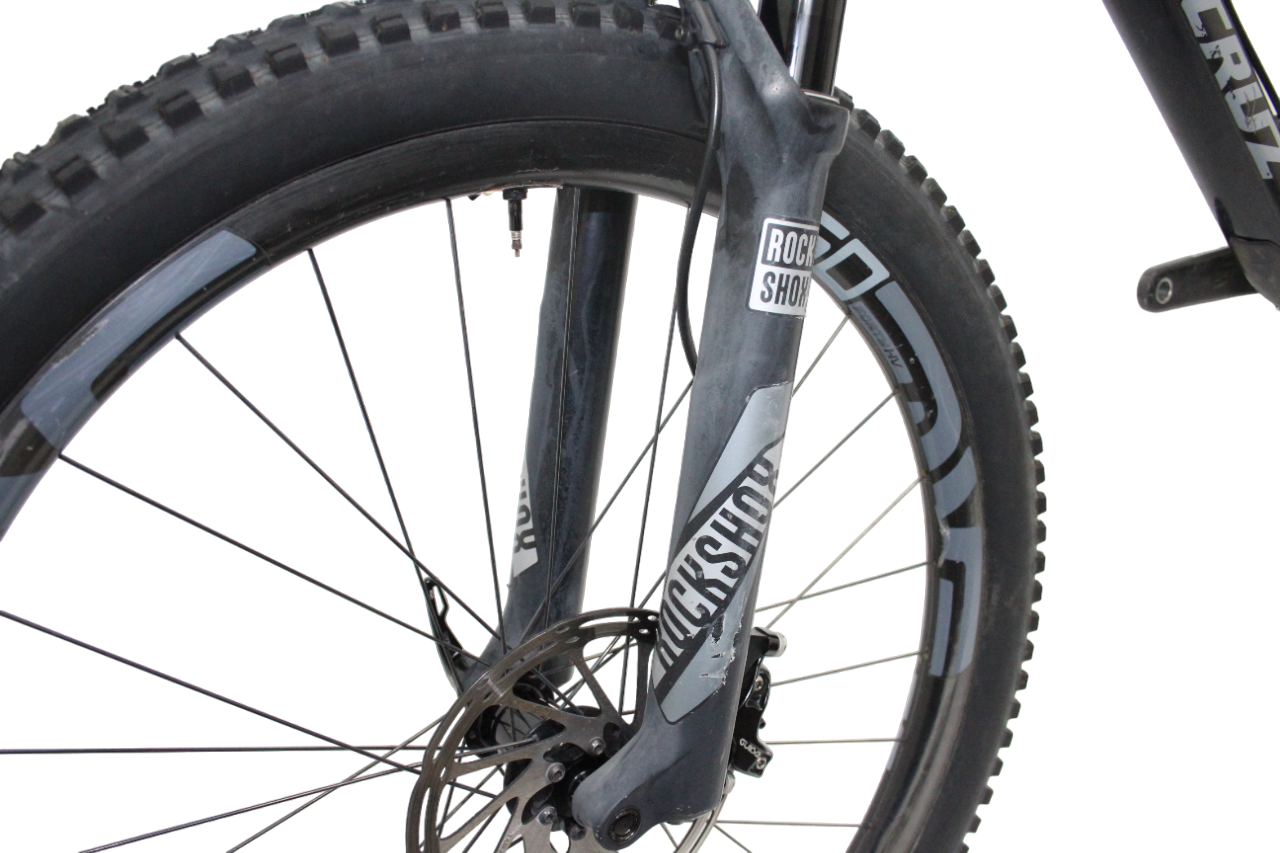

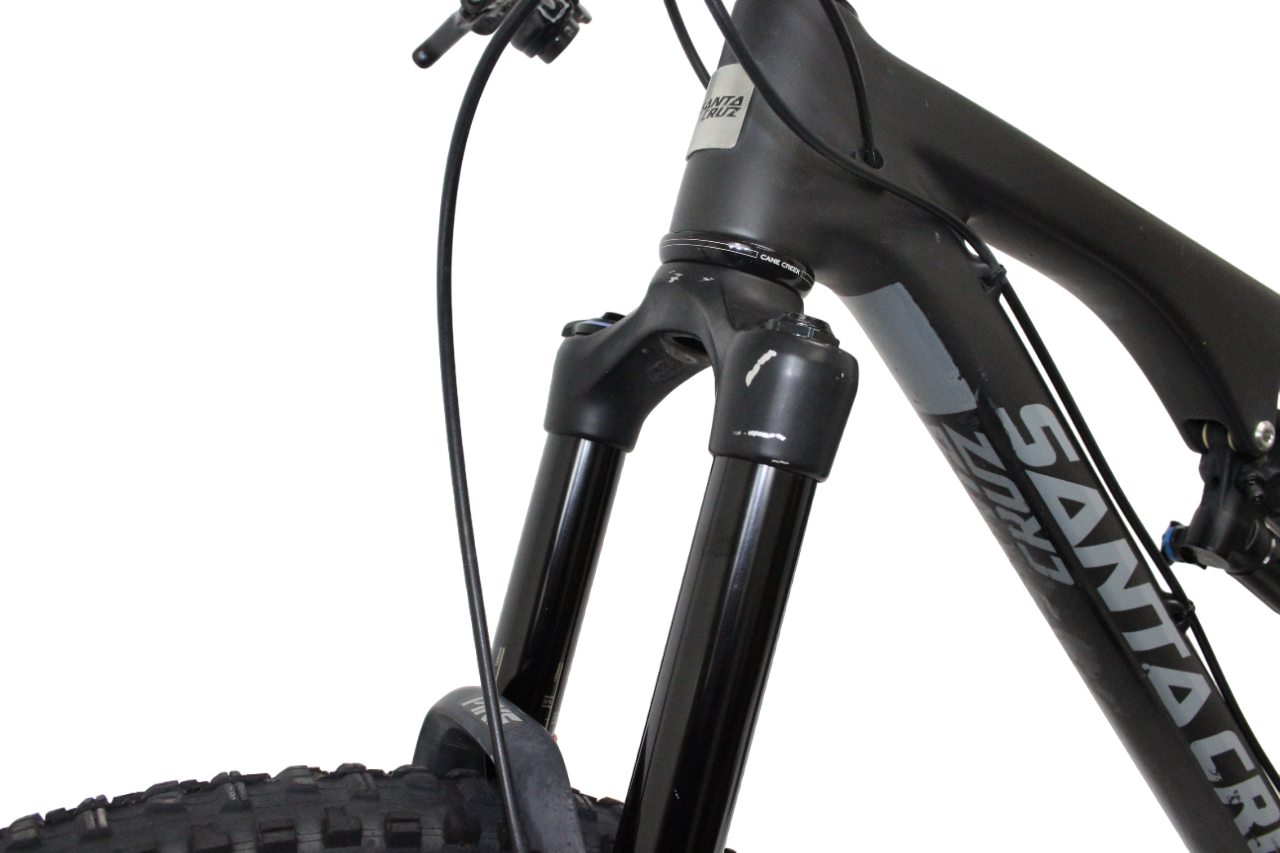

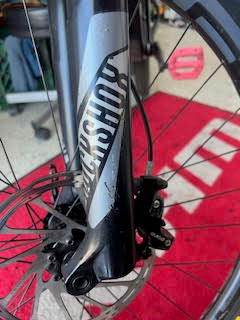

• Fork: Good condition, scratches along both sides of the lowers, stanctions are immaculate, rebound sticker is starting to peel, small gauge to crown next to the compression adjustment dial
• Rear Shock: Good condition, missing valve cap

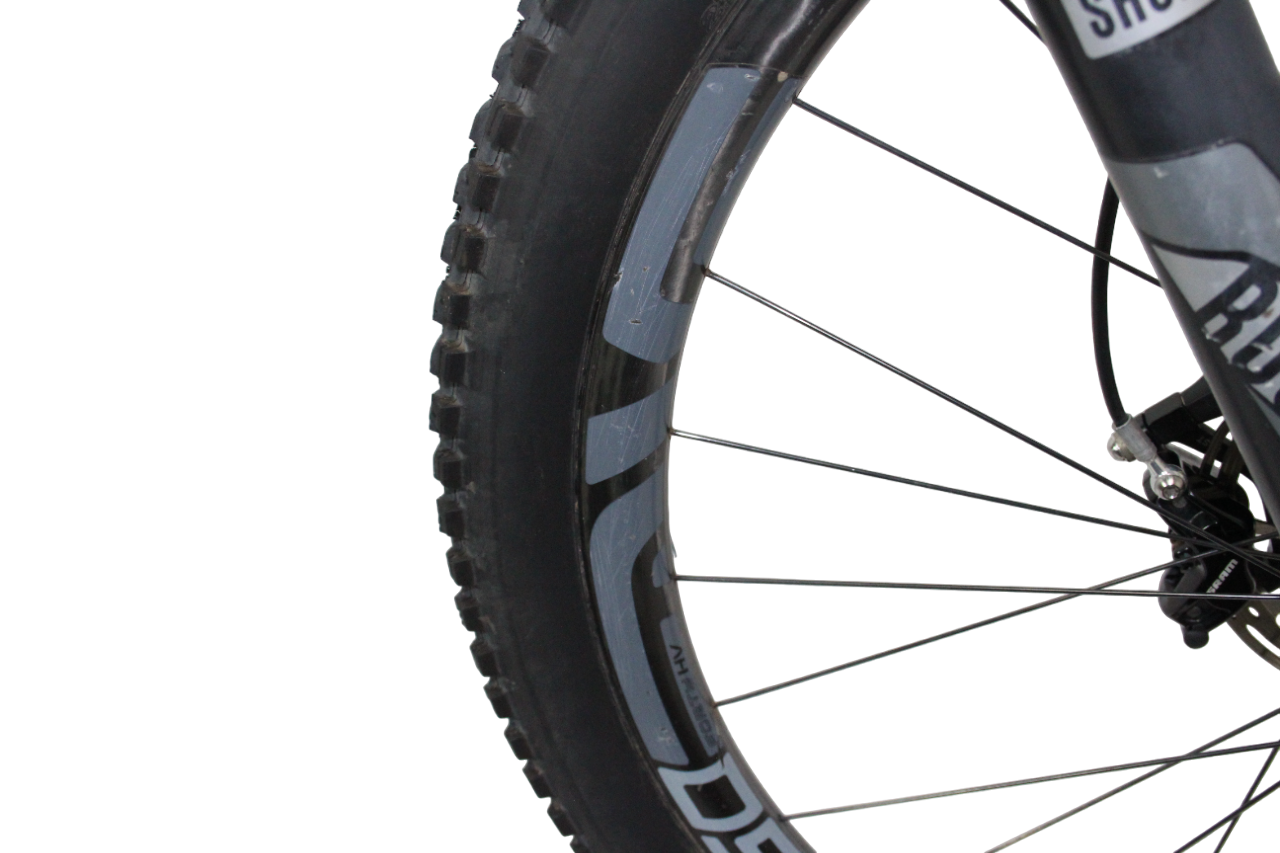

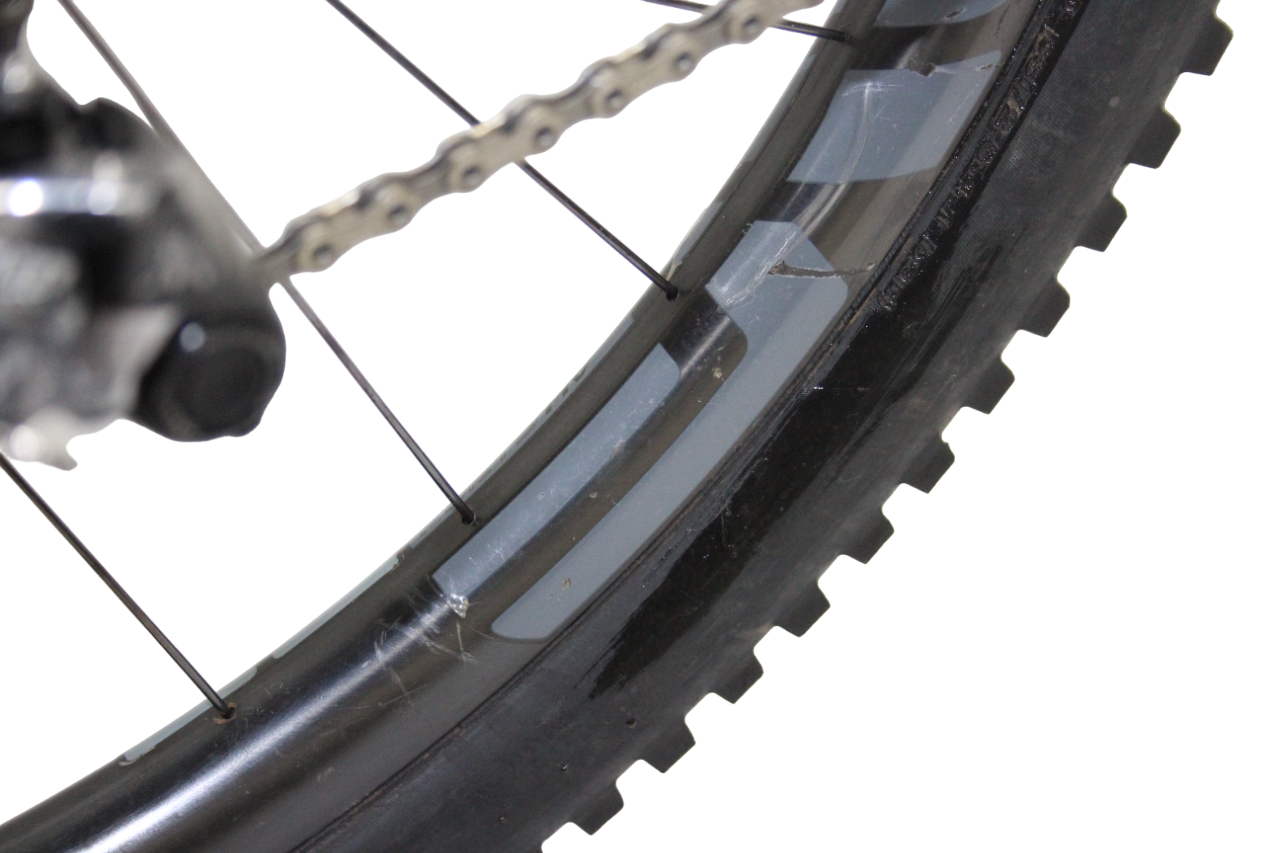

• Wheels: True and structurally sound, stickers are starting to peel due to gouges, both rims have many small scratches on the carbon and stickers

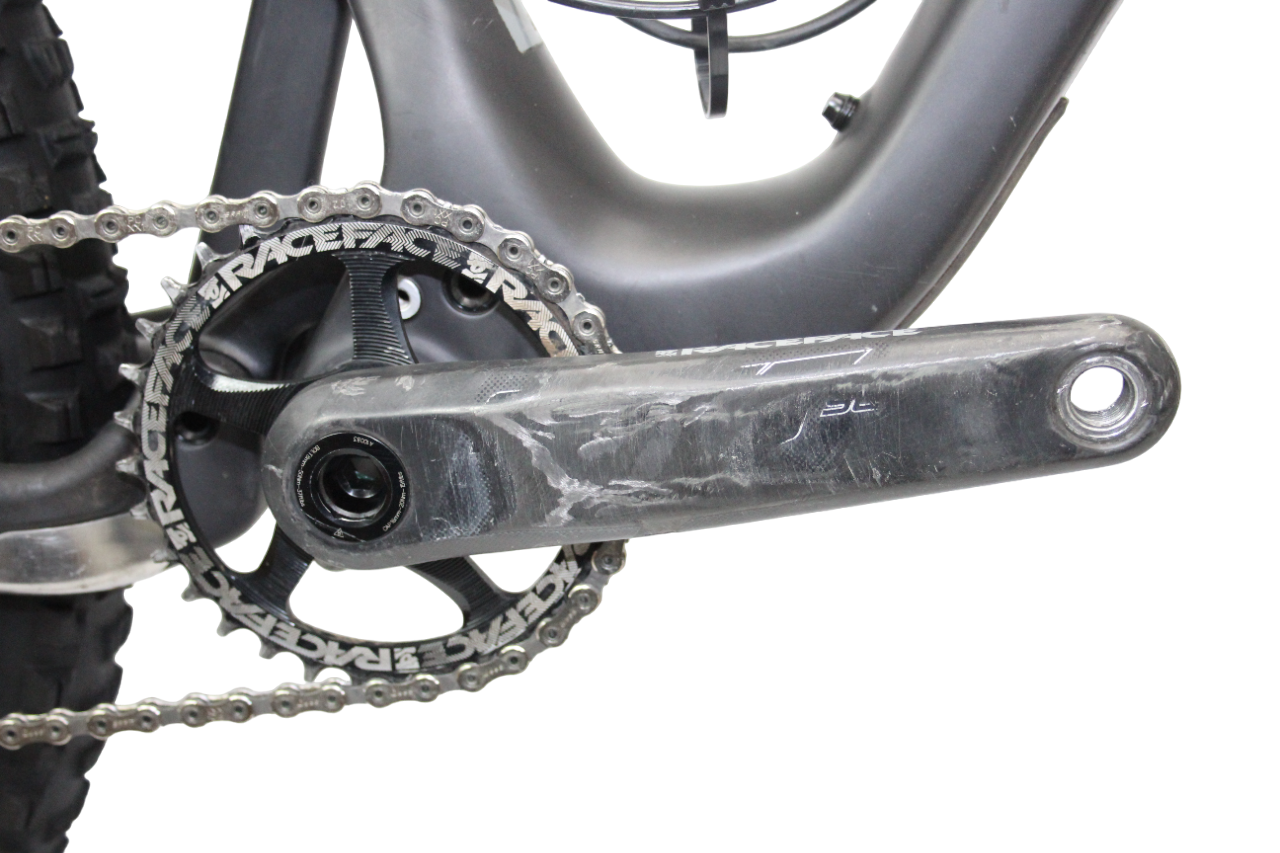

• Crankset: Minor scratches on both cranks, the logos have partially rubbed off on both sides
• Grips: Small gouge on left hand grip lockring, overall 75% integrity
• Shifters: Good condition, shifts well

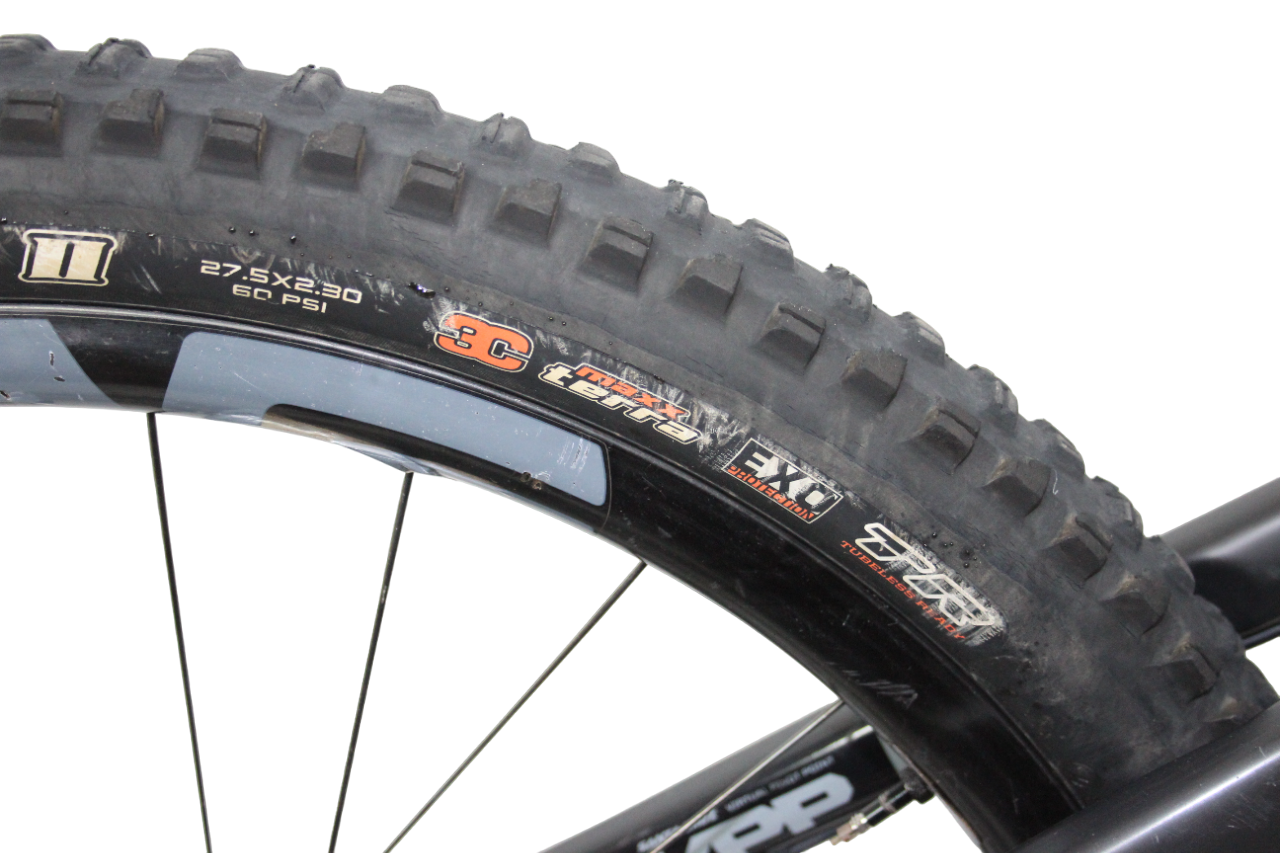

• Tires: Front tire is slightly worn 90% integrity, rear 50% integrity

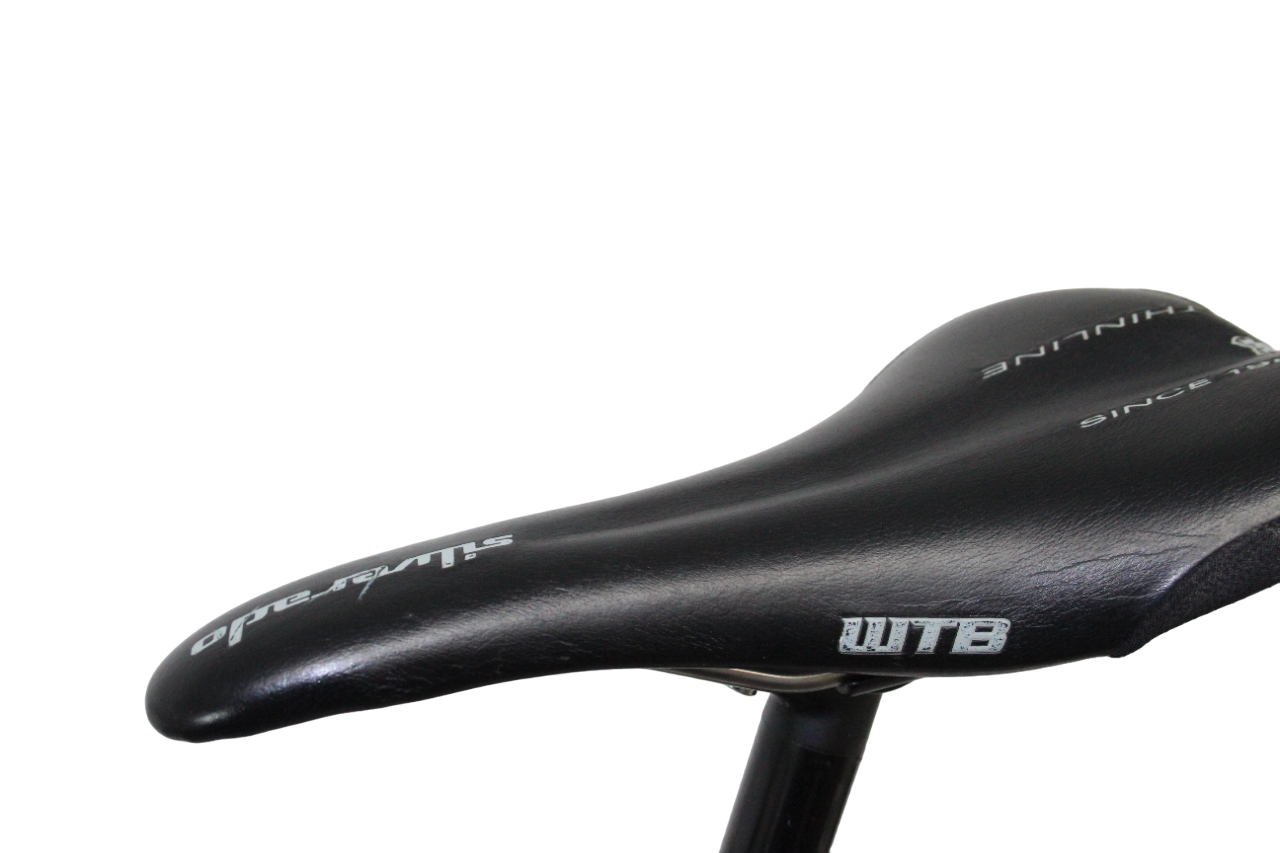

• Saddle: Good condition
• Cassette:  Signs of wear. integrity 75%
• Brakes: Good condition

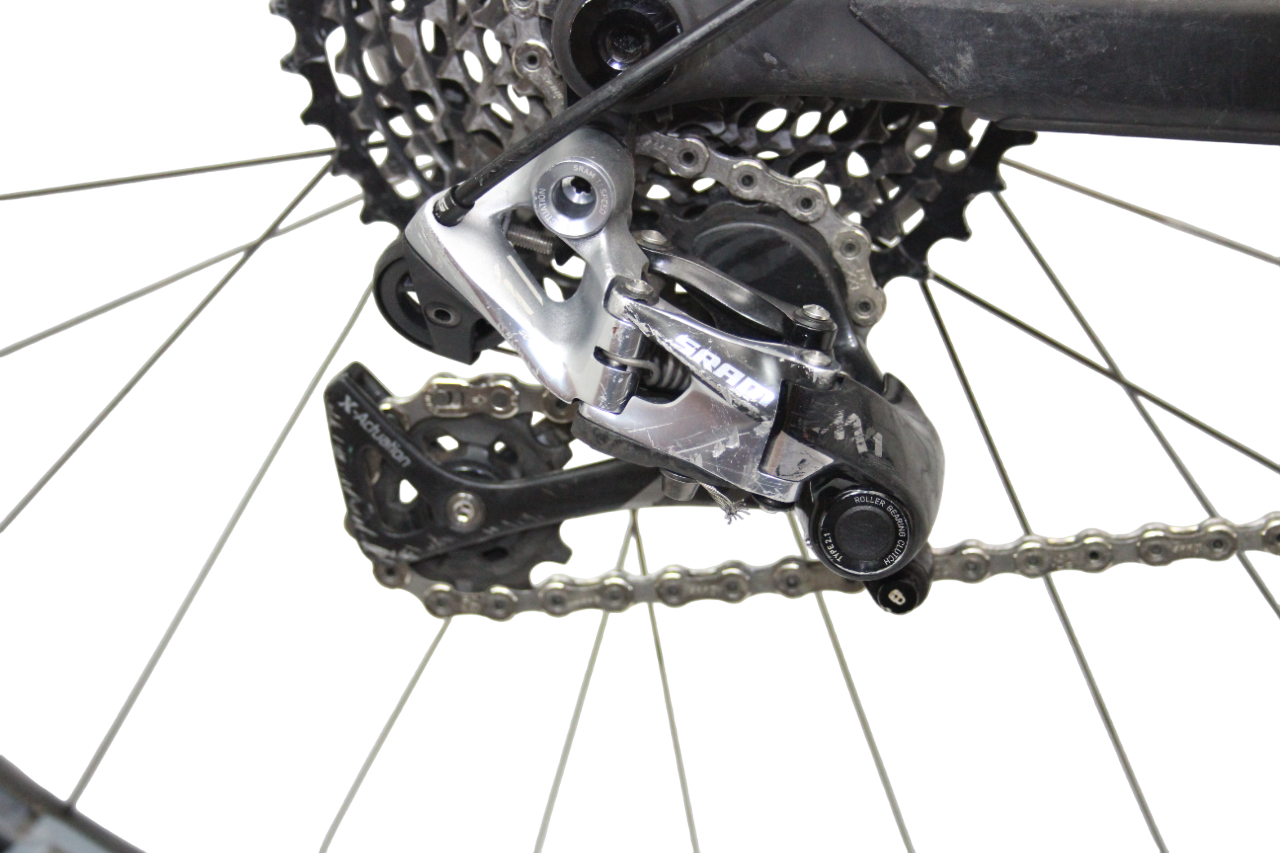

• Front/Rear Derailleur: Minor scratches along the outer cage, shifts well
• Chain Wear: Brand new chain

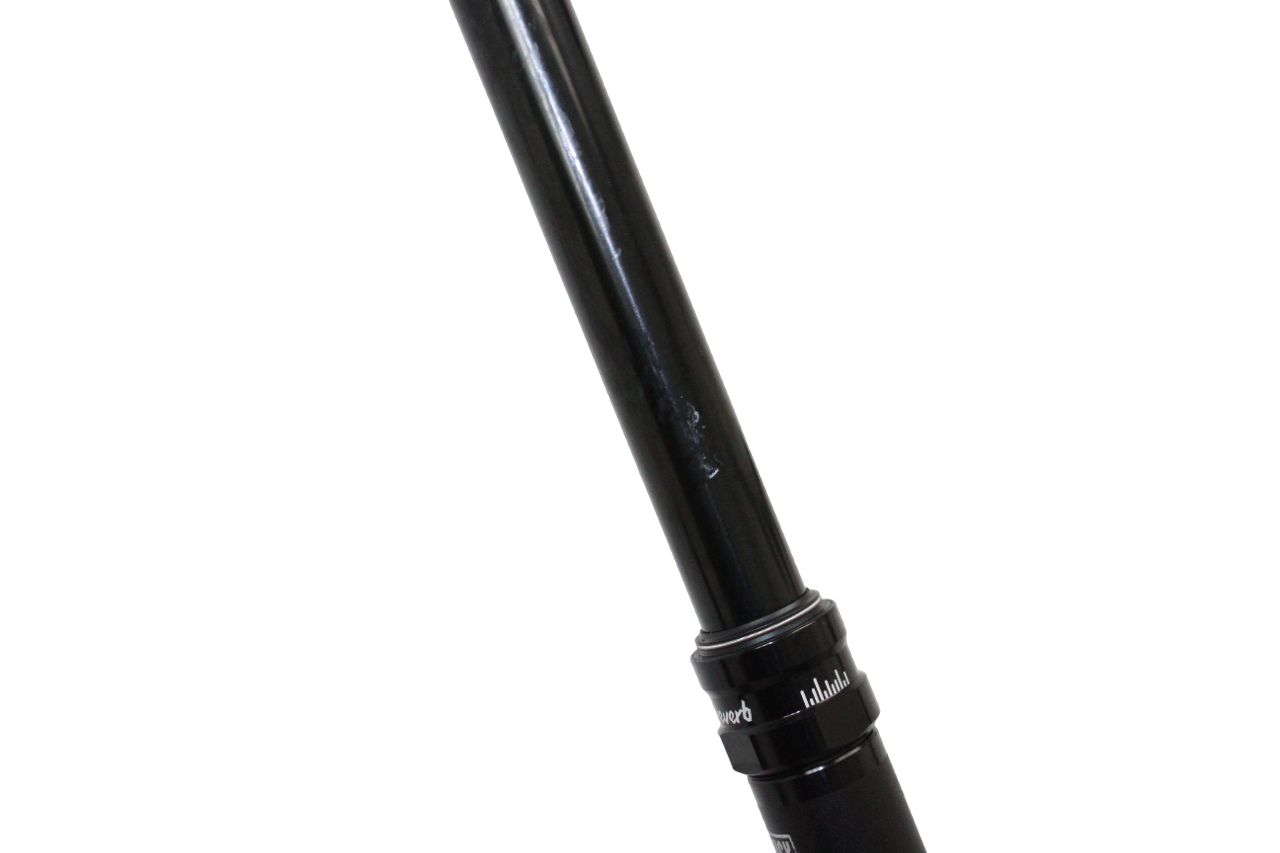

• Seatpost: Minimal vertical play

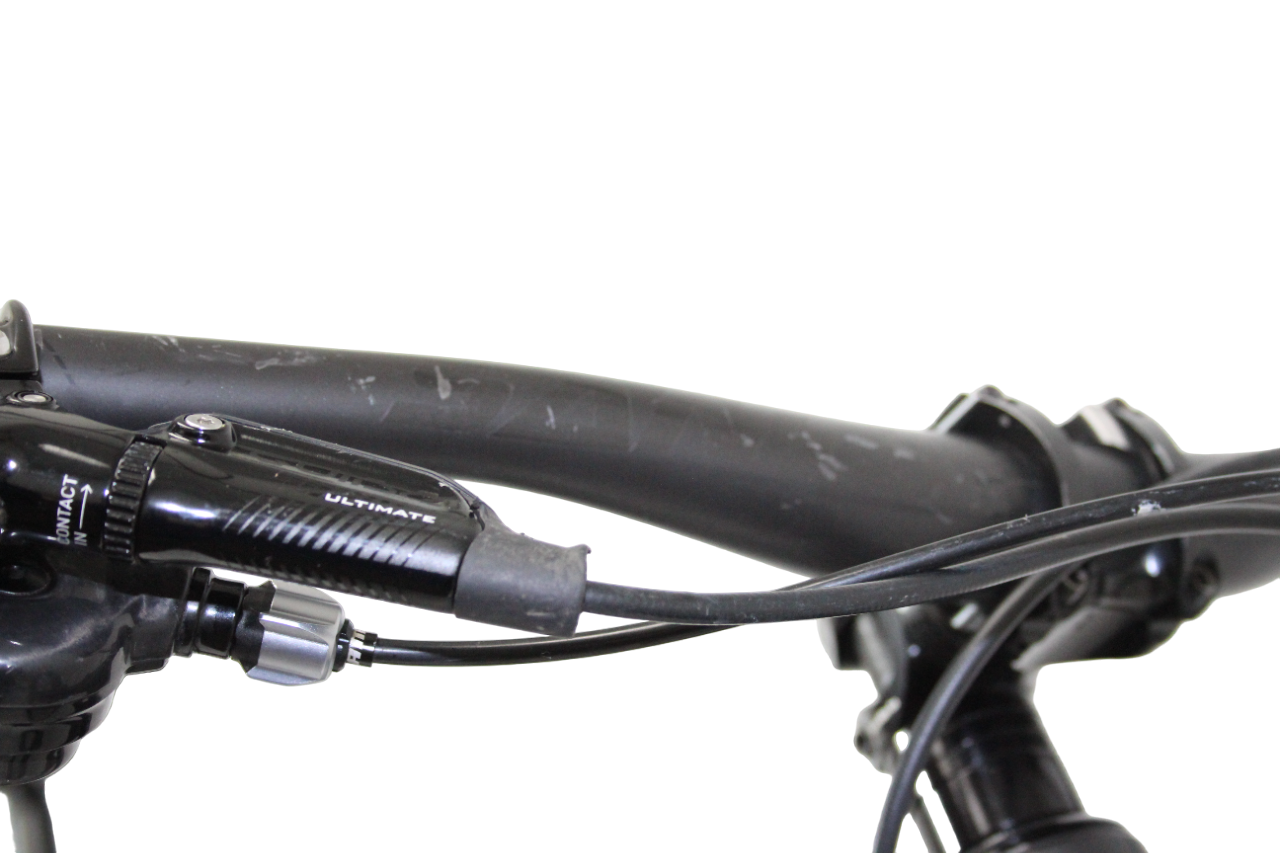

• Handlebar: Minor scratches along the top

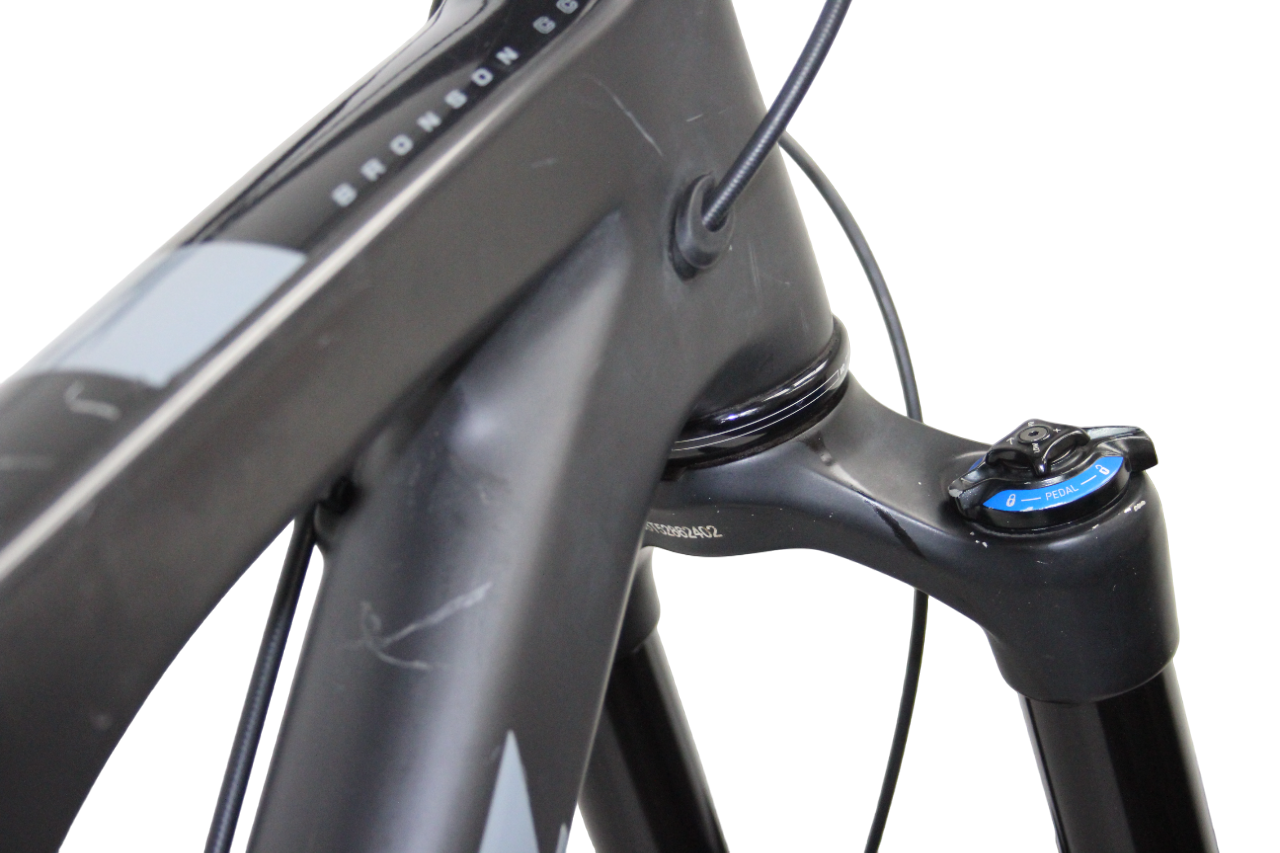

• Stem: A few minor gouges on the front and top of the faceplate and steerer clamping area

• Frame Model: Santa Cruz Bronson CC
• Frame Size: Medium
• Frame Color: Matte Carbon & Grey
• Frame Year: 2016
• Rear Shock: Fox Float X Factory EVOL, Tune ID: C27L
• Headset: Cane Creek 110
• Spacers (yes/no / xxmm): 1 x 15mm, 3 x 5mm
• Fork Model: Rockshox Pike RCT3 Solo Air
• Fork Travel: 150mm
• Front Axle: Maxle
• Front Axle Spacing: 100x15mm
• Front Wheel Diameter: 27.5
• Front Hub: Industry 9 Torch
• Spoke Holes: 28
• Front Spokes: Sapim
• Front Nipples: Alloy
• Front Rim: ENVE M60 Forty HV
• Front Tire: Maxxis Minion DHR II 27.5x2.3 3C MAXXTERRA EXO
• Front Brake Model: SRAM Guide Ultimate
• Disc Rotor Interface: 6 Bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 180mm
• Stem Model: Easton Haven
• Stem Length: 50mm
• Stem Steer Tube Diameter: 1 1/8"
• Stem Bar Clamp Diameter: 35mm
• Handlebar: Santa Cruz Carbon 800mm
• Shifters: SRAM XX1 1x11
• Brake Levers: SRAM Guide Ultimate
• Grips: Santa Cruz Palmdale Lock-on
• Seatpost: Rockshox Reverb Stealth 150mm
• Dropper Routing: Internal
• Saddle: WTB Silverado SLT
• Front Derailleur: N/A
• Derailleur Mount Type: Braze-on
• Bottom Bracket: Raceface 13.43"
• Crankset: Raceface Next SL Carbon
• Chainrings: Raceface 32t Narrow Wide
• Chain: SRAM XX1 11sp
• Cassette: SRAM XX1 11sp
• Rear Derailleur: SRAM XX1 11sp
• Derailleur Mount Type: Standard
• Rear Axle: DT Swiss RWS ThroughAxle
• Rear Axle Spacing: 148x12mm
• Rear Wheel Diameter: 27.5
• Rear Hub: Industry Nine Torch
• Spoke Holes: 28
• Rear Spokes: Sapim
• Rear Nipples: Alloy
• Rear Rim: ENVE M60 Forty HV
• Rear Tire: Maxxis Minion DHR II 27.5x2.3 3C MAXXTERRA EXO
• Rear Brake Model: SRAM Guide Ultimate
• Disc Rotor Interface: 6 Bolt
• Disc Rotor Model: SRAM Centerline
• Disc Rotor Diameter: 180mm
