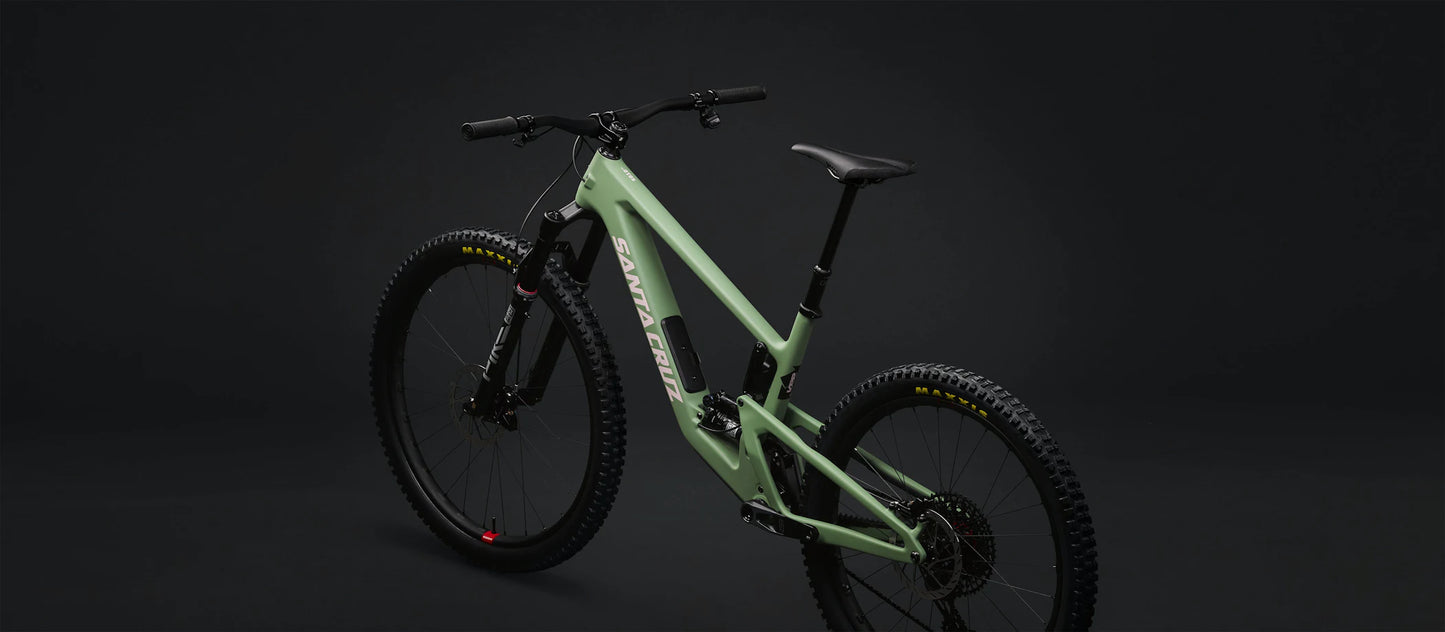

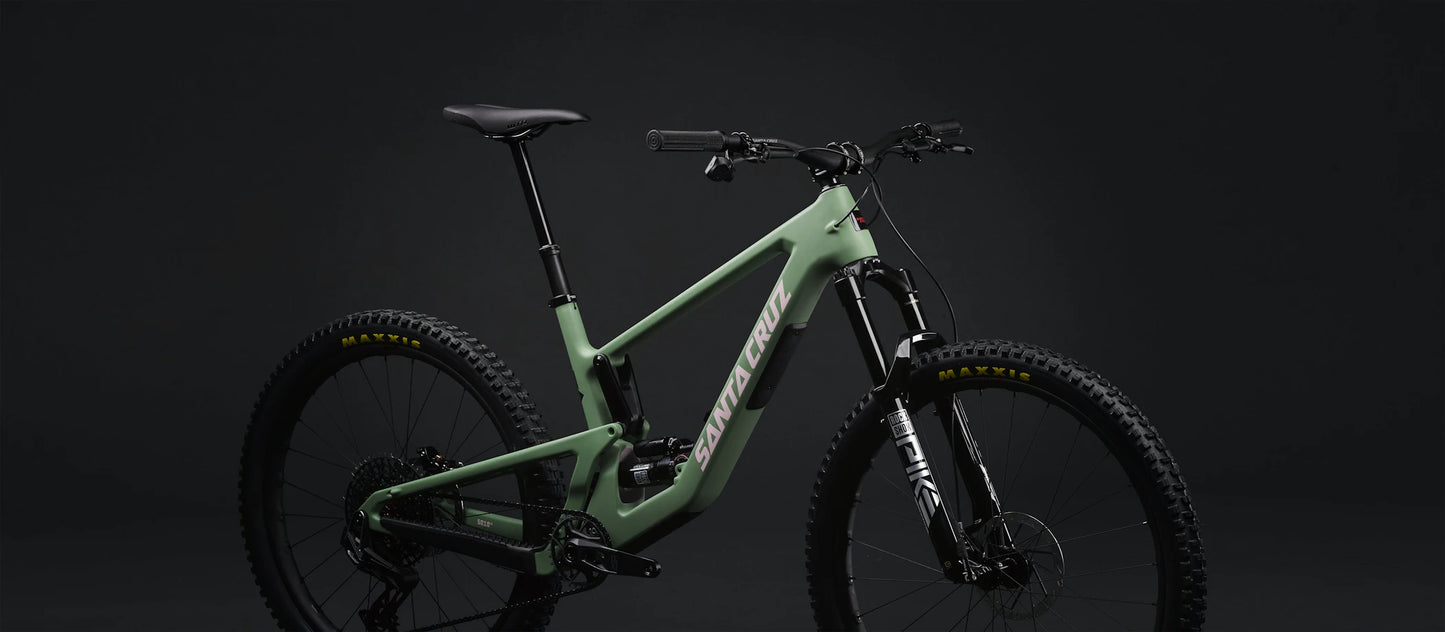

Santa Cruz 5010 Carbon MX - R Kit - Matt Spumoni Green - 2024

The best handling trail bike ever

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

Key Features:

• Available in: Carbon CC
• Wheel Size: MX
• Front Travel: 140mm
• Rear Travel: 130mm

FEATURES

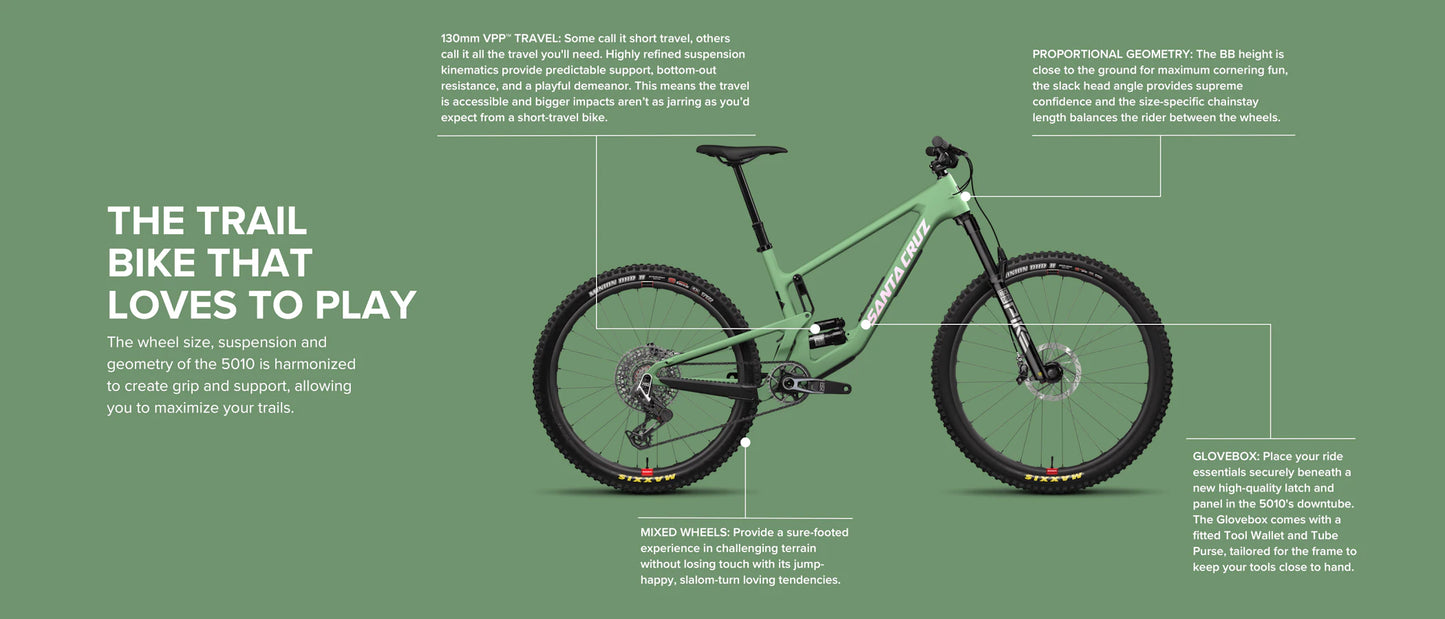

Mixed Wheels
The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5" rear wheel allows for quick back wheel steering and lifting.

Glovebox
Place your ride essentials securely beneath a new high-quality latch and panel in the 5010's downtube. The Glovebox comes with a fitted Tool Wallet and Tube Purse, tailored for the frame to keep your tools close to hand.

Full carbon CC frame
CC frames use the very best materials and production processes available. We tailor stiffness for every size to make sure everyone gets the same ride quality. Bigger riders means greater stresses on larger frames, but that's remedied with our size-specific frame stiffness tunes.

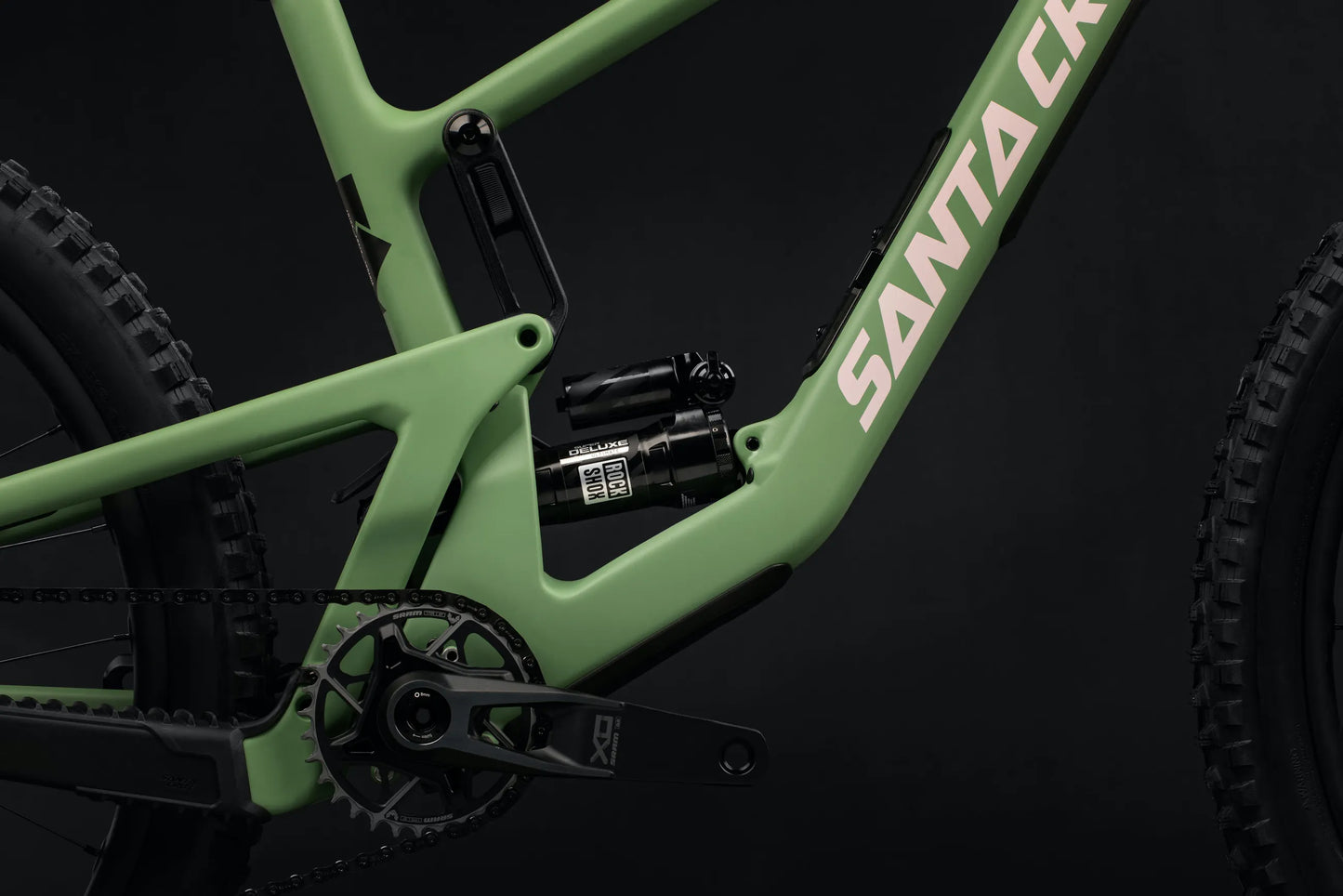

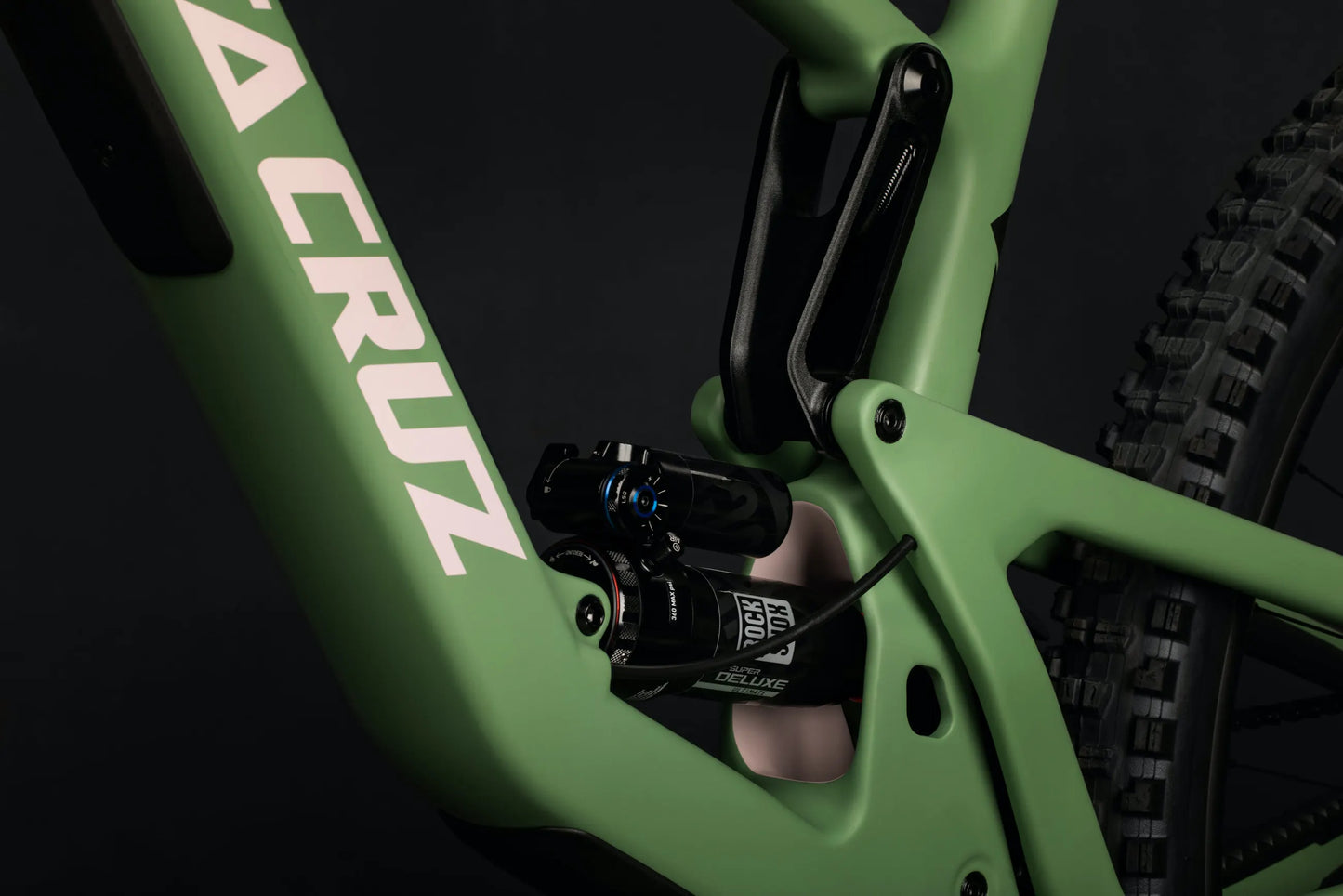

Sag window
A window allows easier suspension sag and setup. The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

Made to last many lifetimes
The legendary Santa Cruz fit, finish and quality construction put this into a league of its own. The frame, bearings and optional Reserve wheels come with a lifetime warranty and any service is easy to do with our Rider Support pledge.

SPECIFICATIONS

• Material: Carbon C
• Travel: 130mm
• Wheel Size: MX
• Rear Shock: FOX Float Performance, 210x50
• Fork: RockShox Pike Base, 140mm
• Rear Derailleur: SRAM NX Eagle, 12spd
• Right Shifter: SRAM NX Eagle, 12spd
• Cassette: SRAM PG1230, 12spd, 11-50t
• Chain: SRAM NX Eagle, 12spd
• Bottom Bracket: SRAM DUB 68/73mm Threaded BB
• Headset: FSA IS-2/47/42 ACB
• Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
• Front Tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
• Front Hub: SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
• Front Rim: RaceFace AR Offset 30 29"
• Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
• Rear Rim: RaceFace AR Offset 30 27.5"
• Front Rotor: Avid Centerline, 200mm
• Rear Rotor: Avid Centerline 180mm
• Brakes: SRAM G2 R
• Crankset: SRAM Descendant Eagle 148 DUB 32t
• Handlebars: Burgtec RideWide Alloy
• Stem: Burgtec Enduro MK3, 42mm
• Saddle: WTB Silverado CroMo
• Seatpost: OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
• Grips: Santa Cruz Bicycles House Grips
