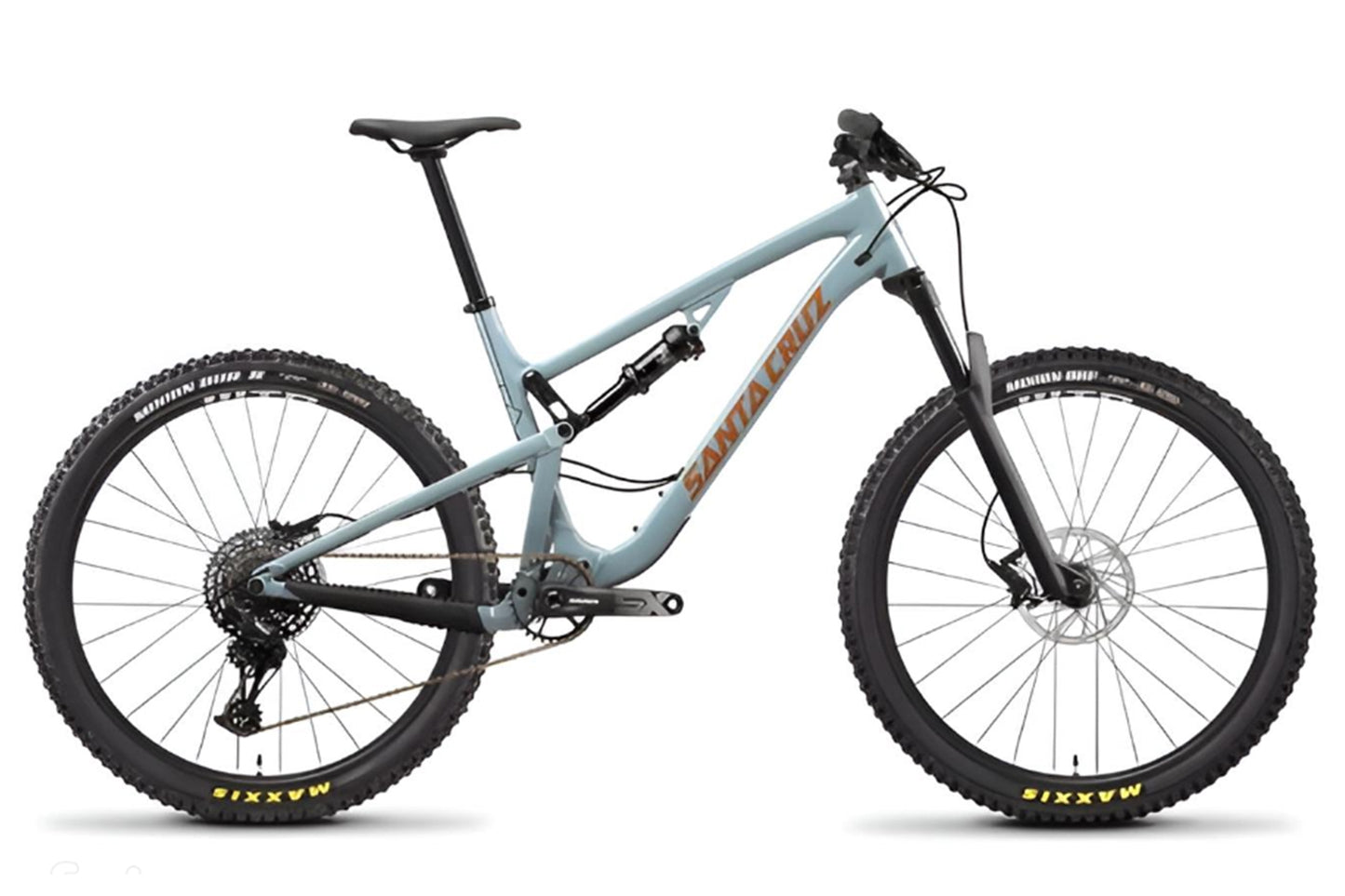

A laser sharp, agile backcountry trail whip that corners on rails and loves to pop and jib, the 5010 is a bike handler's dream. As at home on a backcountry mission with Steve Peat as it is hopping fences with Danny MacAskill, the 130mm-travel 5010 sports a short chainstay length and low BB height for a uniquely playful character with an insatiable appetite for negotiating steep, technical climbs. When it’s time to descend, the bike’s 67-degree head tube angle, and generous reach/short stem combo equate to precise, confident handling. The top-tube-mounted, box-section upper link is a leap forward in durability and stiffness, and the lower link rests cleanly out of the way, dramatically improving clearance and minimizing rock strikes.

SPECIFICATIONS

• Weight: 14.8kg / 32.62lbs
• Material: Carbon
• Wheel Size: 27.5
• Fork: RockShox Recon RL 130mm 27.5
• Shock: FOX Float Performance DPS
• Rear Derailleur: SRAM SX Eagle 12spd
• Shifters: SRAM SX Eagle
• Crankset: SRAM SX Eagle 148 DUB, 32t - 165mm (XS), 170mm (S), 175mm (M-XXL)
• Casette: SRAM CS PG1210 Eagle, 11-50t
• Chain: SRAM CN SX Eagle 12spd
• Bottom Bracket: SRAM DUB 68/73mm Threaded BB
• Brakes: SRAM Level
• Brake Rotors: Avid Centerline 180mm
• Headset: Cane Creek 10 IS Integrated Headset
• Bars: Race Face Ride 35x760 bar
• Stem: Race Face Ride 50mm
• Grips: Santa Cruz Palmdale Grips
• Front Hub: SRAM MTH 716, 15x110, Torque Cap, 32h
• Rear Hub: SRAM MTH 746, 12x148, 32h
• Rims: WTB ST i25 TCS 2.0 27.5" Rims
• Spokes: DT Competition (32)
• Front: Tire Maxxis Minion DHF EXO TR 27.5x2.3
• Rear Tire: Maxxis Minion DHR2 TR 27.5x2.3
• Tubes: Stans Sealant 2oz
• Seat Post/Saddle: Race Face Ride, 31.6 400mm/WTB Silverado Comp

GEOMETRY
