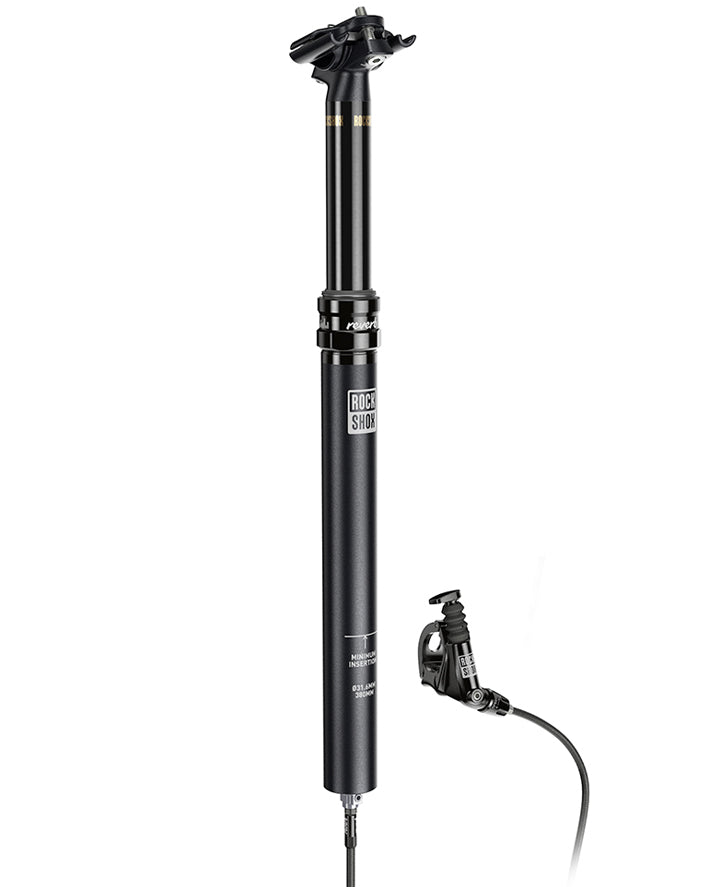

Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time, while new 150- and 170-millimeter travel options are available to tame even the gnarliest of descents. This is the brand-new Reverb, engineered for the next-generation mountain biker.
Completely redesigned internals with new SKF internal floating piston
Improved performance and durability in all conditions
150mm and 170mm travel options available in all diameters
Increased bushing overlap
New dedicated post length per travel length
keyboard_arrow_right
Features
Stealth model: designed for frames with internal tubing routing for a cleaner look
B1 version with completely redesigned internals. Every seal has been reengineered, utilizing high-quality SKF seals at critical locations. Also has increased bushing overlaps for improved post performance and durability
Connectamajig: allows the post to be disconnected from the remote and removed from the frame several times before bleeding is required
Hydraulic actuation with a fork-style sealing system and an adjustable barrel-nut return speed feature integrated into the remote, (MatchMaker-X 'MMX' compatible) handlebar-mounted clamp
MMX compatible handlebar clamp includes MatchMaker compatible shifter mount: can be run as a stand-alone clamp or combined with MMX brakes and/or shifter
Triple-keyed telescoping design virtually eliminates twist and play between upper/lower shafts
3D-forged/butted 7050 aluminum construction with laser engraved logo/insertion graphics and a shot-peened mast for non-slip frame interface, plus a secure 2-bolt zero-offset head/clamp for fore/aft/tilt adjustment
keyboard_arrow_right
Specifications
Shaft Material: 3D forged 7050 alloy
Head Material: 7050 forged alloy
Remote: Adjustable return speed at the handlebar
Hardware: Discrete or Match Maker™ X, Left or Right
Weight: 560g (weight based on 340mm post length, 30.9mm diameter, 100mm travel, MMX™ remote with shifter hardware and 1300mm hose)
Was $349.00
Save $139.60
