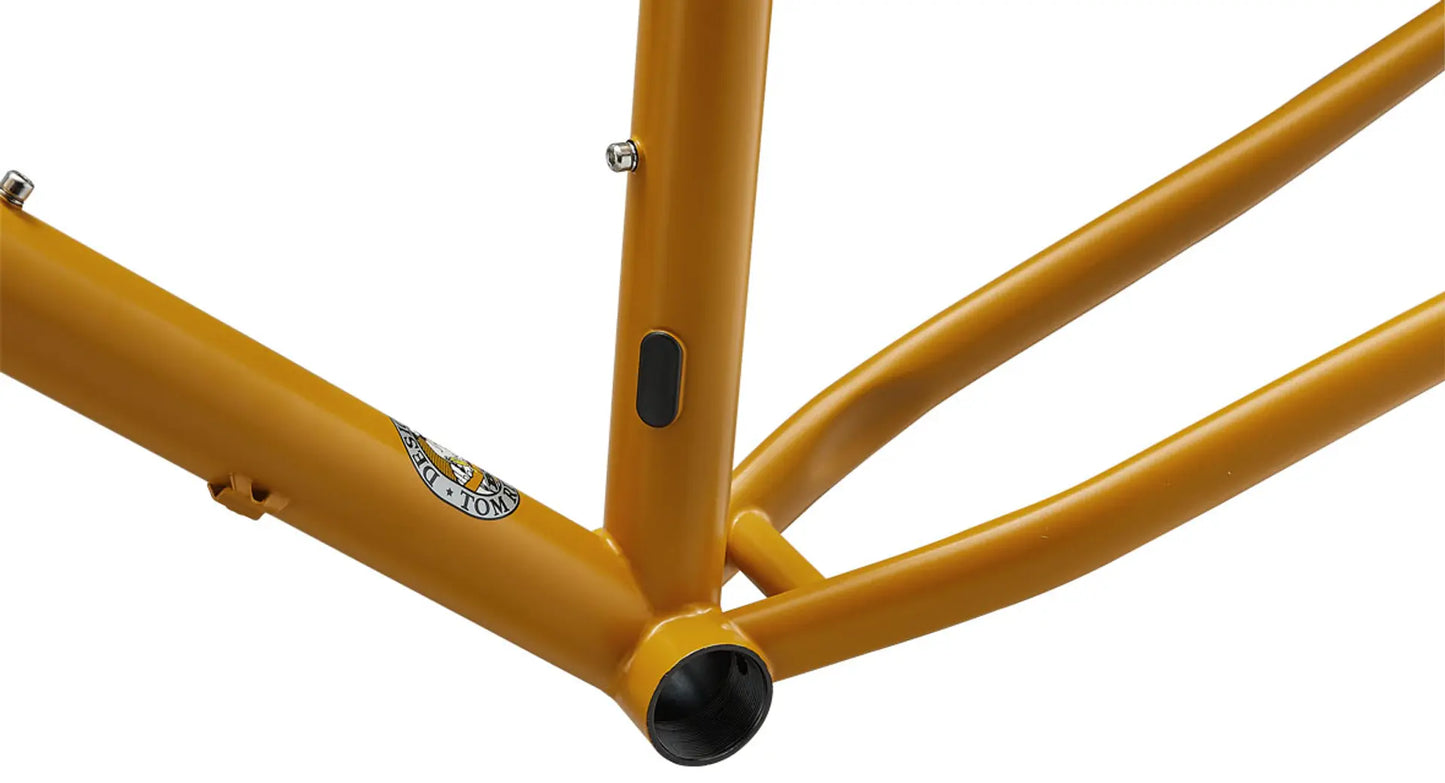

Ritchey Ultra 29 MTB Frame - Honey Mustard

Ritchey Ultra 29 MTB Frame - Honey Mustard

Regular price $999.00
Sale price $999.00
Color
Size

Product ID: GM022223-12

Earn rewards points on this item / Learn More
Out of stock


Shop all Ritchey   |   Shop all MTB Hardtail Frames

View full details

Description

Ritchey Ultra 29 MTB Frame - Honey Mustard



If there’s one thing Tom knows, it’s dirt. When he first designed the Ultra he knew it would appeal to riders who demand specific ride characteristics and dirt slaying only he could deliver- and that was in the 1980s! Good design withstands the test of time, and the latest iteration of the Ultra is a prime example. Like its predecessor from 30 years prior, the new Ultra occupies a unique ride space from cross-country riders looking to get rowdy and go big to enduro riders lusting for some all-mountain shredding.

Designed around a 120mm travel fork and super stable Boost 148 spacing, most of the fun is in the wheels. Designed to accommodate 29" or 27.5" wheels, the Ultra is highly versatile. Throw on some 29s for some trail-smashing XC riding, or saddle up some 27.5+ for some serious no-holds-barred shredding. The Ultra is a rough and rugged trail master that doesn’t know when to quit.

  • Compatible with 27.5 x 2.8 and 29 x 2.4 tires
  • Internal routing for a dropper post
  • Boost 148x12 rear spacing

Specifications

  • Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
  • Ultra-light forged and machined tapered head tube
  • Headset: integrated - 1.5” tapered (upper IS42/28.6 | lower IS52/40)
  • Headset upper bearing: 41.8mm OD / IS42/28.6 (S.H.I.S.)
  • Headset lower bearing: 51.9mm OD / IS52/40 (S.H.I.S.)
  • Seat tube clamp size: 33.1mm (2.5Nm max for derailleur clamps and chain guides)
  • 30.9mm seat tube with stealth dropper routing and replaceable seat collar
  • Bottom bracket73mm - English threaded
  • BOOST cranks must be used for proper 52mm chainline
  • Crankset maximum ring size38T single - 26/36T double
  • Designed for 1X or 2X chainrings (Side Swing front derailleur required for double)
  • Recommended tire size: 27.5x2.4 (2.8 max) or 29x2.25 (2.4 max) - tire size varies by rim and tire manufacturer
  • Post-mount rear brake: 160mm (180mm max - adaptors available separately)
  • Sizes: S (15") / M (17") / L (19") / XL (20.5")
  • Weight: 2.57kg (L/19")
  • BOOST 148mm spacing (12mm alloy thru-axle included)
  • Optimized for 120mm (BOOST) suspension travel fork or 500mm axle-crown rigid fork
  • External cable routing
  • Replaceable stainless-steel derailleur hanger
