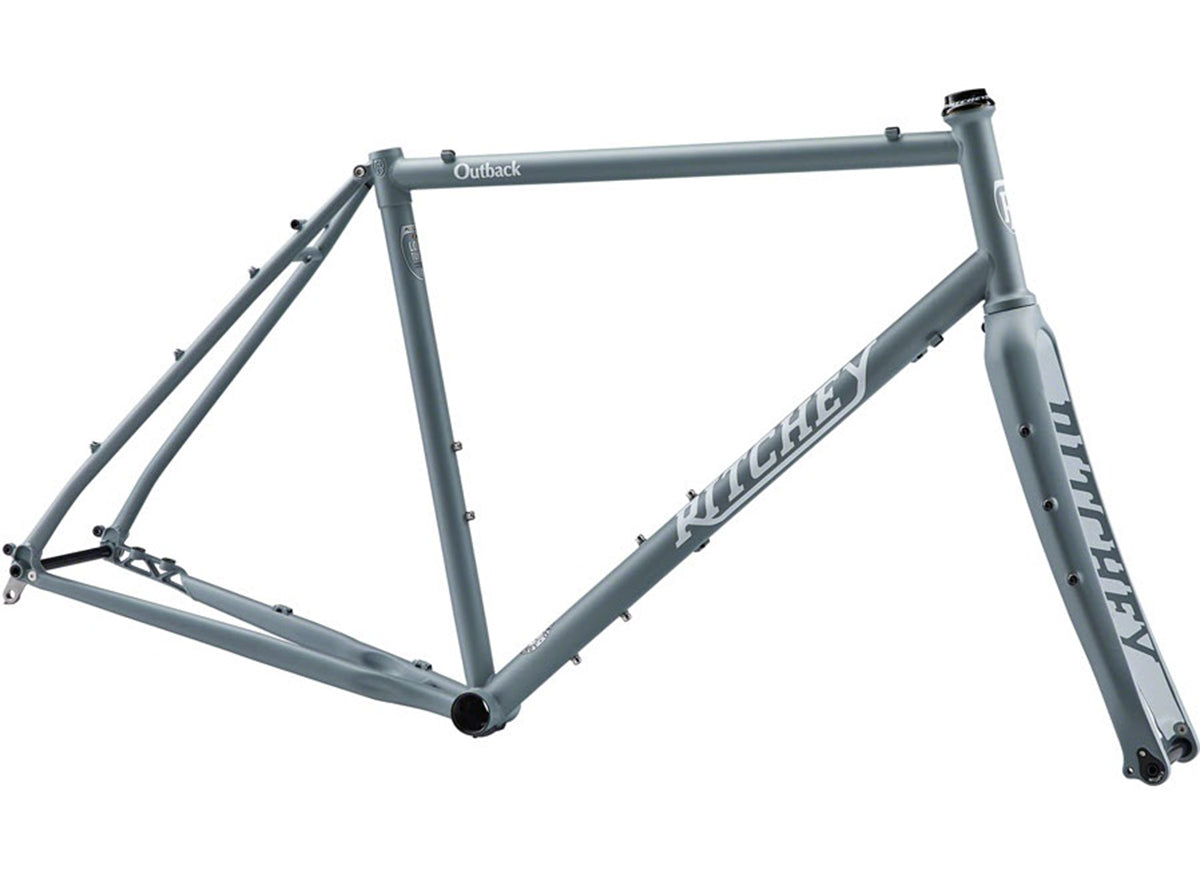

The Ritchey Outback Gravel Frameset is engineered for adventure and versatility, making it an ideal choice for gravel enthusiasts. Here’s an overview of its key features and geometry:

Key Features:

• Frame Material: TIG-welded proprietary triple-butted Ritchey Logic steel tubing with an updated one-piece truss design for enhanced strength and performance.
• Fork: All-carbon fiber Ritchey Adventure Fork featuring multi-purpose mounts on the legs, providing added utility for accessories.
• Tire Clearance: Designed to accommodate 700c x 48mm or 650b x 2.0in tires, allowing for a smooth ride over various terrains.
• Internal Cable Routing: Compatible with Di2 systems for a clean aesthetic and reduced cable exposure.

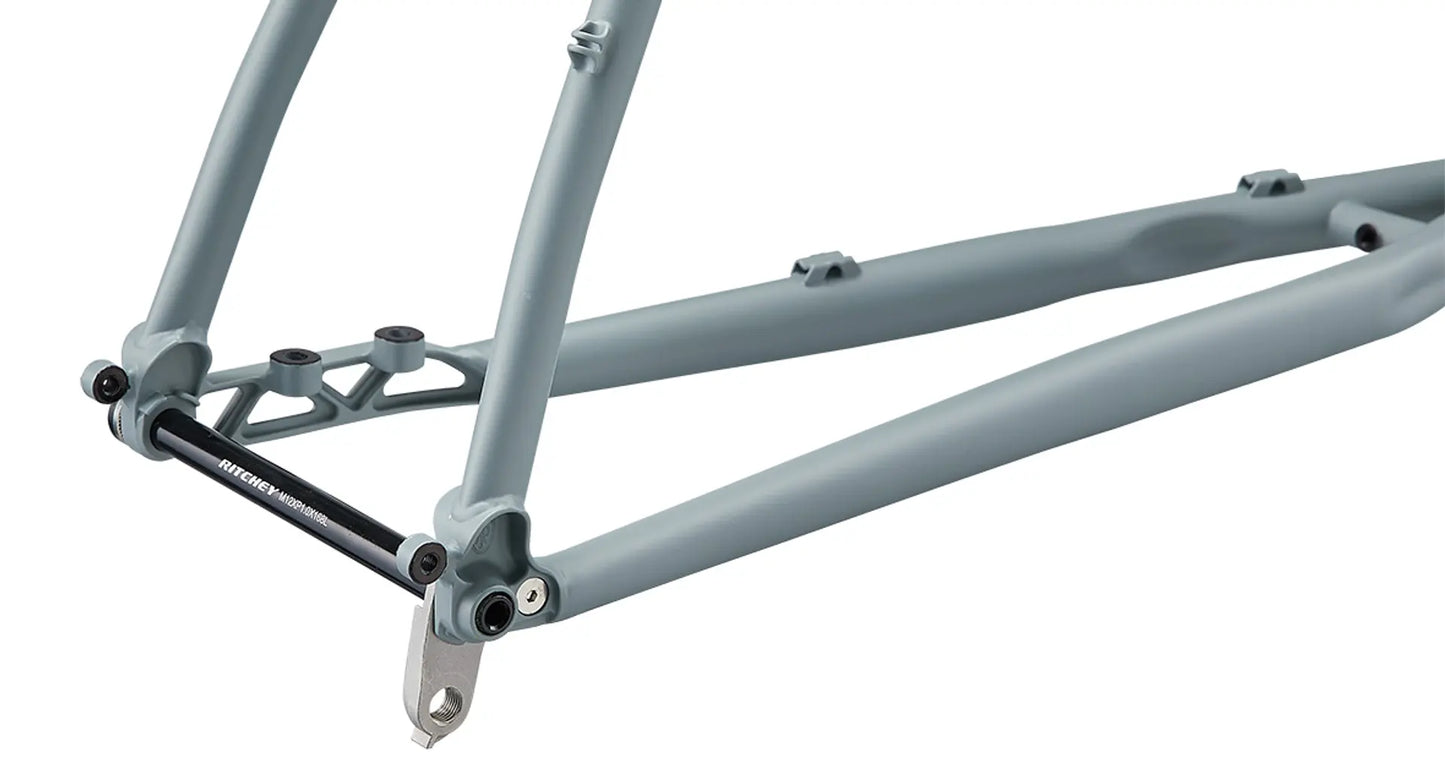

• Thru-Axles: Both front and rear thru-axles enhance stability and performance.
• Mounts: Integrated rack and fender mounts keep your load secure and help protect against wet conditions.

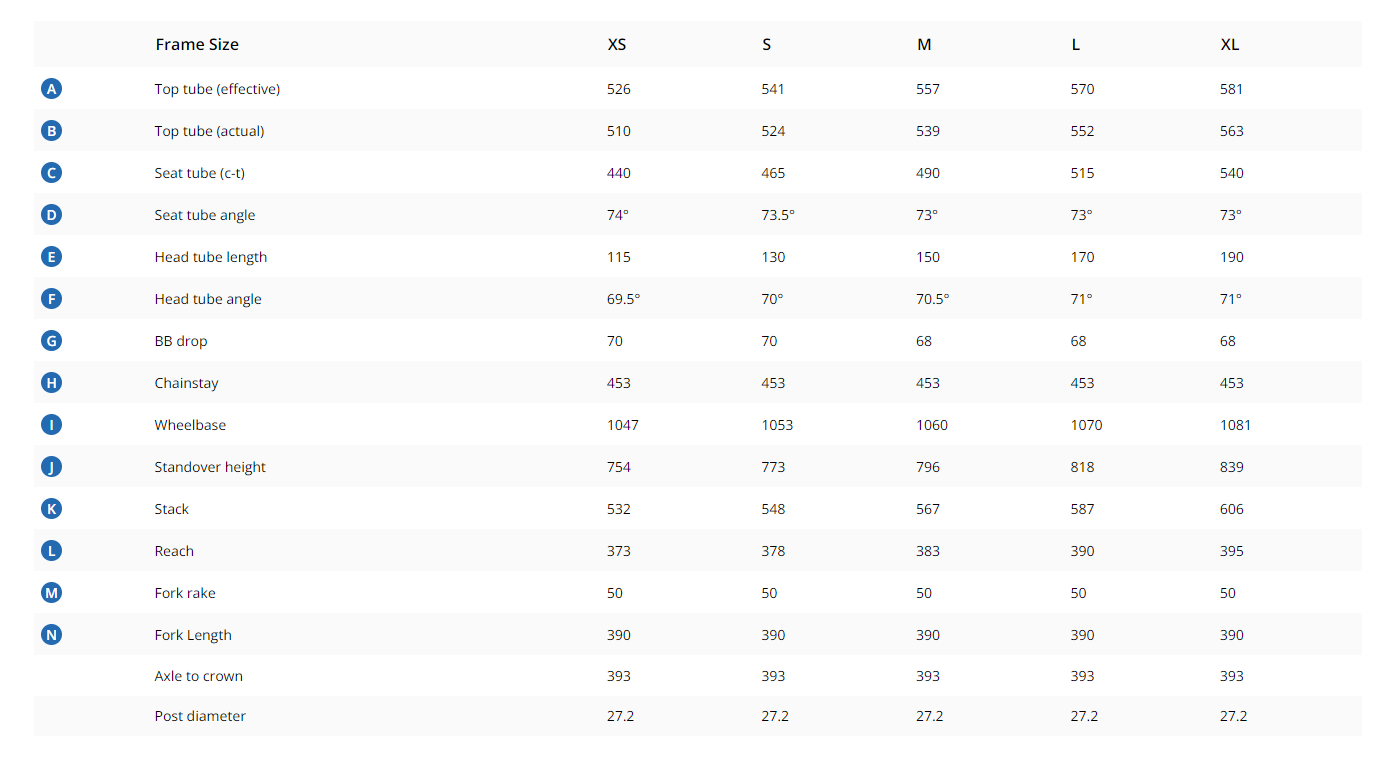

Geometry:

• Top Tube (Effective): 557 mm
• Chainstay: 453 mm
• Head Angle: 70.5°
• Seat Angle: 73°
• Headset: IS42/28.6 | IS42/30
• Bottom Bracket: 68 mm English
• Seatpost Diameter: 27.2 mm
• Front Derailleur: 28.6 mm
• BB Drop: 68 mm
• Standover Height: 796 mm

This frameset combines comfort and performance, making it suitable for long rides and varying terrain.
