Ritchey Ascent S Frameset - Desert Dust - 2023

Ritchey Ascent S Frameset - Desert Dust - 2023

Regular price $1,399.00
Sale price $1,399.00
Color
Size

Product ID: GM012423-33

Earn rewards points on this item / Join Now
Out of stock


Shop all Ritchey   |   Shop all Cyclocross & Gravel Frames

View full details

Description

We warmly welcome the legendary Ascent back into the Ritchey line-up. Inspired by the experiences of life, the new Ritchey Ascent invites you to chase your own life experiences out on those unexplored passes, winding roads and endless trails. The adventurous soul of the of the original Ascent remains, while expanding its adaptability with modern features and much-requested details.

Tom Ritchey loves experiencing all sorts of bicycle adventures - especially dirt – seeking out winding dirt roads, cruising along gravel lanes, and ripping flowy singletrack. He designed this latest version of the Ascent to be a do-it-all adventure bike so that others can share the same thrills of adventure while also enjoying the renowned Ritchey ride experience.

The new Ascent is more adaptable than ever. The frame is tig-welded with heat-treated, triple-butted Ritchey Logic steel tubing that features rack and fender mounts and a multi-purpose mount under the downtube, while a new Ritchey steel fork offers up multi-purpose, rack, fender and dynamo light mounts. Other notable features of the new Ritchey Ascent include post-mount brake compatibility, 148mm spacing and an external seat collar.

Throw a mountain bike bar on it and some 27.5" wheels for more trail-oriented adventures. Or ride it with drop bars and 29" wheels for some longer distance rough road riding. However you choose to roll, your riding possibilities are limitless atop the new Ritchey Ascent.

  • Includes rack and fender mounts, 3 multi-purpose mounts (2 fork, 1 frame) and threaded crown port
  • Features the new Ritchey steel fork with an 1-1/8" straight steerer
  • Fits 27.5" or 29" wheels and tires

Specifications

FRAME

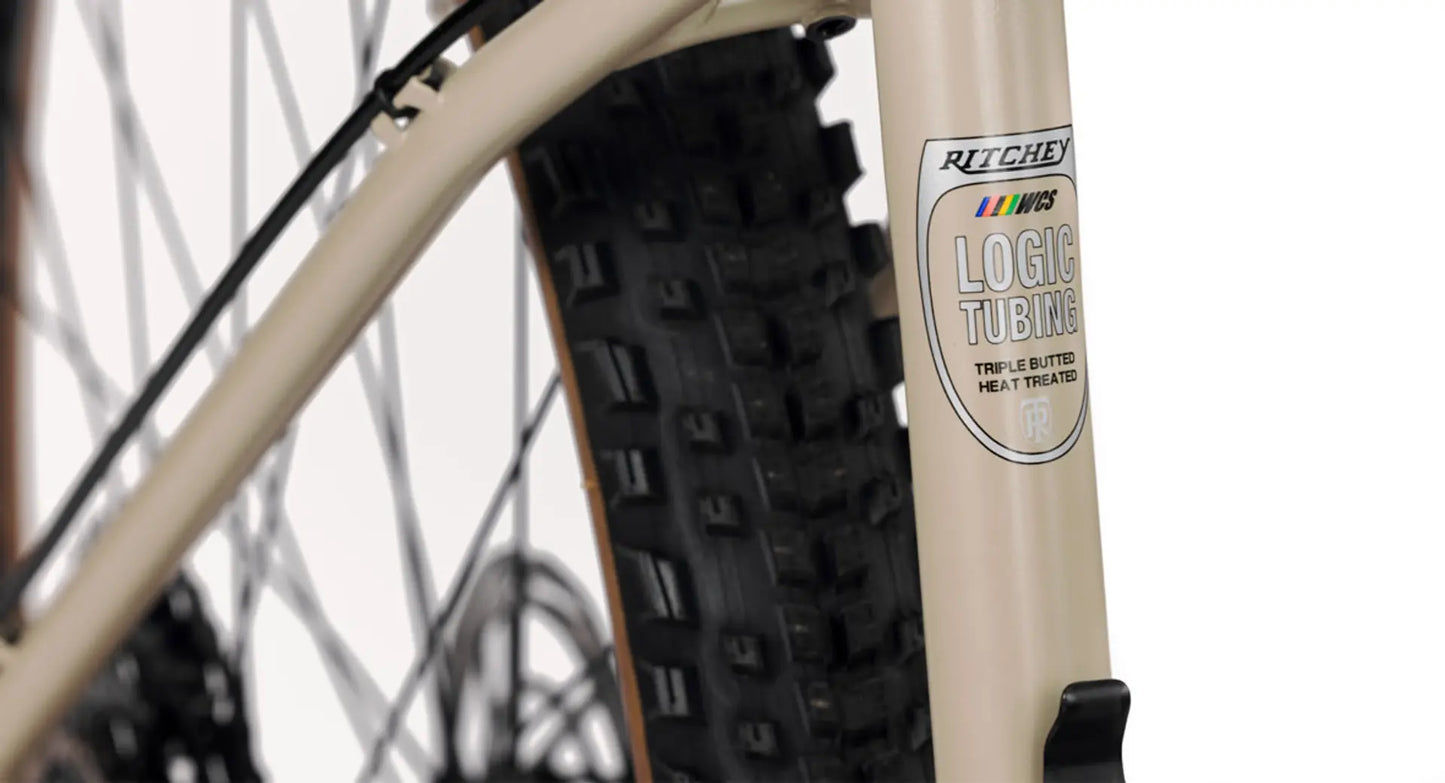

  • Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
  • Ultra-light forged and machined straight 1-1/8" headtube
  • Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)
  • 27.2mm seat tube with replaceable seat collar (max torque setting: 6Nm)
  • Bottom bracket: 73mm - English threaded
  • BOOST 148mm spacing (12mm alloy thru-axle included)
  • Crankset min/max ring size - single: 24 to 40t / double: 24/34 to 28/38t
  • Can accommodate 1X or 2X chainrings (Side Swing front derailleur required for double)
  • Bottle mounts: 2
  • Multi-purpose mount underside of downtube
  • Rack and fender mounts
  • External cable routing (continuous housing)
  • WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
  • Replaceable stainless-steel derailleur hanger
FORK
  • Ritchey steel fork with multi-purpose, rack, fender and threaded crown port
  • 1-1/8" straight steerer
  • Steerer length 300mm
  • Axle-crown 435mm
  • Rake/Offset 52mm
  • BOOST 110mm spacing (15mm alloy thru-axle included)
TIRE COMPATIBILITY
  • Wheel and tire compatibility: 27.5" x 2.6" or 29" x 2.6" (depending on tire/rim manufacturer)
  • Frame max spacing: 78mm
  • Fork max spacing: 78mm
  • BRAKE COMPATIBILITY
  • Post-mount brakes: 160mm (front 180mm max - adaptors available separately)
DETAILS
  • SizesS / M / L / XL
  • Frame weight: 2400g (size L - w/o thru-axle)
  • Fork weight: 1125g (with uncut steerer / not including axle)
