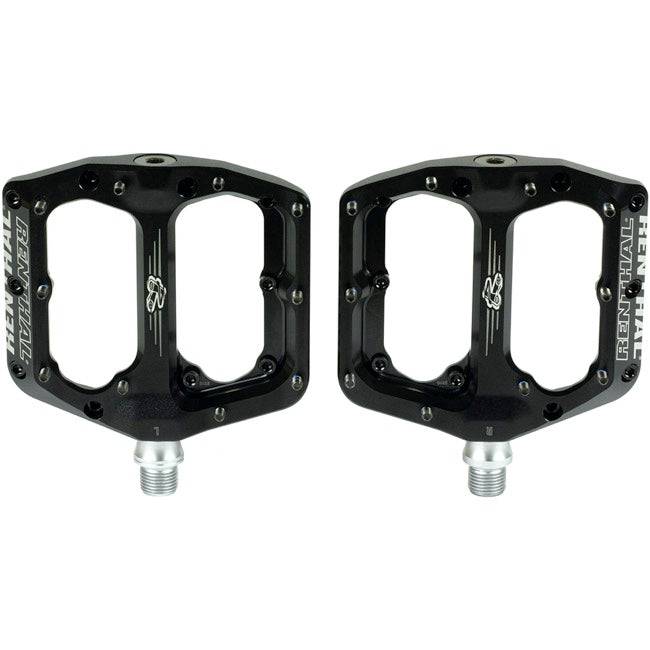

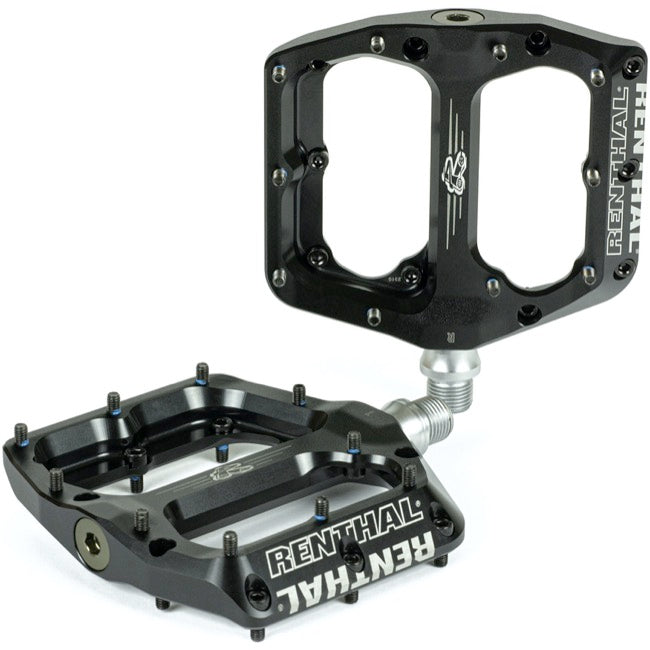

With Ride-Tuned external features and patent pending internals, the Revo-F is the new flat pedal of choice.

Featuring a two-axis concave pedal body, fully useable pedal platform and a pin system for fine tuning grip levels, the Revo-F offers unrivalled on-trail performance.

The Revo-F spins on an extra wide Igus bush and three cartridge bearings, with the internals fully sealed from the elements. Patent pending internals allow easy home maintenance, using standard tools.

The Renthal Revo-F is packed with unique features to deliver the ultimate Ride-Tuned on trail performance, tuneable grip levels, ease of maintenance and bomb-proof durability.

Specifications

• Genuine concave platform, in both axis
• Ten pins per side, all screw through type
• Asymmetric pin positioning and increased axle width, for maximum usable platform
• Adjustable pin length from 2.5mm to 5.5mm, in 1mm increments
• Three outboard cartridge bearings and extra wide inboard IGUS bush
• Fully sealed with inboard, full contact lip-seal and O-ring end-cap seal
• Home serviceable, without specialist tools, with Renthal patent pending axle system
• Forged and CNC machined 6061 aluminium pedal body
• High grade chromoly axle
• Spindle: CrMo
• Size: 9/16"
• Dimensions: 100mm length x 104mm width
• Weight: 490g.
• Black or AluGold anodised finish, with contrasting surface textures
