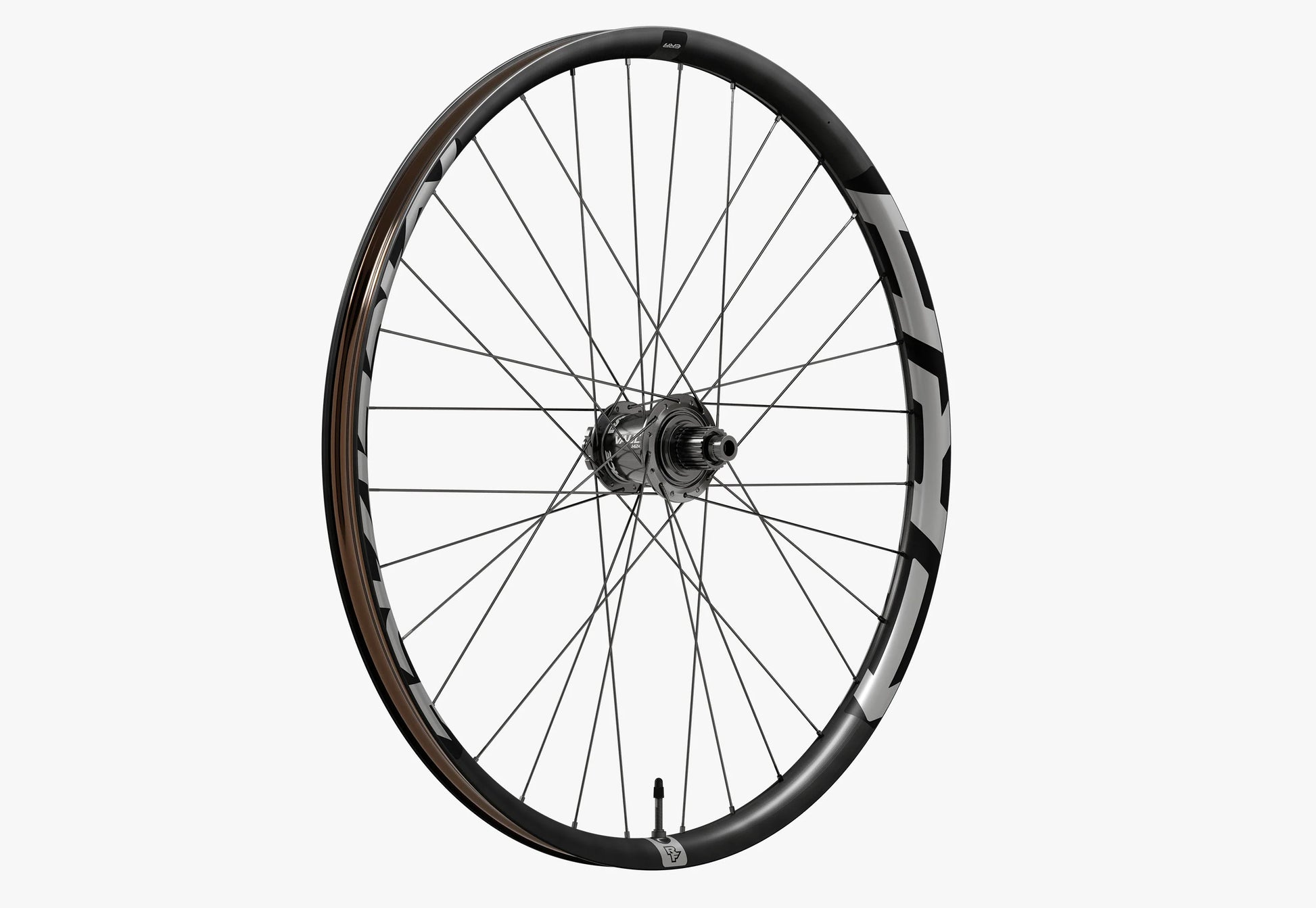

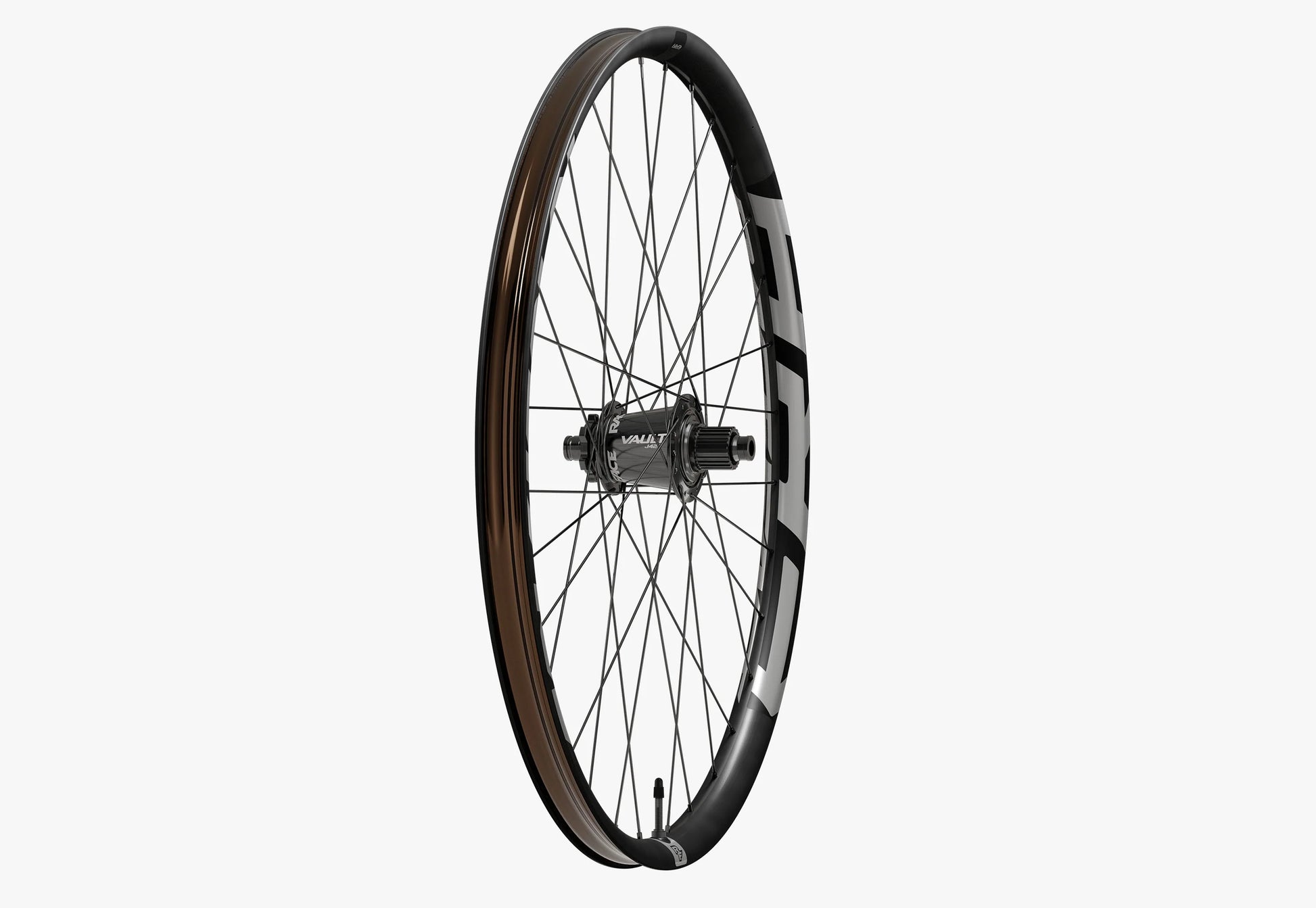

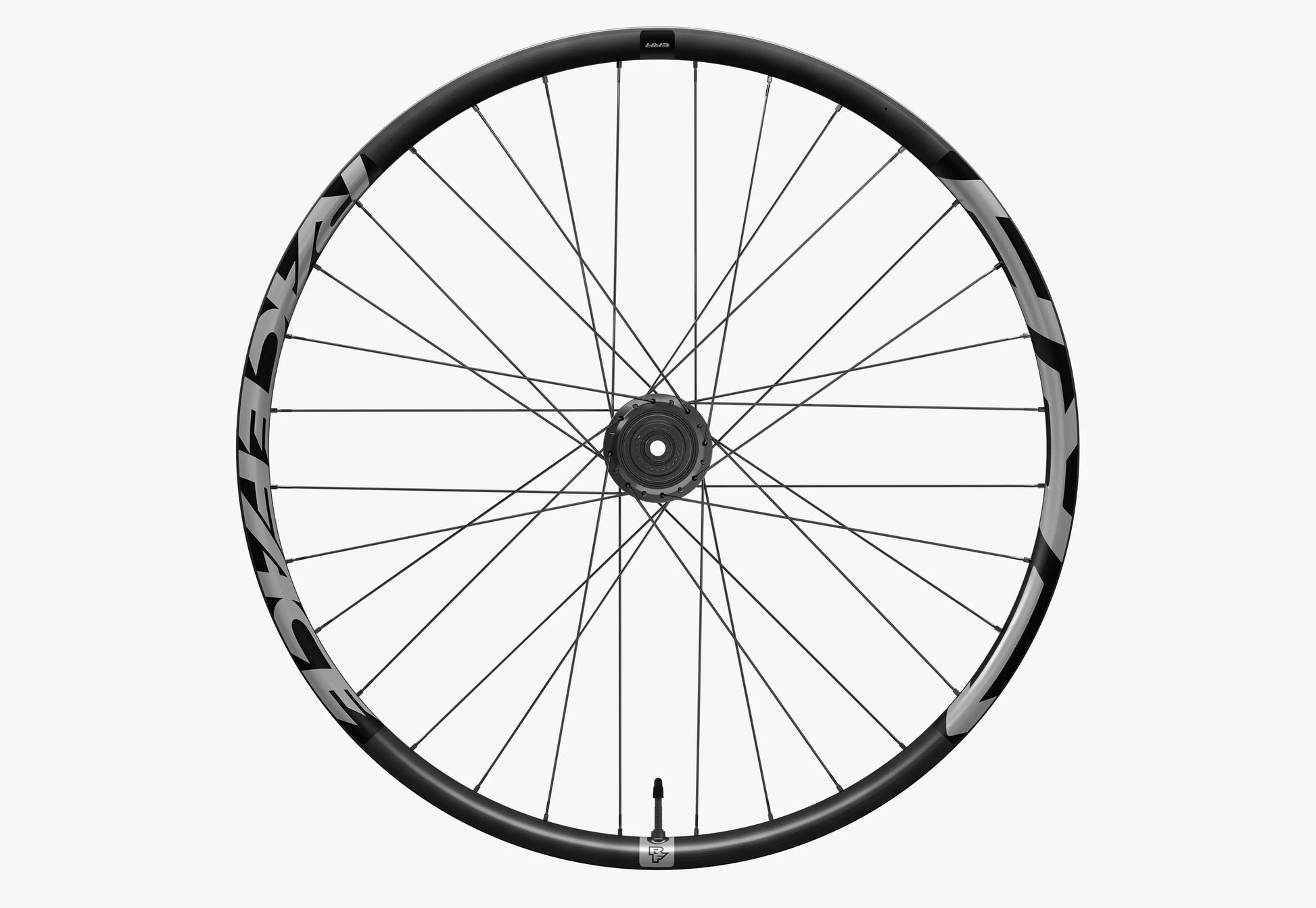

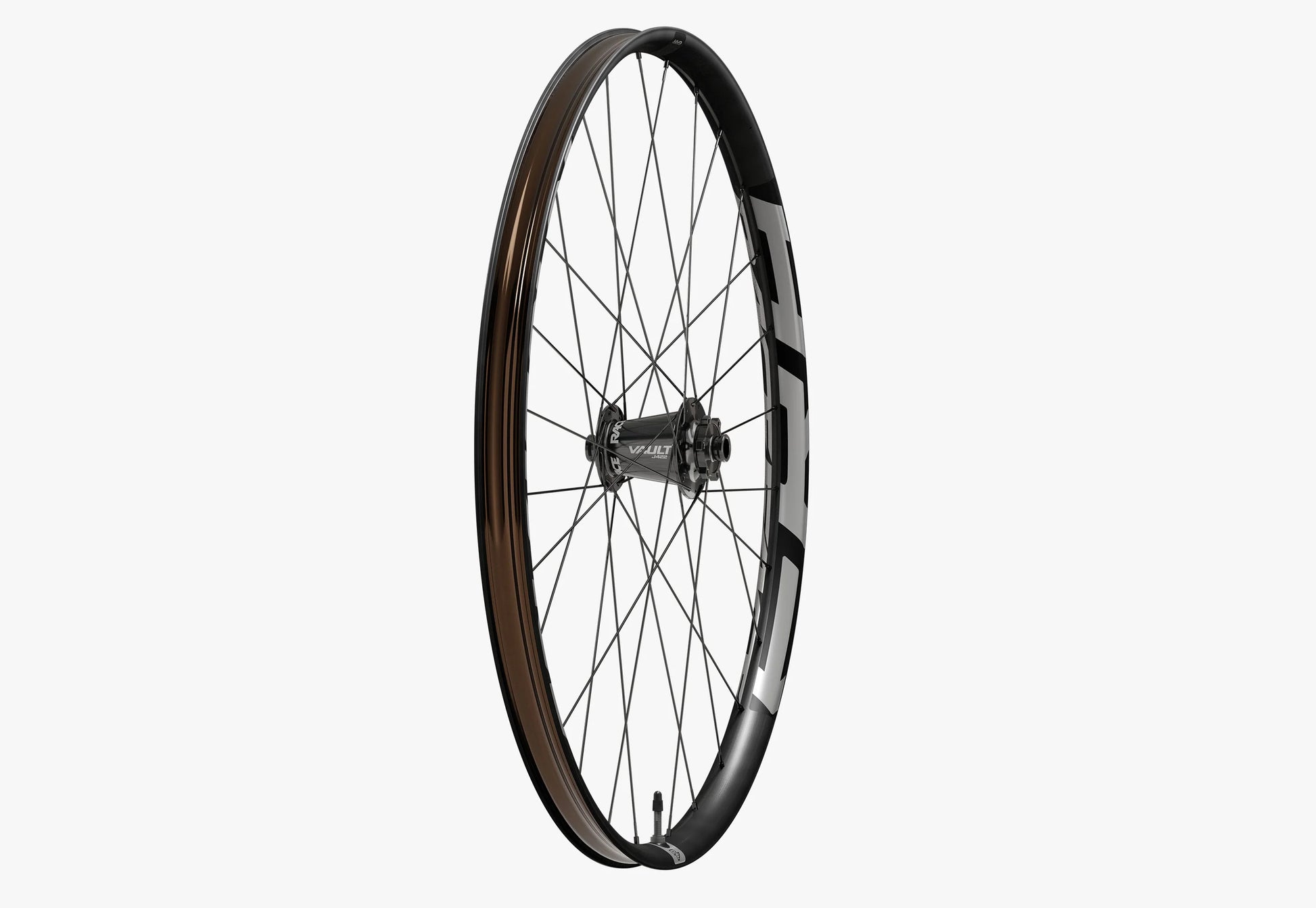

Race Face ERA 30 29" eMTB Wheel - Rear

Race Face ERA 30 29" eMTB Wheel - Rear

Color
Size

Product ID: GM041426-11

Earn
Out of stock


Shop all Race Face   |   Shop all MTB Wheels

View full details

Description

Race Face ERA 30 29" eMTB Wheel

Power meets precision.

Era eMTB strikes an ideal balance of weight efficiency, strength and traction-inducing compliance for the eMTB rider or heavy hitter after burly carbon wheels. For relentless riding, lap after lap, and the best ride feel possible. Oh yeah, it’s all coming together.

Tuned for the heavyweights.

We reduced front wheel compliance on this wheelset by 15% versus Era. Why? To ensure the trail-smoothing feeling we’re known for remains consistent under the added weight of a full-power eMTB. Thicker gauge spokes pair with a front-specific 18.6mm deep rim, tuning lateral compliance and ensuring Era eMTB glues you to your line through the rough stuff—even on a big rig.

Built for boosting.

The rear wheel is intentionally overbuilt for the torque and heavier impacts of modern e-bikes. 32 larger gauge spokes lace a 22.6mm deep rim profile to heavy-duty Vault hub, with 3-degree engagement and a reinforced steel axle. Each wheel features our Anvil Edge bead wall for added tire protection, and a Lifetime Warranty with crashes included (even when you're boosting).

Playful under pressure.

Heavier bikes usually mean sluggish handling, but not here. Era eMTB retains the carbon snap-back you need when exiting corners. Steering precision and a lively feel that defies the weight of your rig. Go ahead, lean into it.

Rider Style - Trail/All Mountain/Gravity/eMTB

Specifications:

Material Carbon Fiber
Weight 1692g (27.5”), 1750g (29"), wheelset without tape or valves
Rim Width 30mm Internal, 37.2mm External
Front Hub Model 15x110 Boost – Vault J414
20x110 Boost – Vault J414
Front Hub Endcap Compatibility 115x110 Boost (F60056) / 15x110 Boost Torque Cap (F60059) OR  / 20x110 Boost (F60086)
Rear Hub Model 12x148 Boost – Vault J424
Rear Hub Endcap Compatibility Vault 424 – 12x148 Boost (F60063)
Nipples Black alloy nipples
Spokes 29": Front: 298mm, Rear: 288mm (Drive side) & 290mm (Non-drive)
Rear: Rear: 269mm (Drive side) & 271mm (Non-drive)
Spoke Length 27.5" Front: 286mm, Rear: 282mm
Spoke Length 29" Front: 305mm, Rear: 301mm
Tubeless Tubeless ready, taped with valve
System Weight Rating 150 kg (330 lbs)
eMTB Usage Rating Maximum drive assist torque 130 Nm
Spare Parts Replacement End Caps
