Race Face ARC Offset 25 27.5" MTB Rim - Gray
Race Face ARC Offset 25 27.5" MTB Rim - Gray
Product ID: GM041922-22
Earn
rewards points on this item /
Join Now
Only 1 Items Left
Shop all Race Face | Shop all MTB Rims
View full detailsDescription

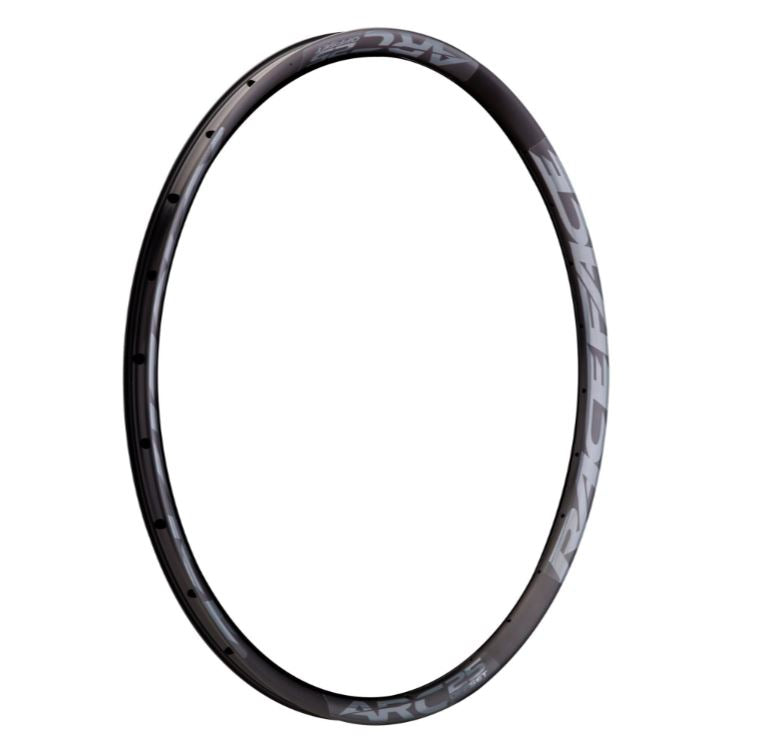

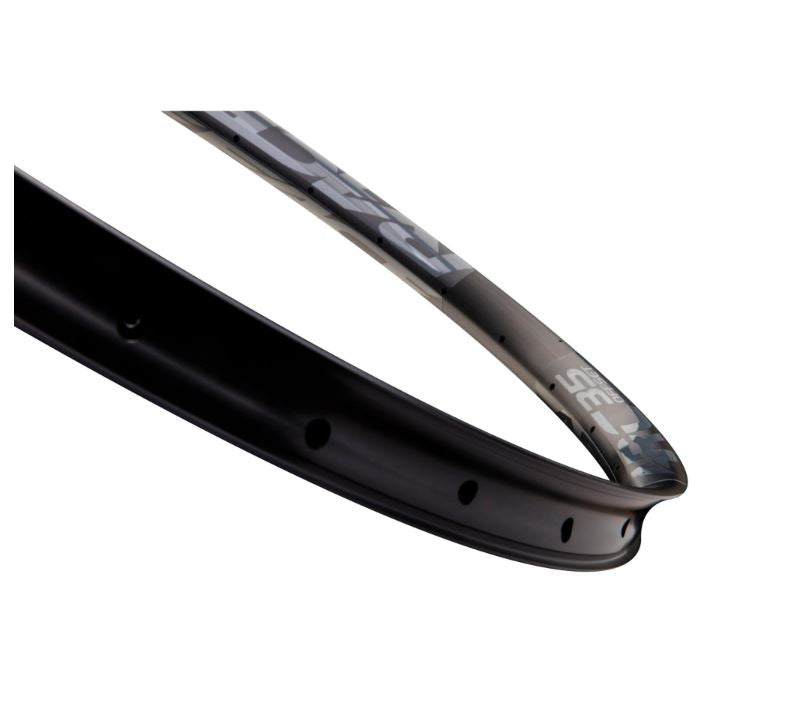

Race Face ARC Offset 25 27.5" MTB Rim - Gray
With a redesigned rim profile, the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.
Features
- Tubeless ready, strong tyre retention bead.
- Sizes from 25mm to 40mm internal width.
Specification
27.5" | 29" | |
Rim Weight | 25mm - 418g, 30mm - 484g, 35mm - 520g, 40mm - 560g | 25mm - 445g, 30mm - 525g, 35mm - 553g, 40mm - 596g |
Finish | Brushed Black Anodise / Vinyl Decals | Brushed Black Anodise / Vinyl Decals |
Type | Tubeless Ready Clincher (Tape and valve kit sold seperately) | Tubeless Ready Clincher (Tape and valve kit sold seperately) |
Rim Material | 6069 High Strength Alloy | 6069 High Strength Alloy |
Rim Depth | 20mm | 20mm |
Rim Offset | 4.5mm | 4.5mm |
Internal Rim Width | 25mm, 27mm, 30mm, 35mm, 40mm | 25mm, 27mm, 30mm, 35mm, 40mm |
External Rim Width | 29mm, 31mm, 34mm, 39mm, 44mm | 29mm, 31mm, 34mm, 39mm, 44mm |
Spoke Holes | 28 or 32 Hole | 28 or 32 Hole |
Rim ERD | 562mm (25-40mm) | 600mm (25-40mm) |
Max Spoke Tension | 122KGF / 1200N | 122KGF / 1200N |
