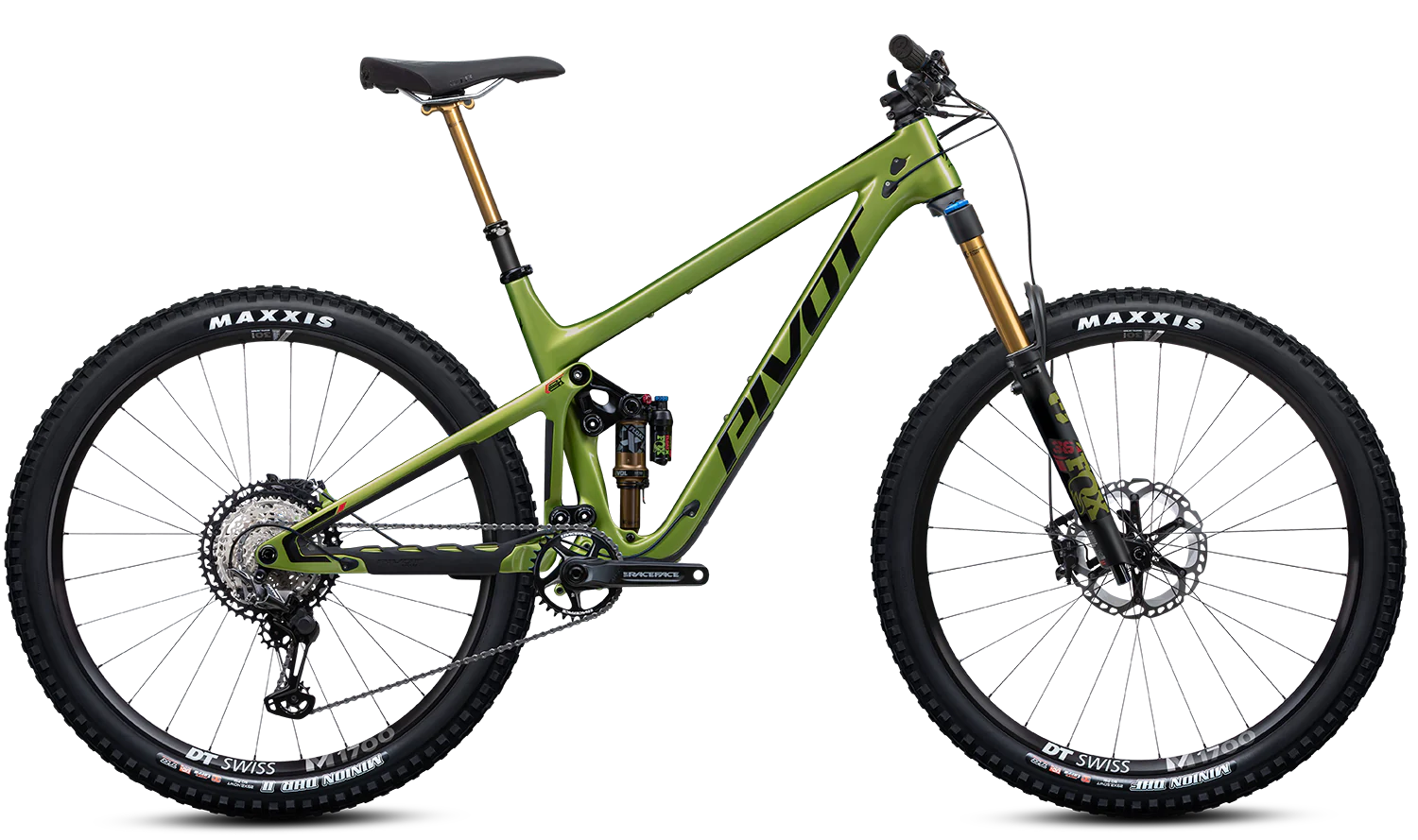

Pivot Switchblade 29 - Pro XT/XTR - Electric Lime - 2023

Bread Logo
Color
Size

Product ID: GM042623-78

Earn rewards points on this item / Learn More

Only 1 Left - Ready to ship

STORE COLLECTION PRODUCT

Please Note: This item can be purchased online and collected instore.
This item is not eligible for shipping.

Available Collection Points:
Cambria Bike SLO Store
1239 Monterey Street, San Luis Obispo, CA 93401 (See on Map)
Cambria Bike Paso Robles
1645 Commerce Way,Paso Robles, CA 93446 (See on Map)



Shop all Pivot   |   Shop all Full Suspension


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

The sequel to the Switchblade story heralds a new era of all mountain riding, with more travel, unrivaled versatility and progressive geometry. It unleashes dominance over enduro inspired descents, generates speed, and delivers the finesse needed for power moves on technical climbs. With a masterfully designed new dw-link shock layout, riders can optimize suspension performance like never before. The all-new Switchblade cleans the impossible, threads the needle, and delivers the freedom to explore. From bike park flow trails to raw backcountry routes, the Switchblade amplifies every rider's skills and excels on any trail.

We tailored every detail of the Switchblade to deliver a bike that’s ready to conquer the entire mountain. Progressive geometry broadens the performance envelope while retaining the versatility that made the original so good. Always with an eye on confidence-inspiring design, we shortened, straightened, and steepened the Switchblade’s seat tube to allow for longer travel dropper seat posts. The all-new compact frame design reduces weight and increases stiffness, but perhaps best of all, it allows for greatly reduced stand over height across a broad range of sizes. With an industry-leading fit philosophy, the Switchblade offers an ideal fit for riders from 5’ to 6’7” tall.

The Switchblade was already a bike ahead of its time and the new Switchblade pushes the versatility envelope even further. It doesn’t matter if you want to run 29er wheels, 27.5" X 2.8” plus tires or even a 29”/27.5” combo – the Switchblade can be perfected for all. A new flip chip with two settings means there isn’t any compromise in geometry. Choose the geometry that best fits your setup or handling preferences. The all-new Switchblade’s extraordinary versatility and category bending capability redefine performance across every type of trail.

Ultra-light, size-specific optimized full Hollow Core Carbon frame featuring leading-edge carbon fiber materials and Pivot's proprietary molding technology for a lighter frame and higher stiffness to weight ratio

FEATURES:

  • Ultra-Light Hollow Core Carbon Frame.
  • 142mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock.
  • Equipped with a 44mm offset 160mm-travel Fox 36 Grip2.
  • Flip Chip for on-trail geometry customization.
  • Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling.

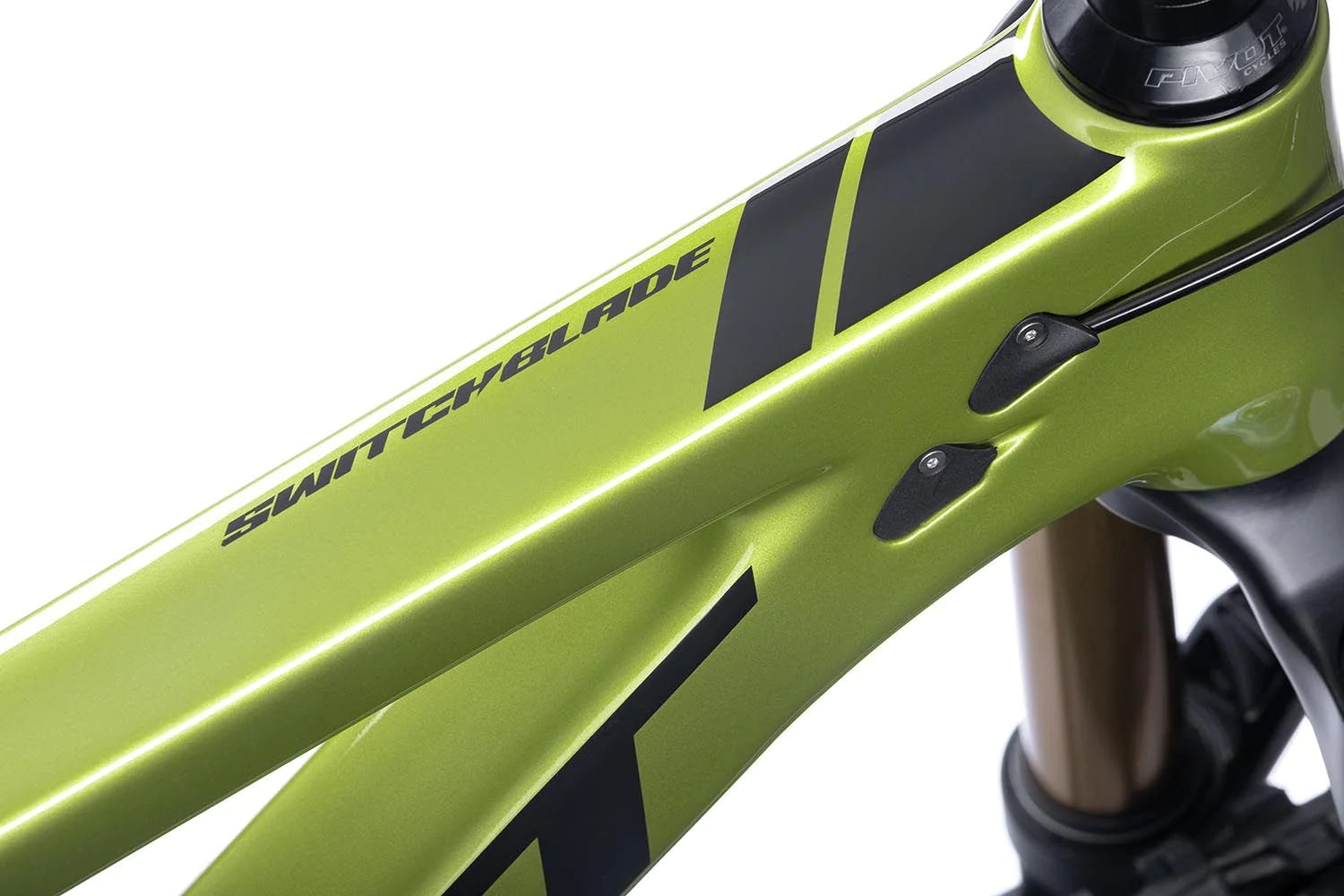

  • Hassle free full internal routing with Pivot cable port system.
  • Compatible with both 29, 27.5+″ and 27.5″ rear/29″ front (mullet) wheel sizes without compromise thanks to the Flip chip’s adjustable geometry feature.
  • Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup.
  • Large Water Bottle Clearance on all sizes.

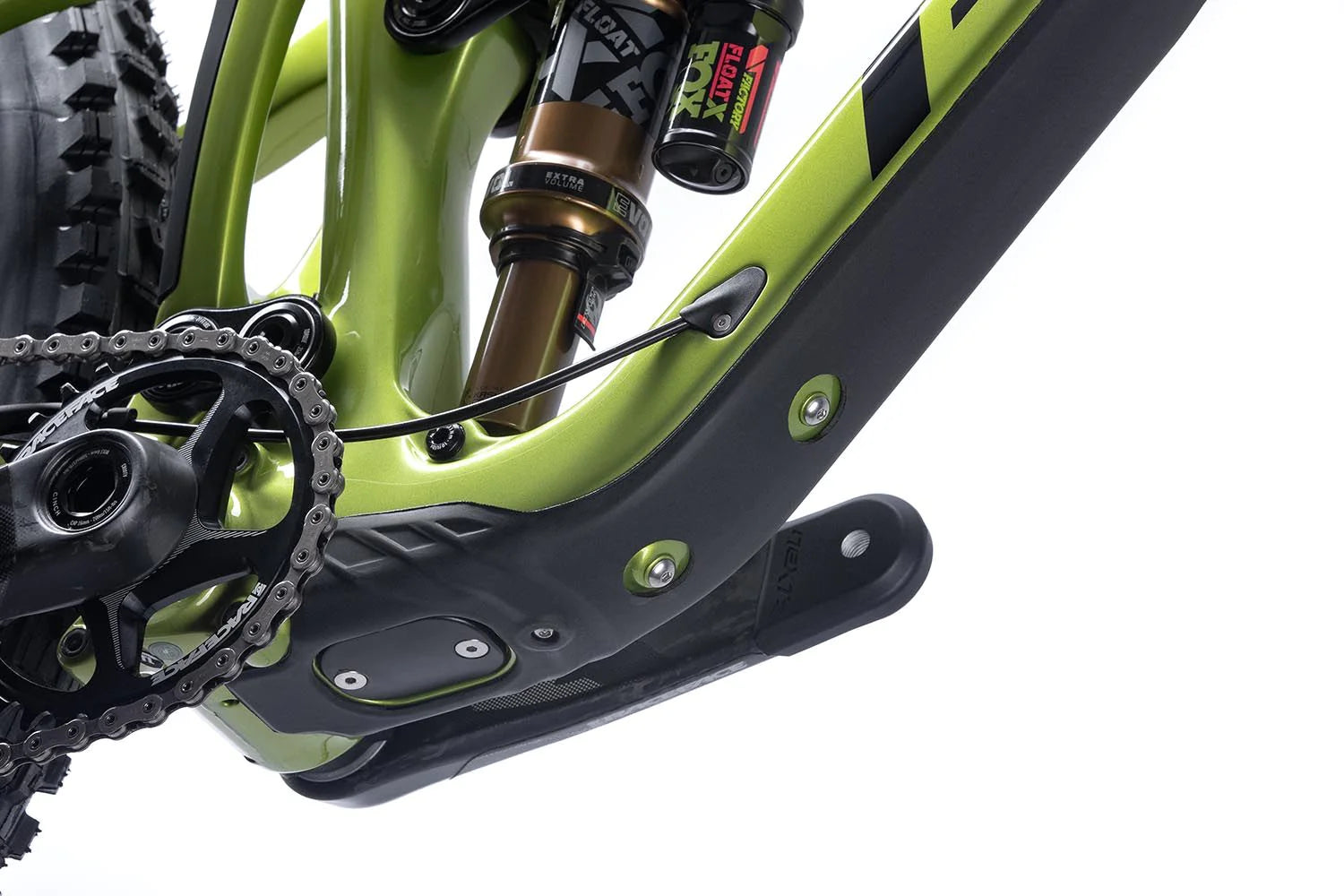

  • Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.

keyboard_arrow_right Specifications

  • Frame Switchblade
  • Fork: Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
  • Rear Shock: Fox Factory FLOATX
  • Rims/Wheels: DT Swiss XM1700 w/ 30mm - 29"
  • Hubs: DT Swiss 350 hub & 36t Star Ratchet 15x110 F/12x157 R
  • Tires: (F) Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA (R) Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
  • Crankset: Race Face Æffect R
  • Chainring: 32t
  • Chain: Shimano CN-M8100 12-Speed
  • Rear Derailleur: Shimano XTR M9100 SGS 12-Speed
  • Rear Cogs: Shimano XT M8100 10-51t
  • Shifters: Shimano XT M8100 ISPEC EV 12-Speed
  • Handlebars: Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
  • Grips: Phoenix Factory Lock-On
  • Stem: Phoenix Team Enduro/Trail
  • Brakes:Shimano XT M8120 4-piston
  • Saddle: Phoenix WTB Volt Pro (Medium Width)
  • Seat Post: Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD) 175mm (LG) 200mm (XL)
