$12,999.00
Shop all Pivot | Shop all Electric Bikes
Flipping the script that most e-bike builders are following, we decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on light weight, refined suspension, crisp handling, and game-changing performance.

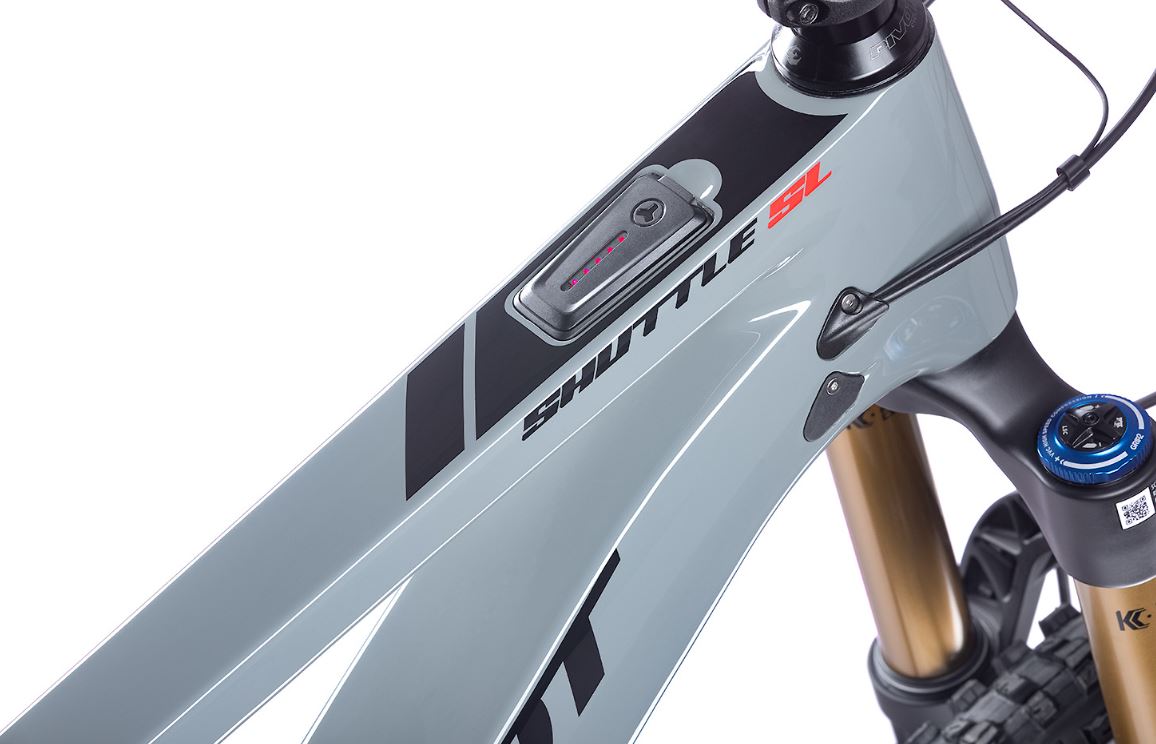

A 60Nm FAZUA motor, combined with a 430Wh battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The motor and battery are situated low and close to the center of gravity - a key aspect of the Shuttle SL's dynamic handling.
| Size |
SM (Low, High)
|
MD (Low, High)
|
LG (Low, High)
|
XL (Low, High)
|
|---|---|---|---|---|
| Top Tube Length |
598mm, 597mm
|
632mm, 631mm
|
646mm, 645mm
|
660mm, 659mm
|
| Head Tube Angle |
N/A: 65.0°
N/A: 65.5°
|
N/A: 65.0°
N/A: 65.5°
|
N/A: 65.0°
N/A: 65.5°
|
N/A: 65.0°
N/A: 65.4°
|
| Head Tube Length |
95mm
|
112mm
|
117mm
|
130mm
|
| Seat Tube Angle |
76.0°, 76.5°
|
76.0°, 76.5°
|
76.0°, 76.5°
|
76.8°, 77.2°
|
| Seat Tube Length |
368mm
|
394mm
|
432mm
|
470mm
|
| Bottom Bracket Height |
347mm (27mm drop), 352mm (21.4mm drop)
|
347mm (27mm drop), 352mm (21.3mm drop)
|
347mm (27mm drop), 352mm (21.2mm drop)
|
347mm (27mm drop), 352mm (21.2mm drop)
|
| Chainstay Length |
432mm, 430mm
|
432mm, 430mm
|
434mm, 432mm
|
438mm, 436mm
|
| Wheelbase |
1186mm, 1185mm
|
1223mm, 1222mm
|
1240mm, 1239mm
|
1272mm, 1271mm
|
| Standover |
665mm, 674mm
|
668mm, 677mm
|
674mm, 682mm
|
678mm, 687mm
|
| Reach |
435mm, 439mm
|
465mm, 469mm
|
475mm, 482mm
|
500mm, 504mm
|
| Stack |
610mm, 607mm
|
626mm, 622mm
|
630mm, 626mm
|
642mm, 638mm
|
| Additional Info | Geometry adjustable via flip chip in upper linkage | |||
