Pivot Firebird V3 29 - Pro XT/XTR Air - Carbon Wheels - Orange - 2022

Bread Logo
Color
Size

Product ID: GM052322-20

Only 1 Left - Ready to ship

STORE COLLECTION PRODUCT

Please Note: This item can be purchased online and collected instore.
This item is not eligible for shipping.

Available Collection Points:
Cambria Bike SLO Store
1422 Monterey Street, San Luis Obispo, CA 93401 (See on Map)
Cambria Bike Paso Robles
1645 Commerce Way,Paso Robles, CA 93446 (See on Map)



Shop all Pivot   |   Shop all Full Suspension


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

Pivot Firebird V3 29 - Pro XT/XTR Air - Carbon Wheels - Orange - 2022



Tear Down The Sky

The Firebird has one goal – to be the fastest. The fastest Enduro bike for our team riders, the fastest park bike, the fastest way to rail a top-to-bottom mega-descent – no matter whether that descent is in Moab or Morzine. Every aspect of our long travel 29er is tailored toward the pursuit of unbridled velocity, from its progressive, size-specific geometry to the tuned perfection of its dw-Link suspension. Whether you're chasing EWS podium glory or harboring a burning desire to tear down the sky in a supersonic plume of dust, the Firebird is your ticket to pure speed.

The DNA of Velocity
Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach, and generous wheelbase are the key ingredients of high-speed composure. Balance and responsiveness are brought into the mix via size-specific chainstays and seat tube angles, ensuring that the Firebird remains nimble and responsive at all times, in all conditions. 165mm of ultra-capable dw-link suspension soaks up everything from jumbled moonscapes to massive G-outs and still snaps to attention and climbs with more authority than bikes offering inches less travel. Fast up, fast down. Fast.

Not As Sweet As It Looks
"Sweet bike, man." It's the ultimate lift-line compliment. In the case of the Firebird, that sweetness is only skin deep. Appearances can be deceptive. When you're coming in way too hot on the wrong side of the safe line, you want a partner with lightning reflexes and the dispassionate calm of a cold blooded killer. The Firebird's Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, in much the same way that James Bond can get his hands really dirty while keeping his suit perfectly clean. Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!

Pivot's full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5'2" to 6'9" has a bike that feels perfect and performs at the optimum level for their size.

- Long-and-low geometry for a confident, and size-specific chainstay lengths refine the EWS Podium performance for different sized riders.
- Phoenix DH-inspired longer dw-link maximizes the Firebird's rearward wheel-path for erasing square edge bumps and maximizing control.
- 165mm of supple-yet-efficient dw-link suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance.
- Equipped with a 44mm offset 170mm-travel Fox Factory and Performance Series 38 FIT Grip2 forks.
- Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options.
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup.
- Adjustable geometry with a flip chip upper link mount.
- Compatible with both 29" and 27.5" wheel sizes without compromise thanks to the adjustable geometry for 29" 27.5" or MX wheel setups.
- Fits tires up to 29x2.6" or 27.5x2.8" wide.
- 12 x 157mm Super Boost Plus rear spacing adds stiffness and control.
- 31.6mm size seatpost match with the Firebird's short seat tube with deep insertions for longer travel posts.
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world.
- 1.5" headtube provides increased front-end stiffness and tracking.
- Hassle-free, full-length, internal cable routing.
- All sizes fit a water bottle inside the front triangle.
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.



keyboard_arrow_right Specifications

  • Frame Firebird- Carbon
  • Fork Fox Factory 38 29", 44mm offset, GRIP2 - 170mm
  • Rear Shock Fox Factory Float X2
  • Wheels Alloy: DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
  • Carbon: Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29" 15x110 F/12x157 R
  • Tires Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
  • Crankset Race Face Æffect R 32t
  • Shifters Shimano XT M8100 ISPEC EV 12-Speed
  • Rear Derailleur Shimano XTR M9100 SGS 12-Speed
  • Cassette/Freewheel Shimano XT M8100 10-51t
  • Chain Shimano CN-M8100 12-Speed
  • Brakes Shimano XT M8120 4-piston
  • Rotors Shimano XT CenterLock - 203mm
  • Handlebars Phoenix Team Low Rise Carbon - 800mm
  • Tape/Grips Phoenix Factory Lock-On
  • Stem Phoenix Team Enduro/Trail
  • Headset Pivot Precision Sealed Cartridge
  • Seatpost Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
  • Saddle Phoenix WTB Volt Pro (Medium Width)
  • Pedals Sold separately

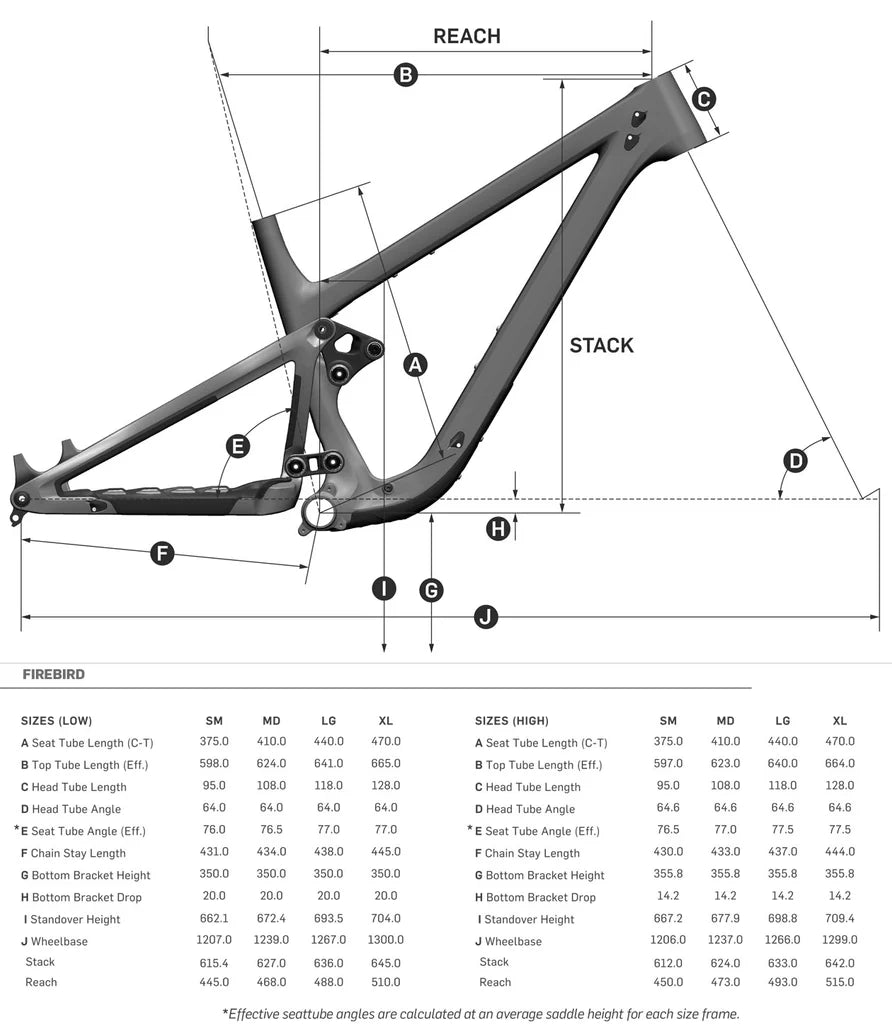

Geometry: Low BB
Small Medium Large X-Large
A- Seat Tube Length 37.5 cm 41.0 cm 44.0 cm 47.0 cm
BTop Tube Length 59.8 cm 62.4 cm 64.1 cm 66.5 cm
CHead Tube Length 9.5 cm 10.8 cm 11.8 cm 12.8 cm
DHead Tube Angle 64.0° 64.0° 64.0° 64.0°
ESeat Tube Angle 76.0° 76.5° 77.0° 77.0°
FChainstay Length 43.1 cm 43.4 cm 43.8 cm 44.5 cm
GBottom Bracket Height 35.0 cm 35.0 cm 35.0 cm 35.0 cm
HBottom Bracket Drop 2.00 cm 2.00 cm 2.00 cm 2.00 cm
IStandover 66.2 cm 67.2 cm 69.3 cm 70.4 cm
JWheelbase 120.7 cm 123.9 cm 126.7 cm 130.0 cm
Reach 44.5 cm 46.8 cm 48.8 cm 51.0 cm
Stack 61.5 cm 62.7 cm 63.6 cm 64.5 cm
