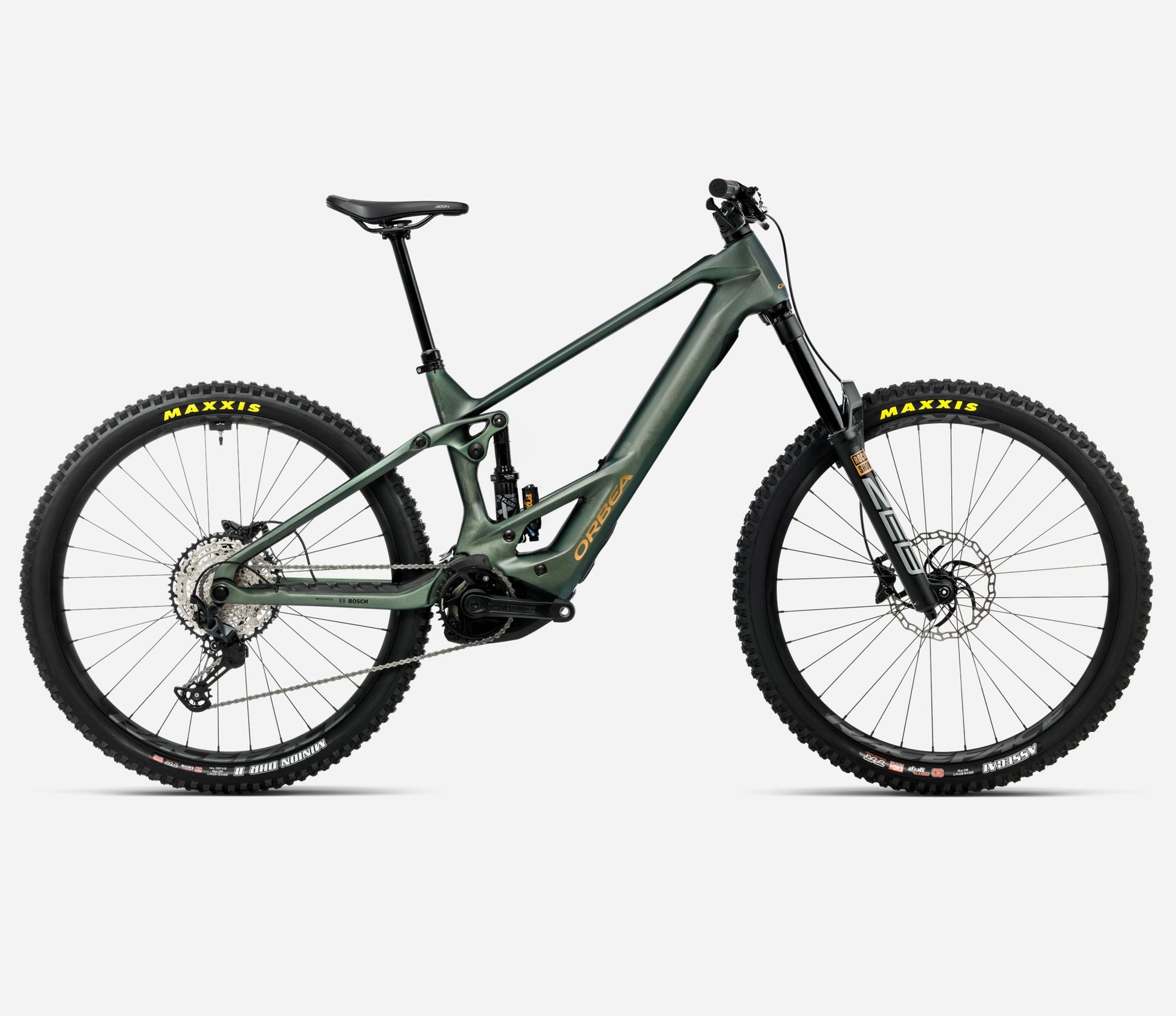

Orbea Wild M20: Race-Bred e-MTB

The Orbea Wild M20 Welcome to a world beyond power. Wild offers the ultimate in eBike performance, developed in the toughest races.

Features:

• New Integrated Display
  The new Kiox 400C display is seamlessly integrated into the frame, protected from bumps and impacts. It features a USB-C charging port, customizable display layouts, and built-in navigation capabilities.

• 170mm of Gravity-Tuned Suspension
  Wild offers 170mm of travel front and back, with custom-tuned Fox Float X or Float X2 shocks and the 38 fork.

• Mullet Ready
  Whether you want maximum speed with 29" wheels or focus on fun with smaller wheels, Rallon has you covered.

• Modular Battery System
  Comes with a 600Wh battery as standard, offering the ultimate in handling. For longer rides, a 750Wh battery is available as an option.

• Bosch CX Performance Motor
  Bosch's 100 Nm motor provides endless power and controlled responses, with an updated motor for more precise control, torque, and fast pedal response.

• OMR Carbon
  High modulus, high-strength fibers, and advanced carbon manufacturing techniques allow for less weight while maintaining strength and durability.

• Fox 38 Fork
  Full power eBikes require stiffer, more burly forks. The Fox 38 is the benchmark for stiffness and performance on aggressive eBikes.

Specifications:

Frameset

• Frame: Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148

• Shock: Fox Float X Performance Trunnion, 2-Pos Evol LV, custom tune, 205x65mm

• Fork: RockShox ZEB Base-A2 DebonAir+, 170mm travel, E-MTB specific, 15x110 Boost

• Steerer Tube: Alloy 1-1/2", Black Oxidated Bearing

E-Bike System

• Battery: Bosch Powertube 750Wh Horizontal (BBP3770)

• Range Extender: N/A

• Motor: Bosch Performance Line CX (BDU3843)

• Display: Bosch System Controller (BRC3100)

• Charger: Bosch 4A (230V) BPC3400

• Remote: Bosch Mini Remote (BRC3300)

Drivetrain

• Chainring: ethirteen espec Direct Mount 34T Boost

• Crank: e*thirteen Helix Core

• Shifters: Shimano Deore M6100 I-Spec EV

• Cassette: Shimano CS-M7100, 10–51T, 12-Speed

• Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus

• Chain: Shimano M6100

• Chainguide: e*thirteen Plus Bosch CX Gen4 CL 55, 32–36T

Cockpit

• Handlebar: OC Mountain Control MC30, Rise 20mm, Width 800mm

• Stem: OC Mountain Control MC20, 0º

• Computer Mount: OC Computer Mount CM-05, Garmin/Sigma

Brakes

• Brakes: Shimano MT420 Hydraulic Disc

• Rotors: Galfer Wave Rotors, 203mm front / 203mm rear

Wheels & Tyres

• Wheels: Race Face AR 30c, Tubeless Ready

• Front Tyre: Maxxis Assegai 2.50", 60 TPI, 3CG/EXO+/TR, MaxxGrip

• Rear Tyre: Maxxis Minion 2.40", 120 TPI, 3CT/DD/TR, MaxxTerra

Components

• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper

• Seatpost Lever: Shimano SL-MT500 I-Spec EV

• Saddle: Fizik Aidon, 208x145mm, manganese rails

• Grips: OC Lock On

Accessories

• Lights: N/A

Geometry

Orbea reserve the right to make changes to the product and component information appearing on their site at any time without notice, including with respect to equipment, specifications, models, colors, and materials
