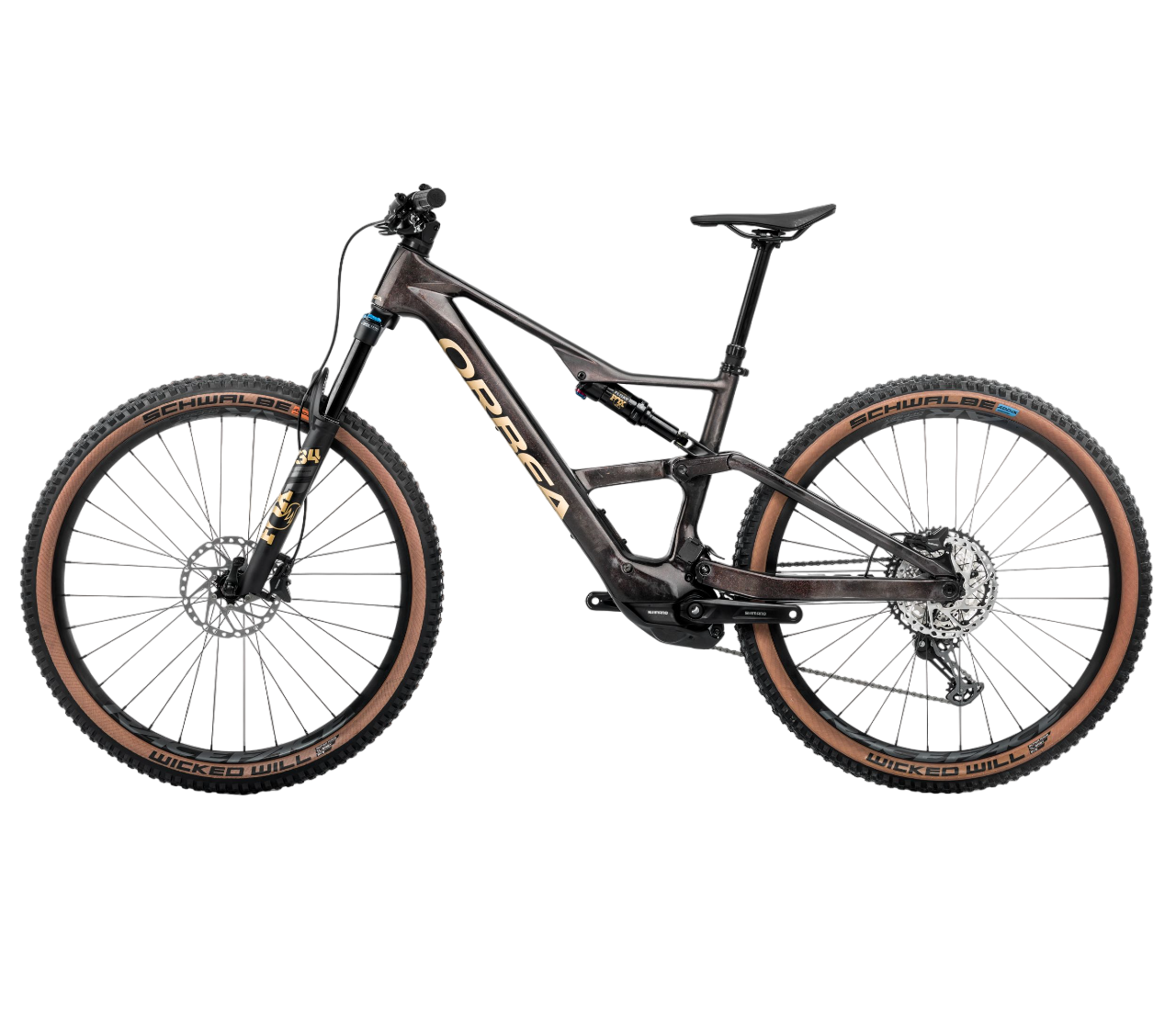

Orbea Rise SL M20 20mph E-Bike: Redefine Your Adventure

Find Flow in Every Adventure The Orbea Rise SL M20 is engineered to elevate your trail riding experience, offering 140mm of efficient suspension travel and fast trail geometry that delivers a nimble, responsive, and fun ride. With the Rise SL M20, you're equipped with a 420Wh battery as standard, giving you ample power to explore new trails. If you seek even more range, the 630Wh battery is available as an upgrade. This e-bike is powered by the Shimano EP600 RS Gen2 MC motor, enhanced with our latest Rider Synergy (RS) GEN2 firmware, delivering the most natural and seamless pedal assistance imaginable.

Power Meets Precision At the heart of the Rise SL M20 lies the Shimano EP600 RS Gen2 MC motor, a system that offers up to 20mph of pedal assistance. This motor is paired with our cutting-edge Rider Synergy firmware, which optimizes power delivery for a natural riding feel. The Rise SL M20 is not just about power—it's about precision. The bike's advanced asymmetric frame design ensures rigidity where it matters most, delivering predictable and responsive handling, even when you're pushing the limits.

Tuned Rigidity & High-Performance Handling The Rise SL M20’s frame is meticulously designed to provide the correct rigidity exactly where it’s needed. This results in high-performance handling that allows you to confidently navigate any terrain, whether you're carving through technical descents or powering up steep climbs.

The New Rider Synergy The RS Gen2 firmware is the soul of the Orbea Rise SL M20, providing the most natural pedal assistance with best-in-class battery range. Whether you're cruising on flats or tackling challenging climbs, the system adapts to your needs, ensuring you have the right amount of power at all times.

Further and Faster The RS Gen2 system ensures that you're not just riding further but also riding faster. By intelligently managing power distribution, it delivers assistance only when you need it, conserving battery life and enhancing the overall riding experience.

Carbon Shock Extender The carbon shock extender on the Rise SL M20 maximizes frame rigidity while minimizing weight. This feature contributes to the bike’s exceptional handling and lightweight build, ensuring that the Rise SL M20 is both light and incredibly capable on the trail.

Specifications

Frameset:

• Frame: Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148mm
• Shock: Fox Float Performance 2-Pos Evol LV, custom-tuned 210x50mm
• Fork: Fox 34 Float Performance, 140mm travel, Grip 3-Pos QR15x110mm
• Headset: Alloy 1-1/2", Black Oxidated Bearing

E-Bike System:

• Motor: Shimano EP600 RS Gen2 MC
• Battery: Orbea Internal 420Wh (Optional 630Wh)
• Range Extender: Not applicable
• Charger: Orbea 2nd Generation eBike Smart Charger, 42V/2-4A
• Remote: EN600-L
• Display: Optional (Shimano EN600, sold separately)

Drivetrain:

• Chainring: ethirteen Helix Core espec Direct Mount 32T, 55mm ChainLine
• Crank: Shimano Steps EM600
• Shifters: Shimano SLX M7100 I-Spec EV, 12-Speed
• Cassette: Shimano CS-M7100, 10-51T, 12-Speed
• Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus, 12-Speed
• Chain: Shimano M6100
• Chainguide: Orbea Rise chainguide

Cockpit:

• Handlebar: OC Mountain Control MC31, 20mm Rise, 800mm Width
• Stem: OC Mountain Control MC20, 0º Rise
• Computer Mount: OC Computer Mount CM-05, Garmin/Sigma compatible
• Grips: OC Lock On

Brakes:

• Brakes: Shimano M6100 Hydraulic Disc
• Rotors: 180mm Front / 180mm Rear

Wheels:

• Wheelset: Race Face AR 30c Tubeless Ready
• Tires: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix compound, Brown

Components:

• Seatpost: OC Mountain Control MC22, 31.6mm Dropper Post
• Seatpost Lever: Shimano SL-MT500 I-Spec EV
• Saddle: Fizik Terra Ridon X5, 145mm width
• Seat Clamp: Bolt-Type

Conclusion

The Orbea Rise SL M20 is not just a bike—it's an experience. With its refined engineering, powerful motor, and high-performance components, the Rise SL M20 redefines what’s possible on the trail. Whether you're climbing, descending, or cruising, this bike is designed to deliver unmatched performance and endless fun, making every ride an adventure to remember.

Note: Components are subject to change without notice.
