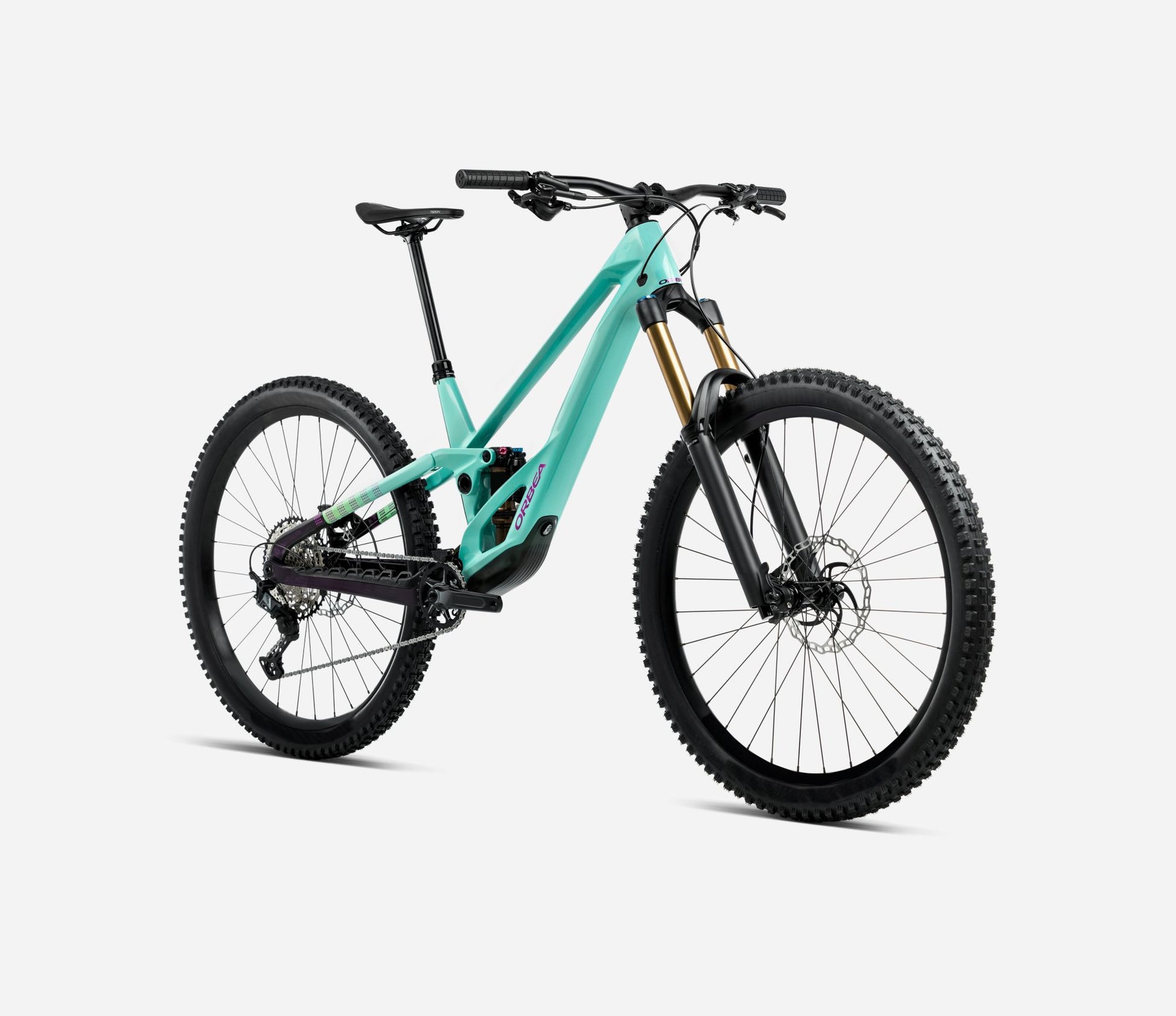

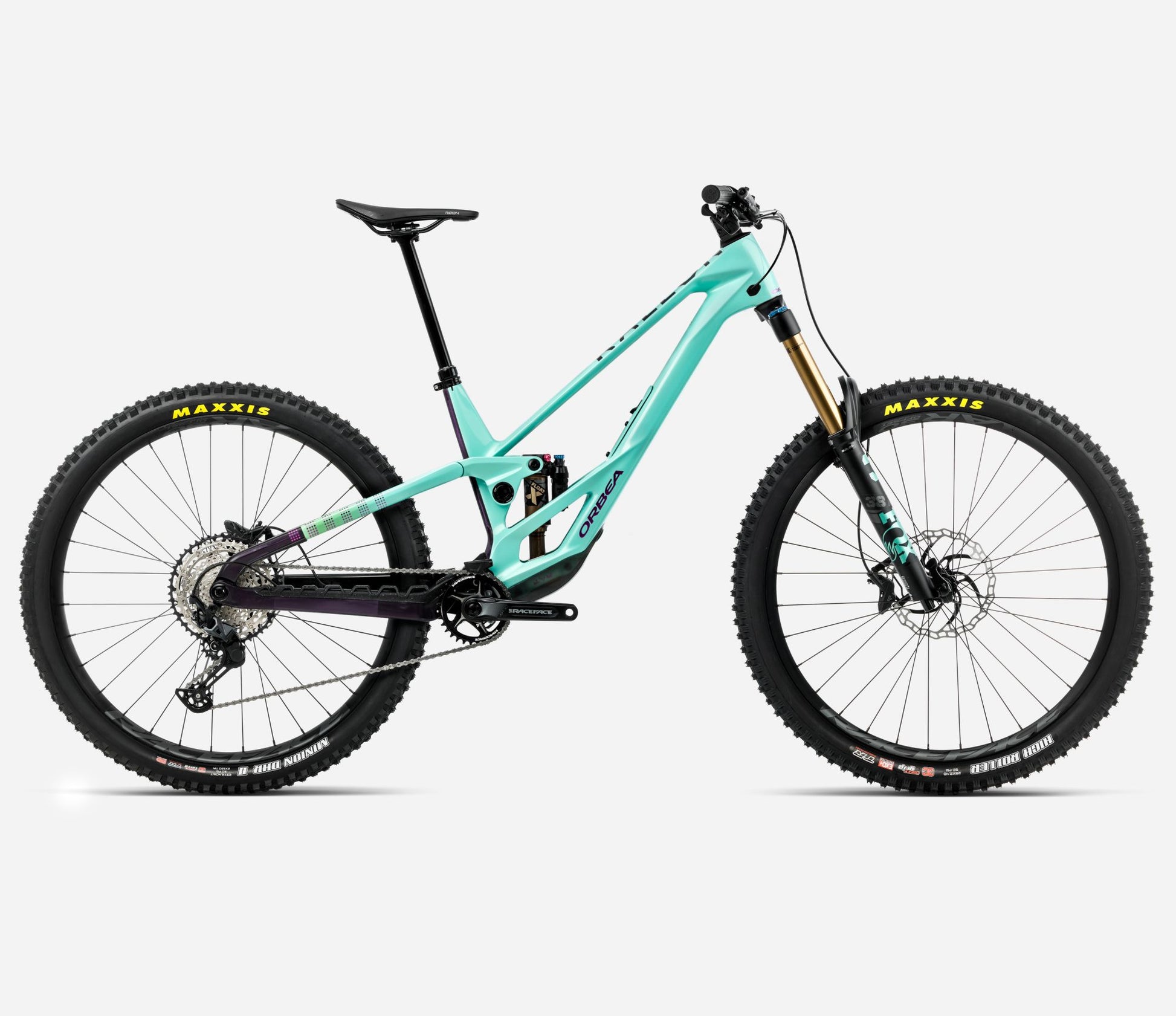

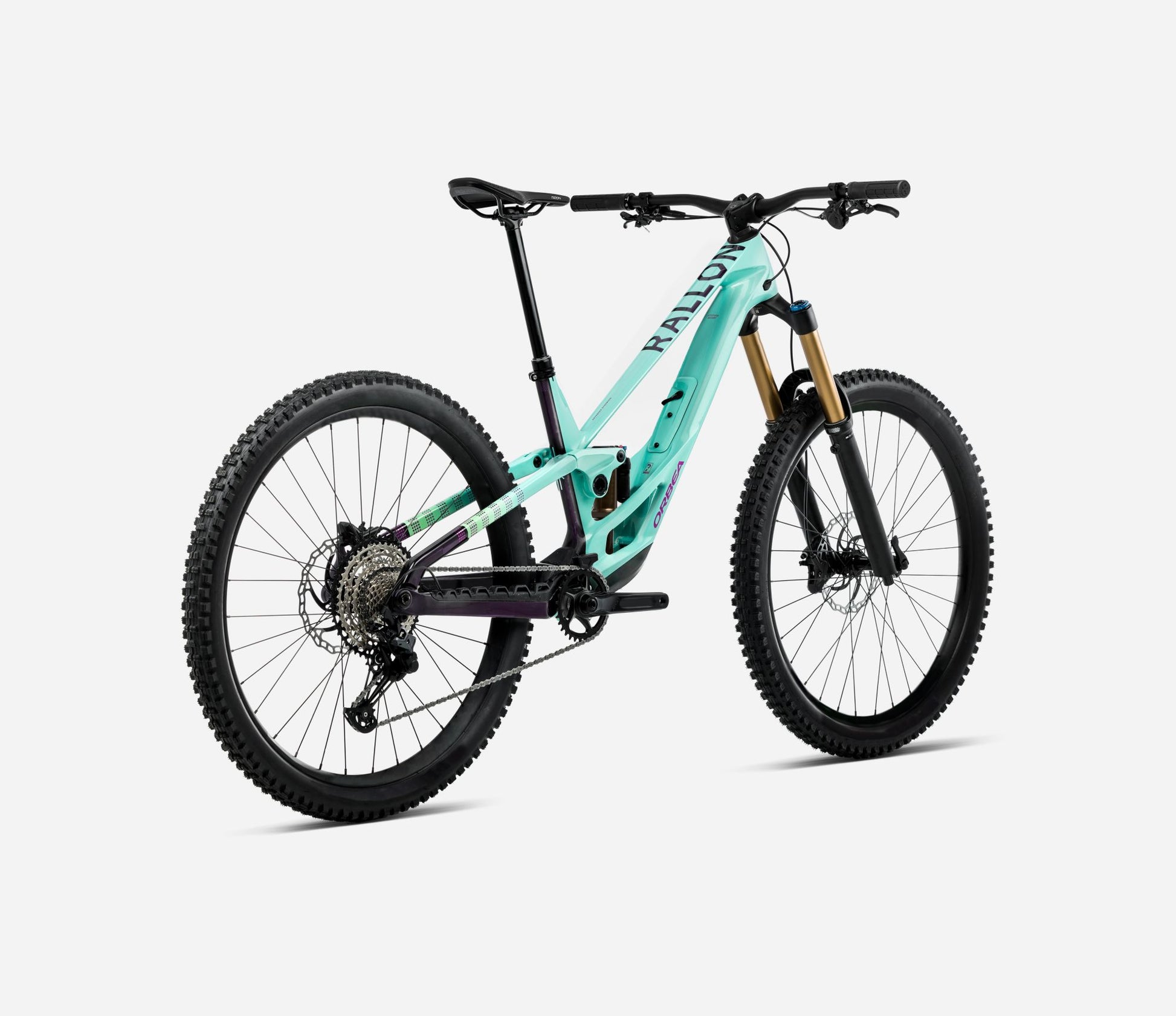

Orbea Rallon E10 29

Orbea Rallon E10 is an adjustable,170mm travel enduro machine with unmatched suspension performance.

Features:

• 170mm / 180mm Travel
  170mm rear travel matched to a 180mm fork, tuned to give DH-performance.

• Attitude Adjust
  Timed stages, rowdy descents, and casual spins with friends demand different setups. Rallon's adjustability makes it easy to fine-tune so you're dialed in no matter where the ride takes you.

• Mullet Ready
  Rallon is Mullet ready. Select a 27.5" for a nimble ride or 29" for a speed-focused experience.

• Steep 'N' Deep
  Now even deeper and matched with a really low standover. More space to move your body means more control and more speed.

• Choose Internal or External Headset Cabling
  With Rallon, you can choose internal headset cable routing or not thanks to the new external cable ports.

• Fox 38 Fork
  Stiff, controlled, and plus, Rallon counts on the benchmark FOX 38.

Specifications:

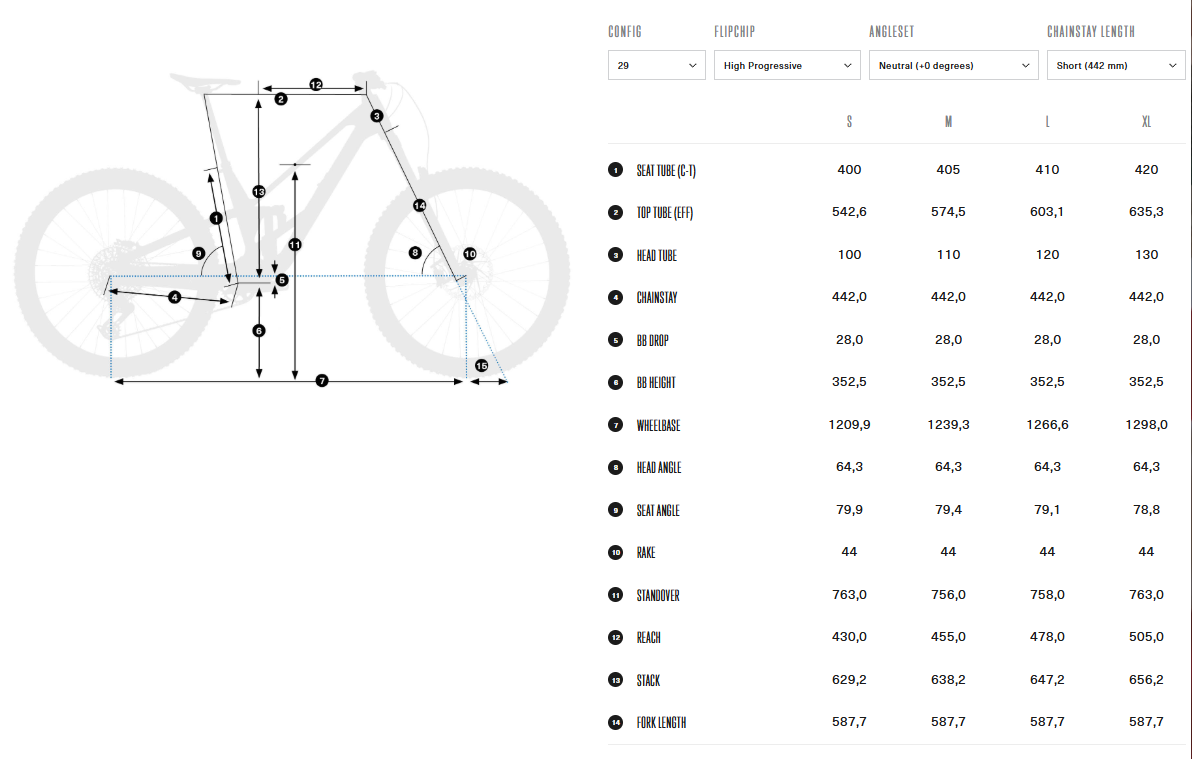

• Frame: Orbea Rallon OMR, 442mm chainstay length, Concentric Boost 12x148mm rear axle, Pure Gravity geometry, Attitude Adjust, ISCG05 mounts

• Steerer Tube: Alloy 1-1/2", black oxidated bearing

• Shock Support: Enduro 29 GravityLink

Suspension

• Rear Shock: Fox Float X Factory Trunnion, 2-Pos Evol LV Kashima, custom tune, 205x62.5mm

• Fork: Fox 38 Float Factory 180mm travel, Grip X2 damper, QR15x110, Kashima coating

Drivetrain

• Crankset: Race Face Aeffect, 32T

• Shifters: Shimano SLX M7100 I-Spec EV

• Cassette: Shimano CS-M7100, 10–51T, 12-speed

• Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus

• Chain: Shimano M6100

• Chainguide: e*thirteen CL55, 30–36T, black

Cockpit

• Handlebar: OC Mountain Control MC30, 20mm rise, 800mm width

• Stem: OC Mountain Control MC11 Alu SL, 0º

• Computer Mount: OC CM-05, Garmin/Sigma compatible

• Grips: OC Lock-On

Brakes

• Brakes: Shimano M6120 Hydraulic Disc

Wheels & Tyres

• Wheels: Race Face AR 30c, Tubeless Ready

• Front Tyre: Maxxis High Roller III, 2.40", 60 TPI, 3CG/EXO+/TR, MaxxGrip

• Rear Tyre: Maxxis Minion, 2.40", 120 TPI, 3CT/DD/TR, MaxxTerra

Components

• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper

• Seatpost Lever: Shimano SL-MT500 I-Spec EV

• Saddle: Fizik Terra Ridon X5, 145mm

Accessories

• Storage: Accessories containers

• Tools: OC rear axle lever (Hex 6 + valve core removal)
