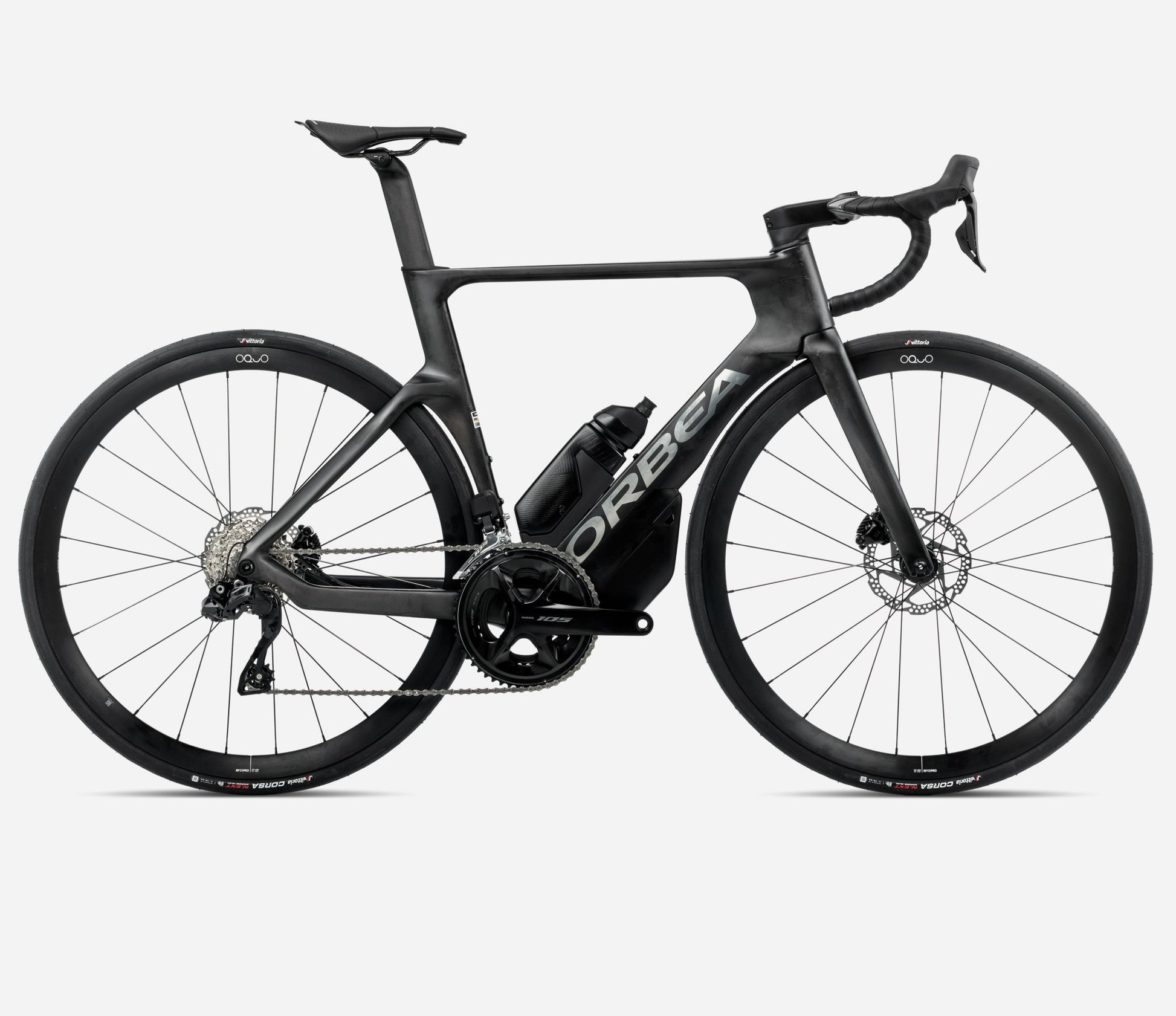

Orbea Orca Aero M30iLTD 700c

The Orbea Orca Aero M30iLTD 700c delivers pure speed with aero shaping, power transfer, and sharp handling—built for riders chasing every last watt.

Features:

• OMX Carbon Frame: Lightweight and rigid frame with fewer pieces of carbon for reduced weight and fewer overlaps, resulting in a saving of almost 300g.
  Rear Wheel Airflow: Optimized airflow around the rear wheel by aligning the upper seat tube junction with the airflow.
  Aerodynamic Fork: Designed for high-profile wheels, enhancing aerodynamics.
  Tyre Clearance: Capable of accommodating 30C tires, ensuring comfort without compromising speed.
  ORCA Aero OMX Seatpost: Adjustable seat post with up to 25mm setback and +/- 10° tilt; lightweight and compact with a 50mm depth.
  High-Performance Components: Features designed for efficiency, speed, and comfort on the road.

Specifications:

Frameset

• Frame: Orbea Orca Aero Carbon OMX disc, monocoque construction

• Headset: HS 1.5"

• Bottom Bracket: BB386, powermeter compatible

• Rear Axle: Thru Axle 12mm x 142mm, thread M12x2 P1, Speed release compatible

• Cable Routing: Internal

• Compatibility: EC/DC compatible

Fork

• Orbea Orca Aero OMX ICR, full carbon

• Tapered head tube: 1-1/8" to 1.5"

• Thru Axle: 12x100mm, thread M12x2 P1, Speed release compatible dropout

Steerer Tube

• FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

• Crankset: Shimano 105 R7100, 36x52t

• Shifters: Shimano Di2 R7170

• Cassette: Shimano 105 R7100, 11-34t, 12-Speed

• Rear Derailleur: Shimano 105 Di2 R7150

• Front Derailleur: Shimano 105 Di2 R7150

• Chain: Shimano M6100

Cockpit

• Handlebar: OC Road Aero RA11 Carbon, Reach 80mm, Drop 125mm

• Stem: OC Road Performance RP10, -8º angle

Brakes

• Brake Type: Shimano R7170 Hydraulic Disc

• Rotors: 160mm Front / 160mm Rear

Wheels & Tires

• Wheels: Oquo Road Performance RP35PRO

• Tires: Vittoria Corsa N.Ext G2.0 Foldable 700x28c

• Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite

• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite

Components

• Seatpost: OC Road Aero RA10 Carbon Ultralight, SB0/25, with Micro tilt adjustment

• Saddle: Prologo Scratch-M5 Pas T2.0, 140mm wide

Accessories

• Handlebar Tape: Orbea Anti-Slippery/Shock Proof

• Hydration: OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

• Storage: OC Aero Toolbox TB01PP

Orbea reserve the right to make changes to the product and component information appearing on their site at any time without notice, including with respect to equipment, specifications, models, colors, and materials
