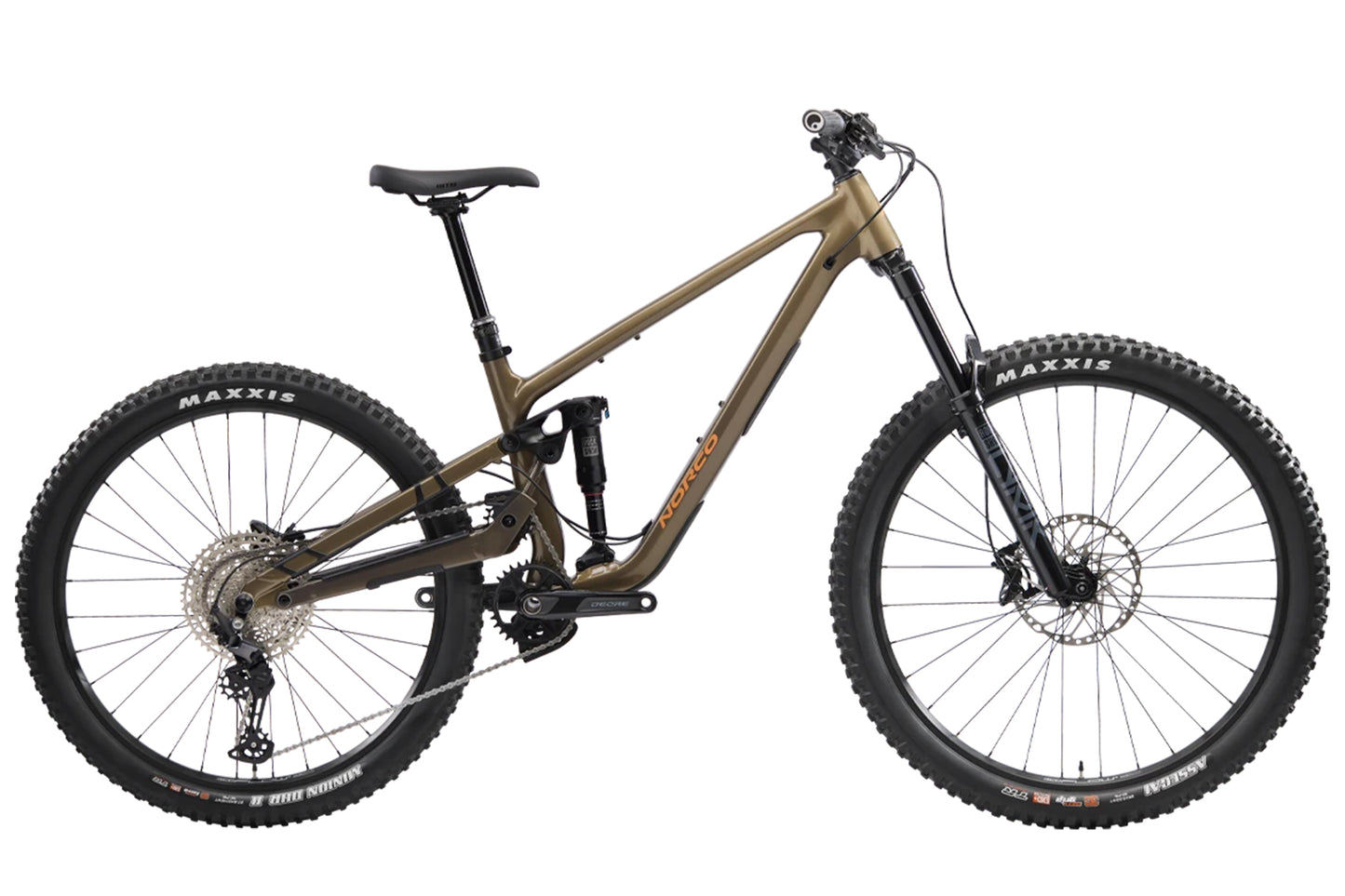

Norco Sight A3 150 MX - 2025

The Norco Sight A3 150 MX is the ultimate all-mountain machine, designed to conquer steep descents, technical terrain, and epic all-day rides. With the innovative VPSHP suspension platform, high-pivot design, and a versatile setup, the Sight A3 is built to perform both up and down the mountain.

Key Features

All-Mountain Versatility

• Travel: 160mm front / 150mm rear suspension offers the perfect balance of capability and maneuverability for aggressive trail and enduro riding.
• Mixed Wheels: Equipped with a 29” front and 27.5” rear for improved agility and traction. Swappable "Missing Link Kit" allows easy conversion to full 29” wheels.
• Frame Design: Lightweight aluminum frame with high-pivot Horst suspension ensures confidence-inspiring stability and dynamic performance.

VPSHP Suspension Platform

• High-pivot design increases the rearward axle path, improving suspension response over technical terrain.
• Integrated idler pulley minimizes pedal kickback and chain growth for efficient pedaling and responsiveness under power.

Trail-Ready Innovation

• Ride Aligned™: A Norco-exclusive system providing a perfect fit and personalized handling.
• OneUp EDC Lite Tool: Built-in trail tool for on-the-go maintenance.
• Norco Design Technology: Features robust 4-piston hydraulic disc brakes and a durable drivetrain for dependable trail performance.

Specifications

Frameset

• Frame: Aluminum, High Pivot Horst Suspension, 150mm Travel, Ride Aligned™, UDH-Compatible.
• Fork: RockShox Lyric Base Rush RC, 160mm travel, 44mm offset.
• Shock: RockShox Deluxe Select+ Air, 205x60mm TR.

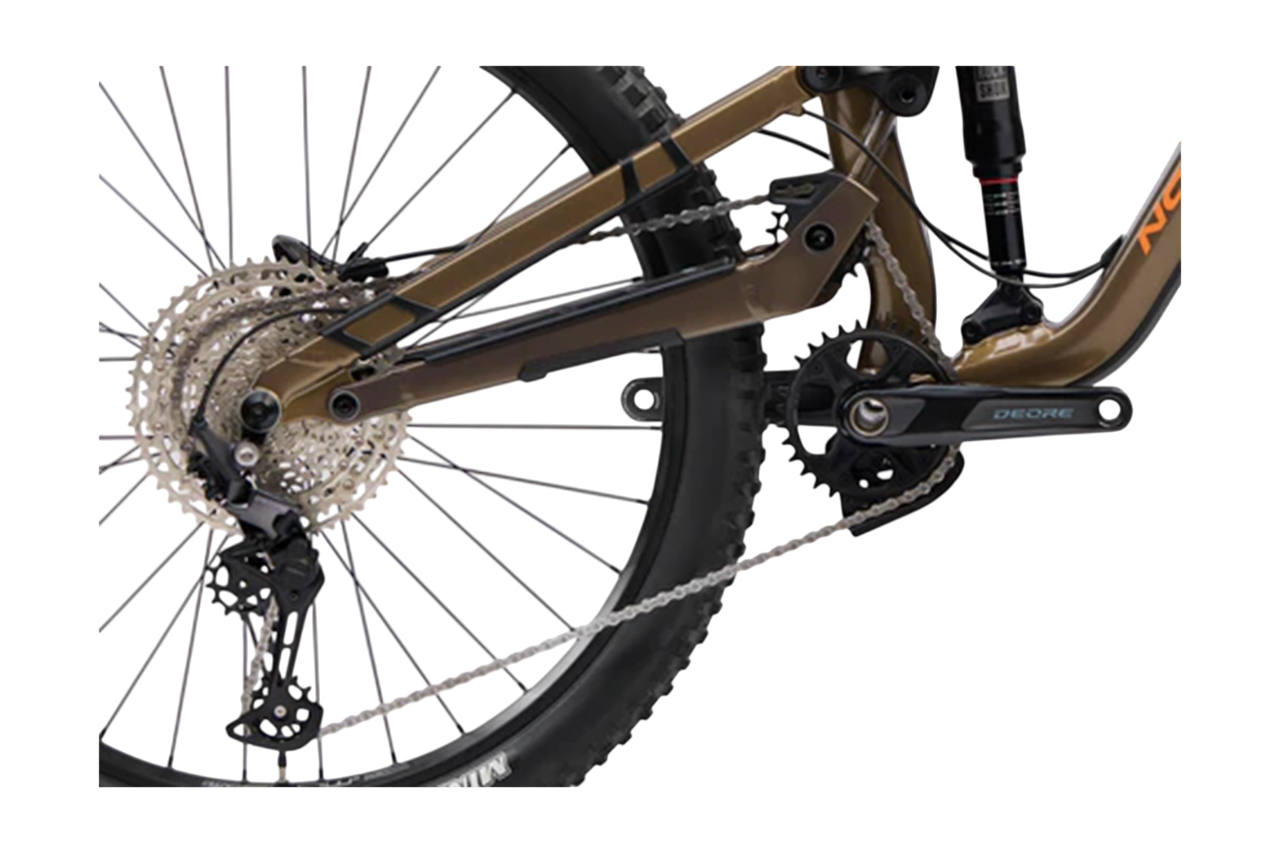

Drivetrain

• Rear Shifter: Shimano Deore SL-M6100, 12-speed.
• Rear Derailleur: Shimano Deore RD-M6100, 12-speed.
• Crankset: Shimano Deore FC-MT6120-1, 32T (165mm on S1/S2, 170mm on S3/S4/S5).
• Cassette: Shimano Deore CS-M6100, 10-51T.
• Bottom Bracket: Shimano Sealed Bearing, BSA 73mm.
• Chain: Shimano Deore CN-M6100, 12-speed.

Brakes

• Front Brake: Shimano Deore MT520, 4-piston, metallic pads.
• Rear Brake: Shimano Deore MT520, 4-piston, metallic pads.
• Rotors: Shimano RT-64 (203mm front, 180mm rear).

Components

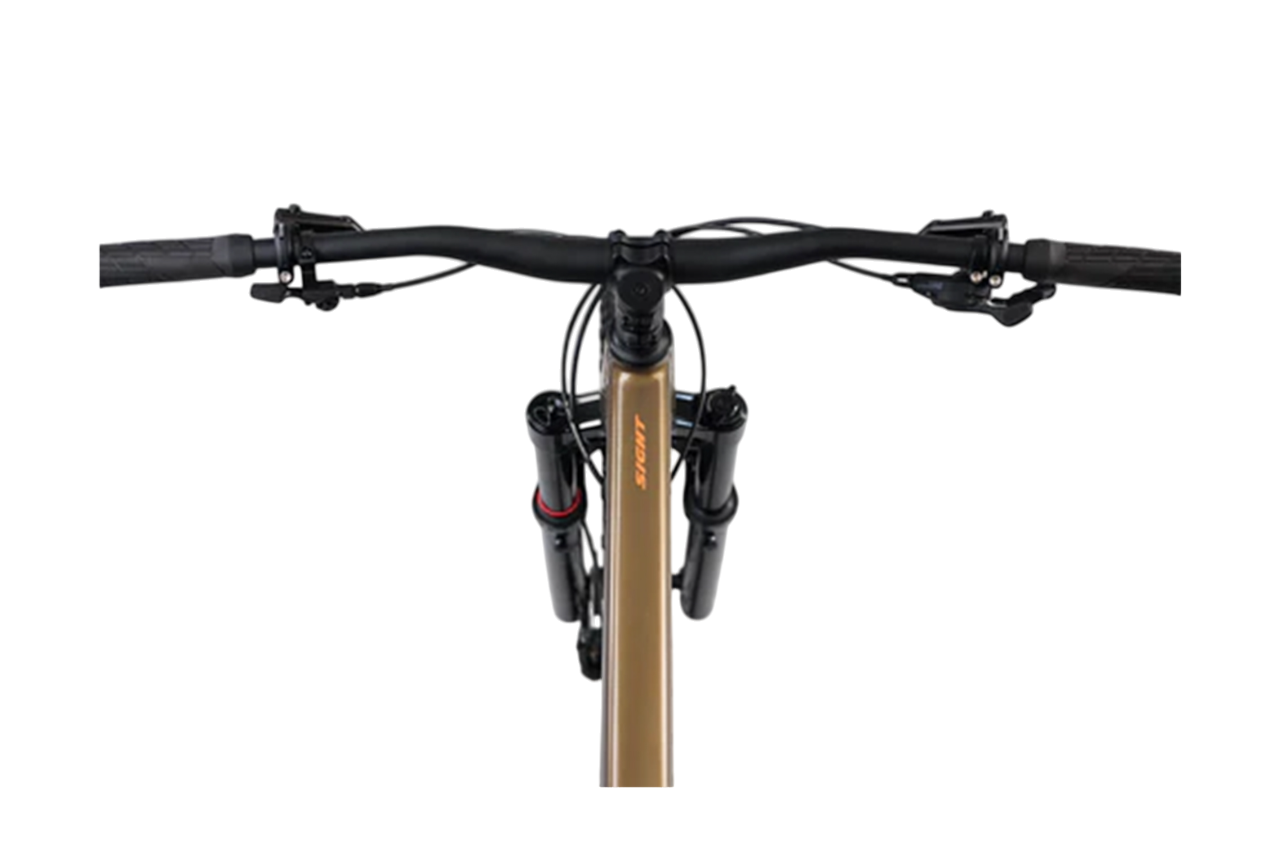

• Handlebar: Norco 6061, 800mm width, 25mm rise.
• Stem: E13, 40mm length, 35mm clamp.
• Seatpost: TranzX YS105 Dropper (sizes: 150mm for S1, up to 230mm for S5).
• Saddle: WTB Volt 250 Sport.
• Grips: Ergon GD1 (slim for smaller sizes, standard for larger sizes).

Wheels

• Rims: Stan’s Flow D, 32H, F-29”, R-27.5”, 29mm ID.
• Tires: Maxxis Assegai (29x2.5”) front / Maxxis Minion DHR II (27.5x2.4”) rear, EXO+ casing.
• Hubs: Shimano SLX front, Shimano FH-MT510 rear, Boost spacing, Micro Spline driver.

Weight

• Weight: 17.8 kg (39.4 lbs)
• Weight Reference: Size S3

Why Choose the Norco Sight A3 150 MX?

The Norco Sight A3 150 MX delivers the ultimate combination of cutting-edge technology, versatility, and performance. Whether you’re carving through loamy descents, tackling technical climbs, or heading out for an all-day adventure, the Sight A3 ensures confidence, control, and unmatched capability.
