⚡ Big Travel. Bigger Power. All-Day Range.

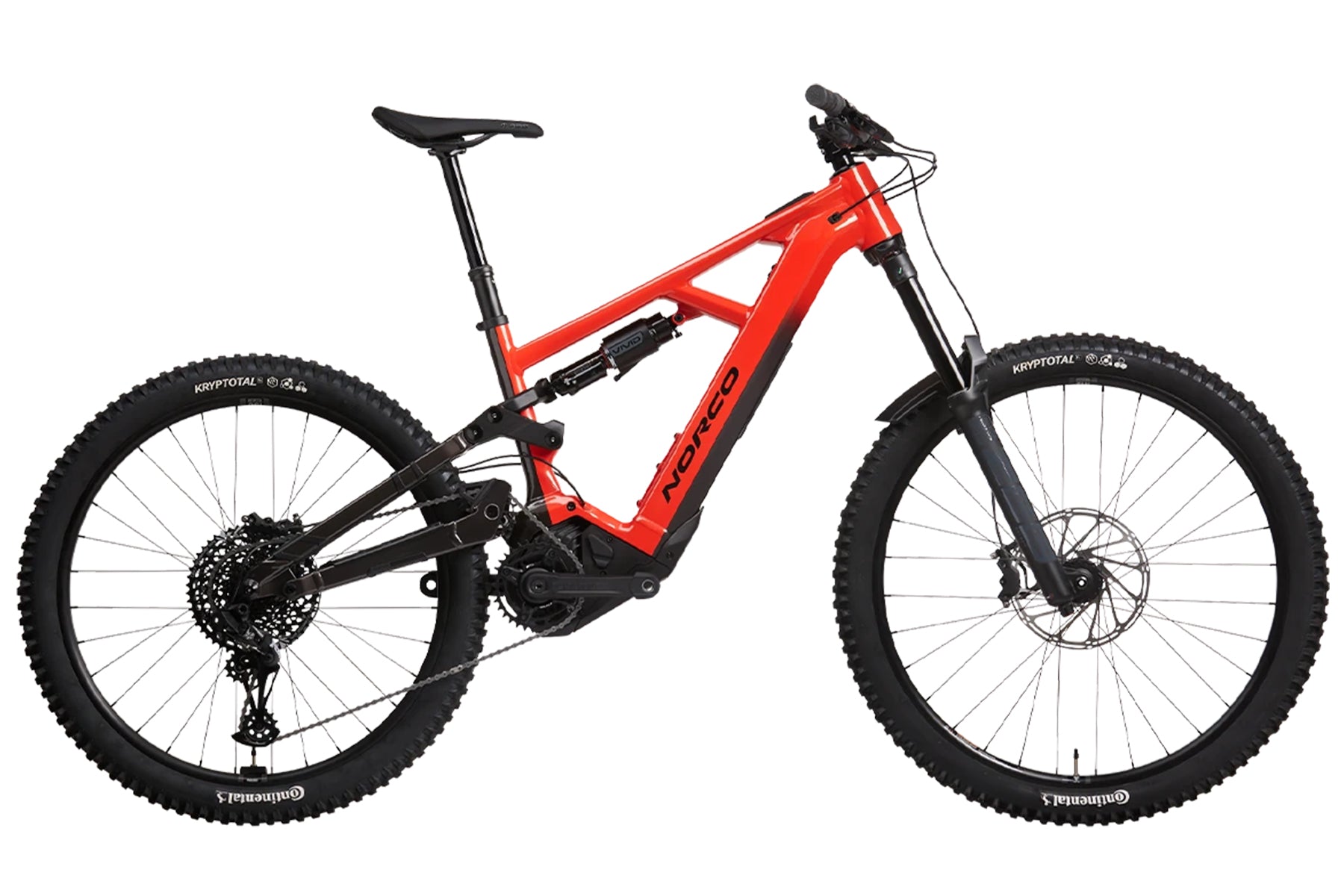

Meet the Norco Range VLT A1 MX, a next-level e-Enduro powerhouse built for rowdy terrain, high-speed descents, and endless uphill laps. With an aggressive 180mm front / 170mm rear travel, the Range VLT is your full-send solution to technical trails, bike park days, and alpine adventures—no shuttle required.

At its core is Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) platform, delivering a rearward axle path for improved traction, suspension performance, and speed on the most demanding terrain. Paired with the Bosch Performance Line CX Smart System motor (85Nm of torque) and a massive 750Wh integrated battery, this rig turns massive rides into just-getting-warmed-up sessions.

Whether you're crushing laps or tackling steep enduro lines, the Range VLT A1 MX gives you the control, power, and confidence to ride everything—up or down.

FEATURES:

✔ 170mm VPSHP Suspension Platform – High pivot design for improved rearward axle path and stability in tech.
✔ RockShox Zeb Select Fork (180mm Travel) – E-MTB rated for aggressive terrain.
✔ Bosch Performance Line CX Motor – 85Nm of torque with Smart System integration and app control.
✔ 750Wh Bosch PowerTube Battery – Massive range with optional PowerMore 250Wh extender support (S3-S5 sizes).
✔ Mixed Wheel Setup (MX: 29" front / 27.5" rear) – Combines rollover speed with rear agility.
✔ SRAM NX Eagle 12-Speed Drivetrain – Wide 11-50T gear range built for climbs and speed.
✔ SRAM DB8 4-Piston Brakes – Sintered pads and big rotors (220mm/200mm) = control at any speed.
✔ TranzX Dropper Post – Long-travel dropper (up to 200mm) tailored by frame size.

SPECIFICATIONS:

Frameset:

• Frame: Butted Aluminum, VPSHP High Pivot Suspension, 170mm Travel, UDH Compatible

• Fork: RockShox ZEB Select, 180mm Travel, E-MTB Rated, with Fender

• Rear Shock: RockShox Vivid Base, 230x65mm

• Headset: FSA No. 55 Sealed Bearing, 1 1/8” - 1.8” Tapered

• Seatpost: TranzX YS134 Dropper

  • 150mm (S1), 170mm (S2, S3), 200mm (S4, S5)

Drivetrain:

• Crankset: eThirteen ePlus, 165mm

• Bottom Bracket: Bosch BES3 DU

• Shifter: SRAM NX Eagle MMX

• Rear Derailleur: SRAM NX Eagle 12-Speed

• Cassette: SRAM PG1210, 11-50T

• Chain: SRAM SX Eagle

Brakes:

• Brakes: SRAM DB8 4-Piston Hydraulic Disc Brakes

• Rotors:

  • Front: SRAM Centerline 220mm

  • Rear: SRAM Centerline 200mm

Wheels & Tires:

• Rims: WTB HTZ Trail 32H

• Front Hub: Bear Pawls BMB-013, 15x110mm Boost

• Rear Hub: Bear Pawls BMB-008, 12x148mm Boost

• Tires:

  • Front: Continental Kryptotal-F Enduro 29” x 2.4”

  • Rear: Continental Kryptotal Enduro 27.5” x 2.4”

• Spokes: Sapim Sprint Butted Stainless

• Skewers: RockShox Maxle Stealth (Front) / Axle Assembly L174 (Rear)

Cockpit:

• Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise

• Stem: 6061 Alloy, 40mm Length, 35mm Clamp

• Grips: WTB Wavelength

• Saddle: SDG Bel Air V3 Lux Alloy

• Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5mm

Electric Components:

• Motor: Bosch Performance Line CX Smart System, 85Nm

• Battery: Bosch PowerTube 750Wh

• Smart Features:

  • Bosch Smart System Rim Magnet

  • Bosch eBike Flow App integration

  • PowerMore 250 Range Extender Compatible (Sizes S3–S5)

Who is This Bike For?

✅ Enduro & Park Riders – Big suspension and Bosch e-power to climb back up for more laps.
✅ Backcountry Adventurers – Long range and Smart System make big, remote days possible.
✅ Tech Trail Junkies – High pivot VPSHP suspension = unreal traction and bump-eating power.
✅ E-MTB Fans Who Want the Best – Modern geometry, premium Bosch system, and long travel = next-level capability.

💡 From steep switchbacks to rowdy descents, the Norco Range VLT A1 MX doesn’t just handle it—it dominates.
