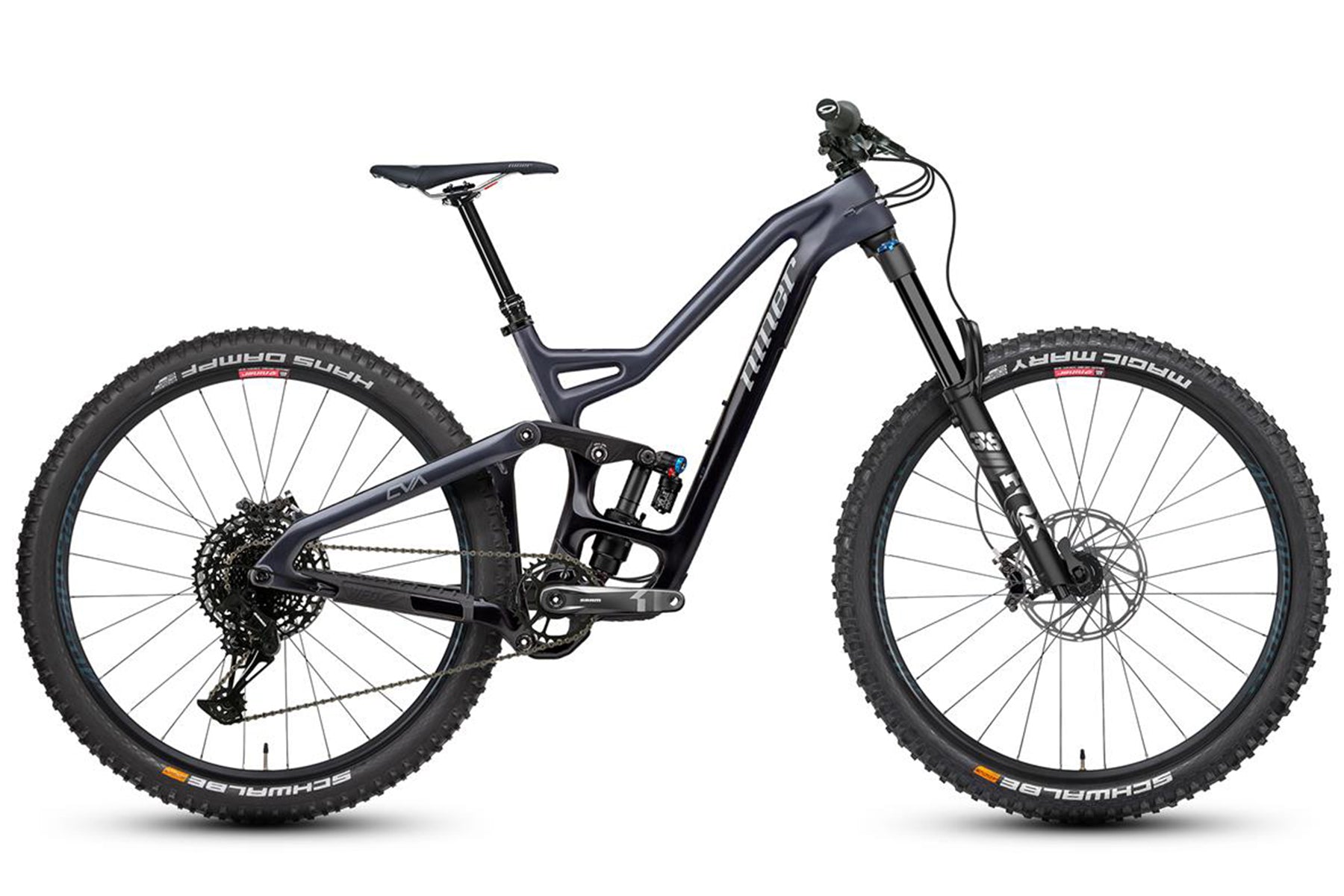

Niner WFO 9 RDO 29 - 2-Star - SX Eagle - Fade to Black - 2022


The Niner WFO 9 RDO 2-Star Mountain Bike is designed to be the ultimate Enduro machine combining the legendary 29er wheel size with big travel to crush downhills, ride back to the top, and repeat. Descending has been fully optimized utilizing the 180mm of travel in the forks and the 170mm of travel in the shock. Featuring a 64° head tube angle, steep 77° seat tube angle centering the rider over the bottom bracket, and a super short 435mm chainstay length, the WFO RDO was born for speed without compromising the ability to turn around and climb up the mountain again. Further increasing the versatility is a refined suspension curve that supports pedaling while creating an almost bottomless feel.

Niner's Constantly Varying Arc, or CVA, suspension system is designed specifically with 29" wheels in mind. A refined leverage ratio curve is sensitive in the early stroke, supportive in the mid stroke and a falling rate in the end stroke brings the elation of never needing more travel, all while improving pedaling stability. A trunnion mount shock adds width, which increases the stiffness of the frame and linkage.

Does your daily ride consist of more pedaling, tight corners, and lurking rocks just waiting to reach out and strike? Not to worry, Niner has you covered. The built-in flip chip seatstay pivots have the ability to raise the bottom bracket 9mm and to steepen the geometry by .7° effectively creating a bike that can tackle trails with the best of them.

The Niner WFO 9 RDO is low and slack by nature, but extremely composed when climbing.


  • CVA suspension is supple yet stable, providing the consistency and confidence so you can drop into gnarly lines
  • Niner's premium RDO, Race Day Optimized, carbon fiber means more strength, higher stiffness, and less weight
  • Full sleeve cable guides through the frame and provide easy installation and maintenance
  • Enduro Max Black Oxide pivot bearings are not only extremely smooth, but incredibly durable
  • 29" x 2.6" max tire size

keyboard_arrow_right Specifications

  • Frame: Niner RDO Carbon Fiber, Geo Flip Chip, CVA Suspension, Enduro Max Pivot Bearings (170mm travel)
  • Shock: Fox Float X2 Performance EVOL, High-Speed Compression, Low-Speed Compression, Low-Speed Rebound, 2 Position
  • Fork: Fox 38 Float Performance Grip EVOL, 3 Position (180mm Travel) (15 x 110mm) (44mm Offset)
  • Front Wheel: Niner Alloy 30mm (15 x 110mm Thru-Axle)
  • Front Tire: Schwalbe Magic Mary Evo Super Trail TLE Addix Soft (29" x 2.6")
  • Rear Wheel: Niner Alloy 30mm (12 x 148mm Thru-Axle)
  • Rear Tire: Schwalbe Hans Dampf Evo Super Trail TLE Addix Soft (29" x 2.6")
  • Brakes: SRAM G2 R
  • Brake Levers: SRAM G2 R
  • Rotors: SRAM Centerline (200/2000mm)
  • Front Shifter: N/A
  • Front Derailleur: N/A
  • Rear Shifter: SRAM SX Eagle 12sp
  • Rear Derailleur: SRAM SX Eagle 12sp
  • Chain: SRAM SX Eagle 12sp
  • Cassette: SRAM PG1210 (11-50t)
  • Crankset: SRAM X1 1K Eagle DUB (32t) (170mm Length)
  • Bottom Bracket: SRAM DUB BSA Threaded
  • Saddle: Niner Custom TR w/ Chromoly Rails (Printed Niner Graphics)
  • Seatpost: KS LEV SI (Internal Routing) (S-125mm, M-150mm, L-175mm)
  • Handlebar: Race Face Aeffect R (780mm Wide) (20mm Rise) (35mm Clamp)
  • Stem: Race Face Aeffect R (40mm Length) (35mm Clamp)
  • Headset: Niner Internal ZS (ZS44/28.6mm | ZS56/40mm)
  • Grips: Niner Grrrips L/O Flanged, Soft Compound

Technical Data:

  • Frame Mounts & Fittings: 1 Bottle Cage (Front Triangle)
  • Shock Size: 205 x 65mm Trunnion
  • Shock Mounting Hardware: Upper- M10 x 54 Trunnion; Lower- M8 x 25mm
  • Suggested Shock Sag: 30% (19.5mm)
  • Seatpost Size: 30.9mm
  • Seat Collar Size: 34.9mm
  • Cable Routing: Internal
  • Pivot Bearing Specifications: 26 x 17 x 5mm Enduro BO Max (x8), 26 x 17 x 10mm Enduro Double Row (x2), 22 x 10 x 6mm Enduro BO Max (x2)
  • Chainring Compatibility: 1x
  • Max Chainring Size: 36t
  • ISCG Compatibility: ISCG 05
  • Bottom Bracket Type: BSA (Threaded)
  • Brake Mount Type: Post Mount (180mm Minimum Rotor)
  • Maximum Rear Rotor Size: 203mm
  • Rear Wheel Spacing: 12 x 148mm
  • Rear Wheel Thru-Axle Specifications: 12 x 148mm, M12 x P1.0, L15mm
  • Max Tire Size: 29" x 2.6"
Imperial S M L
(A) Top Tube Length
(High Mode/Low Mode)
22.6"/22.6" 23.4"/23.5" 24.6"/24.7"
(B) Seat Tube Length 15.4" 16.5" 18.2"
(C) Chainstay Length Actual
(High Mode/Low Mode)
17.1"/17.2" 17.1"/17.2" 17.1"/17.2"
(D) Front Center
(High Mode/Low Mode)
30.3"/30.4" 31.2"/31.3" 32.5"/32.5"
(E) Wheelbase
(High Mode/Low Mode)
47.4"/47.4" 48.2"/48.3" 49.5"/49.6"
(F) Bottom Bracket Drop
(High Mode/Low Mode)
0.75"/1.1" 0.75"/1.1" 0.75"/1.1"
(G) Headtube Length 3.5" 3.7" 3.9"
(H) Headtube Angle
(High Mode/Low Mode)
64.7°/64° 64.7°/64° 64.7°/64°
(I) Seat Tube Angle
(High Mode/Low Mode)
77.7°/77° 77.7°/77° 77.7°/77°
(J) Stand Over Height
(High Mode/Low Mode)
28.8"/28.5" 28.9"/28.6" 29.7"/29.4"
(K) Reach
(High Mode/Low Mode)
17.2"/16.9" 18"/17.7" 19.2"/18.9"
(L) Stack
(High Mode/Low Mode)
24.4"/24.6" 24.6"/24.8" 24.8"/25"
