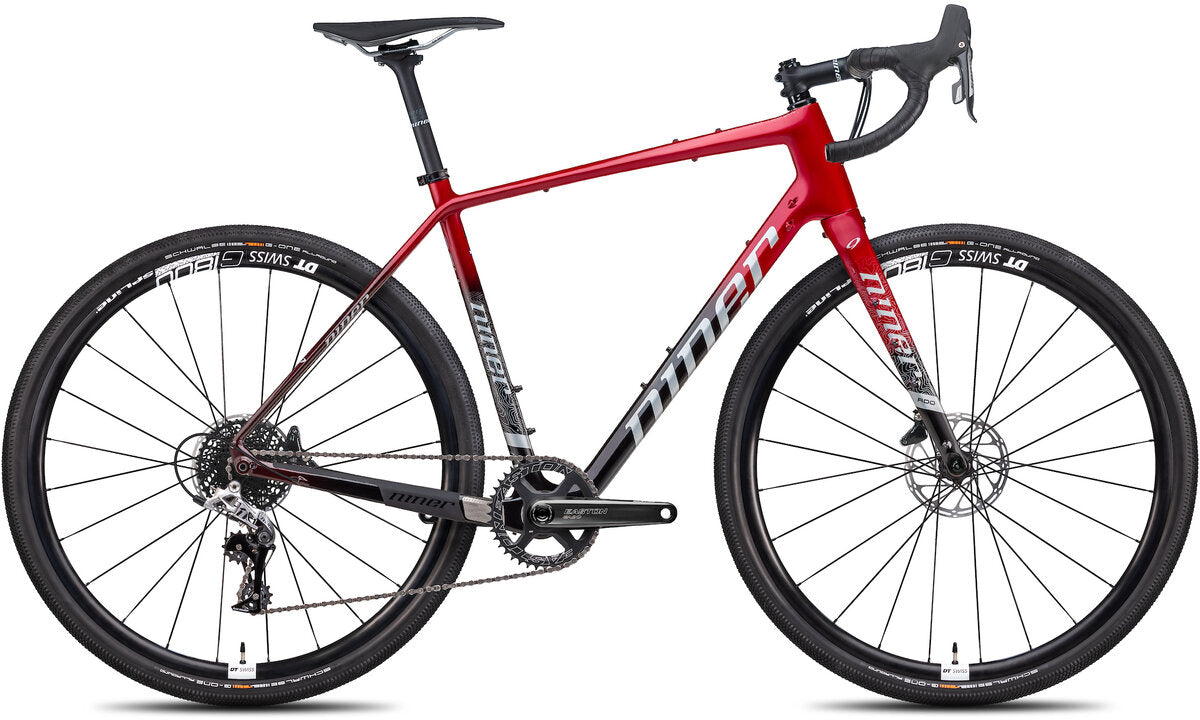

Niner RLT 9 RDO 700c - 3 Star - Rival 1 - Blood Red-Silver - 2022

Bread Logo
Color
Size

Product ID: GM080522-32

Only 2 Left - Ready to ship



Shop all Niner   |   Shop all Cyclocross & Gravel Bikes


  • Hassle free
    365 Day Returns
  • Safe and Secure
    for peace of mind
  • Pay by Card, PayPal, Apple Pay & Google Pay

keyboard_arrow_right Description

Niner RLT 9 RDO 700c - 3 Star - Rival 1 - Blood Red-Silver - 2022



With our newest RLT 9 RDO, we built you a high end carbon gravel bike that you'll want to ride all the time, to any place. With 50c tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere.

Specifications:

  • Frame: NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE
  • Fork: NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
  • Rims: DT Swiss G 1800 SPLINE, 700c aluminum clincher
  • Hubs: DT Swiss 370 Centerlock with 3-Pawl
  • Spokes: DT Swiss aero comp wide straight pull
  • Axles Front: 12x100mm thru axle
  • Rear: 12x142mm thru axle
  • Tires: SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
  • Bottom Bracket: EASTON PF30
  • Crankset: EASTON EA90 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)
  • Chainrings: 40T
  • Shifters: SRAM RIVAL 1 HRD 11SP
  • Rear Derailleur: SRAM RIVAL 1 LONG CAGE
  • Cassette/Freewheel: SRAM PG 1130 11SP 11-42T
  • Chain: SRAM PC 1130 11SP
  • Brakes: SRAM RIVAL 1 HRD FM
  • Brake Levers: SRAM RIVAL 1 HRD
  • Handlebars: EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)
  • Tape/Grips: NINER BAR TAPE
  • Stem: NINER ALLOY STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
  • Headset: NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
  • Seatpost: NINER CARBON SEAT POST, 400MM, NINER GRAPHIC
  • Saddle: NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC

Geometry:

Bike Sizes:
47cm 50cm 53cm 56cm 59cm 62cm
A. Reach (mm) 362 366 374 384 398 405
B. Stack (mm) 535 556 577 592 613 634
C. Standover (mm) 693 731 754 780 804 827
D. Effective Top Tube (mm) 510 525 545 565 585 605
E. Head Tube Angle 70° 70.5° 71° 71.5° 72° 72.5°
F. Head Tube Length (mm) 105 125 145 165 185 205
G. Seat Tube Angle 74.5° 74° 73.5° 73° 73° 72.5°
H. Seat Tube Length (mm) 430 460 490 520 550 580
J. Bottom Bracket Drop (mm) 75 75 75 70 70 70
K. Fork Rake/Offset (mm) 45 45 45 45 45 45
M. Wheelbase (mm) 1000 1007 1017 1030 1045 1054
N. Front to Center (mm) 581 589 600 611 626 634
O. Chainstay Length (mm) 430 430 430 430 430 430
