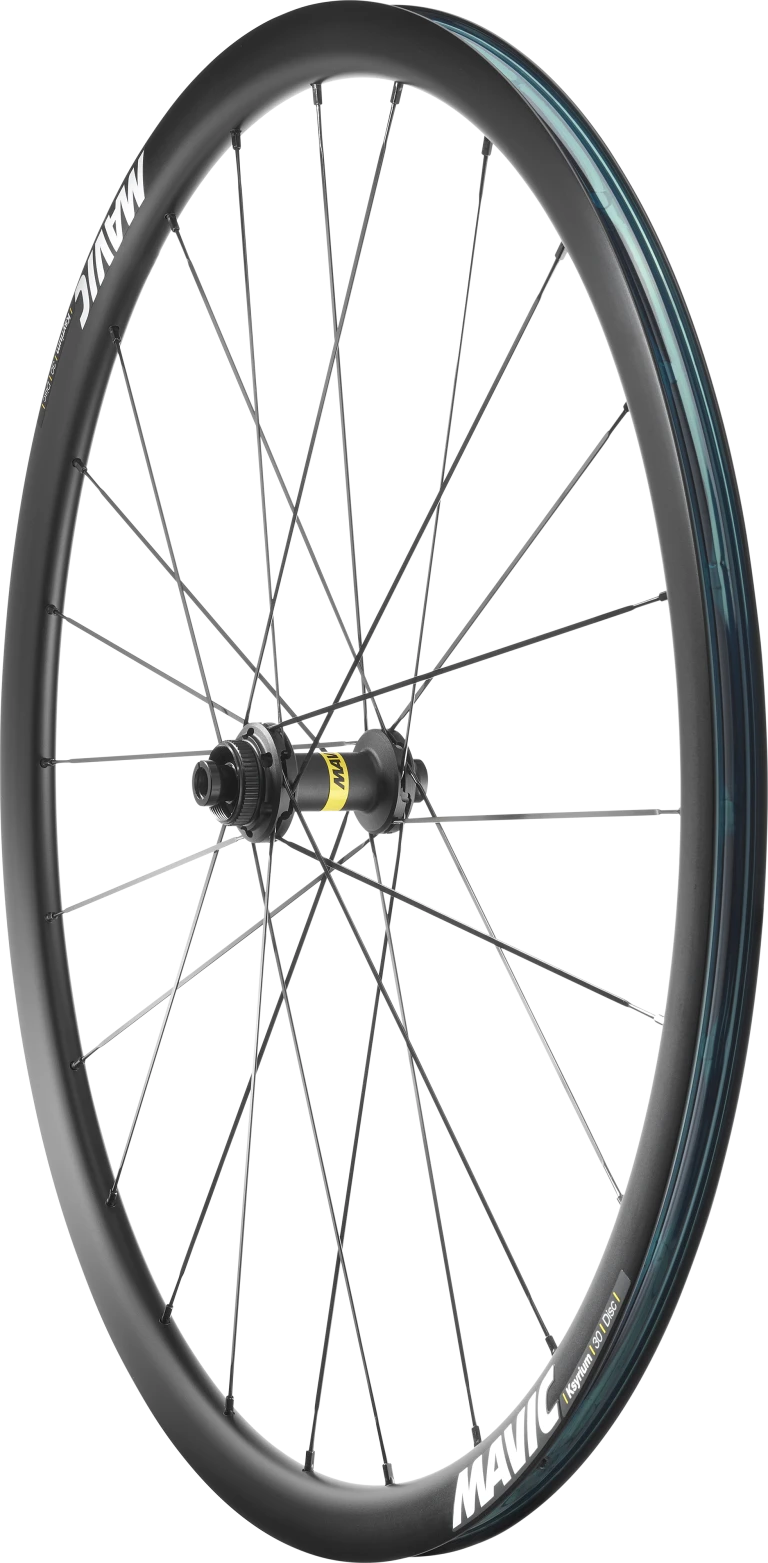

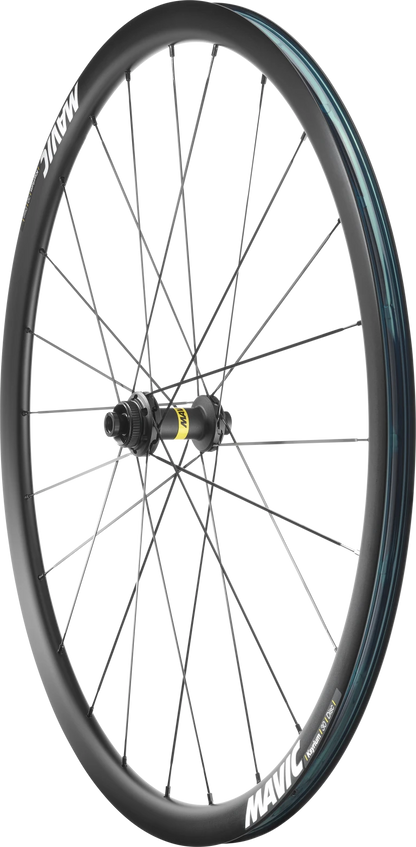

Mavic Ksyrium 30 Disc 700c Road Wheel
A 30mm deep tubeless friendly rim that’s light and dynamic, laced with double butted spokes on our state-of-the-art Infinity hubs. All the Mavic quality and performance within reach.
Weight Pair : 1796g - Weight Front : 833g - Weight Rear : 963g
The Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating.
By removing the tube, we’ve also removed friction, so there’s less rolling resistance, which means it requires less energy to reach higher speeds.

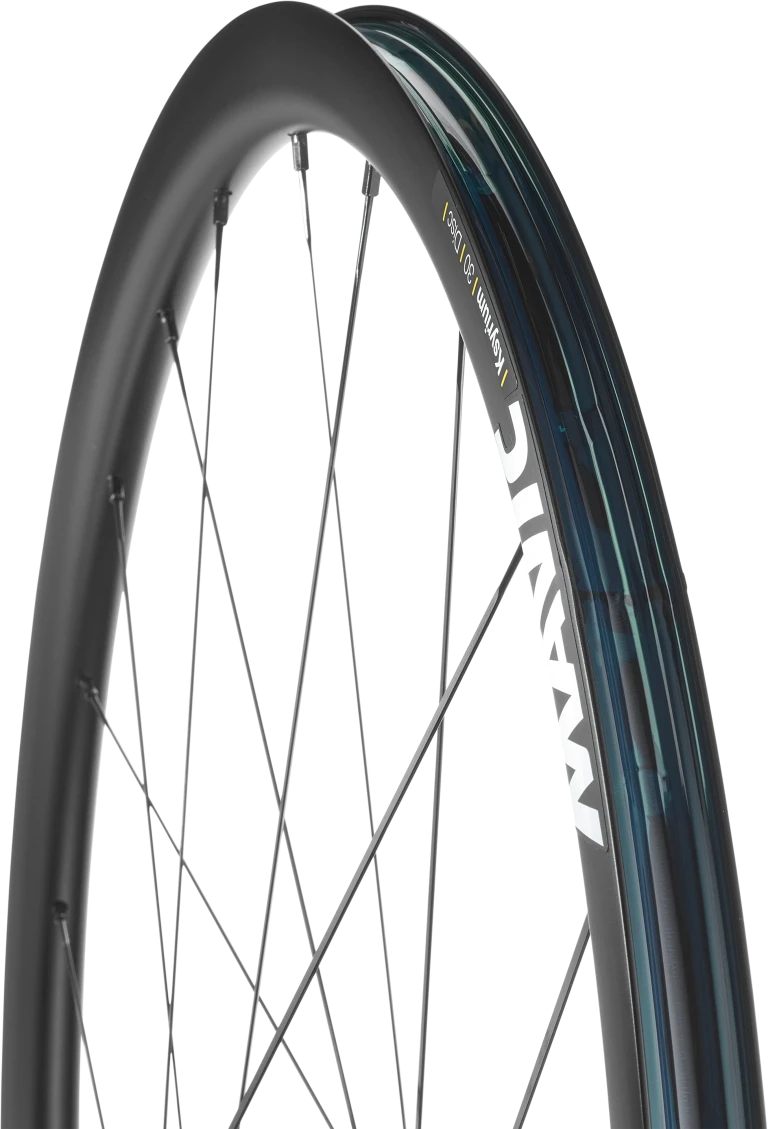

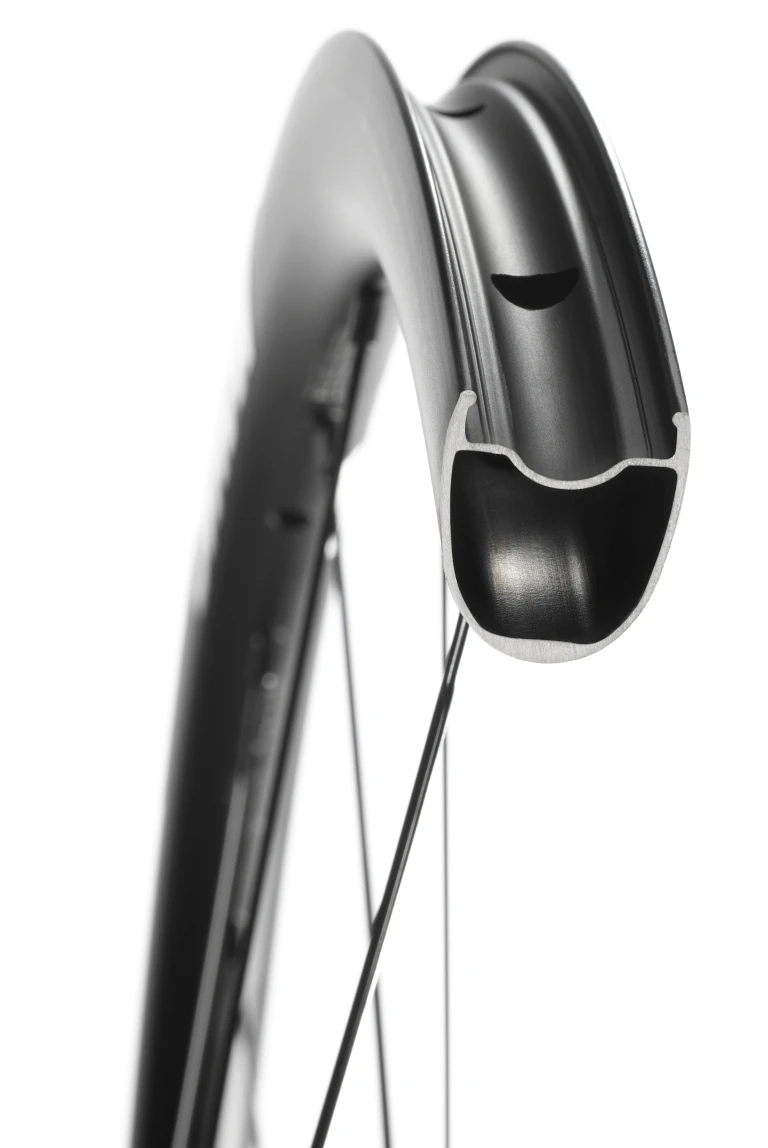

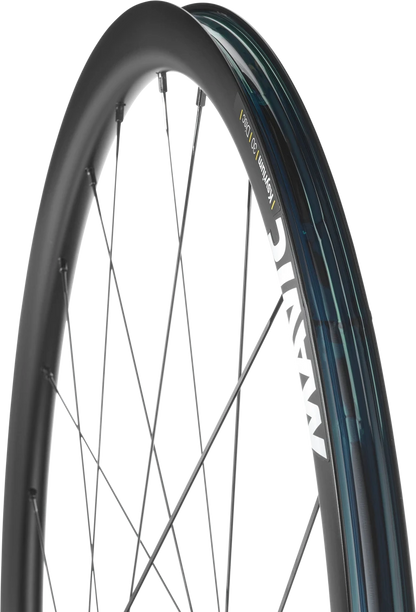

The 30mm deep rim optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.
The bladed straight pull spokes are laced to our high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about.
The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.
This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette and is compatible with Center Lock disc rotors.
Key Details
Dynamic and agile thanks to double butted spokes and Infinity hub platform

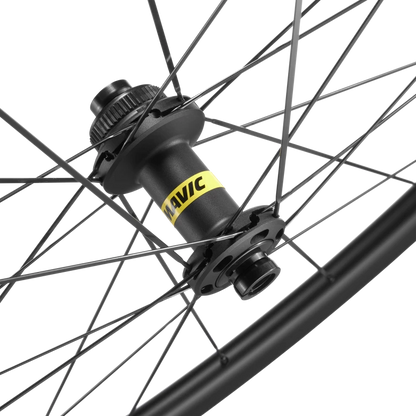

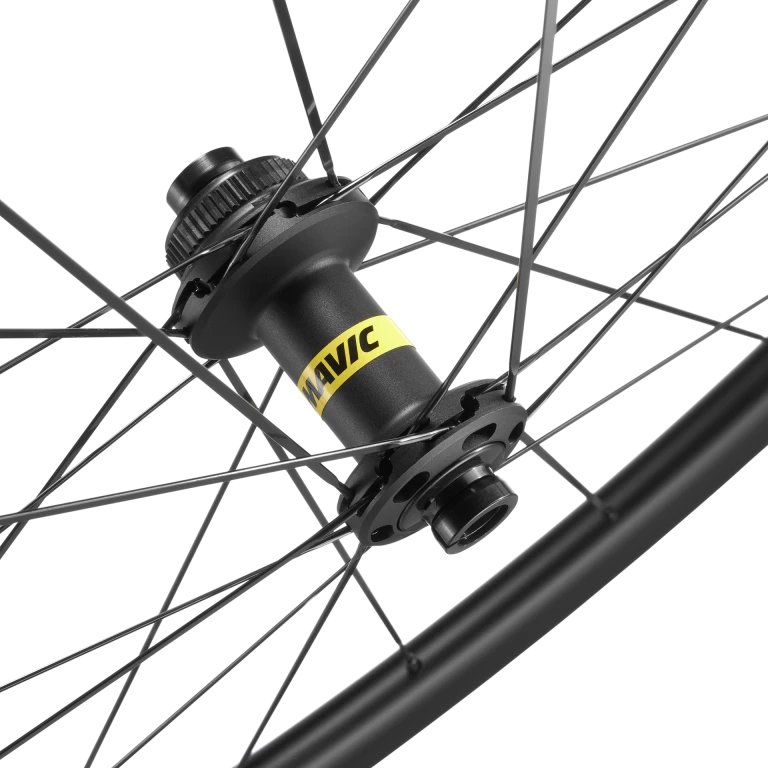

Infinity hub platform : Stiffer axle, durable bearings and new design.
Light and aero 30mm deep rims
Light welded rim
Traditionnal drilling
Refined UST rim bed that eases tyre mounting
Light double butted flat spokes
Optimised UST rim tape shape
Durable and perfectly sealed rim
Specifications
- Material: Maxtal
- Height: 30 mm
- Joint: SUP welding technology
- Internal width: 19 mm
- Drilling: traditional (front/rear 24 holes)
- Braking: disc
- ETRTO size: 622x19TC hooked
- Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
- Material: steel
- Shape: straight, extra-flat, constricted, antirot (front and rear)
- Nipples: steel, ABS, black
- Lacing: crossed 2 (front and rear)
- Body material: aluminium
- Body design: INFINITY
- Disc standard: Center Lock® only
- Axle material: aluminum
- Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
- Freewheel technology: Instant Drive 360
- Freewheel: Shimano HG road
- Bearing technology: QRM automatic setting - sealed cartridge
- Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
- Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
- Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
- Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
- Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
- Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
- Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
- Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
- User guide
- Rim tape mounted on wheel
- UST valve not mounted on wheel
- Front axle adapter: 12x100 convertible to 9x100
- Rear axle adapter: 12x142 convertible to 9x135
- Multifonction adjustment wrench with the rear wheel
- Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
- ASTM category 2 : road and offroad with jumps less than 15cm
- Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
