A 30mm E-bike specific rim that’s super strong, tubeless ready and with PFP technology.

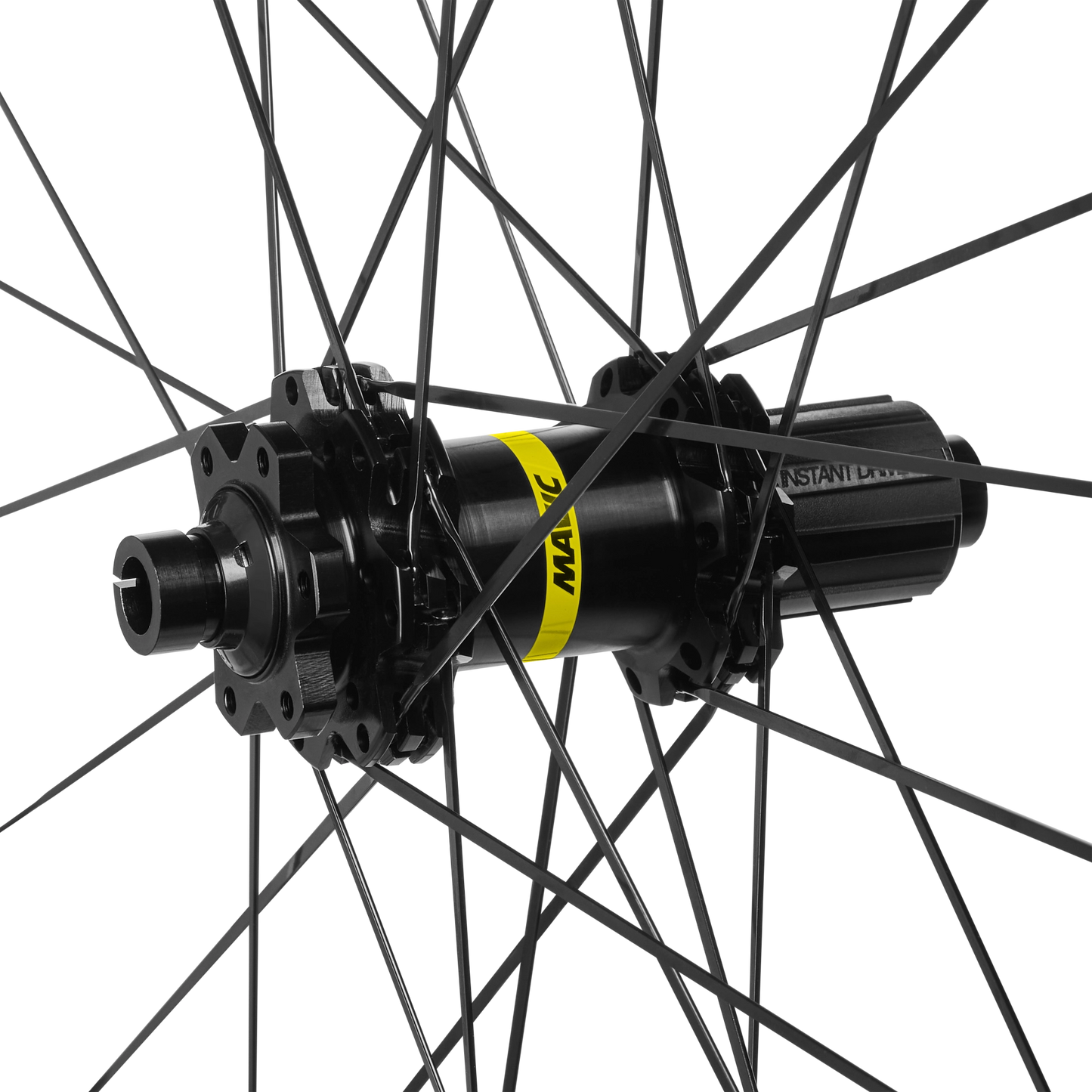

The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.

The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.

FEATURES

• Strong and durable
• Welded rim with Pinch Flat Protection
• Less risk of a flat
• A super strong rim profile
• A perfectly sealed rim profile
• E-Bike specific and reliable construction
• 28 wide double butted spokes
• Super reliable ID360 double ratchet freewheel system
• Hubs inspired by downhill practices
• Tubeless-ready technology
• A tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat

SPECIFICATIONS

Rims:

• Material: Maxtal
• Height: 22 mm
• Joint: SUP welding technology
• Drilling: traditional (front/rear 28 holes)
• Braking: disc
• Profile: asymmetrical
• ETRTO size: 622x30TC
• Tire: UST Tubeless Ready
• Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape

Spokes:

• Material: steel
• Shape: straight, flat, constricted, antirot (rear)
• Shape: straight, flat, constricted (front and rear opposite freewheel side)
• Lacing: crossed 3 (front and rear)

Hubs:

• Body material: aluminum
• Disc standard: Center Lock
• Axle material: aluminum
• Axle size: front 15x110 / rear 12x148
• Freewheel technology: Instant Drive 360
• Freewheel: Sram XD MTB
• Bearing technology: QRM automatic setting - sealed cartridge

Intended use:

• ASTM CATEGORY 5: GRAVITY RIDING FOCUSED ON THE DESCENT
• Maximum tyre pressure: 2.95bar/43PSI with a 52mm tyre - 1.55bar/22PSI with a 125mm tyre
• Recommended tire sizes: 60mm to 76mm (2.35 to 3.0)
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 180kg, E-bike included
• Weight: 2160g
