Marin

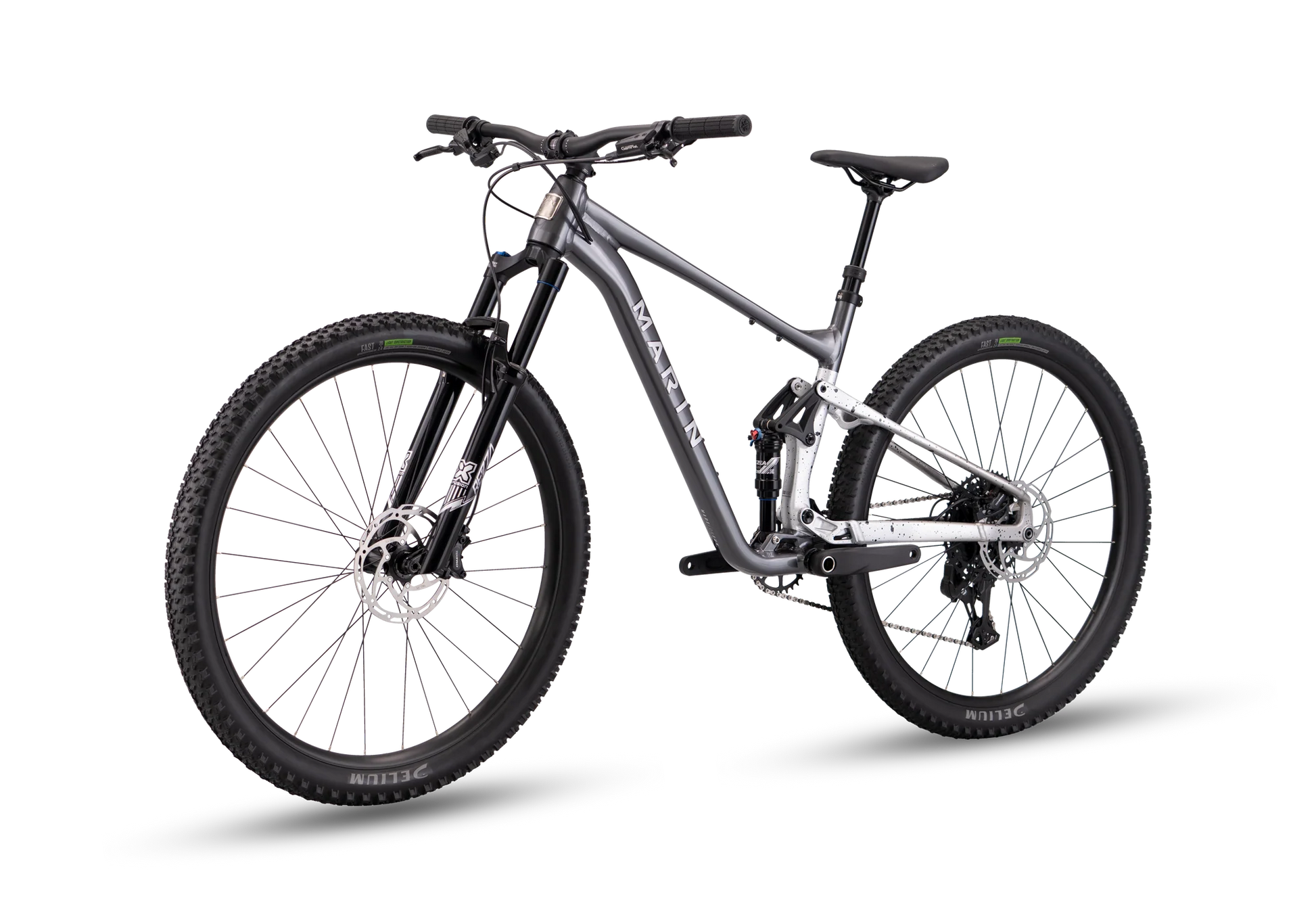

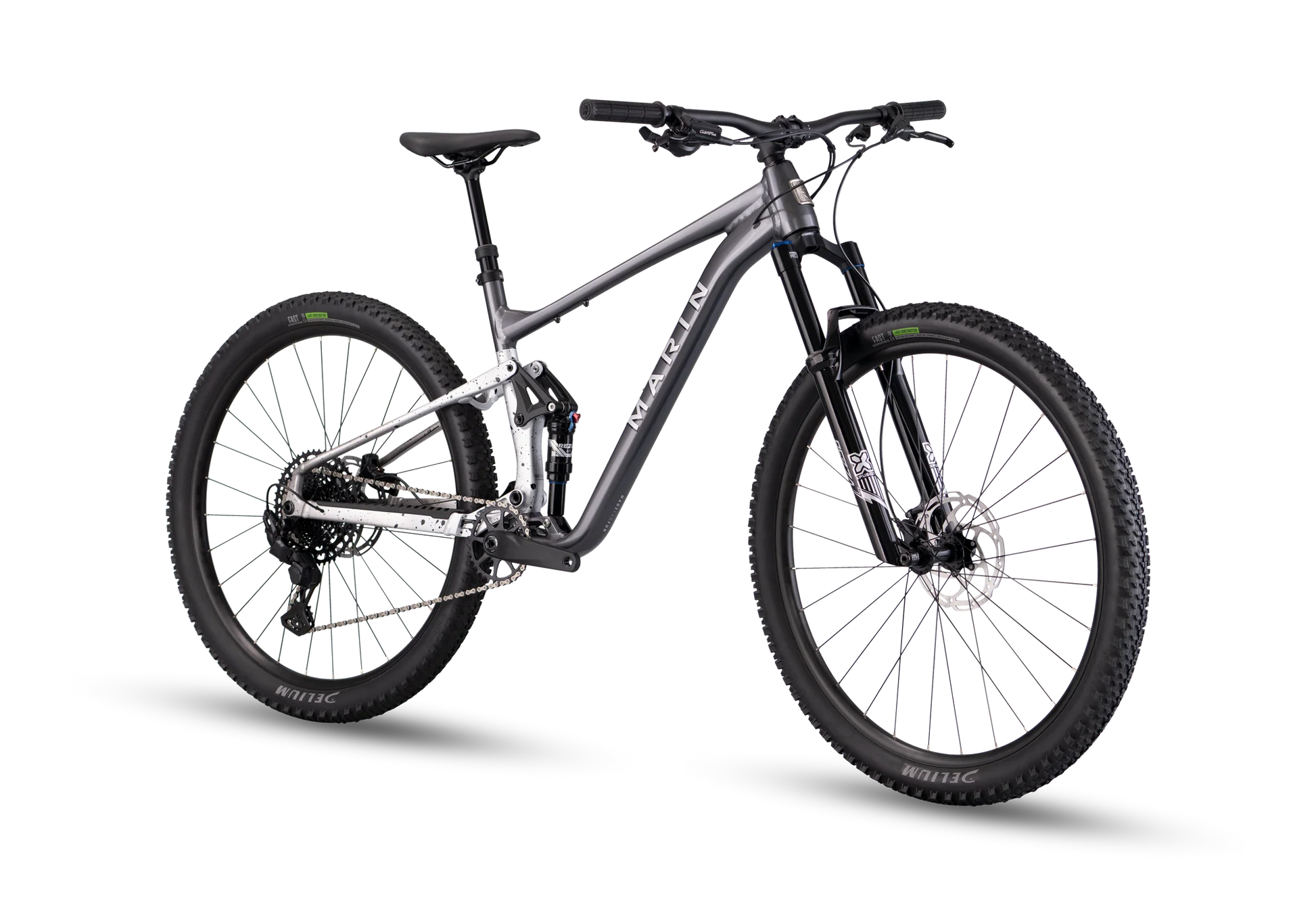

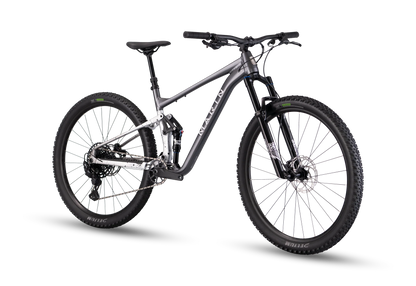

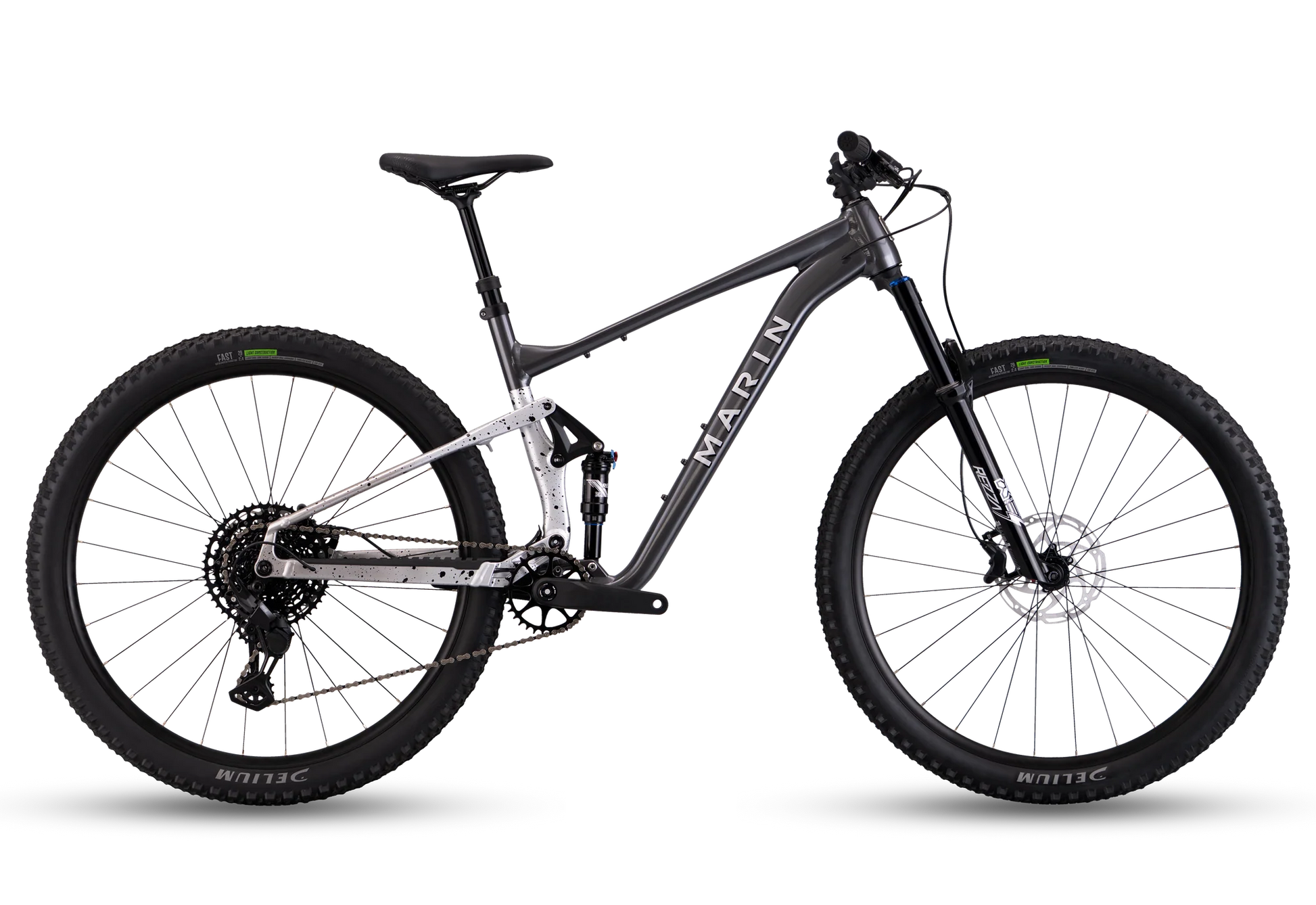

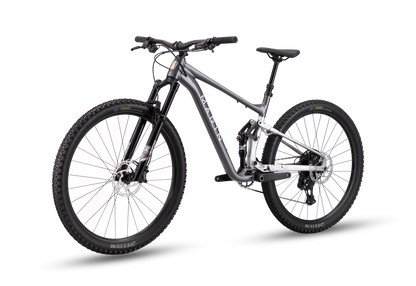

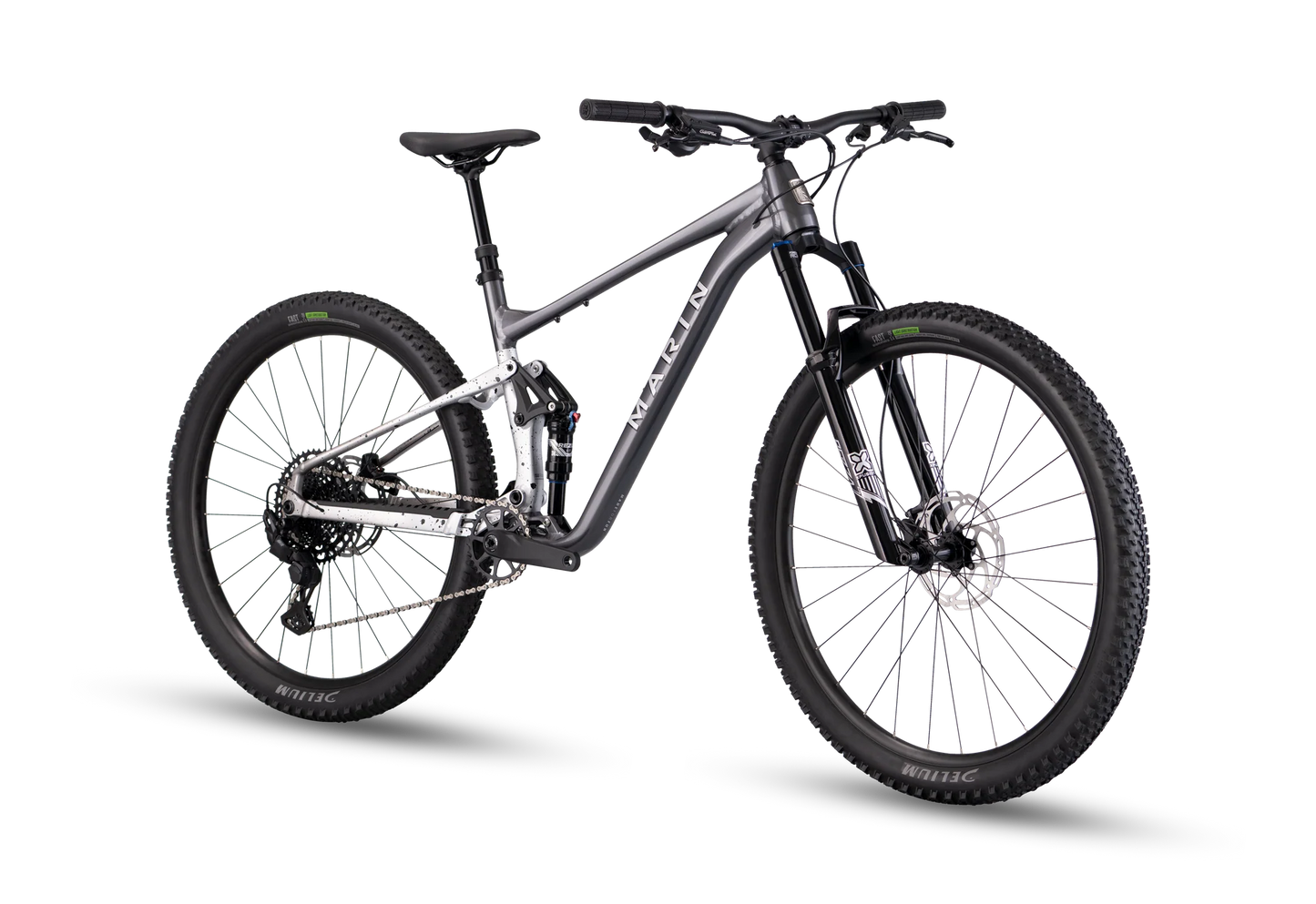

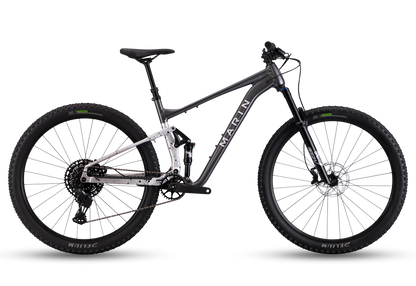

Marin Tam 1 29 - Black-Grey

Marin Tam 1 29 - Black-Grey

Color
Size

Product ID: GM061326-16

Earn
Out of stock


Shop all Marin   |   Shop all Full Suspension

View full details

Description

Marin Tam 1 29

Fun shouldn't cost a fortune.

The TAM 1's high-tech Series 4 Aluminum frame and 120mm of XC-tuned IsoTrac suspension absolutely rip rough terrain. X-Fusion's lightweight 130mm travel XC Rezza fork paired with the Rezza shock and MicroSHIFT'spremium 11-speed Advent MX drivetrain deliver top-performing kit at an almost unbelievable price.

The confidence-boosting 65-degree head angle keeps you in control and hungry for more – crush local XC laps, tackle epic rides, or just shred for the joy of it.

The TAM 1’s top-performing kit makes its affordable price tag and on-trail appetite extra special. X-Fusion’s lightweight 130mm travel XC Rezza fork is paired with the Rezza shock, and a Manic LC dropper seat post. MicroSHIFT’s all-new fast-shifting and weight-saving Advent MX 11-speed keeps the pedals turning. The tubeless-ready Delium Fast tires roll rapidly, handing you speed on a platter.

The TAM uses our bump-smoothing 120mm IsoTrac flexstay suspension, developed using real science*. Countless hours of in-house data logging helped us tune it to keep you smiling and ripping on the trails. Our tech boffins worked tirelessly with our suspension partners to nail the kinematics – the TAM's suspension is nothing short of a chef's kiss. The flexstay delivers a trifecta of perfection: less complexity, less weight, less maintenance without impacting its shredding performance.

*Lab coats were worn and beards were scratched until we settled on our secret formula

Long-distance riders, rejoice: every TAM has room for two bottles inside the front triangle. Those bottle bosses double up as accessory mounts for tools, a pump or whatever else keeps you rolling.

Riders will love its geometry. A trail-dominating 65-degree head angle pairs with a butt-soothing 76-degree seat tube angle, creating the TAM’s versatile persona. 29in wheels play nice with short 435mm chainstays to help you rip as hard as you want; the TAM slays for miles.

No detail is left untouched. Cables route internally via weather-sealed and ride-hushing ports, and the nifty main pivot loam-storing mudguard protects bearings. Maintenance is breezy thanks to a widely adopted BSA bottom bracket, Universal Derailleur Hanger, and Boost axle spacing. XC-specific pivot bearings keep weight down without making replacements a headache.

The TAM is here for a good time and a long time – more miles equal more smiles.

Specifications:


SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION


Frame

All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs

Front Suspension

X-Fusion Rezza, 130mm Travel, Fine-Cut Damper RCP 3-Pos, 110x15mm Bolt-On Axle, 44mm Axle

Rear Suspension

X-Fusion Rezza, RLX 3-Pos Compression Adjust, 190x45mm, 30x8M Hardware, B-Tune

Rim

Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 28H, Tubeless Compatible

Hub Rear

Novatech, 148x12, 6-Bolt, HG Driver, 28H

Hub Front

Novatech, 110x15mm, 6-Bolt Disc, 28h

Spokes

14g Black Stainless Steel

Tires

Delium Fast, 29x24", Light Construction, Dual Compound, Tubeless Ready

Derailleur Rear

microSHIFT Advent MX, RD-M7005M, 11-Speed

Shift Lever

microSHIFT Advent MX, SL-M7115-R, 11-Speed

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing

Bottom Bracket

External Sealed Cartridge Bearing

Chain

KMC X-11 Silver and Black

Cassette

microSHIFT Advent CS-H114, 11-50T, 11-Speed

Brakes Front

Tektro HD-M535 Hydraulic Disc, 180mm Rotor

Brakes Rear

Tektro HD-M535 Hydraulic Disc, 180mm Rotor

Brake Levers

Tektro HD-M535

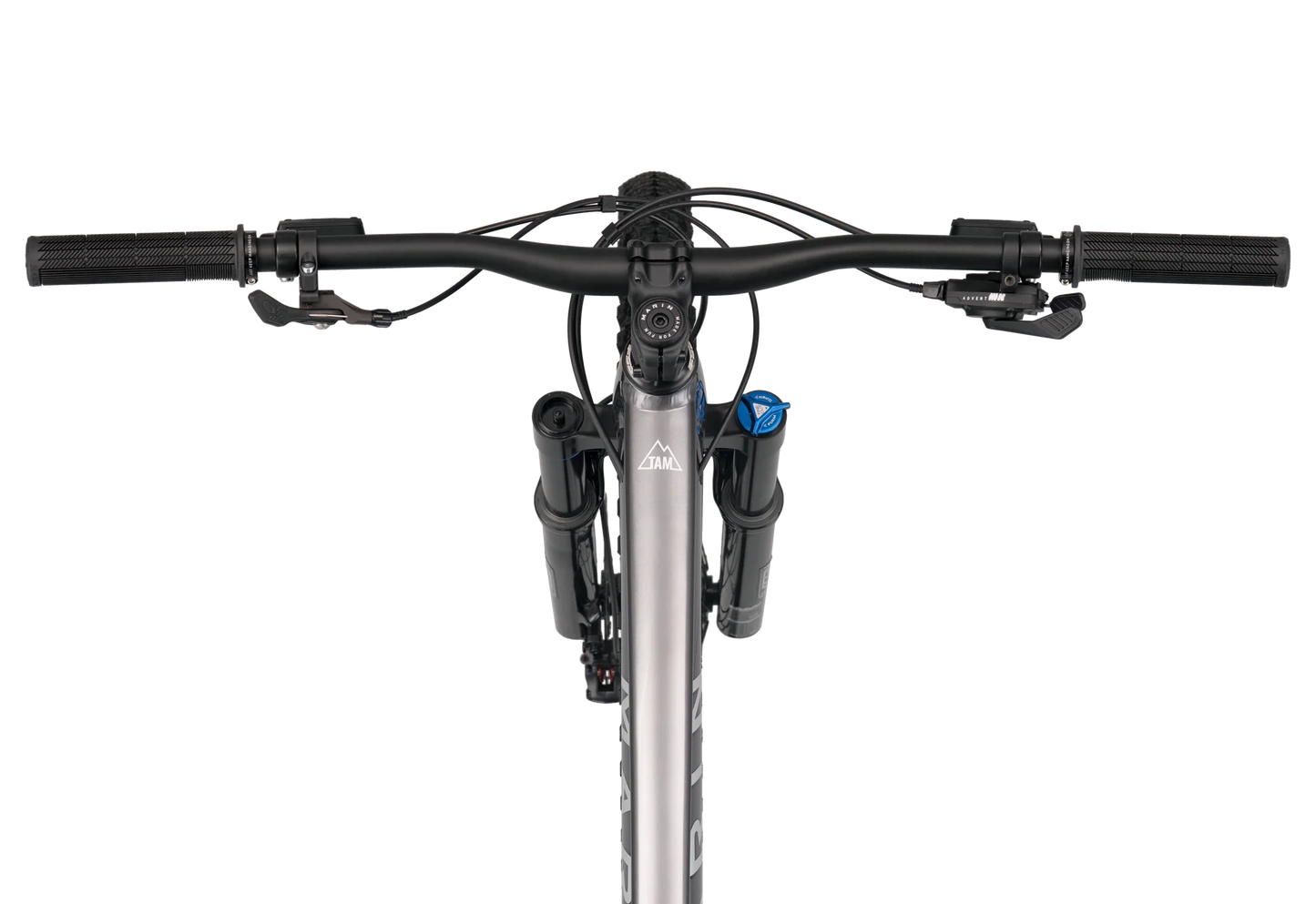

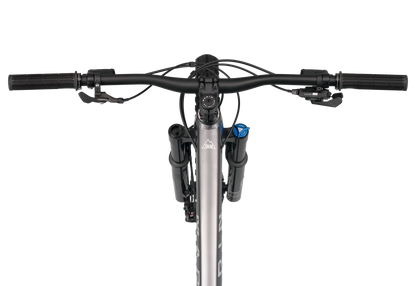

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 20mm Rise, 6º Up, 9º Back

Stem

Marin 3D Forged Alloy, 45mm

Grips

Marin Grizzly Lock-On

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost

X-Fusion Manic LC Dropper Post, Adjustable Travel, 1X Remote MMX Clamp, 30.9MM Diamter, S = 150MM / M = 170MM / L-XL = 200MM

Saddle

Marin Speed Concept
