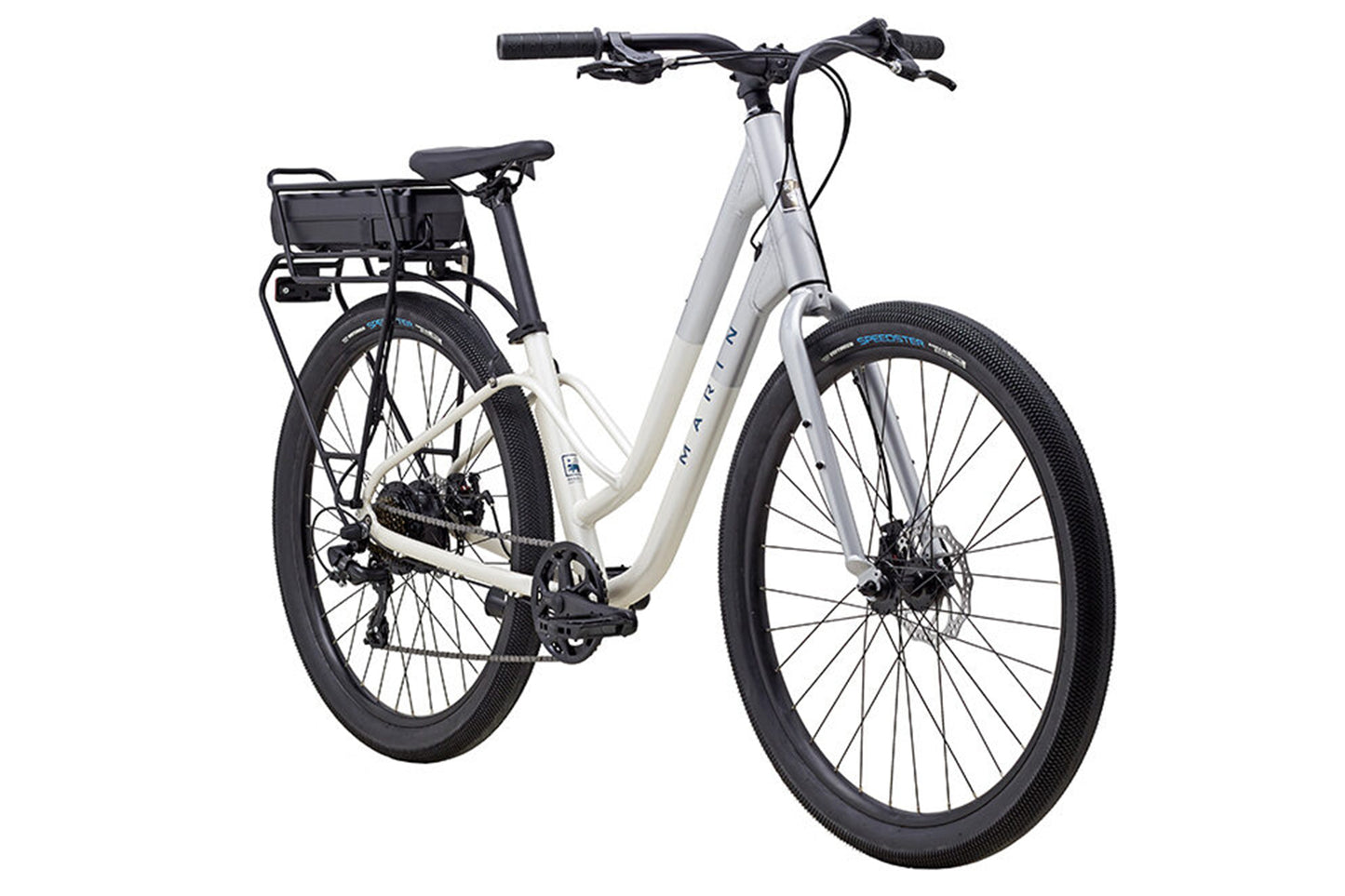

Marin Stinson E ST 27.5 - White-Silver - 2022

SERIES 1 ALUMINUM FRAME
The Stinson E features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5" wheels. Stinson ST models further lower the standover height with a step-through frame design.

250W REAR HUB MOTOR
The Stinson E's rear hub motor puts the power into the rear wheel, transforming your fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.

309 WATT-HOUR RACK MOUNTED BATTERY
Enough battery to tackle a couple hours in the saddle, and still light and easy to carry with you to charge

LCD DISPLAY WITH BLUETOOTH
The LCD display on the handlebars has on/off and mode change buttons, and clearly displays your current speed and range of the battery for easy reference. Bluetooth connectivity allows connection to the rider app, as well as effortless firmware updates.

TORQUE SENSING DESIGN
The Stinson E's power is proportional to your pedaling input. As you pedal the bike it senses your power input and delivers the right amount of power in response. Want a fast and zippy ride, or tackle a big hill? Put it in level 3 and put some power down. Want to cruise? Put it in level 1 and spin away.

PLEASE NOTE: The Stinson E bicycle is designed for comfort and versatility, catering to activities like bike path cruising and daily commuting. However, it is not intended to support child carriers. The rear rack on this model does not meet the EN ISO 11243:2016 standard and is not rated to hold loads of up to 27 kg (59.4 lb). Additionally, the Stinson E Step-Thru rear rack is also not compatible with child carriers. If you're planning to transport children, you may want to consider a different bicycle model specifically designed for this purpose.

• Frame Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
• Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
• Rims Marin Aluminum Double Wall, Disc Specific
• Hubs Front: Forged Aluminum Alloy, 32H
• Rear: 250 Watt Hub Motor, 36H
• Spokes 14g Stainless Steel
• Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
• Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
• Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
• Shifters Shimano Altus 7-Speed RapidFire
• Rear Derailleur Shimano Tourney, 7-Speed
• Cassette/Freewheel Shimano 7-Speed Freewheel, 14-34T
• Chain KMC Z8
• Brakes Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
• Brake Levers Alloy, Long Pull
• Handlebars Marin Alloy, 25mm Rise, 18° Backsweep
• Tape/Grips Marin Adventure
• Stem Marin Alloy
• Headset FSA, TH No.10P
• Seatpost Marin Alloy, 30.9mm
• Saddle Marin Comfort
• Pedals Marin Comfort Platform
• Accessories & Extras Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck, Alloy Center-Mount Kickstand
• Motor 250W rear hub motor
• Battery 309Wh, 36V, Rear Carrier Mounted
• Controller/Display Handlebar Mount Switch & LCD Display
