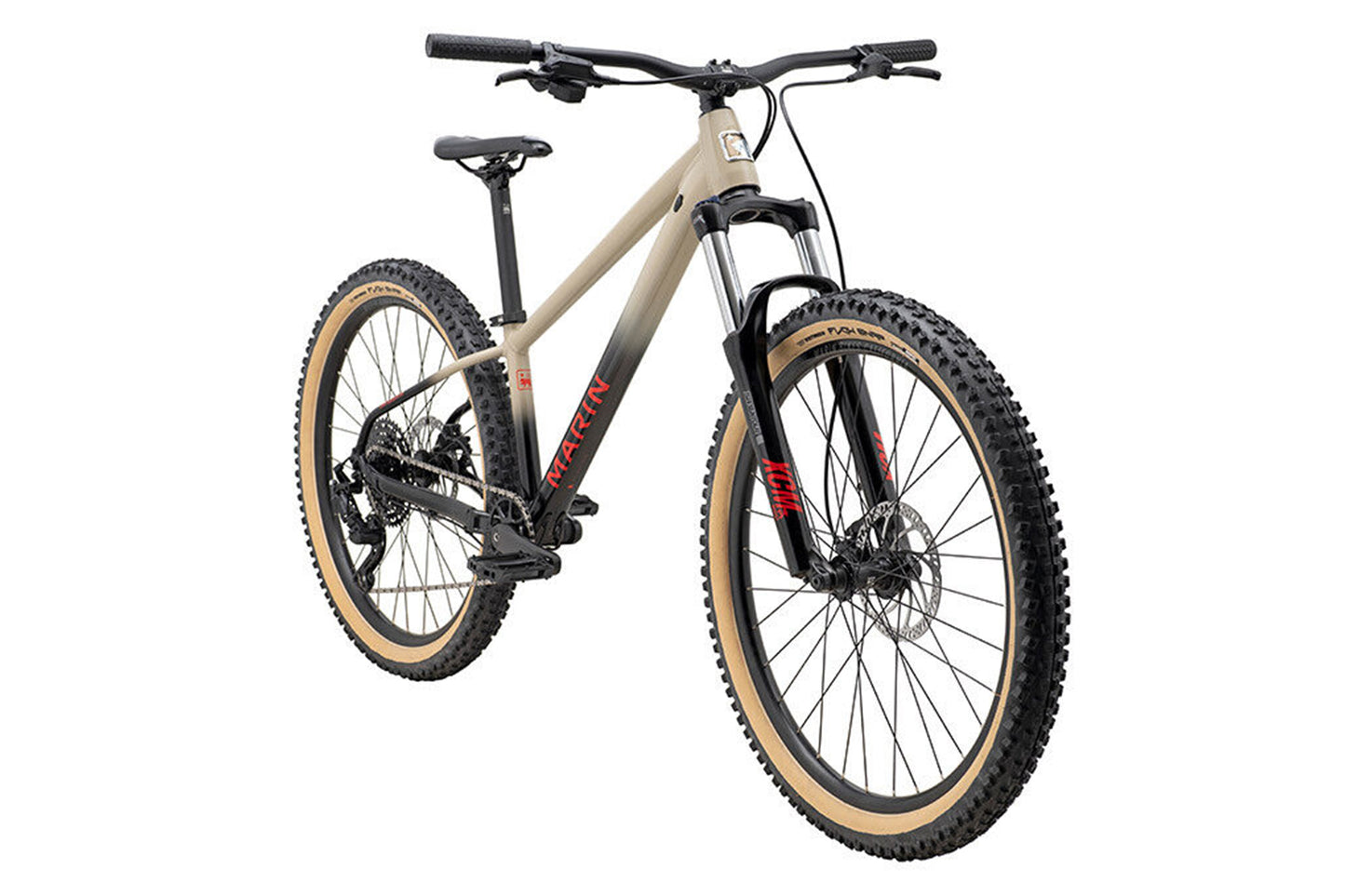

Marin San Quentin 1 - 27.5 - Sand-Black - 2023

SERIES 3 AND 2 ALUMINUM FRAMES
The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. The San Quentin 2 and 3 feature Series 3 aluminum frames, with more advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle.

DIRT JUMP INSPIRED FRAME STYLE
Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.

MODERN TRAIL GEOMETRY
The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

ISCG TABS
San Quentin 2 and 3 models feature ISCG 05 tabs for easy chain retention device installation for rowdier riders.

• Frame Series 2 6061 Aluminum, Double Butted Frame, 141mm Open Dropout, 73mm Threaded BB
• Front Suspension SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle, 47mm Offset
• Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible
• Hub Rear Forged Alloy, 141mm Width, Disc, 32H, Shimano Standard Freehub Body
• Hub Front Forged Alloy, 110x15mm, Disc, 32H
• Spokes 14g Black Stainless Steel
• Tires Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
• Derailleur Rear MicroShift RD-M9195M, 9 Speed, With Clutch
• Derailleur Front -
• Shift Lever MicroShift SL-M9195-R, 1x9 with Bearings
• Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
• Bottom Bracket Sealed Cartridge Bearing, Square Taper
• Chain KMC X-9
• Cassette Sunrace, 9 Speed, 11-46T
• Brakes Front Tektro M275 Hydraulic Disc Brake, 180mm Rotor
• Brakes Rear Tektro M275 Hydraulic Disc Brake, 160mm Rotor
• Brake Levers Tektro M275 Hydraulic Disc
• Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Stem Marin Alloy, 45mm
• Grips Marin MTN, Closed End
• Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
• Seatpost Marin Alloy, 30.9mm
• Saddle Marin Speed Concept
• Pedals Nylon Platform

- MARIN GEOMETRY -
