Marin Rift Zone Jr 24 - Teal-Black - 2023

The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full size counterpart. Both models utilize the same frame and fork, so a Rift Zone Jr is easily upgradable to 26" wheels and longer cranks as your little ripper grows. 26" wheels and longer cranks not included, but your local Marin dealer can source the parts.

TECHNOLOGY

TRAIL GEOMETRY
We put as much attention when designing the Rift Zone 26/Jr as we do the adult bikes, so young riders get to experience modern long/low/slack geometry, enhancing comfort and control when the trail gets steep and/or rough.

AIR SUSPENSION
Easily adjustable air suspension is tunable for a growing kid.

INTERNAL CABLE & HOSE ROUTING
The Rift Zone 26 and Rift Zone Jr are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride. Unused ports come pre-plugged, to keep the frame insides clean.

DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

24” WHEELS – UPGRADEABLE TO 26”
The 24" wheel Rift Zone Jr can fit 26” wheels down the road, extending its life and versatility.

• FRAME: All New Series 3 6061 Aluminum Frame, 24" Wheel w/ Clearance for 26", 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB
• FRONT SUSPENSION: X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

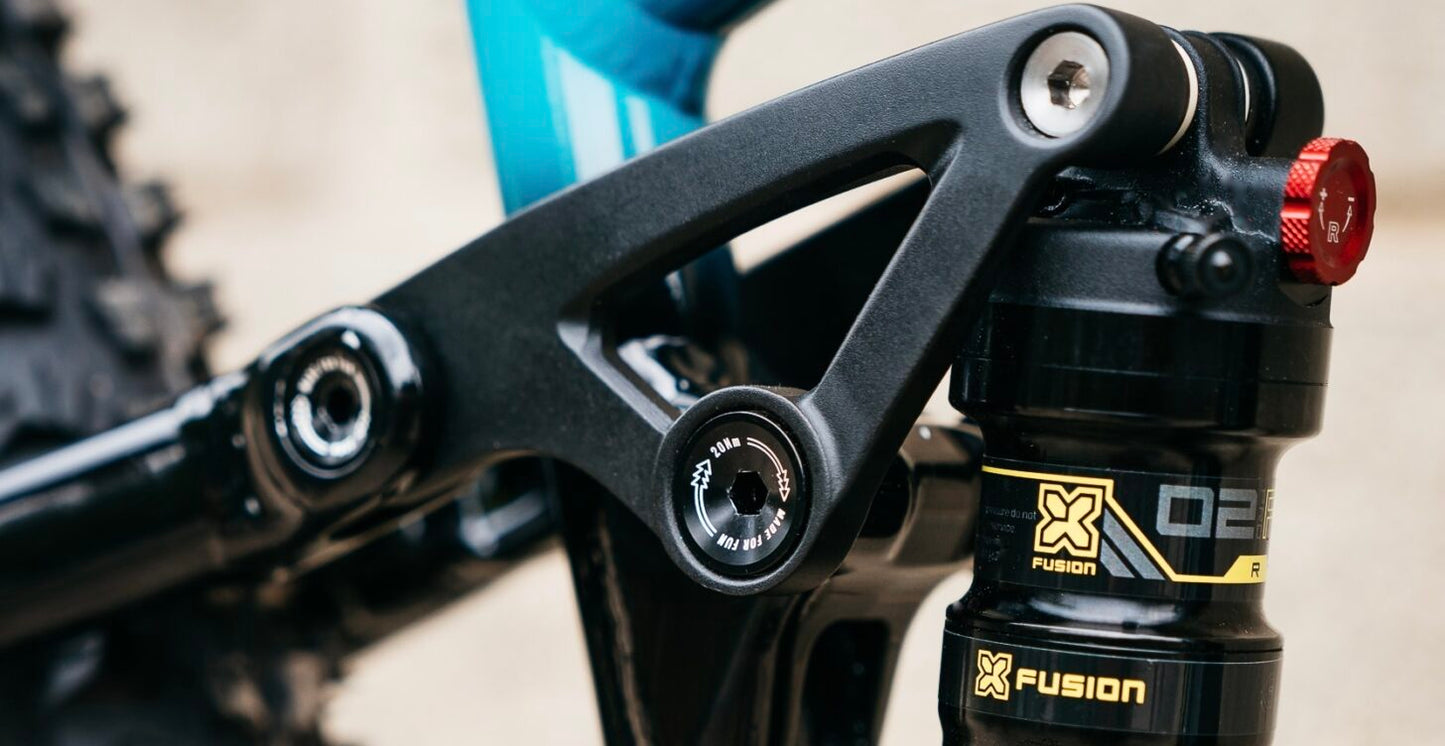

• REAR SUSPENSION: X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware
• RIMS: Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
• HUB, REAR: Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
• HUB, FRONT: Forged Alloy, 100x15mm, Centerlock Disc, 32H
• SPOKE, NIPPLES: 14g Stainless Steel
• TIRES: Vee Tire Co, Flow Snap 24x2.4", Tackee Compound, Wire Bead
• DERAILLEUR, REAR: Shimano Deore, 11 Speed, SGS
• SHIFT LEVER: Shimano Deore, 11-Speed, SL-5100R
• CRANKSET: Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type
• BOTTOM BRACKET: External Sealed Cartridge Bearings
• CHAIN: KMC X-11 Silver and Black
• CASSETTE: SunRace, 11-Speed, 11-51T, ED Black
• BRAKE, FRONT: Shimano MT-201 Hydraulic Disc, 180mm Rotor
• BRAKE, REAR: Shimano MT-201 Hydraulic Disc, 160mm Rotor
• BRAKE LEVERS: Shimano BL-MT201 Hydraulic
• HANDLEBAR: Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back
• STEM: Marin 3D Forged Alloy, 35mm
• GRIPS: Marin Dual Density
• HEADSET: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
• SEATPOST: Marin Alloy, 30.9mm
• SADDLE: Marin Speed Concept

Specifications, pricing, and availability are subject to change without notice.
