Marin Pine Mountain 2 29 - Black - 2023

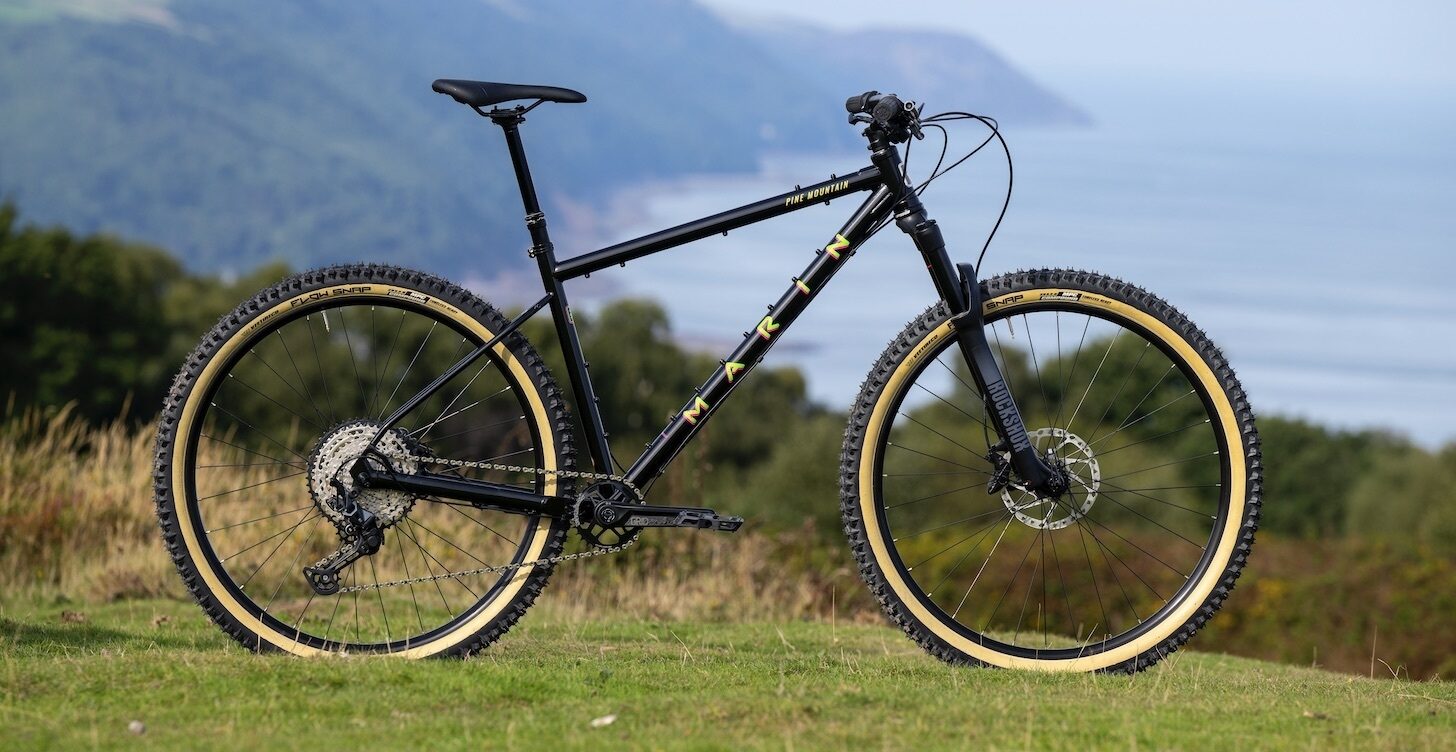

The Pine Mountain is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.

Key upgrades over the Pine Mountain 1:

  • Series 3 CrMo frame w/12x148mm custom cast thru-axle dropouts
  • RockShox FS 35 fork
  • Shimano SLX 12 speed drivetrain & FSA Grid crankset
  • Shimano MT520 brake

TECHNOLOGY:

STEEL IS REAL

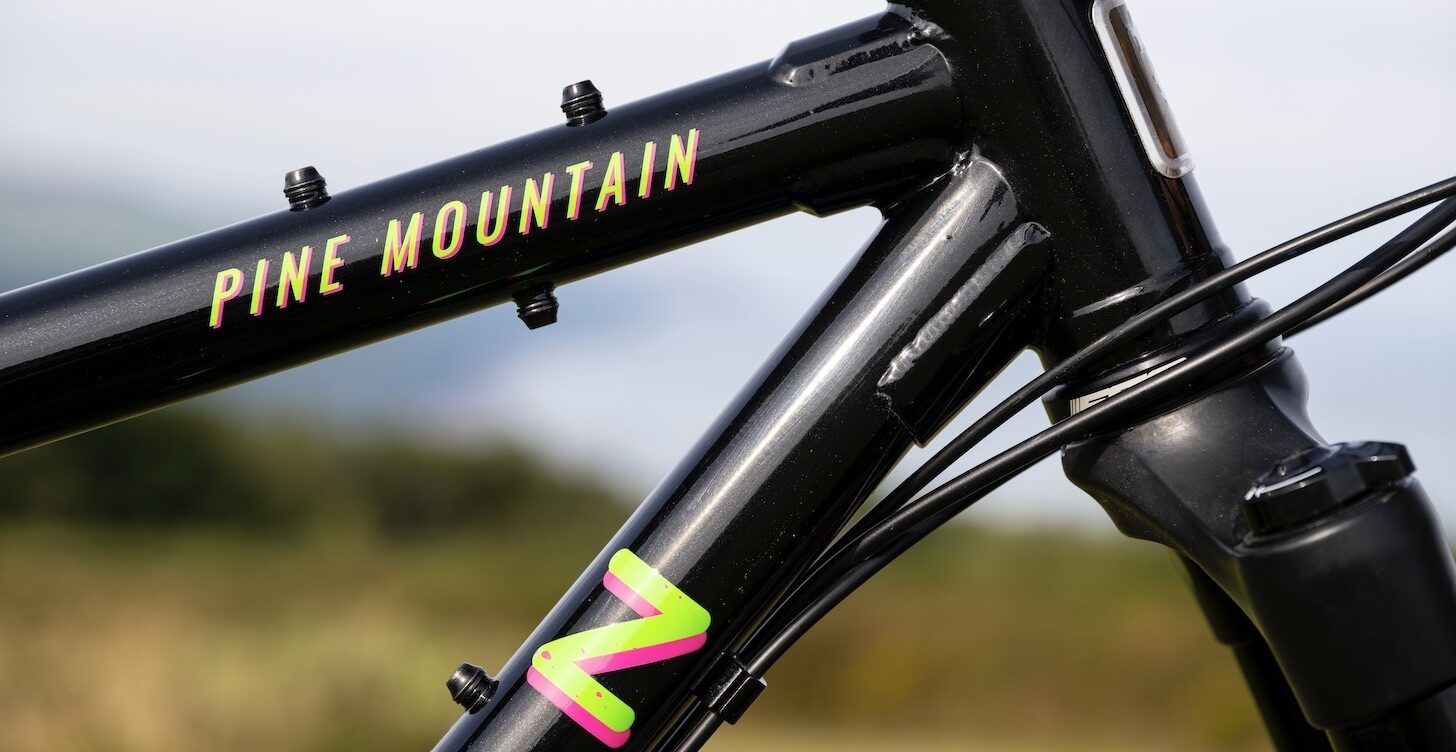

The Pine Mountain 2 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options. Step up to Series 3 tubing and cast thru-axle dropouts with the Pine Mountain 2. Both Pine Mountain models feature internal dropper post routing.

BIKEPACKING ABILITIES
The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy. Available exclusively on the Pine Mountain and Pine Mountain E series.

TRAIL GEOMETRY
The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.

TUBELESS READY 29”
Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip singletrack.

keyboard_arrow_right Specifications

  • FRAME: Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
  • FRONT SUSPENSION: RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
  • RIMS: Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
  • HUB, REAR: Shimano, Microspline 148x12mm, Disc, 32H
  • HUB, FRONT: Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H
  • SPOKE, NIPPLES: 14g Black Stainless Steel
  • TIRES: Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
  • DERAILLEUR, REAR: Shimano SLX 12-Speed
  • SHIFT LEVER: Shimano SLX 12-Speed
  • CRANKSET: FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
  • BOTTOM BRACKET: FSA Outboard Cartridge Bearings
  • CHAIN: KMC X12
  • CASSETTE: Shimano SLX M7100 Cassette, 12-Speed, 10-51T
  • BRAKE, FRONT: Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor
  • BRAKE, REAR: Shimano MT500, 2-Piston, Hydraulic Disc, 180mm Rotor
  • BRAKE LEVERS: Shimano MT500 Hydraulic
  • HANDLEBAR: Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
  • STEM: Marin 3D Forged Alloy, 35mm
  • GRIPS: Marin Bear Paw Locking
  • HEADSET: FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST: TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
  • SADDLE:Marin Pine Mountain Trail
  • PEDALS: Nylon Platform
  • EXTRAS: Bolt-On Thru-Axle

Specifications, pricing, and availability are subject to change without notice.
