LIGHT TOURING

URBAN DROPBAR

Tough, fast rigs for urban riding, the Lombard can take you to work day in and day out to your get you to your destination, and take abuse without blinking. Bulit-in reflectivity keeps you visible from all directions, and thanks to the durable components and higher-volume tires, you can treat the city like a playground.

TECHNOLOGY

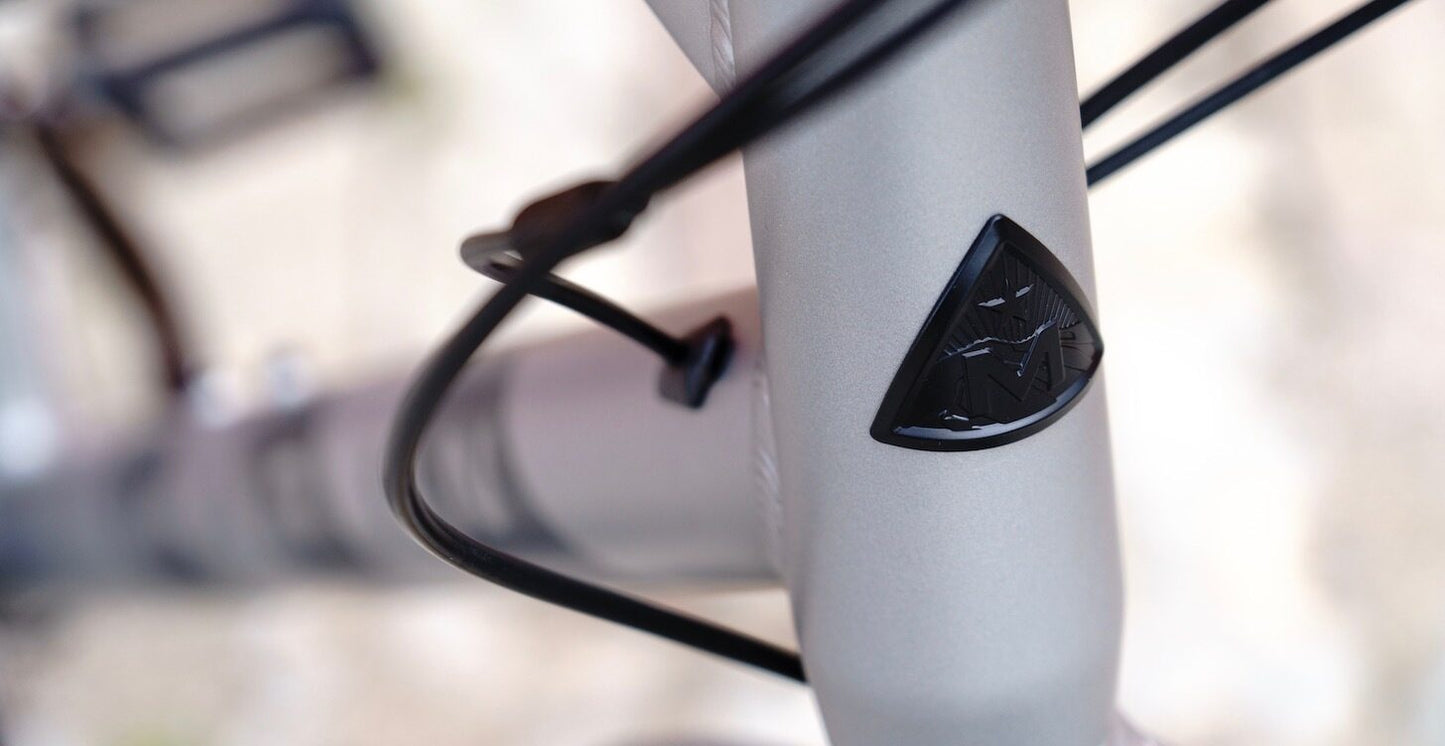

SERIES 3 OR SERIES 2 ALUMINUM FRAME: The Lombard 2 features a Series 3 aluminum frame and carbon fork with thru-axles while the Lombard 1 features a Series 2 aluminum frame and aluminum fork. Both models have internal cable routing and reflective frame graphics.

LARGE VOLUME COMMUTING TIRES: The Lombard features 700Cx40mm tires with puncture protection, with clearance for up to 700Cx45mm tires,
that provide excellent traction and comfort across multiple surfaces while remaining fast and efficient.

WIDE-RANGE DRIVETRAINS: 18 and 20-speed wide-range Shimano drivetrains are geared low enough to haul gear and conquer steep climbs, and high enough to set personal speed records.

DISC BRAKES: The hydraulic disc brakes on Lombard 2 and mechanical disc brakes on Lombard 1 keep the bike in control,
providing stopping power through any conditions and requiring minimal maintenance to throughout the season.

SPECIFICATIONS

• FRAME: Series 2 Lombard, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
• FORK: 6061 Aluminum, Straight-Blade, Post-Mount Disc
• RIMS: Marin Aluminum Double Wall, 21mm Inner
• HUB, REAR: Forged Aluminum Alloy, Disc, 32H
• HUB, FRONT: Forged Aluminum Alloy, Disc, 32H
• SPOKE, NIPPLES: 14g Black Stainless Steel
• TIRES: Vee Tire Co., G-Sport, 700Cx40mm, Puncture Protection
• DERAILLEUR, REAR: Shimano Sora 9-Speed
• DERAILLEUR, FRONT: Shimano Sora
• SHIFT LEVER: Shimano Sora 2x9-Speed
• CRANKSET: Marin 3D Forged Alloy, 48/32T Chainrings, Ring Guard
• BOTTOM BRACKET: Sealed Cartridge Bearings, Square Taper
• CHAIN: KMC X9
• CASSETTE: Shimano HG-200, 11-34T

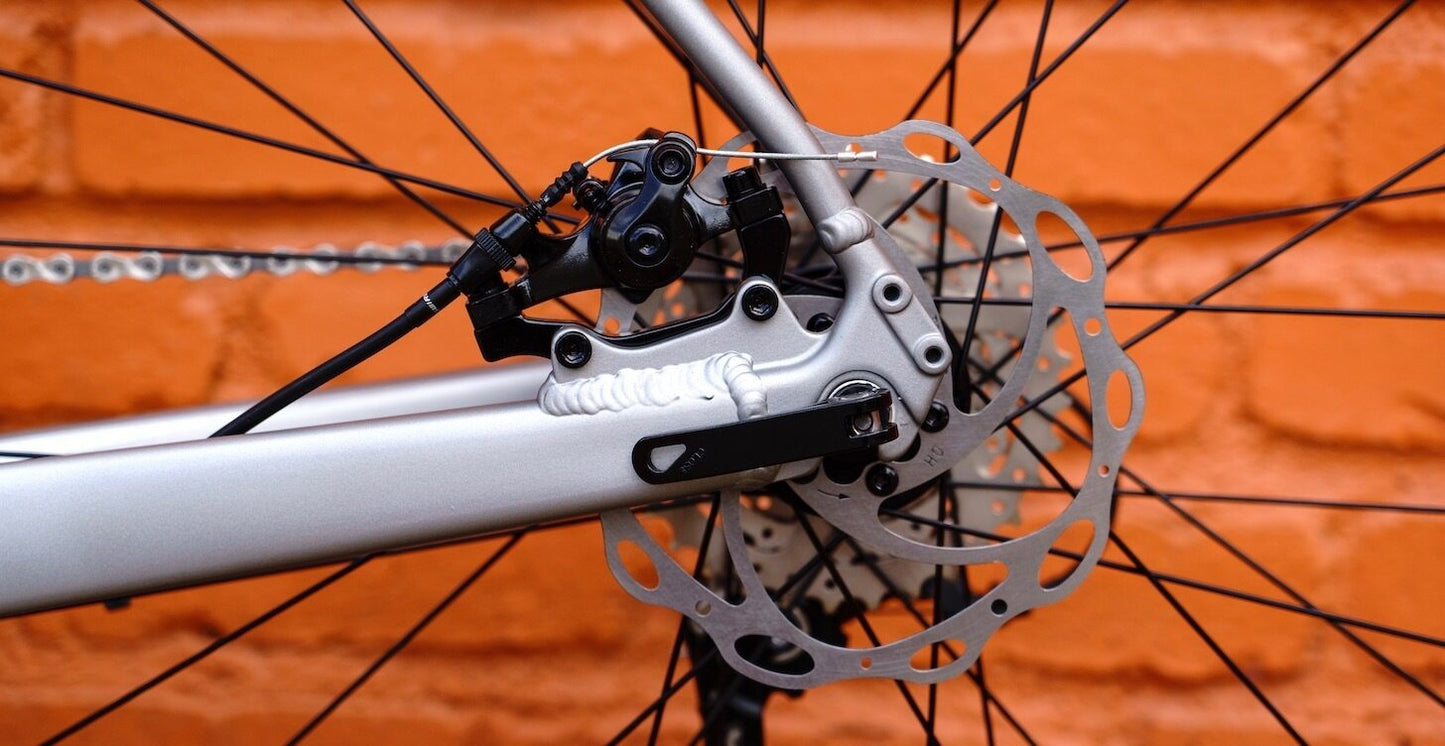

• BRAKE, FRONT: Tektro Road Mechanical Disc, 160mm Rotor
• BRAKE, REAR: Tektro Road Mechanical Disc, 160mm Rotor
• BRAKE LEVERS: Shimano Sora 9-Speed STI
• HANDLEBAR: Marin Butted Alloy, Compact 16º Flared Drop
• STEM: Marin 3D Forged Alloy
• GRIPS: Marin Microfiber Tape
• HEADSET: FSA No.8B
• SEATPOST: Marin Alloy, 27.2mm
• SADDLE: Marin Beyond Road Concept
• PEDALS: Marin Oso OEM Nylon Platform

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY
